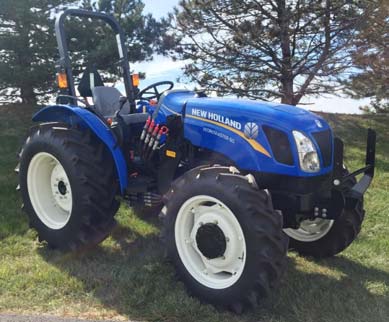

New Holland Workmaster 60 Specs ( 2015-Present )
Overview
The New Holland Workmaster 60 is a utility farm tractor produced from 2015 to the present, featuring a 60 hp FPT 2.2L 3-cylinder turbocharged diesel engine. It is equipped with an 8-speed synchronized shuttle transmission and offers both two-wheel and four-wheel drive configurations with a rear lift capacity of 2,701 lbs at 24 inches. The tractor utilizes an open center hydraulic system with a total flow rate of 17.5 gpm.
Ideal Applications
Tested PTO Performance:
Nebraska Tractor Test results recorded a maximum PTO output of 48.72 hp from the three-cylinder turbocharged engine, compared to the manufacturer's 51 hp claim.
Hydraulic and Hitch Specifications:
The tractor is equipped with a Category II/I hitch featuring telescoping draft links and an open center hydraulic system with a 12 gpm pump flow.
Chassis and Drive Configuration:
The model is available in 2WD and 4WD variants with weights ranging from 4,442 to 5,059 pounds and includes a two-post folding ROPS and wet disc brakes.
Production
| Description | Utility tractor / Original price was $24,966 in 2017 |
|---|---|
| Manufacturer | New Holland (a part of CNH) |
Engine
| Engine type | FPT 2.2L 3-cyl diesel |
|---|---|
| Fuel tank | 13.8 gal (52.2 L) |
| Bore/Stroke | 3.70x4.21 inches (94 x 107 mm) |
| Description | FPT R753 / turbocharged diesel / 3-cylinder / liquid-cooled |
| Displacement | 136 ci (2.2 L) |
| Emission control | exhaust gas recirculation with particulate catalyst |
| Emissions | Tier IV |
| Fuel system | electronic high-pressure common rail direct injection |
| Power | 60 hp (44.7 kW) |
| Rated RPM | 2600 |
| Starter | electric |
| Starter volts | 12 |
| PTO (claimed) | 51 hp (38.0 kW) |
Transmission
| Gears | 8 forward and reverse |
|---|---|
| Transmission type | 8-speed synchronized shuttle |
| Type | synchronized shuttle |
Mechanical
| Description | Power steering / Wet disc brakes / Two-post folding ROPS. |
|---|---|
| Drive type | Two- or four-wheel drive |
Hydraulics
| Pump flow | 12 gpm (45.4 lpm) |
|---|---|
| Steering flow | 5.5 gpm (20.8 lpm) |
| Total flow | 17.5 gpm (66.2 lpm) |
| Type | open center |
| Valves | 1 or 2 |
Hitch
| Control | position and draft control |
|---|---|
| Rear Arms | telescoping draft links |
| Rear lift (at 24"/610mm) | 2701 lbs (1225 kg) |
| Rear lift (at ends) | 3307 lbs (1500 kg) |
| Rear Type | II/I |
PTO
| Clutch | mechanical |
|---|---|
| Rear PTO | independent |
| Rear PTO Type | 540 |
Electrical
| Battery volts | 12 |
|---|---|
| Charging amps | 75 |
| Charging system | alternator |
| Ground | negative |
Dimensions & Tires
| 2WD Length | 129.5 inches (328 cm) |
|---|---|
| 2WD Weight | 4442 lbs (2014 kg) |
| 2WD Wheelbase | 96.4 inches (244 cm) |
| 4WD Length | 134 inches (340 cm) |
| 4WD Weight | 5059 lbs (2294 kg) |
| 4WD Wheelbase | 97.6 inches (247 cm) |
| Description | Flange rear axle |
| Height (ROPS) | 97.6 inches (247 cm) |
| Width | 77.5 inches (196 cm) |
| 2WD Rear tire | 14.9x28 |
| 2WD Wheelbase | 96.4 inches (244 cm) |
| 4WD Wheelbase | 97.6 inches (247 cm) |
| Front tire | 7.5x16 |
| Weight | 4442 to 5059 pounds |
| 2WD Standard tires (ag) | Front: 7.5x16. Rear: 14.9x28 |
| 4WD Standard tires (ag) | Front: 9.5x24. Rear: 14.9x28 |
| Industrial front | 12.5x18 |
| Industrial rear | 18.4x24 |
New Holland Workmaster 60 attachments
| Description | front-end loader / backhoe |
|---|
References
| Description | Under 60-HP Tractors published in 2017, by New Holland / Workmaster Series Tractors published in 2015, by New Holland |
|---|
Nebraska Tractor Test Results
Test #2199A
Test Date:
August 29, 2018
Location:
Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln Nebraska 68583-0832
This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.
Maximum Power & Fuel Consumption
Max Power (1 Hour)
48.72 hp
@ 2099 rpm
Rated Engine Speed
46.76 hp
N/A lb/hp·hr
Standard PTO Speed
47.91 hp
@ N/A rpm PTO
Torque Statistics
| Maximum Torque | 130 lb-ft (177 Nm) |
|---|---|
| Torque Rise | 37.9% |
PTO Power Curve
Maximum Power & Fuel Consumption Details
| Condition | HP | kW | RPM |
|---|---|---|---|
| Maximum Power (1 Hour) | 48.72 | 36.33 | 2099 |
Varying Power & Fuel Consumption
Click column headers to sort
| Power | RPM | gal/hr | lb/hp·hr | hp·hr/gal | DEF gal/hr |
|---|---|---|---|---|---|
| 46.76 | 2599 | 3.94 | 0.59 | N/A | N/A |
| 40.42 | 2645 | 3.59 | 0.62 | N/A | N/A |
| 30.68 | 2675 | 2.90 | 0.66 | N/A | N/A |
| 20.56 | 2695 | 2.33 | 0.79 | N/A | N/A |
| 10.35 | 2708 | 1.90 | 1.28 | N/A | N/A |
| 0.48 | 2718 | 1.45 | 21.03 | N/A | N/A |
