New Holland TS6.140 Specs ( 2012-Present )

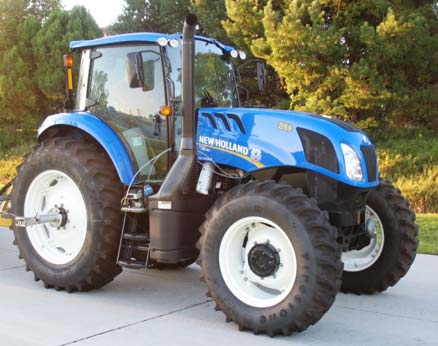

Name: New Holland TS6.140
Brand: New Holland

Compare Tractor

Nebraska Test #2159

NEW HOLLAND TS6.140

Max Drawbar HP 107.3 hp

Max Pull 9,141 lbs

Max Torque 419 lb-ft

View Full Test Data →

Overview

The New Holland TS6.140 is a row-crop tractor produced from 2012 to the present, featuring a 6.7L 6-cylinder FPT diesel engine rated at 139 gross horsepower. This model is available in two-wheel or four-wheel drive configurations with either a two-post foldable ROPS or an optional climate-controlled cab.

Ideal Applications

Tested Power Output: The Nebraska Tractor Test recorded a maximum of 122.93 PTO horsepower and 107.3 drawbar horsepower with a maximum pull of 9,141 lbs.

Hydraulic and Hitch Capacity: Equipped with a Category II rear hitch, this tractor provides 3,600 lbs of lift capacity at 24 inches supported by a 13 gpm pump flow and 9 gpm steering flow.

Transmission and PTO Layout: Mechanical options include 8-speed shuttle or 16-speed DualPower transmissions paired with an independent 540/1000 RPM rear PTO using a wet disc clutch.

Production

Description	Row-Crop tractor
Manufacturer	New Holland
Original price	$59,341 (2014 Mech Shuttle ROPS 2WD )

Engine

Engine type	FPT 6.7L 6-cyl diesel
Fuel tank	62 gal (234.7 L)
Bore/Stroke	4.094x5.197 inches (104 x 132 mm)
Description	FPT / turbocharged intercooled diesel / 6-cylinder / liquid-cooled
Displacement	410.6 ci (6.7 L)
Emissions	Tier III
Power (gross)	139 hp (103.7 kW)
Starter	electric
Starter volts	12
Engine (gross)	139 hp (103.7 kW)
PTO (claimed)	115 hp (85.8 kW)

Transmission

Clutch	dry disc / wet disc
Gears	8 forward and reverse / 8 forward and reverse / 16 forward and 8 reverse
Transmission	DualPower
Type	mechanical shuttle / power shuttle
Transmission type	8-speed mechanical shuttle / 8-speed power shuttle / 16-speed
Transmission type	8-speed mechanical shuttle / 8-speed power shuttle / 16-speed

Mechanical

Cab	Two-post foldable ROPS. Cab optional with air-conditioning.
Drive type	Two- or four-wheel drive

Hydraulics

Pump flow	13 gpm (49.2 lpm)
Rear valves	2 to 4
Steering flow	9 gpm (34.1 lpm)

Hitch

Control	top link draft sensing
Rear lift (at 24"/610mm)	3600 lbs (1632 kg)
Rear Type	II

PTO

Clutch	wet disc
Rear PTO	independent
Rear PTO Type	540/1000

Electrical

Battery CCA	950
Battery volts	12
Charging amps	120
Charging system	alternator
Ground	negative

Dimensions & Tires

Description	Flange rear axle / Bar rear axle
Front tread	56 to 80 inches (2WD) (142 to 203 cm) / 64 to 80 inches (4WD) (162 to 203 cm)
Rear tread	64 to 80 inches (flange) (162 to 203 cm) / 62 to 92 inches (bar) (157 to 233 cm)
Weight	7524 to 8847 pounds

New Holland TS6.140 Height

Cab	111 inches (281 cm)
Exhaust	116 inches (294 cm)
ROPS	116 inches (294 cm)

New Holland TS6.140 Weight

Shipping	7524 lbs (2WD ROPS) (3412 kg)

New Holland TS6.140 attachments

Description	front-end loader

Nebraska Tractor Test Results

Test #2159

Download PDF

Test Date: August 31 to September 7, 2016

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

122.93 hp

@ 1890 rpm

Rated Engine Speed

118.06 hp

N/A lb/hp·hr

Standard PTO Speed

122.93 hp

@ 540 rpm PTO

Torque Statistics

Maximum Torque	419 lb.-ft. (567 Nm) at 1502 rpm
Torque Rise	48.6%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM
Rated Engine Speed	118.06	88.04	2201	629
Standard PTO Speed (1000 rpm)	122.93	91.67	1890	540
Maximum Power (1 Hour)	122.93	91.67	1890

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
118.06	2201	7.22	0.43	16.36	0.49
102.11	2241	6.50	0.45	15.70	0.43
77.50	2268	5.39	0.49	14.39	0.36
52.41	2297	4.34	0.58	12.09	0.24
26.51	2325	3.27	0.86	8.11	0.15
0.96	2349	2.30	16.86	0.42	0.00

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	Pull (lbs)	Speed	Slip	Air °F
Power at Rated Engine Speed—8th (L4R) Ge...	100.47	6,421	5.87	7.50	69
75% of Pull at Rated Engine Speed—8th (L...	79.35	4,813	6.18	4.90	76
50% of Pull at Rated Engine Speed—8th (L...	54.72	3,212	6.39	3.00	77
75% of Pull at Reduced Engine Speed—10th...	79.44	4,810	6.19	4.40	78
50% of Pull at Reduced Engine Speed—10th...	54.65	3,191	6.42	2.60	77

Unballasted Front Drive Engaged 1890 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	Air °F	Barometer Inch Hg	Crank Shaft RPM	Fuel Lb Hp Hr	Temp Cooling F
5th (L3T) Gear	79.39	9,141	3.26	15.00	12.09	0.04	71	28.94	2240	0.58	182
6th (L3R) Gear	93.79	8,853	3.98	13.70	13.01		70	28.95	2200	0.54	182
7th (L4T) Gear	97.24	8,091	4.51	11.20	13.45	0.04	69	28.93	2160	0.52	182
8th (L4R) Gear	102.66	7,925	4.86	10.60	14.88	0.04	70	28.95	1890	0.47	180
9th (H1T) Gear	104.01	7,021	5.56	8.40	15.06	0.04	73	28.94	1890	0.47	181
10th (H1R) Gear	107.30	5,764	6.98	6.20	15.59	0.04	74	28.94	1890	0.45	182
11th (H2T) Gear	105.00	4,643	8.48	4.30	15.27	0.04	75	28.93	1889	0.46	182

Unballasted Front Drive Engaged Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	Air °F	Barometer Inch Hg	Crank Shaft RPM	Fuel Lb Hp Hr	Temp Cooling F
5th (L3T) Gear	79.30	9,118	3.27	15.00	12.07	0.04	71	28.93	2241	0.58	182
6th (L3R) Gear	93.73	8,837	3.98	13.70	13.00		70	28.94	2202	0.54	182
7th (L4T) Gear	96.12	7,793	4.63	10.60	13.32	0.04	70	28.95	2200	0.53	182
8th (L4R) Gear	100.47	6,421	5.87	7.50	13.94	0.03	69	28.96	2200	0.50	182
9th (H1T) Gear	101.21	5,740	6.61	6.50	14.03	0.04	72	28.94	2200	0.50	182
10th (H1R) Gear	102.64	4,668	8.25	4.80	14.25	0.03	74	28.93	2200	0.49	183

Engine

Make	F.P.T. NEF Diesel
Type	Four cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	274 cu in (4485 ml)
Bore & Stroke	4.094" x 5.197" (104.0 mm x 132.0 mm)
Compression Ratio	17.0 to 1
Rated Engine Speed	2200 rpm
Air Cleaner	two paper elements
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist
Steering	hydrostatic
Transmission	selective gear fixed ratio with partial (2) range operator controlled powershift
Speeds	16 forward (24.27 mph max)
Wheelbase	103.50 in (2630 mm)
Front Tread Width	64.0" (1625 mm) to 86.0" (2184 mm) in
Rear Tread Width	64.0" (1625 mm) to 93.0" (2360 mm) in
Brakes	single wet disc operated by two foot pedals which can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	11,100 lbs ( 5,035 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Engine Oil	SAE 10W30

Sound Levels

Bystander	87.00 dB(A)
At No Load 7th L4t Gear Fwd Disengaged	80.10 dB(A)
At No Load 7th L4t Gear Fwd Engaged	80.00 dB(A)

Tires & Tracks

Rear Tires	Two 18.4-38; 8; 16(110)
Front Tires	Two 14.9-28; 8; 16(110)
Height of Drawbar	23.0 in (585 mm)

Static Weight

Rear	6,915 lbs
Front	4,360 lbs
Total	11,275 lbs
