New Holland TS6.110 Specs ( 2012-Present )

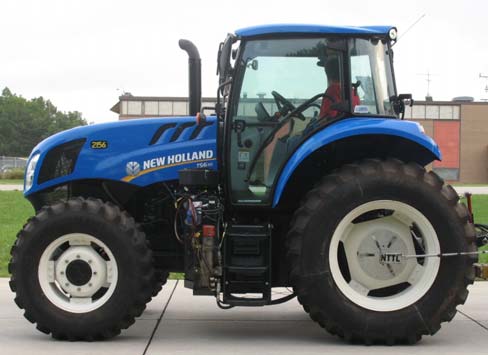

Name: New Holland TS6.110
Brand: New Holland

Overview

The New Holland TS6.110 is a row-crop farm tractor produced from 2012 to the present, featuring a 4.5L 4-cylinder FPT turbocharged intercooled diesel engine. This model is available in two- or four-wheel drive configurations and offers multiple transmission options including 8-speed mechanical shuttle, 8-speed power shuttle, and 16-speed layouts.

Ideal Applications

Tested Performance Metrics: Nebraska Tractor Test data recorded a maximum PTO output of 94.93 hp and a maximum drawbar pull of 8,485 lbs from the FPT NEF diesel engine.

Hydraulic and Hitch Configuration: The system is equipped with a 13 gpm pump flow, two to four rear valves, and a Type II rear hitch with top link draft sensing rated for 3600 lbs of lift.

Dimensional and Chassis Specifications: The tractor features adjustable front treads ranging from 56 to 80 inches on 2WD models and rear tread widths up to 92 inches when equipped with a bar axle.

Production

Description	Row-Crop tractor
Manufacturer	New Holland
Original price	$45,289 (2014 Mech Shuttle ROPS 2WD )

Engine

Engine type	FPT 4.5L 4-cyl diesel
Fuel tank	39.6 gal (149.9 L)
Bore/Stroke	4.094x5.197 inches (104 x 132 mm)
Description	FPT / turbocharged intercooled diesel / 4-cylinder / liquid-cooled
Displacement	273.7 ci (4.5 L)
Emissions	Tier III
Power (gross)	110 hp (82.0 kW)
Starter	electric
Starter volts	12
Engine (gross)	110 hp (82.0 kW)
PTO (claimed)	90 hp (67.1 kW)

Transmission

Clutch	dry disc / wet disc
Gears	8 forward and reverse / 8 forward and reverse / 16 forward and 8 reverse
Transmission	DualPower
Type	mechanical shuttle / power shuttle
Transmission type	8-speed mechanical shuttle / 8-speed power shuttle / 16-speed
Transmission type	8-speed mechanical shuttle / 8-speed power shuttle / 16-speed

Mechanical

Cab	Two-post foldable ROPS. Cab optional with air-conditioning.
Drive type	Two- or four-wheel drive

Hydraulics

Pump flow	13 gpm (49.2 lpm)
Rear valves	2 to 4
Steering flow	9 gpm (34.1 lpm)

Hitch

Control	top link draft sensing
Rear lift (at 24"/610mm)	3600 lbs (1632 kg)
Rear Type	II

PTO

Clutch	wet disc
Rear PTO	independent
Rear PTO Type	540/1000

Electrical

Battery CCA	950
Battery volts	12
Charging amps	120
Charging system	alternator
Ground	negative

Dimensions & Tires

Description	Flange rear axle / Bar rear axle
Front tread	56 to 80 inches (2WD) (142 to 203 cm) / 64 to 80 inches (4WD) (162 to 203 cm)
Length	166 inches (2WD) (421 cm)
Rear tread	64 to 80 inches (flange) (162 to 203 cm) / 62 to 92 inches (bar) (157 to 233 cm)
Weight	7524 to 8847 pounds

New Holland TS6.110 Height

Cab	111 inches (281 cm)
Exhaust	116 inches (294 cm)
ROPS	116 inches (294 cm)

New Holland TS6.110 Weight

Shipping	7524 lbs (2WD ROPS) (3412 kg)

New Holland TS6.110 attachments

Description	front-end loader

Nebraska Tractor Test Results

Test #2156

Download PDF

Test Date: August 30 to September 7, 2016

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

94.93 hp

@ 1750 rpm

Rated Engine Speed

92.57 hp

N/A lb/hp·hr

Standard PTO Speed

94.56 hp

@ 539 rpm PTO

Torque Statistics

Maximum Torque	348 lb-ft (472 Nm)
Torque Rise	57.7%
At Engine RPM	1249 rpm

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM	Fuel gal/hr	Fuel L/hr	DEF gal/hr	DEF L/hr
Rated Engine Speed	92.57	69.03	2201		5.90	22.32	0.40	1.50
Standard PTO Speed (1000 rpm)	94.56	70.51	1890	539	5.42	20.50	0.37	1.38
Maximum Power (1 Hour)	94.93	70.79	1750		5.22	19.76	0.32	1.21

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
92.57	2201	5.90	0.45	15.70	0.40
79.84	2238	5.36	0.47	14.89	0.34
60.86	2267	4.57	0.53	13.33	0.27
41.15	2299	3.75	0.64	10.99	0.21
20.84	2320	3.05	1.03	6.38	0.12
1.69	2344	2.25	9.33	0.75	0.08

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	kW	Pull (lbs)	Pull (kN)	Speed	Slip	Air °F	Cool °F
Power at Rated Engine Speed—5th (H1) Gea...	80.30	59.88	5,166	23	5.83	5.60	75	183
75% of Pull at Rated Engine Speed—5th (H...	62.74	46.78	3,873	17	6.08	3.80	78	183
50% of Pull at Rated Engine Speed—5th (H...	43.24	32.24	2,587	12	6.27	2.20	79	183
75% of Pull at Reduced Engine Speed—6th ...	62.81	46.84	3,879	17	6.08	3.70	80	180
50% of Pull at Reduced Engine Speed—6th ...	43.21	32.22	2,565	11	6.32	2.10	79	179

Unballasted Front Drive Engaged 1750 RPM

Click column headers to sort

Gear	Power	kW	Pull (lbs)	Pull (kN)	Speed	RPM	Slip	DEF lb/hp	inHg	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Speed Km H	Temp Air F	Temp Cool F
3rd (L3)	68.08	50.76	8,478	37.71	3.02	2215	14.60	0.04	28.91	11.85	0.59	4.85	81	184
4th (L4)	78.44	58.49	7,005	31.16	4.20	2100	9.50	0.05	28.90	13.54	0.52	6.76	73	183
5th (H1)	81.16	60.52	6,164	27.42	4.94	1900	7.40	0.04	28.91	14.88	0.47	7.95	76	182
6th (H2)	81.53	60.80	4,222	18.78	7.24	1750	4.50	0.04	28.92	15.67	0.45	11.65	72	181

Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	kW	Pull (lbs)	Pull (kN)	Speed	RPM	Slip	DEF lb/hp	inHg	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Speed Km H	Temp Air F	Temp Cool F
3rd (L3)	68.02	50.72	8,485	37.74	3.01	2216	14.80	0.05	28.90	11.85	0.59	4.84	80	184
4th (L4)	77.74	57.97	6,547	29.12	4.45	2200	8.70		28.90	13.24	0.53	7.16	73	183
5th (H1)	80.30	59.88	5,166	22.98	5.83	2200	5.60		28.90	13.68	0.51	9.38	75	183
6th (H2)	79.47	59.26	3,231	14.37	9.23	2200	3.00		28.90	13.55	0.52	14.85	76	183

Category: II Quick Attach: None

Two Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Hitch Dimensions (No Load)

Dimension	Inches	mm

Engine

Make	F.P.T NEF Diesel
Type	Four cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	274 cu in (4485 ml)
Compression Ratio	17.0 to 1
Rated Engine Speed	2200 rpm
Air Cleaner	two paper elements
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist
Steering	hydrostatic
Transmission	selective gear fixed ratio
Speeds	8 forward (17.82 mph max)
Wheelbase	99.30 in (2521 mm)
Front Tread Width	64.0 to 66.0 in
Rear Tread Width	64.0 to 78.0 in
Brakes	single wet disc operated by two foot pedals which can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	10,245 lbs ( 4,647 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Engine Oil	SAE 10W30

Tires & Tracks

Rear Tires	Two 18.4-34; 8 ply; 16 psi (110 kPa)
Front Tires	Two 14.9-24; 6 ply; 16 psi (110 kPa)
Height of Drawbar	21.00 in (535 mm)

Static Weight

Rear	6,120 lbs
Front	4,300 lbs
Total	10,420 lbs
