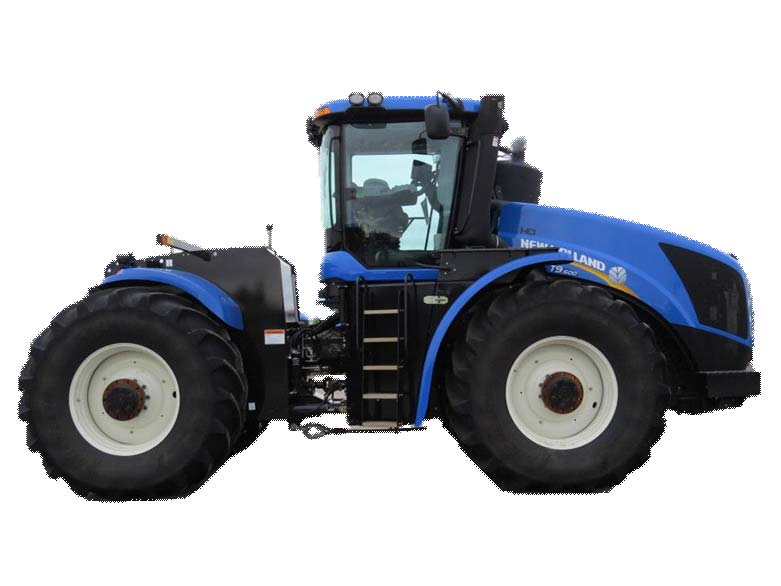

New Holland T9.600 Specs ( 2014-2023 )

Name: New Holland T9.600
Brand: New Holland

Overview

The New Holland T9.600 is a 4WD articulated farm tractor produced in Fargo, North Dakota, between 2014 and 2023. It is powered by a 12.9L FPT 6-cylinder diesel engine with a rated gross power of 535 hp and features a 17-speed Ultra Command full power shift transmission. The tractor is configured with a 154-inch wheelbase and utilizes a Tier IV emission control system with selective catalytic reduction.

Ideal Applications

Tested Performance Metrics: Official testing recorded a maximum PTO power of 539.81 hp and a maximum drawbar pull of 48,640 lbs when using the Ultra Command transmission.

Hydraulic Pump Options: The closed center load sensing hydraulic system can be configured with standard 42 gpm, high-flow 57 gpm, or 113 gpm MegaFlow pump capacities.

Physical Dimensions and Loading: The machine has a shipping weight of 44,046 lbs and a maximum allowable weight of 56,000 lbs, supported by 4.5-inch front and rear bar axles.

Production

Description	Built in Fargo, North Dakota, USA
Drive type	Four-wheel Drive (4WD) tractor
Manufacturer	New Holland (a part of CNH)

Engine

Engine type	FPT 12.9L 6-cyl diesel
Exhaust fluid (DEF)	66 gal (249.8 L)
Fuel tank	324 gal (1226.3 L)
Bore/Stroke	5.31x5.91 inches (135 x 150 mm)
Cooling system	hydraulic fan drive
Description	FPT Cursor 13 TST / two-stage turbocharged inter-cooled and aftercooled diesel / 6-cylinder 24-valve / liquid-cooled
Displacement	787 ci (12.9 L)
Emission control	selective catalytic reduction with diesel oxidation catalyst
Emissions	Tier IV
Fuel system	electronic direct-injection high pressure common rail
Maximum Power (gross)	605 hp (451.1 kW)
Rated Power (gross)	535 hp (398.9 kW)
Rated RPM	2100
Starter	electric
Starter volts	24
Torque	1873 lb-ft (2539.8 Nm)
Torque RPM	1400
Drawbar (tested)	441.44 hp (329.2 kW)
Engine (gross)	535 hp (398.9 kW)
Engine (max)	605 hp (451.1 kW)
PTO (claimed)	473 hp (352.7 kW)
PTO (tested)	539.81 hp (402.5 kW)

Transmission

Gears	17 forward and 2 reverse
Transmission	Ultra Command
Transmission type	17-speed full power shift
Type	full power shift

Mechanical

Cab	Cab standard with air-condioning. Optional Comfort Ride cab suspension. ISOBUS compliant; Intelliview IV; IntelliSteer
Description	Wet disc brakes
Drive type	Four-wheel drive
Steering	hydrostatic power articulated
Trailer brakes	hydraulic OptOptional

Hydraulics

High-Flow Pump flow	57 gpm (215.7 lpm)
MegaFlow Pump flow	113 gpm (427.7 lpm)
Standard Pump flow	42 gpm (159.0 lpm)
Type	closed center load sensing (CCLS)
Valves	4 to 8

Hitch

Control	position control
Drawbar	Cat. 4
Rear Arms	adjustable link ends
Rear lift (at 24"/610mm)	19621 lbs (8900 kg)
Rear Type	IVN OptOptional

PTO

Engine RPM	1000@1998 (early)
Rear PTO	independent
Rear PTO Type	1000 (1.75)

Electrical

Batteries	2
Battery CCA	1000
Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Bar rear axle	4.5 by 120 inches (114 by 3048 mm)
Front axle	Bar: 4.5 by 120 inches (114 by 3048 mm)
Height (cab)	156 inches (396 cm)
Length	295 inches (749 cm)
Max weight	56000 lbs (25401 kg)
Shipping weight	44046 lbs (19979 kg)
Wheelbase	154 inches (391 cm)
Width	120 inches*Minimum (304 cm)
Front tire	710/70
Rear tire	710/70
Weight	44046 lbs (19979 kg)
Wheelbase	154 inches (391 cm)
Ag front	710/70 R42
Ag rear	710/70 R42

OCED Tractor Test 2096A

Description	Diesel 16-speed 4WDSeptember 22 - 29, 2014Link: OCED Tractor Test 2096A file / PTO performance / Drawbar performance / Gear 5 used for power test. / Gear 1 used for pull test.
Fuel use	28.2 gal/hour (106.7 l/hour) / 26.6 gal/hour (100.7 l/hour) / 27.7 gal/hour (104.8 l/hour) / 26.6 gal/hour (100.7 l/hour)
Max power	539.81 hp (402.5 kW) / 441.44 hp (329.2 kW)
Max pull	48640 lbs (22063 kg)
Power at rated engine speed	477.75 hp (356.3 kW)
Power at rated PTO speed	535.05 hp (399.0 kW)

References

Description	T9 Series published in 2018, by New Holland

T9.600 Serial Numbers

2014	ZDFxxxxxx
2015	ZEFxxxxxx
2016	ZFFxxxxxx
2017	ZGFxxxxxx
2018	ZHFxxxxxx
2019	ZJFxxxxxx
2020	ZKFxxxxxx
2021	ZLFxxxxxx
Description	FAQ: How to read a serial number table.

Variants

Steiger 540	similar CaseIH model
T9.600	wheeled
T9.600 SmartTrax	crawler

Nebraska Tractor Test Results

Test #2096A

Download PDF

Test Date: September 22-29, 2014

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

539.81 hp

@ 1902 rpm

Rated Engine Speed

477.75 hp

N/A lb/hp·hr

Standard PTO Speed

535.05 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	1,771 lb-ft (2,402 Nm)
Torque Rise	48.3%
At Engine RPM	1400 rpm

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM	Fuel gal/hr	Fuel L/hr	DEF gal/hr	DEF L/hr
Rated Engine Speed	477.75	356.26	2101	1160	26.61	100.74	2.37	8.97
Maximum Power (1 Hour)	539.81	402.54	1902		28.23	106.84	2.72	10.29

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
477.75	2101	26.61	0.39	17.95	2.10
414.64	2146	23.95	0.41	17.31	1.97
312.88	2158	19.08	0.43	16.40	1.53
209.50	2167	14.32	0.48	14.63	1.11
105.39	2177	9.75	0.65	10.81	0.65
2.71	2186	5.48	14.22	0.49	0.24

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	Pull (lbs)	Speed	Slip
Maximum Power—5th Gear	441.44	30,445	5.44	2.90
75% of Pull at Maximum Power—5th Gear	341.84	22,818	5.62	2.10
50% of Pull at Maximum Power—5th Gear	230.64	15,197	5.69	1.40
75% of Pull at Reduced Engine Speed—9th ...	341.84	22,737	5.64	2.20
50% of Pull at Reduced Engine Speed—9th ...	230.46	15,201	5.69	1.40

Maximum Power In Selected Gears 2100 RPM

Click column headers to sort

Gear	Power	Speed	RPM	Slip	hp·hr/gal	DEF lb/hp	Barom In Hg	Fuel Lb Hp Hr	Pull Lbs	Temp Air F	Temp Cool F
1st	327.74	2.53	2151	11.50	14.80	0.05	28.90	0.47	48640	63	200
2nd	394.81	3.05	2138	10.90	15.20	0.05	28.90	0.46	48585	60	201
3rd	437.08	3.83	2099	5.60	16.40	0.05	28.90	0.43	42845	66	201
4th	438.93	4.70	2100	3.70	16.50	0.05	28.85	0.43	35033	72	200
5th	441.44	5.44	2100	2.90	16.59	0.05	28.86	0.42	30445	69	200
6th	443.42	5.99	2100	2.70	16.62	0.05	28.85	0.42	27753	69	201
7th	439.98	6.59	2101	2.40	16.49	0.05	28.86	0.43	25029	66	201
8th	441.58	7.25	2100	2.20	16.61	0.05	28.84	0.42	22837	72	199
9th	440.47	7.99	2099	1.90	16.54	0.05	28.85	0.43	20674	73	201

Maximum Power In Selected Gears 1900 RPM

Click column headers to sort

Gear	Power	Speed	RPM	Slip	hp·hr/gal	DEF lb/hp	Barom In Hg	Fuel Lb Hp Hr	Pull Lbs	Temp Air F	Temp Cool F
1st	329.12	2.53	2151	11.30	14.79	0.05	28.90	0.48	48719	62	201
2nd	395.53	3.07	2139	10.50	15.25	0.05	28.90	0.46	48406	60	200
3rd	449.50	3.65	2038	7.30	16.52	0.05	28.90	0.43	46206	65	201
4th	485.08	4.23	1926	5.70	17.25	0.05	28.90	0.41	43080	67	199
5th	493.76	4.86	1900	4.20	17.49	0.05	28.86	0.40	38103	69	203
6th	496.65	5.37	1900	3.60	17.60	0.05	28.85	0.40	34687	71	203
7th	495.12	5.92	1900	3.00	17.55	0.05	28.86	0.40	31354	67	203
8th	498.15	6.52	1899	2.80	17.67	0.05	28.84	0.40	28666	73	203
9th	496.22	7.20	1901	2.60	17.55	0.05	28.84	0.40	25879	73	204
10th	497.98	7.92	1900	2.30	17.61	0.05	28.83	0.40	23590	73	205

Category: IVN Quick Attach: yes

Lift Capacity

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	FPT Industrial Diesel
Type	six cylinder vertical with two turbochargers, two air to water intercoolers and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	786 cu in (12880 ml)
Compression Ratio	15.3 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) with a vertical muffler
Crankshaft	lengthwise

Chassis

Type	four wheel drive with duals
Steering	hydrostatic and articulated
Transmission	selective gear fixed ratio with full range operator controlled powershift
Speeds	18 forward (22.00 mph max)
Wheelbase	154.00 in (3911 mm)
Front Tread Width	83.4 (2118 mm) to 160.2 (4070 mm) in
Rear Tread Width	83.4 (2118 mm) to 160.2 (4070 mm) in
Brakes	wet disc hydraulically operated by foot pedal
Hydraulic Control	direct engine drive

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Engine Oil	SAE 10W40
Transmission	New Holland Mastertran Ultraction fluid

Tires & Tracks

Rear Tires	Four 800/70R38;***;8(55)
Front Tires	Four 800/70R38;***;12(85)
Height of Drawbar	22.50 in (570 mm)

Static Weight

Rear	20,250 lbs
Front	29,185 lbs
Total	49,435 lbs
