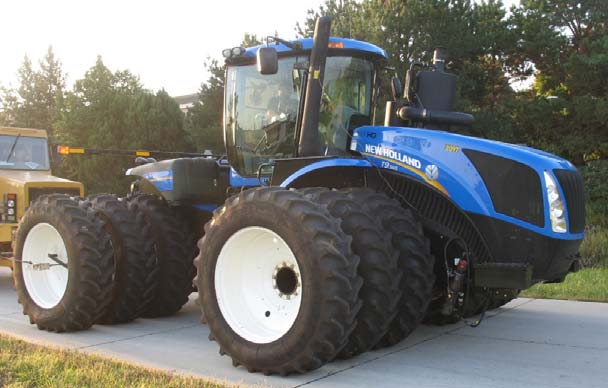

New Holland T9.565 Specs ( 2014-2023 )

Name: New Holland T9.565
Brand: New Holland

Overview

The New Holland T9.565 is a four-wheel drive farm tractor produced in Fargo, North Dakota, between 2014 and 2023. It features an FPT 12.9L 6-cylinder diesel engine with a rated gross power of 500 hp and an Ultra Command 17-speed full power shift transmission. The machine is configured with a 148-inch wheelbase and utilizes a closed center load sensing hydraulic system with up to eight valves.

Ideal Applications

Tested Performance Metrics: According to Nebraska Tractor Test 2097, the tractor reached a maximum tested PTO power of 504.56 hp and a maximum drawbar pull of 46,095 lbs.

Hydraulic System Output: The hydraulic configuration supports multiple pump options including a standard 42 gpm flow, a 57 gpm high-flow variant, and a 113 gpm MegaFlow system.

Chassis and Ballast Specifications: The unit features a 148-inch wheelbase and 4.5-inch bar axles, with a shipping weight of 36,048 lbs and a maximum listed weight capacity of 49,500 lbs.

Production

Description	Built in Fargo, North Dakota, USA
Drive type	Four-wheel Drive (4WD) tractor
Manufacturer	New Holland (a part of CNH)

Engine

Engine type	FPT 12.9L 6-cyl diesel
Exhaust fluid (DEF)	42 gal (159.0 L)
Fuel tank	325 gal (1230.1 L)
Bore/Stroke	5.31x5.91 inches (135 x 150 mm)
Cooling system	viscous fan drive
Description	FPT Cursor 13 SST / wastegate turbocharged aftercooled diesel / 6-cylinder 24-valve / liquid-cooled
Displacement	787 ci (12.9 L)
Emission control	selective catalytic reduction with diesel oxidation catalyst
Emissions	Tier IV
Fuel system	electronic direct-injection high pressure common rail
Maximum Power (gross)	550 hp (410.1 kW)
Rated Power (gross)	500 hp (372.9 kW)
Rated RPM	2100
Starter	electric
Starter volts	24
Torque	1751 lb-ft (2374.4 Nm)
Torque RPM	1400
Drawbar (tested)	417.77 hp (311.5 kW)
Engine (gross)	500 hp (372.9 kW)
Engine (max)	550 hp (410.1 kW)
PTO (claimed)	435 hp (324.4 kW)
PTO (tested)	504.56 hp (376.3 kW)

Transmission

Gears	17 forward and 2 reverse
Transmission	Ultra Command
Transmission type	17-speed full power shift
Type	full power shift

Mechanical

Cab	Cab standard with air-condioning. Optional Comfort Ride cab suspension. ISOBUS compliant; Intelliview IV; IntelliSteer
Description	Wet disc brakes
Drive type	Four-wheel drive
Steering	hydrostatic power articulated
Trailer brakes	hydraulic OptOptional

Hydraulics

High-Flow Pump flow	57 gpm (215.7 lpm)
MegaFlow Pump flow	113 gpm (427.7 lpm)
Standard Pump flow	42 gpm (159.0 lpm)
Type	closed center load sensing (CCLS)
Valves	4 to 8

Hitch

Control	position control
Drawbar	Cat. 4
Rear Arms	adjustable link ends
Rear lift (at 24"/610mm)	20000 lbs (9072 kg)
Rear Type	IVN OptOptional

PTO

Engine RPM	1000@1998 (early)
Rear PTO	independent
Rear PTO Type	1000 (1.75)

Electrical

Batteries	2
Battery CCA	1000
Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Bar rear axle	4.5 by 120 inches (114 by 3048 mm)
Front axle	Bar: 4.5 by 120 inches (114 by 3048 mm)
Height (cab)	151.3 inches (384 cm)
Length	291 inches (739 cm)
Max weight	49500 lbs (22453 kg)
Shipping weight	36048 lbs (16351 kg)
Wheelbase	148 inches (375 cm)
Width	120 inches*Minimum (304 cm)
Front tire	710/70
Rear tire	710/70
Weight	36048 lbs (16351 kg)
Wheelbase	148 inches (375 cm)
Ag front	710/70 R42
Ag rear	710/70 R42

OCED Tractor Test 2097

Description	Diesel 16-speed 4WDSeptember 17 - 24, 2014Link: OCED Tractor Test 2097 file / PTO performance / Drawbar performance / Gear 6 used for power test. / Gear 2 used for pull test.
Fuel use	26.9 gal/hour (101.8 l/hour) / 25.3 gal/hour (95.8 l/hour) / 26.1 gal/hour (98.8 l/hour) / 25.3 gal/hour (95.8 l/hour)
Max power	504.56 hp (376.3 kW) / 417.77 hp (311.5 kW)
Max pull	46053 lbs (20889 kg)
Power at rated engine speed	449.14 hp (334.9 kW)
Power at rated PTO speed	496.01 hp (369.9 kW)

References

Description	T9 Series published in 2018, by New Holland

T9.565 Serial Numbers

2014	ZDFxxxxxx
2015	ZEFxxxxxx
2016	ZFFxxxxxx
2017	ZGFxxxxxx
2018	ZHFxxxxxx
2019	ZJFxxxxxx
2020	ZKFxxxxxx
2021	ZLFxxxxxx
Description	FAQ: How to read a serial number table.

Variants

Steiger 500	similar CaseIH model

Nebraska Tractor Test Results

Test #2097

Download PDF

Test Date: September 17 - 24, 2014

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

504.56 hp

@ 1902 rpm

Rated Engine Speed

449.14 hp

N/A lb/hp·hr

Standard PTO Speed

496.01 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	1,633 lb-ft (2,215 Nm)
Torque Rise	45.5%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM
Rated Engine Speed	449.14	334.92	2101
Maximum Power (1 Hour)	504.56	376.25	1902

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
449.14	2101	25.28	0.40	17.76	2.09
389.44	2144	22.83	0.41	17.05	1.69
293.57	2153	18.11	0.43	16.21	1.25
196.48	2162	13.66	0.49	14.39	0.87
98.73	2175	9.39	0.67	10.52	0.53
1.25	2186	5.32	29.81	0.24	0.23

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	kW	Pull (lbs)	Pull (kN)	Speed	km/h	Slip	Air °F	Cool °F
Maximum Power - 6th Gear	417.77	311.53	27,928	124	5.61	9.03	2.20	69	212
75% of Pull at Maximum Power - 6th Gear	321.81	239.97	20,934	93	5.77	9.28	1.80	74	204
50% of Pull at Maximum Power - 6th Gear	216.78	161.65	13,968	62	5.82	9.37	1.30	74	210
75% of Pull at Reduced Engine Speed - 10...	321.63	239.84	20,949	93	5.76	9.27	1.80	74	212
50% of Pull at Reduced Engine Speed - 10...	217.24	162.00	13,909	62	5.86	9.43	1.30	74	197

Drawbar Performance At 2100 RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	Barometer Inch Hg	Engine RPM	Fuel Lb Hp Hr	Temp Air Bulb F	Temp Cooling F
2nd Gear	338.42	46,053	2.76	14.30	14.42	0.05	29.03	2143	0.49	53	194
3rd Gear	402.62	43,070	3.51	7.20	15.96	0.05	29.04	2100	0.44	58	204
4th Gear	414.45	35,298	4.40	3.00	16.40	0.04	28.66	2099	0.43	73	207
5th Gear	416.77	30,722	5.09	2.60	16.52	0.04	28.66	2099	0.43	72	213
6th Gear	417.77	27,928	5.61	2.20	16.52	0.04	28.66	2100	0.43	69	212
7th Gear	414.10	25,184	6.17	2.00	16.37	0.04	28.66	2101	0.43	70	213
8th Gear	415.96	22,990	6.79	1.80	16.44	0.04	28.64	2100	0.43	75	211
9th Gear	412.80	20,729	7.47	1.60	16.36	0.04	28.63	2099	0.43	78	212

Drawbar Performance At 1900 RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	Barometer Inch Hg	Engine RPM	Fuel Lb Hp Hr	Temp Air Bulb F	Temp Cooling F
2nd Gear	338.62	46,095	2.75	14.50	14.33	0.05	29.03	2143	0.49	52	192
3rd Gear	405.35	45,061	3.38	9.60	15.80	0.05	29.04	2075	0.44	61	208
4th Gear	445.89	42,803	3.91	6.80	16.73	0.05	29.04	1937	0.42	63	215
5th Gear	459.03	37,848	4.55	3.70	17.06	0.04	28.65	1900	0.41	74	213
6th Gear	464.54	34,603	5.03	3.00	17.27	0.04	28.66	1900	0.41	69	217
7th Gear	462.53	31,293	5.55	2.60	17.15	0.04	28.66	1899	0.41	70	216
8th Gear	462.80	28,415	6.11	2.30	17.25	0.04	28.64	1900	0.41	77	216
9th Gear	462.63	25,780	6.73	2.00	17.21	0.04	28.64	1900	0.41	78	218
10th Gear	462.32	23,402	7.41	1.80	17.13	0.04	28.64	1899	0.41	82	217

Category: IVN Quick Attach: yes

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	FPT Industrial Diesel
Type	six cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	786 cu in (12880 ml)
Bore & Stroke	5.315" x 5.906" (135.0 mm x 150.0 mm)
Compression Ratio	16.5 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) with a vertical muffler
Crankshaft	lengthwise

Chassis

Type	four wheel drive with triples
Steering	hydrostatic and articulated
Transmission	selective gear fixed ratio with full range operator controlled powershift
Wheelbase	148.00 in (3759 mm)
Front Tread Width	73.6 (1870 mm) to 187.6 (4766 mm) in
Rear Tread Width	73.6 (1870 mm) to 187.6 (4766 mm) in
Brakes	wet disc hydraulically operated by foot pedal
Hydraulic Control	direct engine drive

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Transmission	New Holland Mastertran Ultraction fluid

Tires & Tracks

Rear Tires	Six 520/85R42;***;9(60)
Front Tires	Six 520/85R42;***;10(70)
Height of Drawbar	20.5 in (520 mm)

Static Weight

Rear	22,155 lbs
Front	25,175 lbs
Total	47,330 lbs
