New Holland T9.530 Specs ( 2014-2023 )

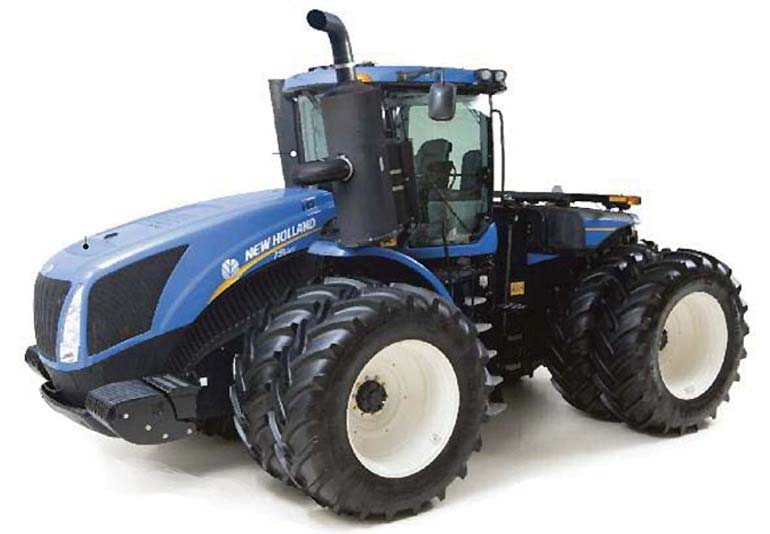

Name: New Holland T9.530
Brand: New Holland

Compare Tractor

Nebraska Test #2094A

NEW HOLLAND T9.530

Max Drawbar HP 435.2 hp

Max Pull 43,495 lbs

Max Torque 1514 lb-ft

View Full Test Data →

Overview

The New Holland T9.530 is a high-capacity 4WD articulated tractor featuring a 12.9L FPT 6-cylinder diesel engine capable of a maximum 517 gross horsepower and 1644 lb-ft of torque. Built in Fargo, North Dakota, it combines a 17-speed Ultra Command full power shift transmission with a heavy-duty Category 4 hitch system capable of lifting 20,000 lbs.

Ideal Applications

Heavy-Duty Draft Work: With a maximum weight of 49,500 lbs and a tested maximum pull of 43,495 lbs, this tractor is designed for high-load tillage and heavy draft applications.

High-Flow Hydraulic Operations: The available MegaFlow pump system provides up to 113 gpm flow through 4 to 8 valves, making it suitable for running large air seeders and hydraulic-intensive implements.

Precision Field Management: Equipped with ISOBUS compliance, Intelliview IV, and IntelliSteer, this model supports advanced guidance and precision agriculture tasks across its 148-inch wheelbase.

Production

Description	Built in Fargo, North Dakota, USA
Drive type	Four-wheel Drive (4WD) tractor
Manufacturer	New Holland (a part of CNH)

Engine

Engine type	FPT 12.9L 6-cyl diesel
Exhaust fluid (DEF)	42 gal (159.0 L)
Fuel tank	325 gal (1230.1 L)
Bore/Stroke	5.31x5.91 inches (135 x 150 mm)
Cooling system	viscous fan drive
Description	FPT Cursor 13 SST / wastegate turbocharged aftercooled diesel / 6-cylinder 24-valve / liquid-cooled
Displacement	787 ci (12.9 L)
Emission control	selective catalytic reduction with diesel oxidation catalyst
Emissions	Tier IV
Fuel system	electronic direct-injection high pressure common rail
Maximum Power (gross)	517 hp (385.5 kW)
Rated Power (gross)	470 hp (350.5 kW)
Rated RPM	2100
Starter	electric
Starter volts	12
Torque	1644 lb-ft (2229.3 Nm)
Torque RPM	1400
Drawbar (tested)	387.67 hp (289.1 kW)
Engine (gross)	470 hp (350.5 kW)
Engine (max)	517 hp (385.5 kW)
PTO (claimed)	405 hp (302.0 kW)
PTO (tested)	468.35 hp (349.2 kW)

Transmission

Gears	17 forward and 2 reverse
Transmission	Ultra Command
Transmission type	17-speed full power shift
Type	full power shift

Mechanical

Cab	Cab standard with air-condioning. Optional Comfort Ride cab suspension. ISOBUS compliant; Intelliview IV; IntelliSteer
Description	Wet disc brakes
Drive type	Four-wheel drive
Steering	hydrostatic power articulated
Trailer brakes	hydraulic OptOptional

Hydraulics

High-Flow Pump flow	57 gpm (215.7 lpm)
MegaFlow Pump flow	113 gpm (427.7 lpm)
Standard Pump flow	42 gpm (159.0 lpm)
Type	closed center load sensing (CCLS)
Valves	4 to 8

Hitch

Control	position control
Drawbar	Cat. 4
Rear Arms	adjustable link ends
Rear lift (at 24"/610mm)	20000 lbs (9072 kg)
Rear Type	IVN OptOptional

PTO

Engine RPM	1000@1998 (early)
Rear PTO	independent
Rear PTO Type	1000 (1.75)

Electrical

Batteries	2
Battery CCA	1000
Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Bar rear axle	5.0 by 120 inches (127 by 3048 mm)
Front axle	Bar: 5.0 by 120 inches (127 by 3048 mm)
Height (cab)	151.3 inches (384 cm)
Length	291 inches (739 cm)
Max weight	49500 lbs (22453 kg)
Shipping weight	36048 lbs (16351 kg)
Wheelbase	148 inches (375 cm)
Width	120 inches*Minimum (304 cm)
Front tire	710/70
Rear tire	710/70
Weight	36048 lbs (16351 kg)
Wheelbase	148 inches (375 cm)
Ag front	710/70 R42
Ag rear	710/70 R42

OCED Tractor Test 2094A

Description	Diesel 16-speed 4WDSeptember 11 - 22, 2014Link: OCED Tractor Test 2094A file / PTO performance / Drawbar performance / Gear 4 used for power test. / Gear 1 used for pull test.
Fuel use	25.3 gal/hour (95.8 l/hour) / 24.1 gal/hour (91.2 l/hour) / 24.4 gal/hour (92.4 l/hour) / 24.1 gal/hour (91.2 l/hour)
Max power	468.35 hp (349.2 kW) / 387.67 hp (289.1 kW)
Max pull	43495 lbs (19729 kg)
Power at rated engine speed	417.16 hp (311.1 kW)
Power at rated PTO speed	459.94 hp (343.0 kW)

References

Description	T9 Series published in 2018, by New Holland

T9.530 Serial Numbers

2014	ZDFxxxxxx
2015	ZEFxxxxxx
2016	ZFFxxxxxx
2017	ZGFxxxxxx
2018	ZHFxxxxxx
2019	ZJFxxxxxx
2020	ZKFxxxxxx
2021	ZLFxxxxxx
Description	FAQ: How to read a serial number table.

Variants

Steiger 470	similar CaseIH model

Nebraska Tractor Test Results

Test #2094A

Download PDF

Test Date: September 11- 22, 2014

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

468.35 hp

@ 1901 rpm

Rated Engine Speed

417.16 hp

N/A lb/hp·hr

Standard PTO Speed

459.94 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	1514 lb.-ft. (2053 Nm) at 1400 rpm
Torque Rise	45.2%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	Fuel gal/hr	Fuel L/hr	DEF gal/hr	DEF L/hr
Rated Engine Speed	417.16	311.07	2101	24.08	91.14	1.85	7.02
Maximum Power (1 Hour)	468.35	349.25	1901	25.27	95.66	2.21	8.37

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
417.16	2101	24.08	0.41	17.33	1.85
362.45	2146	21.52	0.42	16.84	1.66
272.67	2155	17.24	0.44	15.82	1.28
182.74	2163	13.06	0.50	14.00	0.89
91.74	2176	9.04	0.69	10.15	0.52
2.17	2185	5.29	17.16	0.41	0.26

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	kW	Pull (lbs)	Pull (kN)	Speed	km/h	Slip	Air °F	Air °C	Cool °F	Cool °C	inHg	kPa
Maximum Power—4th Gear	387.67	289.08	29,229	130	4.97	8.00	3.40	63	17	202	94	28.66	97.05
75% of Pull at Maximum Power—4th Gear	300.22	223.87	21,896	97	5.14	8.27	2.30	75	24	203	95	28.65	97.02
50% of Pull at Maximum Power—4th Gear	202.87	151.28	14,604	65	5.21	8.38	1.50	77	25	204	95	28.64	96.99
75% of Pull at Reduced Engine Speed—8th ...	299.40	223.26	21,969	98	5.11	8.22	2.40	76	25	204	95	28.65	97.02
50% of Pull at Reduced Engine Speed—8th ...	202.86	151.27	14,588	65	5.22	8.39	1.50	78	25	202	94	28.64	96.99

Drawbar Performance At 2100 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	DEF lb/hp	Air °F	Cool °F	inHg	Engine Speed RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr
1st Gear	300.48	43,495	2.59	13.50	0.05	64	204	28.75	2142	14.08	0.50
2nd Gear	365.08	42,703	3.21	9.70	0.04	64	205	28.74	2100	15.13	0.46
3rd Gear	384.64	35,392	4.08	4.60	0.04	68	203	28.75	2100	15.95	0.44
4th Gear	387.67	29,229	4.97	3.40	0.04	63	202	28.66	2099	16.11	0.44
5th Gear	387.68	25,307	5.75	2.70	0.04	60	203	28.67	2100	16.08	0.44
6th Gear	390.18	23,136	6.33	2.40	0.04	61	203	28.67	2100	16.27	0.43
7th Gear	387.17	20,890	6.95	2.10	0.04	65	203	28.67	2099	16.08	0.44
8th Gear	389.50	19,098	7.65	1.90	0.04	71	203	28.67	2099	16.18	0.43
9th Gear	385.65	17,158	8.43	1.70	0.04	73	202	28.66	2100	16.35	0.43

Drawbar Performance At 1900 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	DEF lb/hp	Air °F	Cool °F	inHg	Engine Speed RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr
1st Gear	300.99	43,364	2.61	13.00	0.05	65	204	28.75	2143	14.10	0.50
2nd Gear	365.86	42,347	3.24	8.80	0.04	64	205	28.74	2104	15.20	0.46
3rd Gear	411.62	41,051	3.76	6.80	0.04	69	204	28.75	1985	16.40	0.43
4th Gear	427.20	36,225	4.42	5.20	0.04	68	203	28.75	1900	16.88	0.42
5th Gear	432.36	31,460	5.15	4.00	0.04	61	203	28.66	1900	17.06	0.41
6th Gear	434.61	28,661	5.69	3.10	0.04	62	203	28.67	1900	17.19	0.41
7th Gear	433.19	25,982	6.25	2.80	0.04	65	203	28.67	1900	17.18	0.41
8th Gear	435.16	23,697	6.89	2.50	0.04	67	203	28.66	1899	17.23	0.41
9th Gear	432.87	21,409	7.58	2.20	0.04	73	203	28.67	1898	17.05	0.41
10th Gear	430.62	19,354	8.34	2.00	0.04	73	203	28.67	1900	16.93	0.42

Category: IVN Quick Attach: yes

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	FPT Industrial
Type	Diesel six cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	786 cu in (12880 ml)
Compression Ratio	16.5 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) with a vertical muffler
Crankshaft	lengthwise

Chassis

Type	four wheel drive with duals
Steering	hydrostatic and articulated
Transmission	selective gear fixed ratio with full range operator controlled powershift
Wheelbase	148.00 in (3759 mm)
Front Tread Width	60.0 (1524 mm) to 130.0 (3302 mm) in
Rear Tread Width	60.0 (1524 mm) to 130.0 (3302 mm) in
Brakes	wet disc hydraulically operated by foot pedal
Hydraulic Control	direct engine drive

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Engine Oil	SAE 10W40 API service classification CJ-4
Transmission	New Holland Mastertran Ultraction fluid

Sound Levels

Bystander	87.80 dB(A)
At No Load In 4th Gear	73.90 dB(A)

Tires & Tracks

Rear Tires	***, 480/95R50
Front Tires	***, 480/95R50
Height of Drawbar	21.0 in (535 mm)

Static Weight

Rear	17,920 lbs
Front	24,545 lbs
Total	42,465 lbs
