New Holland T9.450 Specs ( 2011-2014 )

Name: New Holland T9.450
Brand: New Holland

Overview

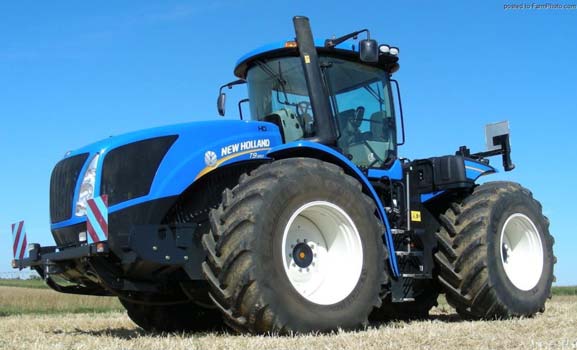

The New Holland T9.450 is a four-wheel drive farm tractor produced in Fargo, North Dakota, between 2011 and 2014. It is equipped with an FPT 12.9L 6-cylinder diesel engine and a 16-speed full power shift transmission. The chassis features a 148-inch wheelbase and a rear 3-point hitch with a lift capacity of 20,000 lbs.

Ideal Applications

Nebraska Test Performance: Actual tested data indicates a maximum drawbar performance of 371.63 hp and a maximum pull of 40,060 lbs.

Engine and Emission Specifications: The turbocharged FPT engine utilizes selective catalytic reduction for Interim Tier 4 compliance and is rated at 405 hp with a 2100 rated RPM.

Power Delivery and Hydraulics: This tractor features a 16-speed full power shift transmission and a closed center load sensing hydraulic system with a pump flow of 45 gpm.

Production

Description	Built in Fargo, North Dakota, USA
Drive type	Four-wheel Drive (4WD) tractor
Manufacturer	New Holland

Engine

Engine type	FPT 12.9L 6-cyl diesel
Exhaust fluid (DEF)	46 gal (174.1 L)
Fuel tank	230 gal (870.6 L)
Bore/Stroke	5.315x5.906 inches (135 x 150 mm)
Coolant capacity	84.4 qts (79.9 L)
Description	FPT / wastegate turbocharged aftercooled diesel / 6-cylinder 24-valve / liquid-cooled
Displacement	787 ci (12.9 L)
Emission control	selective catalytic reduction (SCR)
Emissions	Interim Tier 4
Maximum Power	446 hp (332.6 kW)
Oil capacity	32.7 qts (30.9 L)
Power	405 hp (302.0 kW)
Rated RPM	2100
Starter	electric
Starter volts	24
Drawbar (tested)	328.56 hp (245.0 kW)
PTO (tested)	400.10 hp (298.4 kW)

Transmission

Gears	16 forward and 2 reverse
Transmission type	16-speed full power shift
Type	full power shift

Mechanical

Cab	Cab standard.
Description	Hydraulic wet disc brakes
Drive type	Four-wheel drive

Hydraulics

Pressure	2000 psi (137.9 bar)
Pump flow	45 gpm (170.3 lpm)
Rear valves	4 to 8
Total flow	42 gpm (159.0 lpm)
Type	closed center load sensing

Hitch

Rear lift (at 24"/610mm)	20,000 lbs (9072 kg)
Rear Type	4N/3

PTO

Rear PTO	optional
Rear PTO Type	1000 (1-3/4)

Electrical

Batteries	2
Battery CCA	1000
Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Front axle	4.5 by 120 inches (114 by 3048 mm) / 5 by 120 inches ( (127 by 3048 mm)
Height	144.2 inches (366 cm)
Length	295 inches (749 cm)
Wheelbase	148 inches (375 cm)
Width	36.5 inches (frame) (92 cm)
Wheelbase	148 inches (375 cm)

New Holland T9.450 Weight

Max capacity	49,500 lbs (22453 kg)
Max Drawbar	5,300 lbs (2404 kg)

OCED Tractor Test 2046A

Description	Diesel 16-speed 4WD11/6/2012:11/12/2012Link: OCED Tractor Test 2046A file / PTO performance / Drawbar performance / Gear 5 used for power test. / Gear 1 used for pull test.
Fuel use	21.7 gal/hour (82.1 l/hour) / 20.6 gal/hour (78.0 l/hour) / 21.6 gal/hour (81.8 l/hour) / 20.6 gal/hour (78.0 l/hour)
Max power	400.10 hp (298.4 kW) / 328.56 hp (245.0 kW)
Max pull	39843 lbs (18072 kg)
Power at rated engine speed	354.77 hp (264.6 kW)
Power at rated PTO speed	390.47 hp (291.2 kW)

Nebraska Tractor Test Results

Test #2046A

Download PDF

Test Date: November 6-12, 2012

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

400.10 hp

@ 1900 rpm

Rated Engine Speed

354.77 hp

N/A lb/hp·hr

Standard PTO Speed

390.47 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	1,308 lb-ft (1,773 Nm)
Torque Rise	47.4%
At Engine RPM	1401 rpm

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	DEF gal/hr
Rated Engine Speed	354.77	264.55	2100	1.24
Maximum Power (1 Hour)	400.10	298.35	1900	1.50

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
354.77	2100	20.63	0.41	17.19	1.24
305.50	2130	18.68	0.43	16.35	1.11
230.50	2143	15.24	0.46	15.12	0.85
154.60	2156	11.35	0.52	13.62	0.54
77.40	2165	7.97	0.72	9.71	0.34
1.20	2179	4.74	27.69	0.25	0.25

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	Pull (lbs)	Speed	Slip	Air °F
Maximum Power—5th Gear	328.56	21,421	5.75	2.50	55
75% of Pull at Maximum Power—5th Gear	251.91	16,039	5.89	2.00	62
50% of Pull at Maximum Power—5th Gear	169.52	10,686	5.95	1.30	64
75% of Pull at Reduced Engine Speed—9th ...	251.48	15,931	5.92	1.90	63
50% of Pull at Reduced Engine Speed—9th ...	169.29	10,615	5.98	1.30	65

Drawbar Performance At 2100 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	Air °F	Barometer Inch Hg	Crankshaft RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Coolant F
1st Gear	285.62	39,843	2.69	8.90	56	28.66	2113	14.70	0.48	187
2nd Gear	322.16	36,424	3.32	6.10	58	28.66	2100	15.46	0.45	194
3rd Gear	328.75	30,126	4.09	4.10	58	28.78	2100	15.91	0.44	203
4th Gear	328.40	24,711	4.99	3.10	56	28.84	2100	15.84	0.44	190
5th Gear	328.56	21,421	5.75	2.50	55	28.85	2101	15.92	0.44	189
6th Gear	331.43	19,605	6.34	2.30	57	28.82	2101	16.06	0.44	205
7th Gear	327.84	17,643	6.97	2.00	58	28.79	2100	15.91	0.44	195
8th Gear	329.15	16,089	7.68	1.80	57	28.79	2101	15.94	0.44	206
9th Gear	325.61	14,455	8.45	1.60	58	28.79	2101	15.78	0.44	206

Drawbar Performance At 1900 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	Air °F	Barometer Inch Hg	Crankshaft RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Coolant F
1st Gear	261.78	40,060	2.45	8.80	55	28.66	1923	15.17	0.46	183
2nd Gear	330.74	38,684	3.21	7.40	59	28.67	2058	15.56	0.45	199
3rd Gear	357.71	35,967	3.73	6.30	58	28.77	1957	16.31	0.43	206
4th Gear	367.28	30,995	4.44	4.40	57	28.83	1900	16.79	0.42	201
5th Gear	369.20	26,861	5.15	3.40	56	28.84	1900	17.00	0.41	192
6th Gear	371.63	24,499	5.69	3.00	58	28.81	1900	17.04	0.41	206
7th Gear	370.04	22,165	6.26	2.60	58	28.79	1900	16.95	0.41	207
8th Gear	371.46	20,189	6.90	2.40	57	28.79	1900	16.98	0.41	208
9th Gear	370.22	18,268	7.60	2.10	58	28.79	1900	17.04	0.41	207
10th Gear	371.29	16,626	8.38	1.90	58	28.79	1901	17.04	0.41	207

Category: IVN Quick Attach: yes

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	F.P.T. Diesel
Type	six cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	786 cu in (12880 ml)
Compression Ratio	16.5 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Crankshaft	lengthwise

Chassis

Type	four wheel drive with duals
Steering	hydrostatic and articulated
Transmission	selective gear fixed ratio with full range operator controlled powershift
Speeds	18 forward (22.22 mph max)
Wheelbase	148.00 in (3759 mm)
Front Tread Width	60.0 (1524 mm) to 130.0 (3302 mm) in
Rear Tread Width	60.0 (1524 mm) to 130.0 (3302 mm) in
Brakes	wet disc hydraulically operated by foot pedal
Hydraulic Control	direct engine drive
Unladen Tractor Mass	39,975 lbs ( 18,132 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Transmission	New Holland Mastertran transmission fluid

Sound Levels

Bystander	84.20 dB(A)
At No Load In 4th Gear	74.90 dB(A)

Tires & Tracks

Rear Tires	Four 480/95R50;***;10(70) psi(kPa)
Front Tires	Four 480/95R50;***;12(85) psi(kPa)
Height of Drawbar	25.5 in (535 mm)

Static Weight

Rear	17,495 lbs
Front	22,655 lbs
Total	40,150 lbs
