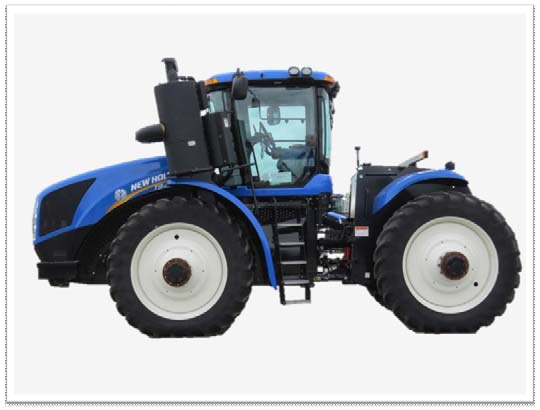

New Holland T9.435 Specs ( 2014-2023 )

Name: New Holland T9.435
Brand: New Holland

Overview

The New Holland T9.435 is a 4WD farm tractor produced in Fargo, North Dakota, between 2014 and 2023. It is powered by an FPT 8.7L 6-cylinder diesel engine paired with a 17-speed Ultra Command full power shift transmission. The machine features articulated hydrostatic power steering and is listed with a maximum gross engine power of 429 hp.

Ideal Applications

Tested Power and Pull Performance: According to Nebraska Tractor Test results, the T9.435 achieved a maximum PTO power of 366.46 hp and a maximum drawbar pull of 37,765 lbs.

Hydraulic System and Rear Lift: The tractor is equipped with a closed center load sensing hydraulic system offering standard 40 gpm flow or an optional MegaFlow pump at 93 gpm, supporting a rear lift capacity of 20,000 lbs.

Engine and Emission Specifications: The FPT Cursor 9 engine utilizes selective catalytic reduction and a variable-geometry turbocharger to meet Tier IV emission standards while generating 1361 lb-ft of torque at 1400 RPM.

Production

Description	Built in Fargo, North Dakota, USA
Drive type	Four-wheel Drive (4WD) tractor
Manufacturer	New Holland (a part of CNH)

Engine

Engine type	FPT 8.7L 6-cyl diesel
Exhaust fluid (DEF)	42 gal (159.0 L)
Fuel tank	230 gal (870.6 L)
Bore/Stroke	4.61x5.31 inches (117 x 135 mm)
Cooling system	viscous fan drive
Description	FPT Cursor 9 / variable-geometry urbocharger aftercooled diesel / 6-cylinder 24-valve / liquid-cooled
Displacement	531 ci (8.7 L)
Emission control	selective catalytic reduction with diesel oxidation catalyst
Emissions	Tier IV
Fuel system	electronic direct-injection high pressure common rail
Maximum Power (gross)	429 hp (319.9 kW)
Rated Power (gross)	370 hp (275.9 kW)
Rated RPM	2000
Starter	electric
Starter volts	12
Torque	1361 lb-ft (1845.5 Nm)
Torque RPM	1400
Drawbar (tested)	300.99 hp (224.4 kW)
Engine (gross)	370 hp (275.9 kW)
Engine (max)	429 hp (319.9 kW)
PTO (claimed)	311 hp (231.9 kW)
PTO (tested)	366.46 hp (273.3 kW)

Transmission

Gears	17 forward and 2 reverse
Transmission	Ultra Command
Transmission type	17-speed full power shift
Type	full power shift

Mechanical

Cab	Cab standard with air-condioning. Optional Comfort Ride cab suspension. ISOBUS compliant; Intelliview IV; IntelliSteer
Description	Wet disc brakes
Drive type	Four-wheel drive
Steering	hydrostatic power articulated
Trailer brakes	hydraulic OptOptional

Hydraulics

High-Flow Pump flow	55 gpm (208.2 lpm)
MegaFlow Pump flow	93 gpm (352.0 lpm)
Standard Pump flow	40 gpm (151.4 lpm)
Type	closed center load sensing (CCLS)
Valves	4 to 8

Hitch

Control	position control
Drawbar	Cat. 4
Rear Arms	adjustable link ends
Rear lift (at 24"/610mm)	20000 lbs (9072 kg)
Rear Type	IVN OptOptional

PTO

Engine RPM	1000@1998 (early)
Rear PTO	independent
Rear PTO Type	1000 (1.75)

Electrical

Batteries	2
Battery CCA	1000
Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Bar rear axle	5.0 by 120 inches (127 by 3048 mm)
Front axle	Bar: 5.0 by 120 inches (127 by 3048 mm)
Height (cab)	151.3 inches (384 cm)
Length	291 inches (739 cm)
Max weight	42000 lbs (19051 kg)
Shipping weight	35848 lbs (16260 kg)
Wheelbase	148 inches (375 cm)
Width	120 inches*Minimum (304 cm)
Front tire	710/70
Rear tire	710/70
Weight	35848 lbs (16260 kg)
Wheelbase	148 inches (375 cm)
Ag front	710/70 R42
Ag rear	710/70 R42

OCED Tractor Test 2092A

Description	Diesel 16-speed 4WDSeptember 9 - 29, 2014Link: OCED Tractor Test 2092A file / PTO performance / Drawbar performance / Gear 4 used for power test. / Gear 1 used for pull test.
Fuel use	19.2 gal/hour (72.7 l/hour) / 17.4 gal/hour (65.9 l/hour) / 19.0 gal/hour (71.9 l/hour) / 17.4 gal/hour (65.9 l/hour)
Max power	366.46 hp (273.3 kW) / 300.99 hp (224.4 kW)
Max pull	37687 lbs (17094 kg)
Power at rated engine speed	323.32 hp (241.1 kW)
Power at rated PTO speed	364.07 hp (271.5 kW)

References

Description	T9 Series published in 2018, by New Holland

T9.435 Serial Numbers

2014	ZDFxxxxxx
2015	ZEFxxxxxx
2016	ZFFxxxxxx
2017	ZGFxxxxxx
2018	ZHFxxxxxx
2019	ZJFxxxxxx
2020	ZKFxxxxxx
2021	ZLFxxxxxx
Description	FAQ: How to read a serial number table.

Variants

Steiger 370	similar CaseIH model

Nebraska Tractor Test Results

Test #2092A

Download PDF

Test Date: September 9 - 29, 2014

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

366.46 hp

@ N/A rpm

Rated Engine Speed

323.32 hp

N/A lb/hp·hr

Standard PTO Speed

364.07 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	1,239 lb-ft (1,665 Nm)
Torque Rise	45.9%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW
Rated Engine Speed	323.32	241.10
Maximum Power (1 Hour)	366.46	273.27

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
323.32	1999	17.37	0.38	18.61	1.90
289.74	2107	16.31	0.40	17.76	1.47
218.41	2121	12.99	0.42	16.81	1.10
147.21	2138	9.94	0.47	14.81	0.72
74.10	2152	6.79	0.64	10.92	0.41
1.92	2165	3.81	13.92	0.50	0.24

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	Pull (lbs)	Speed	Slip	Air °F	Cool °F
Maximum Power - 4th Gear	300.99	23,664	4.77	3.10	56	214
75% of Pull at Maximum Power - 4th Gear	241.24	17,817	5.08	2.40	64	209
50% of Pull at Maximum Power - 4th Gear	163.32	11,868	5.16	1.50	64	192
75% of Pull at Reduced Engine Speed - 8t...	241.73	17,646	5.14	2.30	63	193
50% of Pull at Reduced Engine Speed - 8t...	163.58	11,786	5.21	1.50	63	189

Drawbar Performance At 2000 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	inHg	Crank Shaft RPM	Fuel Lb Hp Hr	Temp Air F	Temp Cooling F
1st	254.71	37,687	2.53	13.80	15.17	0.05	28.96	2095	0.46	56	203
2nd	290.96	35,026	3.12	8.10	16.64	0.06	28.96	2000	0.42	53	205
3rd	301.26	28,993	3.90	4.60	17.34	0.06	28.95	2000	0.41	60	212
4th	300.99	23,664	4.77	3.10	17.27	0.05	28.92	2000	0.41	56	214
5th	300.12	20,453	5.50	2.50	17.26	0.05	28.90	2000	0.41	55	216
6th	302.68	18,733	6.06	2.30	17.36	0.05	28.91	2000	0.40	56	215
7th	300.01	16,899	6.66	2.00	17.23	0.05	28.91	1999	0.41	57	215
8th	300.79	15,387	7.33	1.90	17.33	0.05	28.93	2000	0.41	57	215
9th	296.68	13,786	8.07	1.70	17.10	0.05	28.93	2000	0.41	62	215

Drawbar Performance At 1800 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	inHg	Crank Shaft RPM	Fuel Lb Hp Hr	Temp Air F	Temp Cooling F
1st	255.32	37,765	2.54	13.60	15.22	0.05	28.97	2089	0.46	58	203
2nd	295.43	36,857	3.01	9.40	16.52	0.06	28.96	1959	0.43	60	213
3rd	327.05	35,370	3.47	6.90	17.19	0.05	28.94	1825	0.41	61	216
4th	338.29	30,123	4.21	5.10	17.60	0.05	28.94	1800	0.40	62	217
5th	338.28	25,852	4.91	3.40	17.53	0.05	28.91	1799	0.40	56	217
6th	341.15	23,619	5.42	3.00	17.71	0.05	28.92	1801	0.40	56	217
7th	338.95	21,320	5.96	2.70	17.62	0.05	28.93	1801	0.40	57	218
8th	340.90	19,480	6.56	2.40	17.72	0.05	28.93	1800	0.40	57	217
9th	338.03	17,526	7.23	2.10	17.56	0.05	28.94	1800	0.40	62	216
10th	339.81	15,999	7.97	1.90	17.72	0.05	28.94	1801	0.40	62	217

Category: IVN Quick Attach: yes

Lift Capacity

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	FPT Industrial
Type	Diesel six cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	531 cu in (8704 ml)
Compression Ratio	15.9 to 1
Rated Engine Speed	2000 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) with a vertical muffler
Crankshaft	lengthwise

Chassis

Type	four wheel drive with duals
Steering	hydrostatic and articulated
Transmission	selective gear fixed ratio with full range operator controlled powershift
Wheelbase	148.00 in (3759 mm)
Front Tread Width	60.0" (1524 mm) to 130.0" (3302 mm) in
Rear Tread Width	60.0" (1524 mm) to 130.0" (3302 mm) in
Brakes	wet disc hydraulically operated by foot pedal
Hydraulic Control	direct engine drive

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Engine Oil	SAE 10W40
Transmission	New Holland Mastertran Ultraction fluid

Sound Levels

Bystander	85.30 dB(A)
At No Load 4th Gear	74.00 dB(A)

Tires & Tracks

Ballast	Tested without ballast
