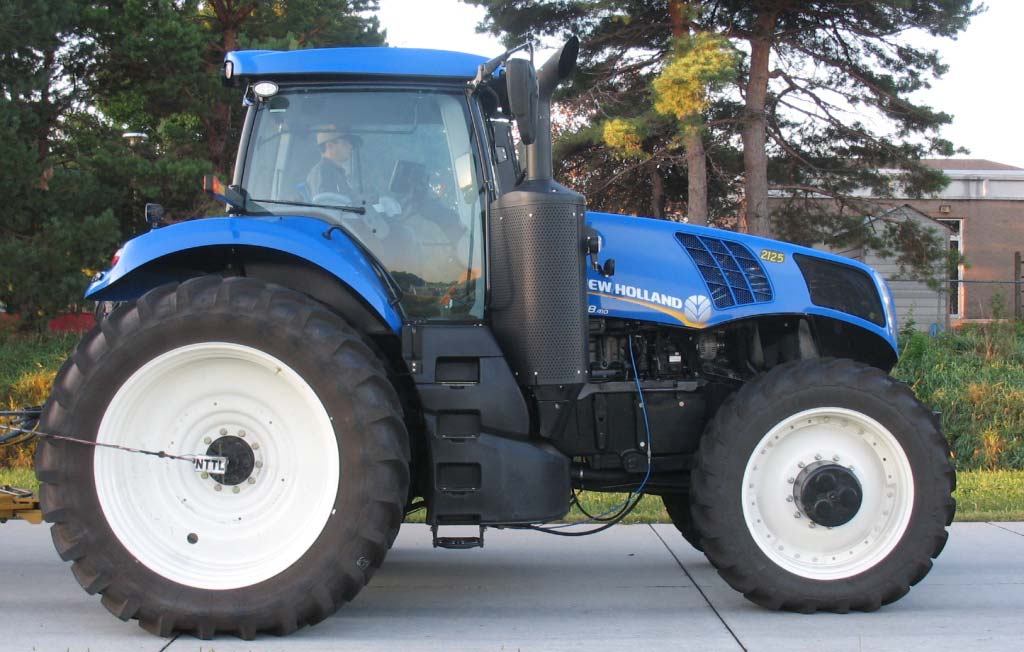

New Holland T8.410 Specs ( 2015-Present )

Name: New Holland T8.410
Brand: New Holland

Overview

The New Holland T8.410 is a row-crop tractor produced in Racine, Wisconsin, from 2015 to the present, featuring an 8.7L 6-cylinder FPT diesel engine. It is equipped with either a full power shift or a continuously variable transmission (CVT) and is available in wheeled or SmartTrax half-track variants.

Ideal Applications

Tested Power Output: During Nebraska Tractor Test 988, the model achieved a maximum power of 336.17 hp at the PTO and reached 301.68 hp at the rated engine speed.

Transmission and Drive Configuration: The tractor is configured with four-wheel drive and offers transmission options including an 18-speed or 19-speed ECO full power shift, as well as an Auto Command CVT.

Mechanical and Hydraulic Dimensions: This model features a 4.5 by 120 inch bar rear axle, a Cat. 4 drawbar, and a closed center pressure-flow compensating hydraulic system with a pump flow of 44 gpm.

Production

Description	Row-Crop tractor / Built in Racine, Wisconsin, USA / Original price was $334,083 in 2016 with powershift
Manufacturer	New Holland (a part of CNH)

Engine

CVT Fuel tank	163 gal (617.0 L)
Engine type	FPT 8.7L 6-cyl diesel
Exhaust fluid (DEF)	26 gal (98.4 L)
FPS Fuel tank	179 gal (677.5 L)
Bore/Stroke	4.606x5.315 inches (117 x 135 mm)
Cooling system	viscous fan
Description	FPT / variable-geometry turbocharged diesel / 6-cylinder 24-valve / liquid-cooled
Displacement	531 ci (8.7 L)
Emission control	selective catalytic reduction (SCR)
Emissions	Tier IV
Fuel system	electronic high-pressure common rail
Maximum Power (gross)	409 hp (305.0 kW)
Rated Power (gross)	340 hp (253.5 kW)
Rated RPM	2000
Starter	electric
Starter volts	12
Engine (gross)	340 hp (253.5 kW)
Engine (max)	409 hp (305.0 kW)
PTO (claimed)	290 hp (216.3 kW)
PTO (tested)	336.17 hp (250.7 kW)

Transmission

Clutch	electro-hydraulic wet discs
Description	Available as 18-speed or 19-speed with ECO overdrive.
Gears	18 forward and 4 reverse / infinite forward and reverse (4-range) / 23 forward and 6 reverse
Transmission	Ultra-Command / Auto Command
Type	full power shift / continuously variable transmission (CVT) / power shift creeper
Description	continuously variable transmission (CVT)
Transmission type	18-speed full power shift / 23-speed power shift creeper
Description	continuously variable transmission (CVT)
Transmission type	18-speed full power shift / 23-speed power shift creeper

Mechanical

Cab	Cab standard with air-conditioning. Comfort Ride cab suspension optional. Intellisteer ready
Description	Power steering / Wet disc brakes
Drive type	Four-wheel drive
Final drives	inboard planetary

Hydraulics

Pump flow	44 gpm (166.5 lpm)
Type	closed center pressure-flow compensating (PFC)
Valves	4 to 5

Hitch

Control	electronic lower-link draft sensing
Drawbar	Cat. 4
Rear lift	15900 lbs*Lift capacity with Cat. 3 hitch and 43-inch link arms. (7212 kg)
Rear Type	III/IIIN

PTO

Engine RPM	540@1800
Front PTO	independent OptOptional
Front PTO Type	1000 (1.375)
Rear PTO	independent
Rear PTO Type	1000 (1.75)

Electrical

Batteries	2
Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Bar rear axle	4.5 by 120 inches (114 by 3048 mm)
CVT Length	263 inches (668 cm)
CVT Wheelbase	138 inches (350 cm)
FPS Length	261 inches (662 cm)
FPS Wheelbase	136 inches (345 cm)
Front axle	MFWD / Terraglide
Front tread	60 to 88 inches (152 to 223 cm)
Height (cab)	132 inches (335 cm)
Max weight	37214 lbs (16880 kg)
Weight	22663 lbs (10279 kg)
CVT Wheelbase	138 inches (350 cm)
FPS Wheelbase	136 inches (345 cm)
Front tire	420/85R34
Rear tire	480/80R50
Weight	22663 lbs (10279 kg)
Standard tires (ag)	Front: 420/85R34. Rear: 480/80R50

New Holland T8.410 attachments

Description	front-end loader

OCED Tractor Test 988

Description	Diesel Power shift 4WDSeptember 8 - 17, 2015Link: OCED Tractor Test 988 file / PTO performance / Drawbar performance / Gear 18641 used for power test. / Gear 5 used for pull test.
Fuel use	17.2 gal/hour (65.1 l/hour) / 15.8 gal/hour (59.8 l/hour) / 17.2 gal/hour (65.1 l/hour) / 16.40 hh/g (3.2 kWh/l)
Max power	336.17 hp (250.7 kW)
Max pull	24445 lbs (11088 kg)
Power at rated engine speed	301.68 hp (225.0 kW)
Power at rated PTO speed	336.17 hp (250.7 kW)

References

Description	Genesis T8 Series Tractors published in 2014, by New Holland / Genesis T8 Series Tractors published in 2015, by New Holland

T8.410 Serial Numbers

2015	ZERxxxxxx
2016	ZFRxxxxxx
2017	ZGRxxxxxx
2018	ZHRxxxxxx
2019	ZJRxxxxxx
2020	ZKRxxxxxx
2021	ZLRxxxxxx
Description	FAQ: How to read a serial number table.

Variants

Magnum 340	similar CaseIH model
T8.410	wheeled tractor
T8.410 SmartTrax	half-track

Nebraska Tractor Test Results

Test #2125

Download PDF

Test Date: September 8 - 17, 2015

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

336.17 hp

@ 1800 rpm

Rated Engine Speed

301.68 hp

N/A lb/hp·hr

Standard PTO Speed

336.17 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	1,141 lb-ft (1,547 Nm)
Torque Rise	44.0%
Torque Rise @ 1600 RPM	38%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM
Rated Engine Speed	301.68	224.96	2000
Standard PTO Speed (1000 rpm)	336.17	250.68	1800
Maximum Power (1 Hour)	336.17	250.68	1800

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
301.68	2000	15.77	0.37	19.13	1.63
271.37	2116	14.79	0.38	18.35	1.35
206.58	2146	11.86	0.40	17.42	0.89
139.84	2178	8.90	0.45	15.71	0.55
71.13	2212	5.90	0.58	12.07	0.38
1.63	2227	2.93	12.55	0.56	0.31

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	Pull (lbs)	Speed	Slip	Air °F	Cool °F
Maximum Power - 8th Gear	259.32	18,641	5.22	5.60	69	208
75% of Pull at Maximum Power - 8th Gear	211.12	13,948	5.68	3.70	73	208
50% of Pull at Maximum Power - 8th Gear	145.75	9,306	5.87	2.20	74	204
75% of Pull at Reduced Engine Speed - 11...	211.25	13,916	5.69	3.60	75	203
50% of Pull at Reduced Engine Speed - 11...	145.58	9,326	5.85	2.20	74	202

Maximum Power In Selected Gears At 1800 RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	DEF lb/hp	Air °F	Cool °F	Barometer Inch Hg	Engine RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr
5th Gear	216.70	24,447	3.33	13.00	0.06	57	197	28.96	2116	14.58	0.48
6th Gear	242.75	23,429	3.89	10.00	0.06	58	208	28.95	2088	15.32	0.46
7th Gear	259.74	22,621	4.31	8.90	0.06	60	209	28.96	1960	16.12	0.43
8th Gear	278.69	21,740	4.81	7.90	0.06	60	208	28.95	1889	16.44	0.43
9th Gear	288.95	20,281	5.35	6.90	0.06	61	209	28.97	1800	16.82	0.42
10th Gear	294.14	17,610	6.26	4.90	0.05	66	209	28.74	1800	17.05	0.41
11th Gear	292.65	15,128	7.26	3.90	0.05	67	208	28.73	1800	17.01	0.41
12th Gear	292.59	13,089	8.38	3.30	0.05	68	208	28.74	1800	16.92	0.41

Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	DEF lb/hp	Air °F	Cool °F	Barometer Inch Hg	Engine RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr
5th Gear	216.27	24,445	3.32	13.10	0.06	57	197	28.95	2116	14.56	0.48
6th Gear	242.49	23,418	3.89	10.10	0.06	58	210	28.96	2087	15.29	0.46
7th Gear	252.91	21,377	4.44	8.00	0.06	70	209	28.73	2000	16.03	0.44
8th Gear	259.32	18,641	5.22	5.60	0.06	69	208	28.72	1999	16.40	0.43
9th Gear	263.36	16,172	6.11	4.20	0.06	64	208	28.73	2000	16.72	0.42
10th Gear	260.76	13,842	7.06	3.40	0.06	65	208	28.73	2000	16.51	0.42
11th Gear	255.36	11,737	8.16	2.70	0.06	67	208	28.74	2000	16.21	0.43

Engine

Make	F.P.T. Diesel
Type	six cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	531 cu in (8704 ml)
Bore & Stroke	4.606" x 5.315" (117.0 mm x 135.0 mm)
Compression Ratio	15.9 to 1
Rated Engine Speed	2000 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist with duals
Steering	hydrostatic
Transmission	selective gear fixed ratio with full range operator controlled powershift
Speeds	19 forward (26.10 mph max)
Wheelbase	136.00 in (3454 mm)
Brakes	wet disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	12,603 kg

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution

Tires & Tracks

Rear Tires	Four 480/80R50; ***; 12(85) psi(kPa)
Front Tires	Two 380/80R38; ***; 23(160) psi(kPa)
Height of Drawbar	21.0 in (535 mm)

Static Weight

Rear	17,965 lbs
Front	9,995 lbs
Total	27,960 lbs
