New Holland T8.350 Specs ( 2015-Present )

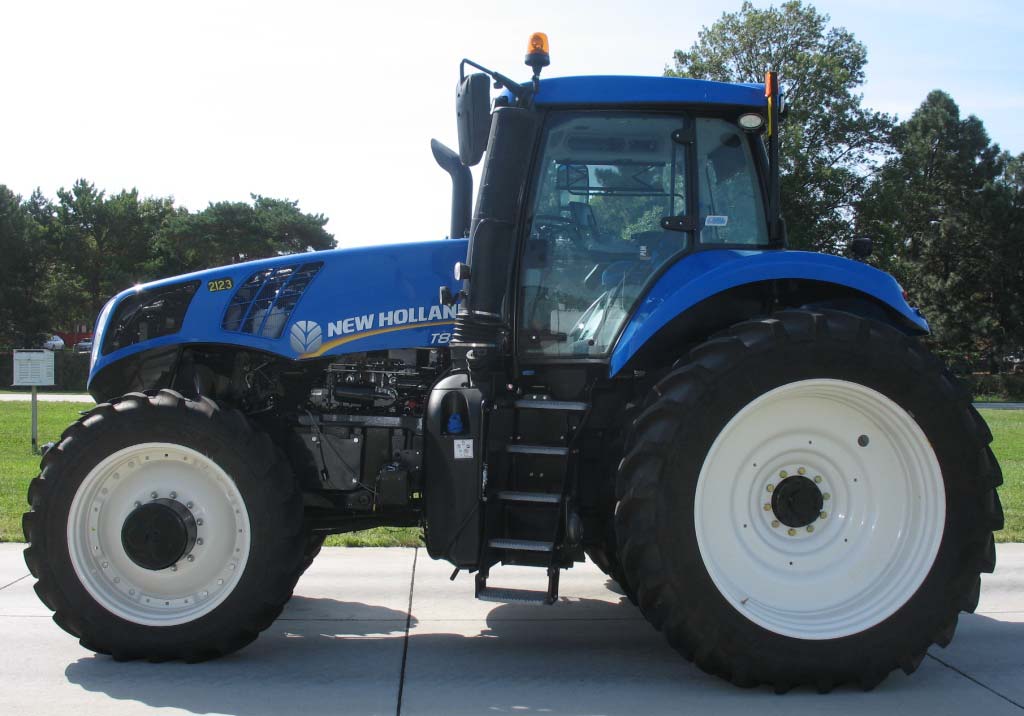

Name: New Holland T8.350
Brand: New Holland

Compare Tractor

Nebraska Test #2123A

New Holland T8.350

Max Drawbar HP 260.5 hp

Max Pull 27,021 lbs

Max Torque 950 lb-ft

View Full Test Data →

Overview

The New Holland T8.350 is a row-crop farm tractor manufactured in Racine, Wisconsin, featuring an 8.7L 6-cylinder FPT diesel engine with Tier IV emission standards. Produced since 2015, this model is equipped with four-wheel drive and available with either Ultra-Command full power shift or Auto Command CVT transmissions.

Ideal Applications

Tested Power Output: In OCED Tractor Test 2123A, the unit achieved a maximum PTO power of 296.56 hp and a maximum drawbar pull of 26,131 lbs while utilizing an 18-speed power shift transmission.

Engine and Fluid Capacity: The FPT liquid-cooled engine features a high-pressure common rail fuel system and selective catalytic reduction, supported by a 179-gallon fuel tank on FPS models and a 26-gallon diesel exhaust fluid tank.

Mechanical Configuration: The tractor is built on a 136-inch or 138-inch wheelbase with a standard air-conditioned cab, inboard planetary final drives, and a rear lift capacity of 12,900 lbs using 43-inch link arms.

Production

Description	Row-Crop tractor / Built in Racine, Wisconsin, USA / Original price was $279,219 in 2016 with powershift
Manufacturer	New Holland (a part of CNH)

Engine

CVT Fuel tank	163 gal (617.0 L)
Engine type	FPT 8.7L 6-cyl diesel
Exhaust fluid (DEF)	26 gal (98.4 L)
FPS Fuel tank	179 gal (677.5 L)
Bore/Stroke	4.606x5.315 inches (117 x 135 mm)
Cooling system	viscous fan
Description	FPT / variable-geometry turbocharged diesel / 6-cylinder 24-valve / liquid-cooled
Displacement	531 ci (8.7 L)
Emission control	selective catalytic reduction (SCR)
Emissions	Tier IV
Fuel system	electronic high-pressure common rail
Maximum Power (gross)	351 hp (261.7 kW)
Rated Power (gross)	280 hp (208.8 kW)
Rated RPM	2000
Starter	electric
Starter volts	12
Drawbar (tested)	213.10 hp (158.9 kW)
Engine (gross)	280 hp (208.8 kW)
Engine (max)	351 hp (261.7 kW)
PTO (claimed)	235 hp (175.2 kW)
PTO (tested)	296.56 hp (221.1 kW)

Transmission

Clutch	electro-hydraulic wet discs
Description	Available as 18-speed or 19-speed with ECO overdrive.
Gears	18 forward and 4 reverse / infinite forward and reverse (4-range) / 23 forward and 6 reverse
Transmission	Ultra-Command / Auto Command
Type	full power shift / continuously variable transmission (CVT) / power shift creeper
Description	continuously variable transmission (CVT)
Transmission type	18-speed full power shift / 23-speed power shift creeper
Description	continuously variable transmission (CVT)
Transmission type	18-speed full power shift / 23-speed power shift creeper

Mechanical

Cab	Cab standard with air-conditioning. Comfort Ride cab suspension optional. Intellisteer ready
Description	Power steering / Wet disc brakes
Drive type	Four-wheel drive
Final drives	inboard planetary

Hydraulics

Pump flow	44 gpm (166.5 lpm)
Type	closed center pressure-flow compensating (PFC)
Valves	4 to 5

Hitch

Control	electronic lower-link draft sensing
Drawbar	Cat. 3
Rear lift	12900 lbs*With 4-inch rear axle and 43-inch link arms. (5851 kg)
Rear Type	III/IIIN

PTO

Engine RPM	540@1800
Front PTO	independent OptOptional
Front PTO Type	1000 (1.375)
Rear PTO	independent
Rear PTO Type	1000 (1.75)

Electrical

Batteries	2
Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Bar rear axle	4 by 120 inches (101 by 3048 mm) / 4.5 by 120 inches (114 by 3048 mm)
CVT Length	263 inches (668 cm)
CVT Wheelbase	138 inches (350 cm)
FPS Length	261 inches (662 cm)
FPS Wheelbase	136 inches (345 cm)
Front axle	MFWD / Terraglide
Front tread	60 to 88 inches (152 to 223 cm)
Height (cab)	132 inches (335 cm)
Max weight	31791 lbs (14420 kg)
Weight	22377 lbs (10150 kg)
CVT Wheelbase	138 inches (350 cm)
FPS Wheelbase	136 inches (345 cm)
Front tire	420/85R34
Rear tire	480/80R50
Weight	22377 lbs (10150 kg)
Standard tires (ag)	Front: 420/85R34. Rear: 480/80R50

New Holland T8.350 attachments

Description	front-end loader

OCED Tractor Test 2123A

Description	Diesel Power shift 4WDSeptember 11 - 17, 2015Link: OCED Tractor Test 2123A file / PTO performance / Drawbar performance / Gear 8 used for power test. / Gear 4 used for pull test.
Fuel use	15.1 gal/hour (57.2 l/hour) / 13.0 gal/hour (49.2 l/hour) / 15.1 gal/hour (57.2 l/hour) / 13.0 gal/hour (49.2 l/hour)
Max power	296.56 hp (221.1 kW) / 213.10 hp (158.9 kW)
Max pull	26131 lbs (11853 kg)
Power at rated engine speed	242.08 hp (180.5 kW)
Power at rated PTO speed	296.56 hp (221.1 kW)

References

Description	Genesis T8 Series Tractors published in 2014, by New Holland / Genesis T8 Series Tractors published in 2015, by New Holland

T8.350 Serial Numbers

2015	ZERxxxxxx
2016	ZFRxxxxxx
2017	ZGRxxxxxx
2018	ZHRxxxxxx
2019	ZJRxxxxxx
2020	ZKRxxxxxx
2021	ZLRxxxxxx
Description	FAQ: How to read a serial number table.

Variants

Magnum 280	similar CaseIH model

Nebraska Tractor Test Results

Test #2123A

Download PDF

Test Date: September 11 - 17, 2015

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

296.56 hp

@ 1800 rpm

Rated Engine Speed

242.08 hp

N/A lb/hp·hr

Standard PTO Speed

296.56 hp

@ 998 rpm PTO

Torque Statistics

Maximum Torque	950 lb.-ft. (1287 Nm) at 1300 rpm
Torque Rise	49.4%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM	Fuel gal/hr	Fuel L/hr	DEF gal/hr	DEF L/hr
Rated Engine Speed	242.08	180.52	2000	1109	12.99	49.18	1.18	4.47
Standard PTO Speed (1000 rpm)	296.56	221.15	1800	998	15.12	57.23	1.56	5.90
Maximum Power (1 Hour)	296.56	221.15	1800		15.12	57.23	1.56	5.90

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
242.08	2000	12.99	0.38	18.63	1.18
216.84	2108	12.21	0.39	17.77	1.04
166.36	2152	10.07	0.42	16.52	0.67
111.80	2170	7.63	0.48	14.66	0.45
56.95	2204	5.33	0.65	10.69	0.26
0.54	2224	3.16	40.89	0.17	0.11

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	kW	Pull (lbs)	Pull (kN)	Speed	km/h	Air °F	Cool °F
Maximum Power—8th Gear	213.10	158.91	14,852	66	5.38	8.66	68	212
75% of Pull at Maximum Power—8th Gear	171.21	127.67	11,148	50	5.76	9.27	73	200
50% of Pull at Maximum Power—8th Gear	117.10	87.32	7,441	33	5.90	9.50	73	207
75% of Pull at Reduced Engine Speed—11th...	171.24	127.69	11,147	50	5.76	9.27	76	199
50% of Pull at Reduced Engine Speed—11th...	117.58	87.68	7,519	33	5.86	9.43	75	199

Drawbar Performance At 1800 Engine RPM (Unballasted) Front Drive Engaged

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	DEF lb/hp	Barometer Inch Hg	Engine RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air F	Temp Cooling F
4th Gear	197.13	27,021	2.74	12.60	0.06	28.57	1985	14.84	0.47	71	213
5th Gear	215.11	25,469	3.17	9.00	0.06	28.57	1923	15.70	0.45	74	213
6th Gear	233.00	24,564	3.56	7.80	0.06	28.58	1859	16.18	0.43	75	213
7th Gear	254.40	23,508	4.06	6.70	0.05	28.59	1800	16.83	0.42	77	213
8th Gear	258.90	20,467	4.75	5.00	0.05	28.58	1800	17.10	0.41	78	212
9th Gear	258.85	17,552	5.53	3.90	0.05	28.58	1800	17.14	0.41	78	212
10th Gear	260.48	15,261	6.40	3.10	0.05	28.52	1800	17.21	0.41	69	212
11th Gear	257.92	13,121	7.37	2.60	0.05	28.53	1800	17.12	0.41	73	212
12th Gear	256.26	11,322	8.49	2.30	0.05	28.54	1800	17.00	0.41	72	212

Unballasted Front Drive Engaged Maximum Power In Selected Gears Rated RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	DEF lb/hp	Barometer Inch Hg	Engine RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air F	Temp Cooling F
4th Gear	199.08	26,131	2.86	9.30	0.05	28.57	2000	15.33	0.46	72	213
5th Gear	205.24	22,592	3.41	5.80	0.05	28.57	2000	15.80	0.44	73	212
6th Gear	206.57	19,582	3.96	4.60	0.05	28.58	2000	15.87	0.44	76	212
7th Gear	211.74	17,028	4.66	3.50	0.05	28.54	1999	16.28	0.43	71	213
8th Gear	213.10	14,852	5.38	3.00	0.05	28.53	2000	16.36	0.43	68	212
9th Gear	210.85	12,687	6.23	2.60	0.05	28.52	2000	16.19	0.43	68	213
10th Gear	208.49	10,901	7.17	2.30	0.05	28.53	2000	16.02	0.44	68	213
11th Gear	206.50	9,384	8.25	1.90	0.05	28.54	2000	15.87	0.44	70	212

Category: 3 Quick Attach: Yes

Lift Capacity

Single Outlet Set

Sustained Pressure	2,840 psi
Delivery Pressure	2,271 psi
Flow Rate (min press)	42.00 gpm
Max Power	50.10 hp

Engine

Make	F.P.T. Diesel
Type	six cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	531 cu in (8704 ml)
Compression Ratio	15.9 to 1
Rated Engine Speed	2000 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist with duals
Steering	hydrostatic
Transmission	selective gear fixed ratio with full range operator controlled powershift
Wheelbase	136.00 in (3454 mm)
Front Tread Width	60.0 (1524 mm) to 88.0 (2235 mm) in
Rear Tread Width	64.0 (1626 mm) to 129.0 (3277 mm) in
Brakes	wet disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	12,487 kg

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Engine Oil	SAE 10W40 API service classification CJ-4

Sound Levels

Bystander	83.20 dB(A)
At No Load In 7th Gear Disengaged	66.80 dB(A)
At No Load In 7th Gear Engaged	66.80 dB(A)

Tires & Tracks

Rear Tires	Four 480/80R50;***;12(85)
Front Tires	Two 420/85R34;***;23(160)
Height of Drawbar	21.00 in (535 mm)

Static Weight

Rear	16,085 lbs
Front	11,620 lbs
Total	27,705 lbs
