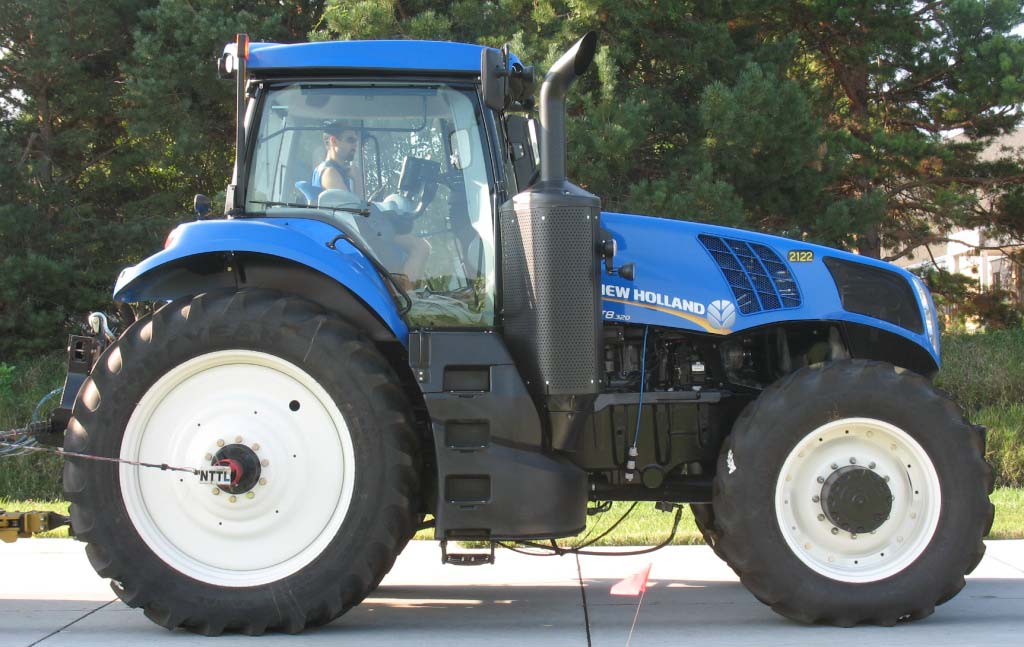

New Holland T8.320 Specs ( 2015-Present )

Name: New Holland T8.320
Brand: New Holland

Overview

The New Holland T8.320 is a row-crop farm tractor manufactured in Racine, Wisconsin, since 2015. It is powered by an FPT 8.7L 6-cylinder diesel engine rated at a maximum gross output of 320 hp and features either a full power shift or a continuously variable transmission. The tractor is equipped with a Tier IV emission-controlled engine and a closed-center pressure-flow compensating hydraulic system with a 44 gpm pump flow.

Ideal Applications

Tested Power and Pulling Capacity: Nebraska Tractor Test data for this model recorded a maximum of 261.49 PTO horsepower and a maximum drawbar pull of 20,757 lbs.

Transmission and Drive Configuration: The tractor is built with a four-wheel-drive system and offers options for an 18-speed Ultra-Command full power shift or an Auto Command CVT.

Chassis and Lift Specifications: This model features a maximum weight of 27,734 lbs and a rear hitch lift capacity of 12,900 lbs when configured with a 4-inch rear axle and 43-inch link arms.

Production

Description	Row-Crop tractor / Built in Racine, Wisconsin, USA / Original price was $261,389 in 2016 with powershift
Manufacturer	New Holland (a part of CNH)

Engine

CVT Fuel tank	163 gal (617.0 L)
Engine type	FPT 8.7L 6-cyl diesel
Exhaust fluid (DEF)	26 gal (98.4 L)
FPS Fuel tank	179 gal (677.5 L)
Bore/Stroke	4.606x5.315 inches (117 x 135 mm)
Cooling system	viscous fan
Description	FPT / wastegate turbocharged diesel / 6-cylinder 24-valve / liquid-cooled
Displacement	531 ci (8.7 L)
Emission control	selective catalytic reduction (SCR)
Emissions	Tier IV
Fuel system	electronic high-pressure common rail
Maximum Power (gross)	320 hp (238.6 kW)
Rated Power (gross)	250 hp (186.4 kW)
Rated RPM	2000
Starter	electric
Starter volts	12
Drawbar (tested)	183.85 hp (137.1 kW)
Engine (gross)	250 hp (186.4 kW)
Engine (max)	320 hp (238.6 kW)
PTO (claimed)	205 hp (152.9 kW)
PTO (tested)	261.49 hp (195.0 kW)

Transmission

Clutch	electro-hydraulic wet discs
Description	Available as 18-speed or 19-speed with ECO overdrive.
Gears	18 forward and 4 reverse / infinite forward and reverse (4-range) / 23 forward and 6 reverse
Transmission	Ultra-Command / Auto Command
Type	full power shift / continuously variable transmission (CVT) / power shift creeper
Description	continuously variable transmission (CVT)
Transmission type	18-speed full power shift / 23-speed power shift creeper
Description	continuously variable transmission (CVT)
Transmission type	18-speed full power shift / 23-speed power shift creeper

Mechanical

Cab	Cab standard with air-conditioning. Comfort Ride cab suspension optional. Intellisteer ready
Description	Power steering / Wet disc brakes
Drive type	Four-wheel drive
Final drives	inboard planetary

Hydraulics

Pump flow	44 gpm (166.5 lpm)
Type	closed center pressure-flow compensating (PFC)
Valves	4 to 5

Hitch

Control	electronic lower-link draft sensing
Drawbar	Cat. 3
Rear lift	12900 lbs*With 4-inch rear axle and 43-inch link arms. (5851 kg)
Rear Type	III/IIIN

PTO

Engine RPM	540@1800
Front PTO	independent OptOptional
Front PTO Type	1000 (1.375)
Rear PTO	independent
Rear PTO Type	1000 (1.75)

Electrical

Batteries	2
Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Bar rear axle	4 by 120 inches (101 by 3048 mm) / 4.5 by 120 inches (114 by 3048 mm)
CVT Length	263 inches (668 cm)
CVT Wheelbase	138 inches (350 cm)
FPS Length	261 inches (662 cm)
FPS Wheelbase	136 inches (345 cm)
Front axle	MFWD / Terraglide
Front tread	60 to 88 inches (152 to 223 cm)
Height (cab)	132 inches (335 cm)
Max weight	27734 lbs (12580 kg)
Weight	22200 lbs (10069 kg)
CVT Wheelbase	138 inches (350 cm)
FPS Wheelbase	136 inches (345 cm)
Front tire	420/85R34
Rear tire	480/80R50
Weight	22200 lbs (10069 kg)
Standard tires (ag)	Front: 420/85R34. Rear: 480/80R50

New Holland T8.320 attachments

Description	front-end loader

OCED Tractor Test 2122

Description	Diesel Power shift 4WDSeptember 1 - 17, 2015Link: OCED Tractor Test 2122 file / PTO performance / Drawbar performance / Gear 8 used for power test. / Gear 4 used for pull test.
Fuel use	13.5 gal/hour (51.1 l/hour) / 11.9 gal/hour (45.0 l/hour) / 13.5 gal/hour (51.1 l/hour) / 11.7 gal/hour (44.3 l/hour)
Max power	261.49 hp (195.0 kW) / 183.85 hp (137.1 kW)
Max pull	20729 lbs (9402 kg)
Power at rated engine speed	215.51 hp (160.7 kW)
Power at rated PTO speed	261.49 hp (195.0 kW)

References

Description	Genesis T8 Series Tractors published in 2014, by New Holland / Genesis T8 Series Tractors published in 2015, by New Holland

T8.320 Serial Numbers

2015	ZERxxxxxx
2016	ZFRxxxxxx
2017	ZGRxxxxxx
2018	ZHRxxxxxx
2019	ZJRxxxxxx
2020	ZKRxxxxxx
2021	ZLRxxxxxx
Description	FAQ: How to read a serial number table.

Variants

Magnum 250	similar CaseIH model

Nebraska Tractor Test Results

Test #2122

Download PDF

Test Date: September 1 - 17, 2015

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

261.49 hp

@ 1800 rpm

Rated Engine Speed

215.51 hp

N/A lb/hp·hr

Standard PTO Speed

261.49 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	878 lb-ft (1190 Nm) at 1399 rpm
Torque Rise	55.0%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM
Rated Engine Speed	215.51	160.71	2000
Standard PTO Speed (1000 rpm)	261.49	194.99	1800
Maximum Power (1 Hour)	261.49	194.99	1800

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
215.51	2000	11.87	0.39	18.16	0.91
192.02	2096	11.05	0.40	17.37	0.77
146.19	2126	8.99	0.43	16.25	0.58
99.04	2157	7.00	0.49	14.14	0.43
49.85	2178	4.85	0.68	10.29	0.33
1.64	2205	3.09	13.16	0.53	0.27

Drawbar Performance At 1800 Engine RPM (Unballasted) Front Drive Engaged

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	hp·hr/gal	DEF lb/hp	Fuel Lb Hp Hr
4th	153.55	20,757	2.78	2054	14.10	13.52	0.05	0.52
5th	167.61	19,020	3.31	2022	10.10	14.45	0.05	0.48
6th	181.78	18,292	3.73	1979	8.70	14.83	0.05	0.47
7th	200.50	17,454	4.31	1945	8.00	15.54	0.05	0.45
8th	211.84	16,715	4.76	1859	7.40	15.95	0.05	0.44
9th	219.46	15,332	5.37	1800	6.30	16.33	0.05	0.43
10th	223.29	13,342	6.28	1800	4.80	16.66	0.05	0.42
11th	223.22	11,519	7.27	1800	3.80	16.67	0.05	0.42
12th	221.63	9,903	8.39	1800	3.30	16.59	0.05	0.42

Unballasted Front Drive Engaged Fuel Consumption Characteristics

Click column headers to sort

Power	kW	Pull (lbs)	Pull (kN)	Speed	RPM	Slip	DEF lb/hp	DEF kg/kW	Air °F	Cool °F	Barometer Inch Hg	Condition	Fuel Hp Hr Gal	Fuel Kg Kw Hr	Fuel Kw H L	Fuel Lb Hp Hr	Speed Km H
183.85	137.09	13,027	57.95	5.29	2000	4.60	0.04	0.03	75	202	28.62	Maximum Power—8th Gear	15.66	0.27	3.08	0.45	8.51
147.32	109.86	9,737	43.31	5.67	2117	3.20	0.04	0.03	82	198	28.64	75% of Pull at Maximum Power—8th Gear	14.55	0.29	2.87	0.48	9.12
100.38	74.85	6,506	28.94	5.79	2133	2.00	0.04	0.03	83	196	28.64	50% of Pull at Maximum Power—8th Gear	12.81	0.33	2.52	0.55	9.32
147.22	109.78	9,762	43.42	5.66	1391	3.20	0.04	0.02	83	193	28.64	75% of Pull at Reduced Engine Speed—11th Gear	16.46	0.26	3.24	0.42	9.11
100.67	75.07	6,514	28.97	5.80	1408	2.00	0.04	0.02	83	196	28.64	50% of Pull at Reduced Engine Speed—11th Gear	15.31	0.28	3.02	0.46	9.33

Unballasted Front Drive Engaged Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	hp·hr/gal	DEF lb/hp	Fuel Lb Hp Hr
4th	153.28	20,729	2.78	2054	14.10	13.52	0.05	0.52
5th	166.95	18,929	3.31	2024	10.00	14.41	0.05	0.49
6th	174.66	17,153	3.82	2000	7.50	14.77	0.05	0.47
7th	182.75	15,040	4.56	2000	5.50	15.53	0.05	0.45
8th	183.85	13,027	5.29	2000	4.60	15.66	0.04	0.45
9th	184.14	11,228	6.15	1999	3.60	15.68	0.05	0.45
10th	182.14	9,629	7.09	1999	3.10	15.48	0.05	0.45
11th	179.98	8,250	8.18	2000	2.60	15.28	0.05	0.46

Category: 3 Quick Attach: Yes

Hitch Dimensions (No Load)

Dimension	Inches	mm

Engine

Make	F.P.T. Diesel
Type	six cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	531 cu in (8704 ml)
Compression Ratio	15.9 to 1
Rated Engine Speed	2000 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist
Steering	hydrostatic
Transmission	selective gear fixed ratio with full range operator controlled powershift
Wheelbase	136 in (3454 mm)
Front Tread Width	60.0 to 88.0 in
Rear Tread Width	64.0 to 129.0 in
Brakes	wet disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	24,185 lbs ( 10,971 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution

Sound Levels

Bystander	82.60 dB(A)

At No Load In 7th Gear

Tires & Tracks

Rear Tires	***, 480/80R50
Front Tires	***, 480/85R34
Height of Drawbar	22.00 in (560 mm)

Static Weight

Rear	15,170 lbs
Front	9,190 lbs
Total	24,360 lbs
