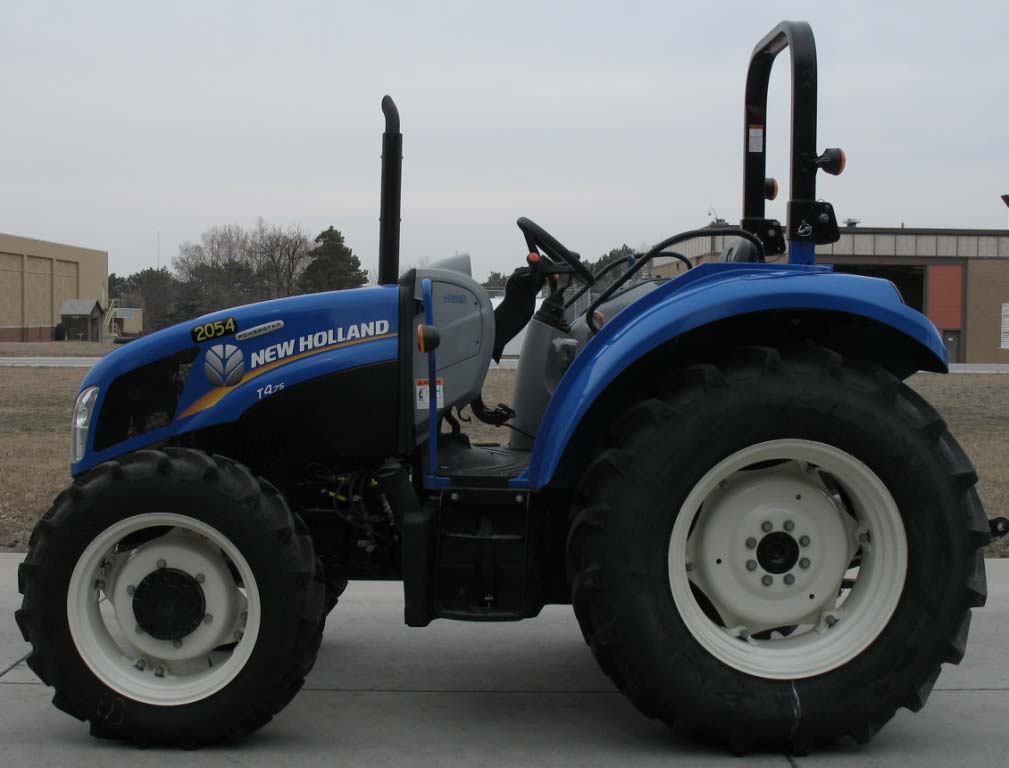

New Holland T4.75 Specs ( 2012-2014 )
Overview
The New Holland T4.75 is a utility farm tractor manufactured between 2012 and 2014, featuring a 3.2L FPT four-cylinder turbocharged diesel engine rated at 74 gross horsepower. Available in 2WD or 4WD configurations, the model can be equipped with either a foldable ROPS or a PowerStar cab and utilizes a 12-speed or 20-speed transmission system.
Ideal Applications
Tested PTO Performance:
According to Nebraska Tractor Test 2054, the tractor achieved a maximum PTO output of 68.43 hp with a fuel consumption rate between 4.2 and 4.5 gallons per hour.
Hydraulic and Hitch Capacity:
The system is equipped with a fixed displacement pump providing 12.55 gpm flow and a rear lift capacity of 3,664 lbs at 24 inches behind the lift points.
Mechanical Configuration:
Drivetrain options include Synchro Shuttle and Power Shuttle transmissions with available creeper gears, supported by a 12-volt electrical system with a 120-amp charging alternator.
Production
| Description | Utility tractor |
|---|---|
| Manufacturer | New Holland |
Engine
| Engine type | FPT 3.2L 4-cyl diesel |
|---|---|
| Fuel tank | 23.8 gal (90.1 L) |
| Air cleaner | dry |
| Bore/Stroke | 3.898x4.094 inches (99 x 104 mm) |
| Description | FPT F5C / turbocharged diesel / 4-cylinder 8-valve / liquid-cooled |
| Displacement | 195 ci (3.2 L) |
| Emissions | Tier 3 |
| Oil change | 500 h |
| Power (gross) | 74 hp (55.2 kW) |
| Pre-heating | grid heater |
| Rated Power (gross) | 74 hp (55.2 kW) |
| Rated RPM | 2300 |
| Starter | electric |
| Starter volts | 12 |
| Torque | 228.6 lb-ft (310.0 Nm) |
| Torque RPM | 1200 |
| Engine (gross) | 74 hp (55.2 kW) |
| PTO (claimed) | 65 hp (48.5 kW) |
| PTO (tested) | 68.43 hp (51.0 kW) |
Transmission
| Description | Four gears in three ranges. Mechanical shuttle shift. Optional creeper adds an additional / Power shuttle transmission adds a hydraulic shuttle shift. / Four |
|---|---|
| Gears | 12 forward and reverse / 12 forward and reverse / 20 forward and reverse / 20 forward and reverse |
| Transmission | Synchro Shuttle / Power Shuttle / Synchro Shuttle creeper / Power Shuttle creeper |
| Type | partially synchronized mechanical shuttle / power shuttle / mechanical shuttle / power shuttle |
| Transmission type | 12-speed / 20-speed |
| Transmission type | 12-speed / 20-speed |
Mechanical
| Description | Two-post foldable ROPS. Optional PowerStar cab with optional air-conditioning. EZ-Guide 250 and 500 capable. |
|---|---|
| Differential lock | limited slip 4WD front axle |
| Drive type | Two- or four-wheel drive |
| Steering | hydrostatic power |
| Trailer brakes | hydraulic optional |
Hydraulics
| Mid valves | 2 |
|---|---|
| Pump flow | 12.55 gpm (47.5 lpm) |
| Rear valves | 3 |
| Steering flow | 7.3 gpm (27.6 lpm) |
| Total flow | 19.8 gpm (74.9 lpm) |
| Type | fixed displacement |
Hitch
| Control | mechanical draft control |
|---|---|
| Rear lift (at 24"/610mm) | 3,664 lbs (1661 kg) |
| Rear lift (at ends) | 4,883 lbs (2214 kg) |
| Rear Type | 2/1 |
PTO
| Clutch | mechanical dry disc, wet disc with power shuttle |
|---|---|
| Engine RPM | 540@1958 |
| Rear PTO | independent |
| Rear PTO Type | 540 |
Electrical
| Battery AH | 100 |
|---|---|
| Battery CCA | 730 (ROPS) |
| Battery volts | 12 |
| Charging amps | 120 |
| Charging system | alternator |
| Charging volts | 12 |
| Ground | negative |
Dimensions & Tires
| 2WD Front tread | 60.2 to 79.9 inches (152 to 202 cm) |
|---|---|
| 2WD Wheelbase | 84.7 inches (215 cm) |
| 4WD Front tread | 60.8 to 76.6 inches (154 to 194 cm) |
| 4WD Wheelbase | 82.8 inches (210 cm) |
| Description | Flange rear axle |
| Ground clearance | 16.7 inches (42 cm) |
| Height (cab) | 97.6 inches (247 cm) |
| Height (ROPS) | 78.9 inches (200 cm) |
| Length | 149.3 inches (379 cm) |
| Rear tread | 60.2 to 75.9 inches (152 to 192 cm) |
| Width | 79.1 inches (200 cm) |
| 2WD Wheelbase | 84.7 inches (215 cm) |
| 4WD Wheelbase | 82.8 inches (210 cm) |
| Rear tire | 480/70R30 |
| Weight | 4960 to 6173 pounds |
| Ag rear | 480/70R30 |
Nebraska Tractor Test 2054
| Description | Diesel 12-speed 4WDMarch 12 - 14, 2013Link: Nebraska Tractor Test 2054 file / PTO performance |
|---|---|
| Fuel use | 4.2 gal/hour (15.9 l/hour) / 4.5 gal/hour (17.0 l/hour) / 4.3 gal/hour (16.3 l/hour) |
| Max power | 68.43 hp (51.0 kW) |
| Power at rated engine speed | 67.92 hp (50.6 kW) |
| Power at rated PTO speed | 68.22 hp (50.9 kW) |
New Holland T4.75 Weight
| 2WD cab | 5,555 lbs (2519 kg) |
|---|---|
| 2WD cab Shipping | 5,556 lbs (2520 kg) |
| 2WD Max capacity | 9,921 lbs (4500 kg) |
| 2WD ROPS | 4,960 lbs (2249 kg) |
| 2WD ROPS Shipping | 4,960 lbs (2249 kg) |
| 4WD cab | 6,172 lbs (2799 kg) |
| 4WD cab Shipping | 6,173 lbs (2800 kg) |
| 4WD Max capacity | 10,580 lbs (4799 kg) |
| 4WD ROPS | 5,886 lbs (2669 kg) |
| 4WD ROPS Shipping | 5,886 lbs (2669 kg) |
New Holland T4.75 attachments
| Description | front-end loader |
|---|
Nebraska Tractor Test Results
Test #2054
Test Date:
March 12-14, 2013
Location:
Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln Nebraska 68583-0832
This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.
Maximum Power & Fuel Consumption
Max Power (1 Hour)
68.43 hp
@ 2000 rpm
Rated Engine Speed
67.92 hp
N/A lb/hp·hr
Standard PTO Speed
68.22 hp
@ N/A rpm PTO
Torque Statistics
| Maximum Torque | 221 lb-ft (300 Nm) |
|---|---|
| Torque Rise | 43.2% |
| At Engine RPM | 1302 rpm |
PTO Power Curve
Maximum Power & Fuel Consumption Details
| Condition | HP | kW | RPM | Fuel gal/hr |
|---|---|---|---|---|
| Maximum Power (1 Hour) | 68.43 | 51.03 | 2000 | 4.18 |
Varying Power & Fuel Consumption
Click column headers to sort
| Power | RPM | gal/hr | lb/hp·hr | hp·hr/gal | DEF gal/hr |
|---|---|---|---|---|---|
| 67.92 | 2300 | 4.49 | 0.46 | 15.14 | N/A |
| 61.50 | 2453 | 4.25 | 0.49 | 14.46 | N/A |
| 46.60 | 2477 | 3.63 | 0.55 | 12.85 | N/A |
| 31.40 | 2496 | 2.76 | 0.62 | 11.36 | N/A |
| 16.10 | 2553 | 1.76 | 0.77 | 9.14 | N/A |
| 0.60 | 2585 | 1.14 | 13.28 | 0.53 | N/A |
