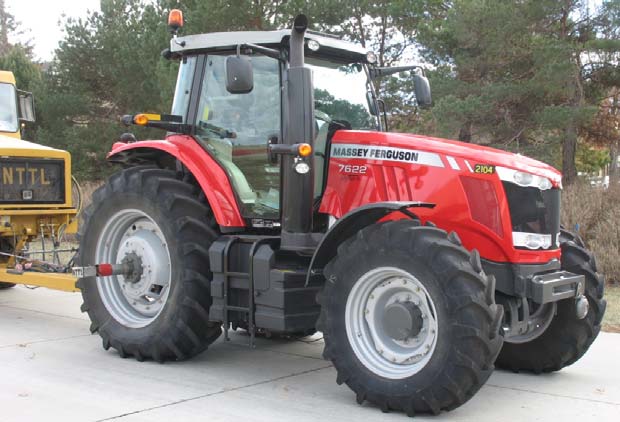

Massey Ferguson 7622 Specs ( 2013-2014 )

Name: Massey Ferguson 7622
Brand: Massey Ferguson

Overview

The Massey Ferguson 7622 is a farm tractor produced between 2013 and 2014 in Beauvais, France, featuring a 200 net horsepower 6-cylinder Sisu engine. This model was offered with two transmission options: the 24-speed Dyna-6 powershift and the Dyna-VT continuously-variable transmission. Key performance features include an electronic lower link draft sensing hitch and a closed-center load sensing hydraulic system with a total flow of 29 gpm.

Ideal Applications

Tested Performance Metrics: According to Nebraska Tractor Test data, the 7622 achieved a maximum tested PTO output of 202.14 horsepower and a maximum drawbar pull of 16,822 pounds.

Transmission and Engine Specifications: The tractor utilizes a 7.4L Sisu engine when equipped with the Dyna-6 transmission and a 6.6L Sisu engine when configured with the Dyna-VT transmission, both featuring selective catalytic reduction for Interim Tier IV compliance.

Mechanical and Hitch Capacity: The unit is equipped with a category II drawbar and a rear hitch with a lift capacity of 14,000 pounds on Dyna-6 models, supported by an electro-hydraulic differential lock and hydraulic wet disc brakes.

Production

Description	Row-Crop tractor / Built in Beauvais, France
Manufacturer	Massey Ferguson (a part of AGCO)

Engine

Engine type	Sisu 7.4L 6-cyl diesel
Bore/Stroke	4.252x5.276 inches (108 x 134 mm) / 4.252x5.276 inches (108 x 134 mm)
Compression	17.4:1 / 17.8:1
Description	Sisu / turbocharged air-to-air aftercooled diesel / 6-cylinder 24-valve / liquid-cooled / The 6.6L engine is used when the 7622 is equipped with the Dyna-VT transmission. / Sisu / turbocharged air-to-air aftercooled diesel / 6-cylinder 24-valve / liquid-cooled / The 7.4L engine is used when the 7622 is equipped with the Dyna-6 transmission.
Displacement	449.4 ci (7.4 L) / 449.4 ci (7.4 L)
Emission control	selective catalytic reduction (SCR) / selective catalytic reduction (SCR)
Emissions	Interim Tier IV / Interim Tier IV
Fuel system	electronic high-pressure common rail / electronic high-pressure common rail
Power (net)	200 hp (149.1 kW) / 200 hp (149.1 kW)
Pre-heating	thermostart / thermostart
Rated RPM	2100 / 2100
Starter	electric / electric
Starter volts	12 / 12
Drawbar (tested)	168.77 hp (125.9 kW)
Engine (net)	200 hp (149.1 kW)
PTO (claimed)	165 hp (123.0 kW)
PTO (tested)	202.4 hp (150.9 kW)

Transmission

Description	Six power shift gears in four ranges. / continuously-variable transmission (CVT)
Gears	24 forward and reverse / infinite forward and reverse (2-range)
Transmission	Dyna-6 / Dyna-VT
Transmission type	24-speed six-speed power shift
Type	six-speed power shift

Mechanical

Cab	Cab standard. Optional hydraulic OptiRide cab suspension. AGCOCOMMAND (optional); Auto-Guide 3000 (optional)
Description	Power steering / Hydraulic wet disc brakes
Differential lock	electro-hydraulic standard
Drive type	Four-wheel drive
Final drives	inboard planetary
Trailer brakes	hydraulic (optional)

Capacity

Exhaust fluid (DEF)	14 gal (53.0 L)
Fuel	114 gal (431.5 L)
Hydraulic system	26.4 gal (99.9 L)

Hydraulics

Capacity	26.4 gal (99.9 L)
Pressure	2900 psi (200.0 bar)
SCV flow	24.3 gpm (92.0 lpm)
Total flow	29 gpm (109.8 lpm)
Type	closed-center load sensing (CCLS)
Valves	3 (mechanical)

Hitch

Control	electronic lower link draft sensing
Drawbar	Cat. II with drop pin
Front Hitch	optional
Rear lift (at ends)	14000 lbs (Dyna-6) (6350 kg)

PTO

Clutch	electro-hydraulic
Engine RPM	540@1890 (Dyna-6)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)

Electrical

Batteries	2
Battery volts	12
Charging amps	120
Charging system	alternator
Ground	negative

Dimensions & Tires

Bar rear axle	84.17 inch length (Dyna-6) (2137 mm) / 89.65 inch length (Dyna-VT) (2277 mm)
Front axle	4WD / QuadLink Suspended 4WD
Height (cab)	120.7 inches (306 cm)
Length	203.6 inches (517 cm)
Long bar rear axle	112 inch length (Dyna-6) (2844 mm) / 113 inch length (Dyna-VT) (2870 mm)
Wheelbase	117.8 inches (299 cm)
Weight	15990 to 18495 pounds
Wheelbase	117.8 inches (299 cm)

Massey Ferguson 7622 Weight

Max capacity	26445 lbs (Dyna-6) (11995 kg)
Max Drawbar	3527 lbs (1599 kg)
Operating	18495 lbs (Dyna-VT with 650/65R38 singles) (8389 kg)
Shipping	15990 lbs (7253 kg)

OCED Tractor Test 2104

Description	7.4 diesel Dyna-6 4WDNovember 18 - December 3, 2014Link: OCED Tractor Test 2104 file / PTO performance / Drawbar performance / Gear 3A used for power test. / Gear 2B used for pull test.
Fuel use	11.3 gal/hour (42.8 l/hour) / 11.2 gal/hour (42.4 l/hour) / 11.2 gal/hour (42.4 l/hour) / 11.1 gal/hour (42.0 l/hour)
Max power	202.14 hp (150.7 kW) / 168.77 hp (125.9 kW)
Max pull	16822 lbs (7630 kg)
Power at rated engine speed	185.13 hp (138.1 kW)
Power at rated PTO speed	196.82 hp (146.8 kW)

OCED Tractor Test 2705

Description	6.6 diesel Dyna-VT 4WDJanuary 2012 - March 2012, Link: OCED Tractor Test 2705 file / PTO performance / Drawbar performance / Pull at 8.6KPH / Pull at 4KPH
Fuel use	10.8 gal/hour (40.9 l/hour) / 10.2 gal/hour (38.6 l/hour) / 10.5 gal/hour (39.7 l/hour) / 9.6 gal/hour (36.3 l/hour)
Max power	202.4 hp (150.9 kW) / 135.2 hp (100.8 kW)
Max pull	17040 lbs (7729 kg)
Power at rated engine speed	176.7 hp (131.8 kW)
Power at rated PTO speed	187.5 hp (139.8 kW)

References

Description	7600 Series published in 2013, by Massey Ferguson

Tractor Tests

Description	OECD 2705: 6.6 diesel Dyna-VT 4WD / OECD 2104: 7.4 diesel Dyna-6 4WD

Nebraska Tractor Test Results

Test #2104

Download PDF

Test Date: November 18 to December 3, 2014

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Rated Engine Speed

185.13 hp

N/A lb/hp·hr

Standard PTO Speed

196.82 hp

@ 1000 rpm PTO

Torque Statistics

Maximum Torque	644 lb-ft (873 Nm) at 1500 rpm
Torque Rise	39.6%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM	Fuel gal/hr	DEF gal/hr	DEF L/hr
Rated Engine Speed	185.13	138.05	2100	1051	11.15	0.59	2.24
Standard PTO Speed (1000 rpm)	196.82	146.77	2000	1000	11.24	0.66	2.51

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
185.13	2100	11.15	0.42	16.60	0.59
159.01	2123	9.69	0.43	16.41	0.54
119.76	2131	7.69	0.45	15.58	0.49
80.07	2139	5.87	0.52	13.63	0.39
40.21	2148	3.95	0.69	10.18	0.33
2.66	2155	2.32	6.13	1.15	0.24

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	Pull (lbs)	Speed	Slip	Air °F
Maximum Power - 11th(3A) Gear	168.77	12,963	4.88	5.30	46
75% of Pull at Maximum Power - 11th(3A) ...	130.95	9,722	5.05	3.30	42
50% of Pull at Maximum Power - 11th(3A) ...	89.41	6,495	5.16	1.60	41
75% of Pull at Reduced Engine Speed - 15...	130.63	9,678	5.06	3.10	40
50% of Pull at Reduced Engine Speed - 15...	89.44	6,495	5.16	1.60	41

Drawbar Performance At 2100 RPM (Unballasted)

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	Barometer Inch Hg	Engine RPM	Fuel Lb Hp Hr	Temp Air Dry F	Temp Coolant F
8th(2B)	127.63	16,822	2.85	14.40	13.60	0.03	28.72	2121	0.52	46	188
9th(2C)	148.05	16,105	3.45	10.00	14.43	0.03	28.72	2114	0.49	45	190
10th(2D)	157.49	13,819	4.27	6.60	15.17	0.03	28.73	2099	0.46	43	190
11th(3A)	168.77	12,963	4.88	5.30	15.21	0.03	28.69	2100	0.46	46	193
12th(2E)	167.30	12,235	5.13	4.60	15.05	0.03	28.69	2100	0.47	46	194
13th(3B)	170.52	10,681	5.99	3.70	15.34	0.03	28.70	2100	0.46	47	194
14th(2F)	169.97	10,201	6.25	3.50	15.35	0.03	28.70	2100	0.46	47	195
15th(3C)	172.43	9,139	7.08	2.70	15.54	0.03	28.71	2100	0.45	47	193
16th(3D)	172.76	7,543	8.59	1.80	15.62	0.03	28.71	2100	0.45	47	193

Drawbar Performance At 1950 RPM (Unballasted)

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	Barometer Inch Hg	Engine RPM	Fuel Lb Hp Hr	Temp Air Dry F	Temp Coolant F
8th(2B)	128.03	16,792	2.86	14.30	13.66	0.03	28.72	2121	0.52	46	189
9th(2C)	148.27	16,106	3.46	9.90	14.46	0.03	28.73	2114	0.49	46	190
10th(2D)	163.40	15,521	3.95	8.80	15.60	0.03	28.73	1987	0.45	44	191
11th(3A)	178.50	15,167	4.42	7.80	15.87	0.03	28.69	1950	0.44	46	194
12th(2E)	178.69	14,379	4.66	6.70	15.87	0.03	28.68	1950	0.44	46	194
13th(3B)	182.76	12,489	5.49	4.80	16.20	0.03	28.69	1950	0.43	47	195
14th(2F)	182.90	11,969	5.73	4.60	16.32	0.03	28.70	1950	0.43	47	196
15th(3C)	186.67	10,762	6.51	3.80	16.65	0.03	28.70	1950	0.42	47	195
16th(3D)	188.27	8,916	7.92	2.50	16.80	0.03	28.71	1950	0.42	47	196
17th(3E)	186.38	7,450	9.39	1.80	16.58	0.03	28.71	1950	0.42	47	196

Engine

Make	Sisu AGCO Power Diesel
Type	six cylinder vertical with turbocharger and air to air intercooler and SCR (selective catalyst reduction) exhaust treatment
Displacement	449 cu in (7365 ml)
Compression Ratio	17.8 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) with a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist
Steering	hydrostatic
Transmission	selective gear fixed ratio with partial (6) range operator controlled powershift
Wheelbase	117.80 in (2993 mm)
Front Tread Width	60.9" (1548 mm) to 88.8" (2256 mm) in
Rear Tread Width	55.2" (1401 mm) to 119.0" (3022 mm) in
Brakes	multiple wet disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	18,525 lbs ( 8,403 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Engine Oil	SAE 10W-30

Sound Levels

Bystander	83.30 dB(A)

At No Load In 10th 2d Gear

Tires & Tracks

Rear Tires	Two 520/85R42;**;14(100)
Front Tires	Two 16.9R30;**;18(125)
Height of Drawbar	19.5 in (495 mm)

Static Weight

Rear	11,280 lbs
Front	7,420 lbs
Total	18,700 lbs
