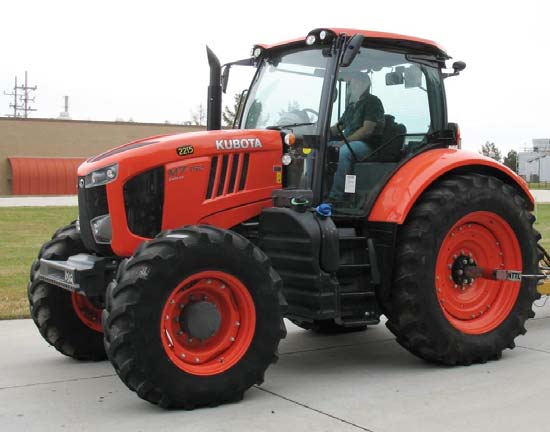

Kubota M7-152 Specs ( 2018-2020 )

Name: Kubota M7-152
Brand: Kubota

Overview

The Kubota M7-152 is a row-crop farm tractor produced in France between 2018 and 2020, powered by a 6.1L four-cylinder turbocharged intercooled diesel engine. The unit is equipped with a standard air-conditioned cab, four-wheel drive, and a Type III rear hitch with a lift capacity of 20,723 lbs. Available transmission options include a KVT infinitely variable transmission and a 6-speed power shift system providing up to 54 forward gears.

Ideal Applications

Tested Performance Metrics: According to Nebraska Tractor Test results, the model reached a maximum PTO output of 142.53 hp and a maximum drawbar pull of 14,716 lbs.

Transmission and Drive Configuration: The mechanical system features four-wheel drive with an electro-hydraulic wet disc clutch and transmission options that include infinitely variable forward and reverse speeds.

Hitch and Lift Specifications: The tractor is equipped with lower-link draft sensing, a front lift capacity of 8,598 lbs, and a rear lift capacity at the ends of 20,723 lbs.

Production

Description	Row-Crop tractor / Built in Bierne, France
Manufacturer	Kubota

Engine

Engine type	Kubota 6.1L 4-cyl diesel
Exhaust fluid (DEF)	10 gal (37.9 L)
Fuel tank	87.2 gal (330.1 L)
Bore/Stroke	4.65x5.51 inches (118 x 140 mm)
Description	Kubota V6108-CR / turbocharged intercooled diesel / 4-cylinder 16-valve / liquid-cooled
Displacement	373.7 ci (6.1 L)
Emissions	Stage IV
Maximum Power (gross)	170 hp (126.8 kW)
Rated Power (gross)	150 hp (111.9 kW)
Rated RPM	1900
Starter	electric
Starter volts	12
Torque	508 lb-ft (688.8 Nm)
Torque RPM	1500
Drawbar (tested)	108.31 hp (80.8 kW)
Engine (gross)	150 hp (111.9 kW)
Engine (max)	170 hp (126.8 kW)
PTO (tested)	142.53 hp (106.3 kW)

Transmission

Clutch	electro-hydraulic wet disc
Description	Six power shift gears in five synchronized ranges with shuttle.
Gears	30 forward and 15 reverse / infinite forward and reverse / 54 forward and 27 reverse
Transmission	KVT
Type	6-speed power shift / infinitely variable transmission / creeper
Description	infinitely variable transmission
Transmission type	30-speed 6-speed power shift / 54-speed creeper
Description	infinitely variable transmission
Transmission type	30-speed 6-speed power shift / 54-speed creeper

Mechanical

Cab	Cab standard with air-conditioning.
Description	Power steering / Hydraulic wet disc brakes
Drive type	Four-wheel drive

Hydraulics

Pump flow	21.1 gpm (open center) (79.9 lpm)
Type	open center

Hitch

Control	lower-link draft sensing
Front lift	8598 lbs (3900 kg)
Rear lift (at ends)	20723 lbs (9399 kg)
Rear Type	III

PTO

Engine RPM	540E@1608
Front PTO	independent
Front PTO Type	1000
Rear PTO	independent
Rear PTO Type	540/1000

Electrical

Battery volts	12
Charging system	alternator
Ground	negative

Dimensions & Tires

Height	119.3 inches (303 cm)
Length	187.8 inches (477 cm)
Shipping weight	13889 lbs (6300 kg)
Wheelbase	107.1 inches (272 cm)
Width	98.4 inches (249 cm)
Front tire	540/65R28
Rear tire	650/65R38
Weight	13889 lbs (6300 kg)
Wheelbase	107.1 inches (272 cm)
Standard tires (ag)	Front: 540/65R28. Rear: 650/65R38

OCED Tractor Test 2215

Description	Diesel Power shift 4WDOctober 30 - November 7, 2019Link: OCED Tractor Test 2215 file / PTO performance / Drawbar performance
Fuel use	8.4 gal/hour (31.8 l/hour) / 8.1 gal/hour (30.7 l/hour) / 8.6 gal/hour (32.6 l/hour) / 7.3 gal/hour (27.6 l/hour)
Max power	142.53 hp (106.3 kW) / 108.31 hp (80.8 kW)
Max pull	14673 lbs (6655 kg)
Power at rated engine speed	125.21 hp (93.4 kW)
Power at rated PTO speed	140.74 hp (104.9 kW)

References

Description	M7002 Series published in 2018, by Kubota / M7-2 Series published in 2021, by Kubota

Nebraska Tractor Test Results

Test #2215

Download PDF

Test Date: October 30 to November 7, 2019

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

142.53 hp

@ 1900 rpm

Rated Engine Speed

125.21 hp

N/A lb/hp·hr

Standard PTO Speed

140.74 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	447 lb.-ft. (606 Nm) at 1500 rpm
Torque Rise	42.9%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM
Rated Engine Speed	125.21	93.37	2101
Maximum Power (1 Hour)	142.53	106.29	1900

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
125.21	2101	8.06	0.45	15.53	0.25
107.74	2125	7.25	0.47	14.85	0.19
81.54	2152	6.08	0.52	13.41	0.14
55.29	2180	4.97	0.63	11.12	0.08
28.03	2203	3.80	0.95	7.39	0.05
2.61	2228	2.57	6.88	1.02	0.04

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	Pull (lbs)	Speed	Slip	Cool °F	inHg
Power at Rated Engine Speed — 9th (B3) G...	108.31	8,789	4.63	2.50	193	28.87
75% of Pull at Rated Engine Speed — 9th ...	83.77	6,604	4.76	1.90	189	29.08
50% of Pull at Rated Engine Speed — 9th ...	57.11	4,406	4.86	1.20	188	29.08
75% of Pull at Reduced Engine Speed — 13...	83.52	6,609	4.74	1.80	187	29.07
50% of Pull at Reduced Engine Speed — 13...	57.06	4,405	4.86	1.20	186	29.07

Unballasted Front Drive Engaged 2100 Engine RPM Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	DEF lb/hp	Cool °F	inHg	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air Dry F
1st(A1)	67.12	14,673	1.72	2161	14.30	0.02	189	28.87	11.74	0.60	44
2nd(A2)	80.39	14,450	2.09	2147	10.00	0.02	189	28.87	12.83	0.55	44
3rd(A3)	94.69	14,225	2.50	2135	8.00	0.02	190	28.89	13.73	0.51	48
4th(A4)	105.20	13,291	2.97	2100	5.10	0.02	193	28.89	14.46	0.48	48
5th(B1)	107.42	12,337	3.27	2100	4.40	0.02	193	28.87	14.82	0.47	49
6th(A5)	104.65	11,027	3.56	2100	3.70	0.02	195	28.87	14.38	0.49	48
7th(B2)	106.40	10,269	3.89	2100	3.30	0.02	193	28.87	14.64	0.48	49
8th(A6)	102.95	9,139	4.23	2100	3.00	0.02	194	28.87	14.17	0.49	49
9th(B3)	108.31	8,789	4.63	2101	2.50	0.02	193	28.87	14.92	0.47	49
10th(C1)	107.51	8,040	5.02	2100	2.40	0.02	192	28.88	14.78	0.47	50
11th(B4)	105.78	7,260	5.47	2100	2.30	0.02	194	28.87	14.58	0.48	50
12th(C2)	105.99	6,695	5.94	2100	1.90	0.02	196	28.89	14.65	0.48	49
13th(B5)	104.03	6,008	6.49	2100	1.80	0.02	196	28.88	14.37	0.49	50
14th(C3)	106.32	5,669	7.03	2100	1.60	0.02	197	28.90	14.64	0.48	49
15th(B6)	101.00	4,937	7.67	2099	1.40	0.02	197	28.88	13.97	0.50	50
16th(C4)	103.17	4,656	8.31	2100	1.20	0.02	196	28.89	14.23	0.49	49

Unballasted Front Drive Engaged 1900 Engine RPM Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	DEF lb/hp	Cool °F	inHg	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air Dry F
1st(A1)	67.14	14,716	1.71	2160	14.60	0.02	189	28.87	11.70	0.60	44
2nd(A2)	80.67	14,497	2.09	2147	10.00	0.02	189	28.88	12.89	0.54	45
3rd(A3)	94.92	14,253	2.50	2135	8.00	0.02	191	28.89	13.80	0.51	48
4th(A4)	107.28	13,993	2.88	2064	6.80	0.02	192	28.88	14.50	0.48	48
5th(B1)	113.83	13,766	3.10	2025	6.10	0.02	194	28.87	15.08	0.46	49
6th(A5)	117.13	13,596	3.23	1944	5.90	0.02	196	28.87	15.31	0.46	48
7th(B2)	121.66	13,164	3.47	1901	5.10	0.02	195	28.87	15.86	0.44	49
8th(A6)	120.01	11,899	3.78	1900	4.00	0.02	196	28.87	15.65	0.45	49
9th(B3)	124.39	11,283	4.13	1900	3.90	0.02	196	28.87	16.25	0.43	49
10th(C1)	124.89	10,413	4.50	1900	3.30	0.02	194	28.87	16.23	0.43	50
11th(B4)	123.60	9,446	4.91	1900	2.90	0.02	197	28.87	16.11	0.43	49
12th(C2)	122.80	8,633	5.33	1900	2.60	0.02	197	28.89	16.00	0.44	49
13th(B5)	120.68	7,754	5.84	1899	2.20	0.02	197	28.88	15.76	0.44	50
14th(C3)	123.69	7,330	6.33	1900	2.10	0.02	196	28.89	16.16	0.43	49
15th(B6)	119.26	6,474	6.91	1900	1.90	0.03	196	28.88	15.55	0.45	49
16th(C4)	122.08	6,103	7.51	1901	1.50	0.02	196	28.89	15.88	0.44	49
17th(D1)	122.34	5,935	7.73	1900	1.40	0.02	196	28.90	16.01	0.44	49
18th(C5)	118.06	4,986	8.88	1899	1.30	0.02	196	28.89	15.51	0.45	49

Category: 3 Quick Attach: None

Three Outlet Sets Combined

Sustained Pressure	2,863 psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	2,570 psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	Kubota Diesel
Type	four cylinder vertical with turbocharger, air to air intercooler and D.E.F.(diesel exhaust fluid) exhaust treatment
Displacement	374 cu in (6124 ml)
Compression Ratio	17.5 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst), SCR (selective catalyst reduction) and regenerative DPF (diesel particulate filter) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist
Steering	hydrostatic
Transmission	selective gear fixed ratio with partial (6) range operator controlled power shift
Speeds	30 forward (24.86 mph max)
Wheelbase	107.10 in (2720 mm)
Front Tread Width	60.0 to 76.5 in
Rear Tread Width	60.0 to 120.0 in
Brakes	wet multiple disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	15,560 lbs ( 7,058 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution

Sound Levels

Bystander	82.90 dB(A)
At No Load In 9th B3 Gear Disengaged	70.40 dB(A)
At No Load In 9th B3 Gear Engaged	71.70 dB(A)

Tires & Tracks

Rear Tires	Two 480/80R42;***;14(95) psi(kPa)
Front Tires	Two 420/85R28;***;14(95) psi(kPa)
Height of Drawbar	17.00 in (430 mm)

Static Weight

Rear	9,040 lbs
Front	6,695 lbs
Total	15,735 lbs
