Kubota M7-151 Specs ( 2015-2018 )

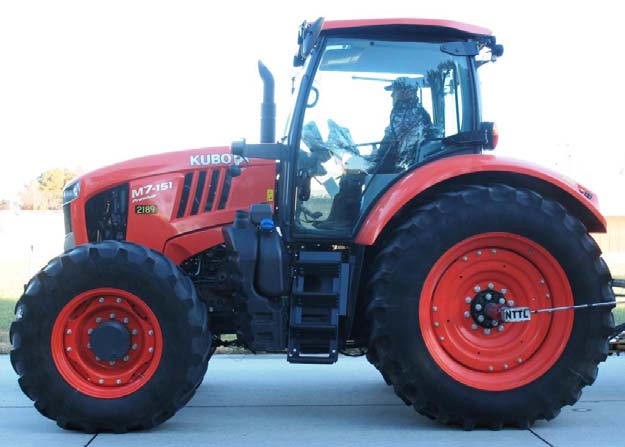

Name: Kubota M7-151
Brand: Kubota

Overview

The Kubota M7-151 is a row-crop farm tractor manufactured in Bierne, France, between 2015 and 2018. It is powered by a 6.1L 4-cylinder Tier IV diesel engine and features a ZF transmission with options for either 24-speed partial power shift or continuously variable transmission. This four-wheel-drive model is equipped with a standard cab, a Type III rear hitch, and a listed shipping weight of 15,097 lbs.

Ideal Applications

Tested Power and Pulling Performance: According to Nebraska Tractor Test data, the model achieved a maximum pull of 15,851 lbs and a maximum tested PTO output of 144.59 hp.

Transmission and Drivetrain Configuration: The mechanical system includes a four-wheel-drive layout and a ZF transmission providing either 24 forward and reverse gears or infinite speeds via a CVT.

Hydraulic and Hitch Specifications: The tractor is equipped with a Type III rear hitch featuring a lift capacity of 14,770 lbs and a standard open center hydraulic system with a pump flow of 21 gpm.

Production

Description	Row-Crop tractor / Built in Bierne, France
Manufacturer	Kubota

Engine

Engine type	Kubota 6.1L 4-cyl diesel
Exhaust fluid (DEF)	10 gal (37.9 L)
Fuel tank	87 gal (329.3 L)
Bore/Stroke	4.65x5.51 inches (118 x 140 mm)
Description	Kubota V6108 / diesel / 4-cylinder / liquid-cooled
Displacement	374 ci (6.1 L)
Emission control	exhaust gas recirculation and a diesel particulate filter
Emissions	Tier IV
Fuel system	direct injection
Maximum Power (gross)	168 hp (125.3 kW)
Rated Power (gross)	148 hp (110.4 kW)
Starter	electric
Starter volts	12
Drawbar (tested)	122.69 hp (91.5 kW)
Engine (gross)	148 hp (110.4 kW)
Engine (max)	168 hp (125.3 kW)
PTO (claimed)	120 hp (89.5 kW)
PTO (tested)	144.59 hp (107.8 kW)

Transmission

Clutch	hydraulic wet disc
Gears	24 forward and reverse / infinite forward and reverse
Manufacturer	ZF
Transmission	ZF
Type	partial power shift / continuously variable transmission
Description	continuously variable transmission
Transmission type	24-speed partial power shift
Description	continuously variable transmission
Transmission type	24-speed partial power shift

Mechanical

Cab	Cab standard.
Description	Power steering
Drive type	Four-wheel drive

Hydraulics

Pump flow	21 gpm*Standard (79.5 lpm)
Type	open center *Standard

Hitch

Control	lower-link electronic draft sensing
Rear lift (at ends)	14770 lbs (6699 kg)
Rear Type	III

PTO

Front PTO	independent OptOptional
Front PTO Type	1000
Rear PTO	independent
Rear PTO Type	540/540E/1000/1000E

Electrical

Battery volts	12
Charging amps	150
Charging system	alternator
Ground	negative

Dimensions & Tires

Bar rear axle	110 inch length (2794 mm)
Description	Flange rear axle
Height	119 inches (302 cm)
Length	188 inches (477 cm)
Shipping weight	15097 lbs (6847 kg)
Wheelbase	107 inches (271 cm)
Width	98.4 inches (flange axle) (249 cm)
Front tire	14.9R28
Rear tire	18.4R38
Weight	15097 lbs (6847 kg)
Wheelbase	107 inches (271 cm)
Standard tires (ag)	Front: 14.9R28. Rear: 18.4R38

Kubota M7-151 attachments

Description	front-end loader

OCED Tractor Test 2189

Description	Diesel 24-speed 4WDNovember 14 - 17, 2017Link: OCED Tractor Test 2189 file / PTO performance / Drawbar performance
Fuel use	8.9 gal/hour (33.7 l/hour) / 9.1 gal/hour (34.4 l/hour) / 8.9 gal/hour (33.7 l/hour) / 8.4 gal/hour (31.8 l/hour)
Max power	144.59 hp (107.8 kW) / 122.69 hp (91.5 kW)
Max pull	15851 lbs (7190 kg)
Power at rated engine speed	140.07 hp (104.5 kW)
Power at rated PTO speed	144.59 hp (107.8 kW)

References

Description	M7 Series published in 2016, by Kubota

Nebraska Tractor Test Results

Test #2189

Download PDF

Test Date: November 14 - 17, 2017

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

144.59 hp

@ 1995 rpm

Rated Engine Speed

140.07 hp

N/A lb/hp·hr

Standard PTO Speed

144.59 hp

@ 1000 rpm PTO

Torque Statistics

Maximum Torque	482 lb-ft (654 Nm)
Torque Rise	44.2%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM
Rated Engine Speed	140.07	104.45	2201	1103
Standard PTO Speed (1000 rpm)	144.59	107.82	1995	1000
Maximum Power (1 Hour)	144.59	107.82	1995

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
140.07	2201	9.13	0.46	15.35	0.21
121.54	2247	8.22	0.47	14.79	0.19
92.27	2276	6.84	0.52	13.48	0.17
62.17	2302	5.92	0.67	10.49	0.13
31.52	2331	4.47	0.99	7.05	0.14
3.45	2347	3.17	6.42	1.09	0.08

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	Pull (lbs)	Speed	Slip	Air °F	Cool °F
Power at Rated Engine Speed—7th (B3) Gea...	122.69	7,839	5.87	2.50	53	196
75% of Pull at Rated Engine Speed—7th (B...	95.50	5,893	6.08	1.70	52	191
50% of Pull at Rated Engine Speed—7th (B...	64.80	3,918	6.20	1.10	52	186
75% of Pull at Reduced Engine Speed—10th...	95.15	5,888	6.06	1.80	52	186
50% of Pull at Reduced Engine Speed—10th...	64.26	3,915	6.16	1.20	52	184

Unballasted Front Drive Engaged 2200 Engine RPM Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	lb/hp·hr	DEF lb/hp	Barom In Hg	Engine RPM	Temp Air F	Temp Cool F
1st(A1)	89.34	15,851	2.12	13.10	12.49	0.56	0.02	28.85	2261	46	188
2nd(A2)	103.93	15,743	2.48	13.70	12.84	0.55	0.02	28.87	2244	44	196
3rd(A3)	120.85	14,473	3.13	7.30	14.34	0.49		28.84	2200	47	196
4th(A4)	121.07	11,834	3.84	4.90	14.38	0.49		28.81	2200	48	196
5th(B1)	124.09	11,567	4.02	4.50	14.70	0.48		28.78	2200	50	196
6th(B2)	120.60	9,273	4.88	3.20	14.33	0.49		28.90	2200	53	195
7th(B3)	122.69	7,839	5.87	2.50	14.57	0.48		28.90	2200	53	196
8th(C1)	123.32	7,025	6.58	2.20	14.68	0.48		28.90	2200	53	196
9th(B4)	120.45	6,386	7.07	1.90	14.30	0.49		28.90	2200	53	196
10th(C2)	119.61	5,658	7.93	1.60	14.24	0.49		28.90	2200	53	195
11th(C3)	118.70	4,677	9.52	1.20	14.17	0.49		28.90	2201	53	196

Unballasted Front Drive Engaged 1995 Engine RPM Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	lb/hp·hr	DEF lb/hp	Barom In Hg	Engine RPM	Temp Air F	Temp Cool F
1st(A1)	89.51	15,851	2.12	12.70	12.48	0.56	0.02	28.86	2261	46	188
2nd(A2)	104.06	15,760	2.48	14.00	12.86	0.54	0.02	28.87	2244	44	195
3rd(A3)	118.78	15,324	2.91	8.90	14.50	0.48	0.02	28.83	2081	47	195
4th(A4)	123.56	13,447	3.44	6.00	15.09	0.46	0.02	28.78	1995	50	195
5th(B1)	126.21	13,091	3.62	5.60	15.42	0.45	0.02	28.78	1995	50	195
6th(B2)	123.80	10,552	4.40	3.80	15.08	0.46	0.02	28.90	1995	53	195
7th(B3)	126.25	8,930	5.30	3.00	15.40	0.45	0.02	28.90	1995	53	194
8th(C1)	127.21	8,019	5.95	2.60	15.53	0.45	0.02	28.89	1995	53	195
9th(B4)	124.74	7,314	6.40	2.20	15.20	0.46	0.02	28.90	1995	53	194
10th(C2)	124.93	6,535	7.17	1.90	15.23	0.46	0.02	28.90	1995	53	195
11th(C3)	124.40	5,417	8.61	1.50	15.23	0.46	0.02	28.90	1995	53	196

Category: 3 Quick Attach: None

Three Outlet Sets Combined

Sustained Pressure	2,684 psi
Flow Rate (min press)	27.80 gpm
Max Power	42.30 hp

Single Outlet Set

Sustained Pressure	2,457 psi
Flow Rate (min press)	27.40 gpm
Max Power	37.90 hp

Engine

Make	Kubota Diesel
Type	four cylinder vertical with turbocharger, air to air intercooler and D.E.F.(diesel exhaust fluid) exhaust treatment
Displacement	374 cu in (6124 ml)
Compression Ratio	17.5
Rated Engine Speed	2200 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst), SCR (selective catalyst reduction) and regenerative DPF (diesel particulate filter) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist
Steering	hydrostatic
Transmission	selective gear fixed ratio with full range operator controlled power shift
Speeds	24 forward (24.86 mph max)
Wheelbase	107.10 in (2720 mm)
Front Tread Width	60.0 to 76.5 in
Rear Tread Width	60.0 to 120.0 in
Brakes	wet multiple disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	15,670 lbs ( 7,108 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution

Sound Levels

Bystander	82.50 dB(A)
At No Load In 6th B2 Gear Disengaged	70.70 dB(A)
At No Load In 6th B2 Gear Engaged	71.70 dB(A)

Tires & Tracks

Rear Tires	Two 480/80R42; ***; 14 (95) psi
Front Tires	Two 420/85R28; ***; 14 (95) psi
Height of Drawbar	17.0 in (430 mm)

Static Weight

Rear	9,065 lbs
Front	6,780 lbs
Total	15,845 lbs
