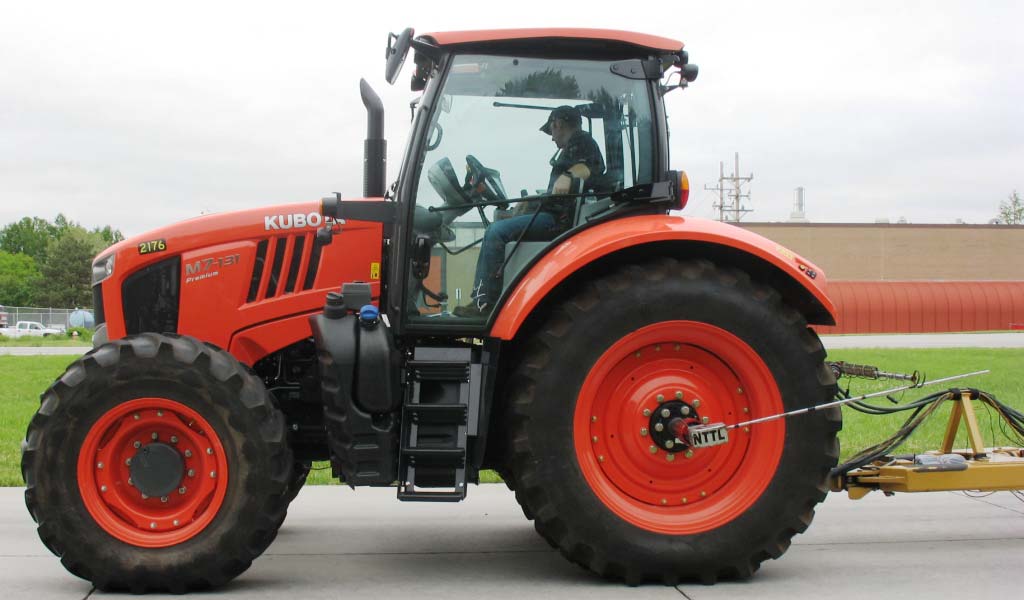

Kubota M7-131 Specs ( 2015-2018 )

Name: Kubota M7-131
Brand: Kubota

Overview

The Kubota M7-131 is a row-crop farm tractor manufactured in Bierne, France, from 2015 to 2018. It features a 6.1L 4-cylinder Tier IV diesel engine with a 24-speed partial power shift or continuously variable transmission. The unit is equipped with standard four-wheel drive and a Category III rear hitch providing 14,770 lbs of lift capacity.

Ideal Applications

Tested Power Output: In Nebraska and OCED tractor tests, the M7-131 demonstrated a maximum PTO output of 126.25 hp and a tested drawbar performance of 103.94 hp.

Hydraulic and Hitch Specifications: The tractor is configured with an open center hydraulic system delivering 21 gpm pump flow and a Category III rear hitch with lower-link electronic draft sensing.

Chassis and Dimensions: The vehicle is built on a 107-inch wheelbase with a shipping weight of 15,097 lbs and total length of 188 inches.

Production

Description	Row-Crop tractor / Built in Bierne, France
Manufacturer	Kubota

Engine

Engine type	Kubota 6.1L 4-cyl diesel
Exhaust fluid (DEF)	10 gal (37.9 L)
Fuel tank	87 gal (329.3 L)
Bore/Stroke	4.65x5.51 inches (118 x 140 mm)
Description	Kubota V6108 / diesel / 4-cylinder / liquid-cooled
Displacement	374 ci (6.1 L)
Emission control	selective catalytic reduction
Emissions	Tier IV
Fuel system	direct injection
Maximum Power (gross)	148 hp (110.4 kW)
Rated Power (gross)	128 hp (95.4 kW)
Starter	electric
Starter volts	12
Drawbar (tested)	102.90 hp (76.7 kW)
Engine (gross)	128 hp (95.4 kW)
Engine (max)	148 hp (110.4 kW)
PTO (claimed)	100 hp (74.6 kW)
PTO (tested)	126.25 hp (94.1 kW)

Transmission

Clutch	hydraulic wet disc
Gears	24 forward and reverse / infinite forward and reverse
Manufacturer	ZF
Transmission	ZF
Type	partial power shift / continuously variable transmission
Description	continuously variable transmission
Transmission type	24-speed partial power shift
Description	continuously variable transmission
Transmission type	24-speed partial power shift

Mechanical

Cab	Cab standard.
Description	Power steering
Drive type	Four-wheel drive

Hydraulics

Pump flow	21 gpm*Standard (79.5 lpm)
Type	open center *Standard

Hitch

Control	lower-link electronic draft sensing
Rear lift (at ends)	14770 lbs (6699 kg)
Rear Type	III

PTO

Front PTO	independent OptOptional
Front PTO Type	1000
Rear PTO	independent
Rear PTO Type	540/540E/1000/1000E

Electrical

Battery volts	12
Charging amps	150
Charging system	alternator
Ground	negative

Dimensions & Tires

Bar rear axle	110 inch length (2794 mm)
Description	Flange rear axle
Height	119 inches (302 cm)
Length	188 inches (477 cm)
Shipping weight	15097 lbs (6847 kg)
Wheelbase	107 inches (271 cm)
Width	98.4 inches (flange axle) (249 cm)
Front tire	14.9R28
Rear tire	18.4R38
Weight	15097 lbs (6847 kg)
Wheelbase	107 inches (271 cm)
Standard tires (ag)	Front: 14.9R28. Rear: 18.4R38

Kubota M7-131 attachments

Description	front-end loader

OCED Tractor Test 2176

Description	Diesel 24-speed 4WDMay 11 - 19, 2017Link: OCED Tractor Test 2176 file / PTO performance / Drawbar performance
Fuel use	8.3 gal/hour (31.4 l/hour) / 7.7 gal/hour (29.1 l/hour) / 7.5 gal/hour (28.4 l/hour)
Max power	102.90 hp (76.7 kW)
Max pull	15598 lbs (7075 kg)
Power at rated engine speed	126.25 hp (94.1 kW)
Power at rated PTO speed	124.33 hp (92.7 kW)

References

Description	M7 Series published in 2016, by Kubota

Nebraska Tractor Test Results

Test #2176

Download PDF

Test Date: May 11 - 19, 2017

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Rated Engine Speed

126.25 hp

N/A lb/hp·hr

Standard PTO Speed

124.33 hp

@ 1000 rpm PTO

Torque Statistics

Maximum Torque	406 lb-ft (551 Nm)
Torque Rise	34.9%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM
Rated Engine Speed	126.25	94.15	2201	1103
Standard PTO Speed (1000 rpm)	124.33	92.71	1995	1000

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
126.25	2201	8.29	N/A	15.23	0.19
109.36	2239	7.57	N/A	14.45	0.16
83.06	2267	6.39	N/A	13.00	0.15
55.94	2293	5.59	N/A	10.00	0.11
28.48	2325	4.36	N/A	6.54	0.14
1.31	2356	3.16	N/A	0.41	0.08

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	Pull (lbs)	Speed	Slip	Air °F	Cool °F	inHg
Power at Rated Engine Speed —6th (B2) Ge...	102.90	7,986	4.83	3.60	59	196	28.66
75% of Pull at Rated Engine Speed—6th (B...	80.54	6,002	5.03	2.20	54	189	28.75
50% of Pull at Rated Engine Speed—6th (B...	55.06	4,011	5.15	1.50	54	188	28.75
75% of Pull at Reduced Engine Speed—9th ...	80.75	5,972	5.07	2.20	54	187	28.75
50% of Pull at Reduced Engine Speed—9th ...	54.90	3,998	5.15	1.50	54	186	28.75

Unballasted Front Drive Engaged 2200 Engine RPM Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Speed	RPM	Slip	hp·hr/gal	Barom	Def Lb Hphr	Lb Hphr	Pull Lbs	Temp Air	Temp Cool
1st(A1)	88.18	2.12	2233	11.80	12.70	28.67	0.01	0.55	15598	60	192
2nd(A2)	100.54	2.58	2195	8.70	13.49	28.67		0.52	14596	60	195
3rd(A3)	101.96	3.16	2195	5.50	13.73	28.67		0.51	12121	60	195
4th(A4)	101.19	3.81	2195	4.50	13.56	28.67	0.02	0.52	9956	60	196
5th(B1)	103.94	3.98	2194	4.40	13.95	28.66	0.02	0.50	9795	59	195
6th(B2)	102.90	4.83	2195	3.60	13.79	28.66	0.02	0.51	7986	59	196
7th(B3)	102.45	5.79	2195	3.30	13.71	28.65	0.02	0.51	6646	59	197
8th(C1)	102.88	6.49	2195	3.10	13.75	28.65	0.02	0.51	5950	59	197
9th(B4)	100.36	7.05	2195	2.10	13.49	28.74	0.02	0.52	5339	54	198
10th(C2)	99.55	7.90	2195	1.70	13.43	28.74	0.02	0.52	4727	54	198
11th(C3)	97.68	9.47	2193	1.40	13.14	28.74	0.02	0.53	3868	54	197

Category: III Quick Attach: None

Lift Capacity

Cylinders 2 x 100 mm

Three Outlet Sets Combined

Sustained Pressure	2,573 psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	2,530 psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	Kubota Diesel
Type	four cylinder vertical with turbocharger, air to air intercooler and D.E.F.(diesel exhaust fluid) exhaust treatment
Displacement	374 cu in (6124 ml)
Compression Ratio	17.5 to 1
Rated Engine Speed	2200 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst), SCR (selective catalyst reduction) and regenerative DPF (diesel particulate filter) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist
Steering	hydrostatic
Transmission	selective gear fixed ratio with full range operator controlled power shift
Speeds	24 forward (24.86 mph max)
Wheelbase	107.10 in (2720 mm)
Front Tread Width	60.0 (1524 mm) to 76.5 (1942 mm) in
Rear Tread Width	60.0 (1524 mm) to 120.0 (3048 mm) in
Brakes	wet multiple disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	15,640 lbs ( 7,094 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Engine Oil	SAE 10W30 API service classification CJ-4

Sound Levels

Bystander	80.80 dB(A)

At No Load In 6th B2 Gear

Tires & Tracks

Rear Tires	***, 480/80R42
Front Tires	***, 420/85R28
Height of Drawbar	16.50 in (420 mm)

Static Weight

Rear	9,130 lbs
Front	6,685 lbs
Total	15,815 lbs
