Home / Kubota / M6-141

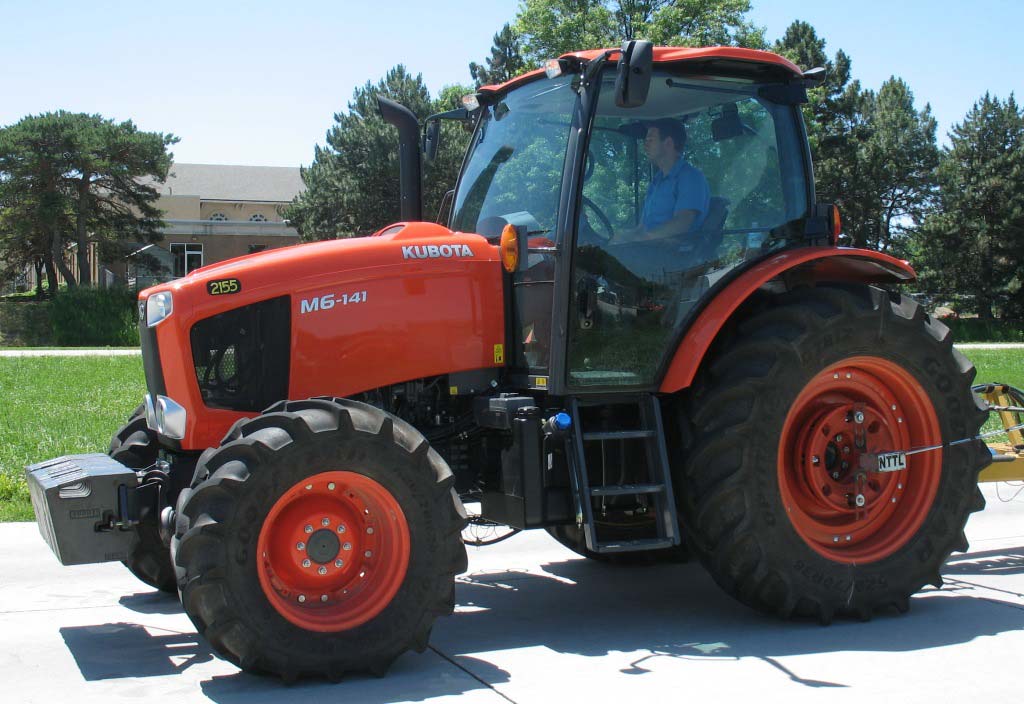

Kubota M6-141 Specs ( 2015-Present )

Name: Kubota M6-141
Brand: Kubota

Overview

The Kubota M6-141 is a four-wheel drive utility tractor produced since 2015, featuring a 6.1L 4-cylinder turbocharged intercooled diesel engine rated at 141.4 gross horsepower. It is equipped with the Grand X Cab, an Intelli-Shift 24-speed or 32-speed partial power shift transmission, and a Tier IV emission system using 5.3 gallons of diesel exhaust fluid.

Ideal Applications

Tested Power Output: The Nebraska Tractor Test Data recorded a maximum PTO performance of 126.58 horsepower and a maximum drawbar pull of 13,990 pounds.

Hydraulic and Hitch Configuration: The system features a 20.4 gpm pump flow, electronic lower-link draft sensing, and a Category II rear hitch with a lift capacity of 6,834 pounds at 24 inches.

Chassis and Dimensions: This model is built on a 105.9-inch wheelbase with a standard weight ranging from 10,880 to 11,321 pounds and a ground clearance of 22.2 inches.

Production

Description	Utility tractor
Manufacturer	Kubota

Engine

Engine type	Kubota 6.1L 4-cyl diesel
Exhaust fluid (DEF)	5.3 gal (20.1 L)
Fuel tank	50.2 gal (190.0 L)
Air cleaner	dual dry element
Bore/Stroke	4.65x5.51 inches (118 x 140 mm)
Description	Kubota V6108-TI-CRS / turbocharged intercooled diesel / 4-cylinder / liquid-cooled
Displacement	374 ci (6.1 L)
Emissions	Tier IV
Fuel system	common rail direct injection
Rated Power (gross)	141.4 hp (105.4 kW)
Rated Power (net)	133 hp (99.2 kW)
Rated RPM	2200
Starter	electric
Starter volts	12
Drawbar (tested)	106.08 hp (79.1 kW)
Engine (gross)	141.4 hp (105.4 kW)
Engine (net)	133 hp (99.2 kW)
PTO (claimed)	114 hp (85.0 kW)
PTO (tested)	126.58 hp (94.4 kW)

Transmission

Clutch	electro-hydraulic wet disc / electro-hydraulic wet disc
Description	Eight power shift gears in three ranges, with electro-hydraulic shuttle.
Gears	24 forward and reverse / 32 forward and reverse
Transmission	Intelli-Shift / Intelli-Shift Creeper
Type	partial power shift / partial power shift
Transmission type	24-speed partial power shift / 32-speed partial power shift
Transmission type	24-speed partial power shift / 32-speed partial power shift

Mechanical

Cab	Grand X Cab standard with air-condiitoning.
Description	Power steering / Hydraulic wet disc brakes
Differential lock	electro-hydraulic front and rear
Drive type	Four-wheel drive

Hydraulics

Pump flow	20.4 gpm (77.2 lpm)
Steering flow	14.5 gpm (54.9 lpm)
Valves	2 to 4

Hitch

Control	electronic lower-link draft sensing
Rear Arms	telescopic lower link ends and stabilizers
Rear lift (at 24"/610mm)	6834 lbs (3099 kg)
Rear Type	II

PTO

Clutch	hydraulic wet disc
Rear PTO	independent
Rear PTO Type	540/1000

Electrical

Battery volts	12
Charging amps	130
Charging system	alternator
Ground	negative

Dimensions & Tires

Front tread	69.9 to 73.8 inches (177 to 187 cm)
Ground clearance	22.2 inches (56 cm)
Height (cab)	113.2 inches (287 cm)
Length	171.7 inches (436 cm)
Rear tread	62.6 to 82.3 inches (159 to 209 cm)
Weight	10880 lbs (4935 kg)
Wheelbase	105.9 inches (268 cm)
Width	85.8 inches (217 cm)
Front tire	14.9R24
Rear tire	18.4R38
Weight	10880 to 11321 pounds
Wheelbase	105.9 inches (268 cm)
Standard tires (ag)	Front: 14.9R24. Rear: 18.4R38

Kubota M6-141 attachments

Description	front-end loader

OCED Tractor Test 2155

Description	Diesel 24-speed 4WDJune 1 - 16, 2016Link: OCED Tractor Test 2155 file / PTO performance / Drawbar performance
Fuel use	7.3 gal/hour (27.6 l/hour) / 7.9 gal/hour (29.9 l/hour) / 7.4 gal/hour (28.0 l/hour) / 7.8 gal/hour (29.5 l/hour)
Max power	126.58 hp (94.4 kW) / 106.08 hp (79.1 kW)
Max pull	10625 lbs (4819 kg)
Power at rated engine speed	125.37 hp (93.5 kW)
Power at rated PTO speed	125.22 hp (93.4 kW)

References

Description	M6-101/M6-111/M6-131/M6-141 published in 2014, by Kubota / M6-101/M6-111/M6-131/M6-141 published in 2021, by Kubota

Nebraska Tractor Test Results

Test #2155

Download PDF

Test Date: June 1 - 16, 2016

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

126.58 hp

@ 1850 rpm

Rated Engine Speed

125.37 hp

N/A lb/hp·hr

Standard PTO Speed

125.22 hp

@ 540 rpm PTO

Torque Statistics

Maximum Torque	405 lb-ft (548 Nm)
Torque Rise	35.2%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM
Rated Engine Speed	125.37	93.49	2200
Standard PTO Speed (1000 rpm)	125.22	93.37	1994	540
Maximum Power (1 Hour)	126.58	94.39	1850

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
125.37	2200	7.86	0.44	15.95	0.12
108.50	2240	7.11	0.46	15.27	0.11
82.44	2270	6.11	0.52	13.50	0.09
55.85	2305	5.01	0.63	11.14	0.18
28.27	2336	3.76	0.93	7.52	0.11
1.42	2374	2.48	12.26	0.57	0.07

Unballasted Front Drive Engaged 2200 RPM Maximum Power Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	Air °F	Cool °F	Barometer Inch Hg	Def Consumption Lb Hp Hr	Fuel Hp Hr Gal	Fuel Lb Hp Hr
11th (M3)	80.63	10,625	2.85	2237	14.70	77	195	28.50	0.01	11.25	0.62
12th (M4)	98.45	10,013	3.69	2201	7.80	79	196	28.50	0.01	12.64	0.56
13th(M5)	104.36	8,904	4.40	2200	5.30	77	195	28.48	0.01	13.34	0.53
14th(M6)	104.36	7,229	5.41	2200	3.60	78	195	28.68	0.01	13.38	0.52
15th(H1)	106.08	6,698	5.94	2200	3.20	81	194	28.68	0.01	13.58	0.52
16th (M7)	102.61	5,808	6.63	2200	2.70	79	195	28.69	0.01	13.10	0.54
17th (H2)	104.24	5,383	7.26	2200	2.50	82	194	28.68	0.01	13.37	0.52
18th(M8)	96.42	4,450	8.13	2200	2.10	81	195	28.50	0.01	12.36	0.57

Ballasted Front Drive Engaged 1850 RPM Maximum Power Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	Air °F	Cool °F	Barometer Inch Hg	Def Consumption Lb Hp Hr	Fuel Hp Hr Gal	Fuel Lb Hp Hr
10th(M2)	87.63	13,990	2.35	2227	14.20	77	194	28.56	0.01	11.66	0.60
11th(M3)	99.25	13,027	2.86	2078	7.80	80	195	28.55	0.01	13.20	0.53
12th(M4)	102.12	12,139	3.16	1850	6.20	81	194	28.55	0.01	14.07	0.50
13th(M5)	106.07	10,729	3.71	1850	4.80	82	194	28.57	0.01	14.63	0.48
14th(M6)	106.91	8,772	4.57	1850	3.40	71	193	28.53	0.01	14.63	0.48
15th(H1)	108.40	8,112	5.01	1850	3.00	73	193	28.54	0.01	14.86	0.47
16th (M7)	105.69	7,094	5.59	1850	2.60	71	193	28.55	0.01	14.48	0.48
17th (H2)	107.07	6,559	6.12	1850	2.40	73	193	28.54	0.01	14.71	0.48
18th(M8)	103.75	5,686	6.84	1850	2.10	71	193	28.55	0.01	14.25	0.49
19th(H3)	104.42	5,245	7.47	1849	1.90	73	193	28.52	0.01	14.35	0.49
20th(H4)	98.50	4,040	9.15	1850	1.40	75	193	28.55	0.01	13.57	0.52

Unballasted Front Drive Engaged 1850 RPM Maximum Power Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	Air °F	Cool °F	Barometer Inch Hg	Def Consumption Lb Hp Hr	Fuel Hp Hr Gal	Fuel Lb Hp Hr
11th (M3)	80.71	10,611	2.86	2237	14.50	77	195	28.51	0.01	11.26	0.62
12th (M4)	98.59	10,036	3.69	2201	7.90	78	195	28.47	0.01	12.63	0.56
13th(M5)	103.31	9,327	4.16	2100	6.00	80	195	28.50	0.01	13.61	0.52
14th(M6)	105.42	8,814	4.49	1850	5.00	79	193	28.70	0.01	14.44	0.49
15th(H1)	106.85	8,107	4.94	1850	4.30	81	193	28.69	0.01	14.69	0.48
16th (M7)	105.27	7,137	5.53	1850	3.50	80	193	28.70	0.01	14.51	0.48
17th (H2)	107.29	6,634	6.07	1850	3.20	83	193	28.69	0.01	14.71	0.48
18th (M8)	103.70	5,724	6.79	1850	2.70	80	194	28.49	0.01	14.30	0.49
19th (H3)	105.77	5,350	7.41	1850	2.50	80	194	28.50	0.01	14.50	0.48
20th (H4)	101.14	4,172	9.09	1850	1.90	80	194	28.50	0.01	13.90	0.50

Unballasted Front Drive Engaged Fuel Consumption Characteristics

Click column headers to sort

Power	Pull (lbs)	Speed	RPM	Slip	Air °F	Cool °F	Barometer Inch Hg	Condition	Def Consumption Lb Hp Hr	Fuel Hp Hr Gal	Fuel Lb Hp Hr
106.08	6,698	5.94	2200	3.20	81	194	28.68	Power at Rated Engine Speed—15th(H1) Gear	0.01	13.58	0.52
82.17	5,023	6.13	2252	2.30	83	194	28.68	75% of Pull at Rated Engine Speed—15th (H1) Gear	0.01	12.50	0.56
56.10	3,354	6.27	2285	1.50	83	192	28.69	50% of Pull at Rated Engine Speed—15th (H1) Gear	0.01	9.99	0.70
82.33	5,039	6.13	1525	2.30	85	191	28.67	75% of Pull at Reduced Engine Speed—19th (H3) Gear	0.01	15.02	0.47
56.33	3,365	6.28	1550	1.50	84	189	28.68	50% of Pull at Reduced Engine Speed—19th (H3) Gear	0.01	13.24	0.53

Engine

Make	Kubota Diesel
Type	four cylinder vertical with turbocharger, air to air intercooler and D.E.F.(diesel exhaust fluid) exhaust treatment
Displacement	374 cu in (6124 ml)
Compression Ratio	17.5
Rated Engine Speed	2200 rpm
Air Cleaner	two paper elements
Exhaust	DOC (diesel oxidation catalyst), SCR (selective catalyst reduction) and regenerative DPF (diesel particulate filter) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist
Steering	hydrostatic
Transmission	selective gear fixed ratio with partial (8) range operator controlled power shift
Wheelbase	105.90 in (2690 mm)
Front Tread Width	69.9 to 73.8 in
Rear Tread Width	62.6 to 82.3 in
Brakes	wet multiple disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	5,046 kg

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
