Production
| Description | Utility tractor |
|---|---|
| Manufacturer | Kubota |
Engine
| Engine type | Kubota 3.8L 4-cyl diesel |
|---|---|
| Exhaust fluid (DEF) | 3.2 gal (12.1 L) |
| Fuel tank | 27.7 gal (104.8 L) |
| Bore/Stroke | 3.94x4.72 inches (100 x 120 mm) |
| Cab Rated RPM | 2600 |
| Compression | 17.0:1 |
| Coolant capacity | 11 qts (10.4 L) |
| Description | Kubota V3800CR-TIEF4 / turbocharged intercooled diesel / 4-cylinder 16-valve / liquid-cooled inline |
| Displacement | 230 ci (3.8 L) |
| Emission control | diesel particulate filter, diesel oxidation catalyst, and selective catalytic reduction |
| Emissions | Tier IV |
| Fuel system | common rail direct injection |
| Oil capacity | 11.3 qts (10.7 L) |
| Power (gross) | 105.6 hp (78.7 kW) |
| Power (net) | 100 hp (74.6 kW) |
| Pre-heating | intake heater |
| Rated Power (gross) | 105.6 hp (78.7 kW) |
| ROPS Rated RPM | 2400 |
| Starter | electric |
| Starter volts | 12 |
| Engine (gross) | 105.6 hp (78.7 kW) |
| Engine (net) | 100 hp (74.6 kW) |
| PTO (claimed) | 89 hp (66.4 kW) |
| PTO (tested) | 97.85 hp (73.0 kW) |
Transmission
| Clutch | wet disc / wet disc / wet disc |
|---|---|
| Description | Four synchronized gears in two ranges with electro-hydraulic shuttle shift. / Six synchronized gears in two ranges with electro-hydraulic shuttle shift. / Six synchronized gears in two ranges with electro-hydraulic shuttle shift. Two-speed power shift. |
| Gears | 8 forward and reverse / 12 forward and reverse / 24 forward and reverse |
| Oil capacity | 63.4 qts (60.0 L) |
| Type | partially synchronized / partially synchronized / two-speed power shift |
| Transmission type | 8-speed partially synchronized / 12-speed partially synchronized / 24-speed two-speed power shift |
| Transmission type | 8-speed partially synchronized / 12-speed partially synchronized / 24-speed two-speed power shift |
Mechanical
| Cab | Two-post foldable ROPS. Ultra Grand Cab II available with air-conditioning. |
|---|---|
| Description | Power steering / Hydraulic wet disc brakes |
| Differential lock | mechanical rear |
| Drive type | Two- or four-wheel drive |
| Final drives | inboard planetary |
Hydraulics
| Cab Pump flow | 17 gpm (64.3 lpm) |
|---|---|
| Cab Steering flow | 6.1 gpm (23.1 lpm) |
| ROPS Pump flow | 15.9 gpm (60.2 lpm) |
| ROPS Steering flow | 5.4 gpm (20.4 lpm) |
| Type | open center |
| Valves | 1 to 3 |
Hitch
| Control | position control and top-link draft sensing |
|---|---|
| Rear Arms | telescopic lower link ends and stabilizers |
| Rear lift (at 24"/610mm) | 5181 lbs*Claimed, actual tested lift was 4698 pounds. (2350 kg) |
| Rear Type | II |
PTO
| Clutch | electro-hydraulic |
|---|---|
| Engine RPM | 540@2035 |
| Rear PTO | independent |
| Rear PTO Type | 540 |
Electrical
| Battery CCA | 900 |
|---|---|
| Battery volts | 12 |
| Cab Charging amps | 80 |
| Charging system | alternator |
| Ground | negative |
| ROPS Charging amps | 60 |
Dimensions & Tires
| 2WD Clearance (front axle) | 20.5 inches (52 cm) |
|---|---|
| 2WD Front tread | 56.7 to 80.3 inches (144 to 203 cm) |
| 2WD Length | 156.5 inches (397 cm) |
| 2WD Wheelbase | 90 inches (228 cm) |
| 2WD Width | 78.3 inches (198 cm) |
| 4WD Clearance (front axle) | 19.7 inches (50 cm) |
| 4WD Front tread | 59.8 to 63.8 inches (151 to 162 cm) |
| 4WD Length | 155 inches (393 cm) |
| 4WD Wheelbase | 88.6 inches (225 cm) |
| 4WD Width | 79.1 inches (200 cm) |
| Rear tread | 59.8 to 75.6 inches (151 to 192 cm) |
| 2WD Rear tire | 18.4-28 |
| 2WD Wheelbase | 90 inches (228 cm) |
| 4WD Wheelbase | 88.6 inches (225 cm) |
| Front tire | 7.5-18 |
| Weight | 5754 to 7685 pounds |
| 2WD Standard tires (ag) | Front: 7.5-18. Rear: 18.4-28 |
| 4WD Standard tires (ag) | Front: 11.2-24. Rear: 18.4-28 |
Kubota M5-111 Height
| Cab | 100.2 inches (254 cm) |
|---|---|
| Exhaust | 90.9 inches (230 cm) |
| ROPS | 99 inches (251 cm) |
Kubota M5-111 Weight
| 2WD Cab | 6614 lbs (3000 kg) |
|---|---|
| 2WD Max front axle | 4850 lbs (2199 kg) |
| 2WD ROPS | 5754 lbs (2610 kg) |
| 4WD Cab | 7033 lbs (3190 kg) |
| 4WD Cab Operating | 7685 lbs (3485 kg) |
| 4WD Max front axle | 5730 lbs (2599 kg) |
| 4WD ROPS | 6173 lbs (2800 kg) |
| Max Drawbar | 3300 lbs (1496 kg) |
| Max rear axle | 8160 lbs (3701 kg) |
Kubota M5-111 attachments
| Description | front-end loader |
|---|

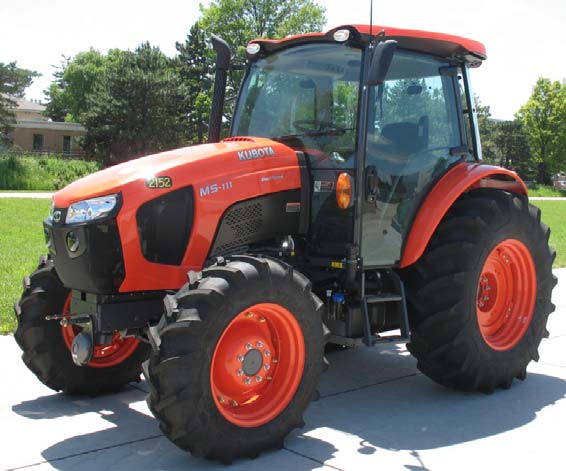

Nebraska Tractor Test 2152
| Description | Diesel 24-speed 4WDJune 6, 2016 - June 13, 2013Link: Nebraska Tractor Test 2152 file / PTO performance |
|---|---|
| Fuel use | 6.0 gal/hour (22.7 l/hour) / 6.1 gal/hour (23.1 l/hour) / 88.7 gal/hour (335.7 l/hour) |
| Max power | 97.85 hp (73.0 kW) |
| Power at rated engine speed | 97.09 hp (72.4 kW) |
| Power at rated PTO speed | 88.68 hp (66.1 kW) |
Speeds
| Description | With 18.4-30 rear tires. / With 18.4-30 rear tires. / With 18.4-30 rear tires. |
|---|
Variants
| M5N-111 | narrow profile |
|---|
