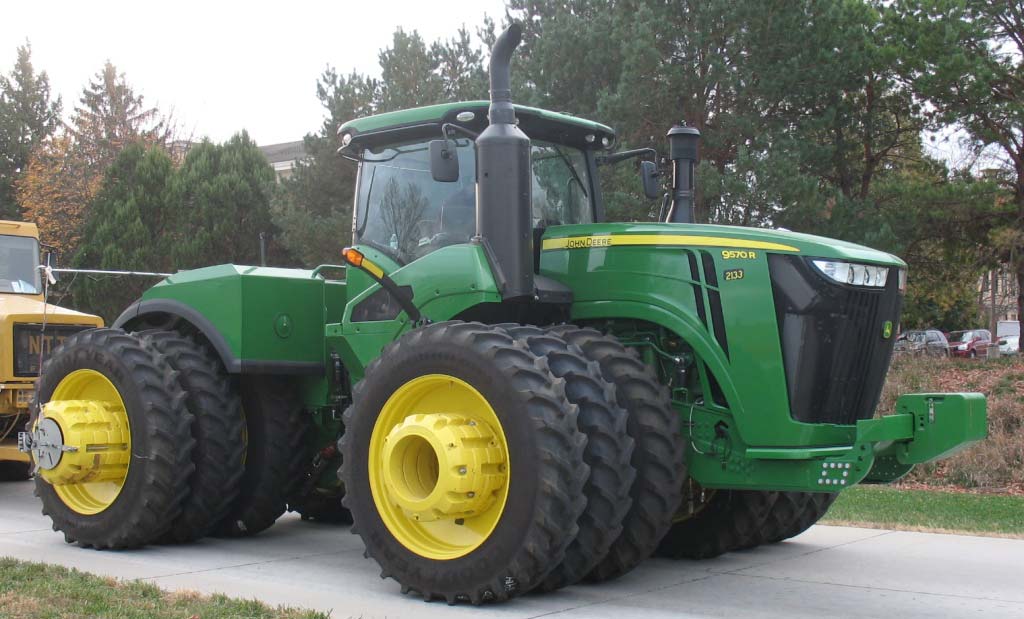

John Deere 9570R Specs ( 2015-2021 )

Name: John Deere 9570R
Brand: John Deere

Overview

The John Deere 9570R is a 4WD articulated farm tractor produced in Waterloo, Iowa, between 2015 and 2021, featuring a Cummins 14.9L 6-cylinder diesel engine. This model is equipped with an e18 full power shift transmission offering 18 forward and 6 reverse gears, supported by a closed-center hydraulic system with a 58 gpm pump flow.

Ideal Applications

Tested Drawbar and Pull Performance: Nebraska Tractor Test data recorded a maximum drawbar performance of 523.56 hp and a maximum pull capacity of 57,098 lbs.

Engine and Power Ratings: The Cummins QSX15 engine provides a gross rated power of 570 hp and a maximum gross power of 628 hp at 2100 RPM.

Ballasted Weight and Capacity: The tractor has a shipping weight of 43,550 lbs and can be ballasted up to 60,000 lbs, with a fuel tank capacity of 400 gallons.

Production

Description	Built in Waterloo, Iowa, USA
Drive type	Four-wheel Drive (4WD) tractor
Manufacturer	John Deere

Engine

Engine type	Cummins 14.9L 6-cyl diesel
Bore/Stroke	5.39x6.65 inches (137 x 169 mm)
Coolant capacity	87.7 qts (83.0 L)
Description	Cummins QSX15 / diesel / 6-cylinder / liquid-cooled
Displacement	912 ci (14.9 L)
Emissions	Tier IV
Fuel system	high pressure common rail
Maximum Power (gross)	628 hp (468.3 kW)
Oil capacity	50.7 qts (48.0 L)
Rated Power (gross)	570 hp (425.0 kW)
Rated RPM	2100
Starter	electric
Starter volts	12
Engine (gross)	570 hp (425.0 kW)
Engine (max)	628 hp (468.3 kW)
PTO (claimed)	335 hp (249.8 kW)

Transmission

Gears	18 forward and 6 reverse
Oil capacity	232.5 qts (220.0 L)
Transmission	e18 PowerShift
Transmission type	18-speed full power shift
Type	full power shift

Mechanical

Cab	Command View Cab III standard with air-conditioning. AutoTrac ready; ISOBUS 11783
Description	Articulated power steering / Hydraulic wet disc brakes
Differential lock	electro-hydraulic front and rear
Drive type	Four-wheel drive
Trailer brakes	hydraulic OptOptional

Capacity

Exhaust fluid (DEF)	22 gal (83.3 L)
Fuel	400 gal (1514.0 L)
Hydraulic system	58 gal (219.5 L)

Hydraulics

Capacity	58 gal (219.5 L)
Pressure	2900 psi (200.0 bar)
Pump flow	58 gpm (219.5 lpm)
Rear valves	4 to 8
SCV flow	35 gpm (132.5 lpm)
Type	closed-center pressure/flow compensated

Hitch

Control	draft sensing
Drawbar	Cat. 5
Rear lift	15000 lbs (6804 kg)
Rear Type	IV/IVN OptOptional

PTO

Clutch	electro-hydraulic
Rear PTO	independent OptOptional
Rear PTO Type	1000 (1.75)

Electrical

Batteries	4
Battery CCA	925
Battery volts	12
Charging amps	200
Charging system	alternator
Charging volts	12
Ground	negative

Dimensions & Tires

Clearance (drawbar)	15 inches (38 cm)
Front axle	4.72 by 120 inches (119 by 3048 mm) / HydraCushion suspension: 4.72 by 120 inches ( (119 by 3048 mm)
Length	319.5 inches (811 cm)
Rear axle	4.72 by 120 inches (119 by 3048 mm)
Wheelbase	154 inches (391 cm)
Width	193 inches (490 cm)
Weight	43550 lbs (19754 kg)
Wheelbase	154 inches (391 cm)

John Deere 9570R Height

Cab	145 inches (368 cm)
Exhaust	163 inches (414 cm)
Hood	108 inches (274 cm)

John Deere 9570R Weight

Ballasted	60000 lbs (27216 kg)
Max Drawbar	12000 lbs (5443 kg)
Shipping	43550 lbs (19754 kg)

Speeds

Description	With group 47 (710/70R38) tires.

Variants

9570R	wheeled 4WD
9570RT	crawler
9570RX	articulated crawler

Nebraska Tractor Test Results

Test #2133

Download PDF

Test Date: November 3 - 13, 2015

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

363.15 hp

@ 1702 rpm

Rated Engine Speed

313.25 hp

N/A lb/hp·hr

Standard PTO Speed

352.19 hp

@ 1000 rpm PTO

Torque Statistics

Maximum Torque	1,179 lb-ft (1,599 Nm)
Torque Rise	50.7%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM	Fuel gal/hr	Fuel L/hr	DEF gal/hr	DEF L/hr
Rated Engine Speed	313.25	233.59	2103	1110	19.51	73.87	0.99	3.76
Standard PTO Speed (1000 rpm)	352.19	262.63	1895	1000	20.13	76.20	1.02	3.84
Maximum Power (1 Hour)	363.15	270.80	1702		19.84	75.10	1.07	4.06

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
313.25	2103	19.51	0.44	16.05	0.99
267.95	2115	17.37	0.45	15.43	0.95
201.88	2126	14.42	0.50	14.00	0.73
135.34	2134	11.52	0.60	11.75	0.59
68.08	2145	8.85	0.91	7.70	0.36
0.48	2155	6.28	92.47	0.08	0.22

Unballasted At 2100 RPM Manual Mode Maximum Power

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	Air °F	Cool °F	inHg	Engine Speed RPM	Fuel Lb Hp Hr
4th Gear	401.61	46,750	3.23	12.60	14.47	0.02	70	211	28.59	2102	0.48
5th Gear	428.45	42,856	3.75	7.50	15.38	0.02	71	212	28.57	2099	0.46
6th Gear	440.44	38,764	4.26	6.40	15.27	0.02	76	212	28.53	2100	0.46
7th Gear	450.82	35,508	4.76	5.00	15.71	0.02	75	212	28.55	2099	0.45
8th Gear	454.84	31,955	5.34	4.20	15.80	0.02	74	212	28.55	2100	0.44
9th Gear	452.47	28,568	5.94	3.60	15.79	0.02	77	212	28.52	2100	0.44
10th Gear	453.44	25,649	6.63	3.20	15.66	0.02	77	213	28.51	2100	0.45
11th Gear	453.95	23,130	7.36	2.80	15.73	0.02	79	213	28.52	2100	0.45
12th Gear	459.21	20,970	8.21	2.60	15.84	0.02	79	213	28.52	2099	0.44

Ballasted At 1800 RPM Manual Mode Maximum Power

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	Air °F	Cool °F	inHg	Engine Speed RPM	Fuel Lb Hp Hr
4th Gear	448.25	57,098	2.95	13.10	15.18	0.02	52	210	28.66	1926	0.46
5th Gear	472.18	55,284	3.21	9.60	16.11	0.02	53	210	28.64	1837	0.44
6th Gear	494.88	51,797	3.58	7.70	16.23	0.02	54	211	28.65	1800	0.43
7th Gear	508.62	47,450	4.02	6.30	16.77	0.02	54	210	28.64	1800	0.42
8th Gear	515.33	42,831	4.51	5.30	16.90	0.02	54	210	28.64	1800	0.41
9th Gear	514.24	38,266	5.04	4.30	16.77	0.02	54	211	28.64	1800	0.42
10th Gear	518.41	34,504	5.64	3.70	16.83	0.02	55	211	28.64	1800	0.42
11th Gear	517.43	31,013	6.26	3.30	16.84	0.02	55	211	28.63	1800	0.42
12th Gear	522.76	28,066	6.99	2.90	17.02	0.02	56	211	28.63	1800	0.41
13th Gear	514.35	24,850	7.76	2.60	16.80	0.02	57	211	28.63	1800	0.42
14th Gear	523.56	22,697	8.65	2.30	17.15	0.02	56	211	28.63	1799	0.41

Unballasted At 1800 RPM Manual Mode Maximum Power

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	Air °F	Cool °F	inHg	Engine Speed RPM	Fuel Lb Hp Hr
4th Gear	403.20	46,863	3.23	12.40	14.52	0.02	70	211	28.59	2101	0.48
5th Gear	435.24	44,932	3.64	9.10	15.20	0.02	71	212	28.57	2070	0.46
6th Gear	467.26	43,922	3.99	8.40	15.33	0.02	71	212	28.57	2016	0.46
7th Gear	486.68	42,866	4.26	8.00	15.81	0.02	72	213	28.56	1937	0.44
8th Gear	499.09	40,616	4.61	6.90	16.20	0.02	72	213	28.56	1867	0.43
9th Gear	503.26	38,012	4.97	6.10	16.22	0.02	72	214	28.56	1800	0.43
10th Gear	508.50	34,072	5.60	4.70	16.54	0.02	67	213	28.62	1800	0.42
11th Gear	511.80	30,765	6.24	3.80	16.54	0.02	63	212	28.63	1800	0.42
12th Gear	516.89	27,847	6.96	3.70	16.70	0.02	68	212	28.62	1800	0.42
13th Gear	509.23	24,642	7.75	3.30	16.50	0.02	69	213	28.62	1801	0.43
14th Gear	516.02	22,397	8.64	3.10	16.77	0.02	69	213	28.60	1799	0.42

Fuel Consumption Characteristics (Unballasted)

Click column headers to sort

Power	Pull (lbs)	Speed	Slip	DEF lb/hp	Air °F	Cool °F	inHg	Condition	Engine Speed RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr
450.82	35,508	4.76	5.00	0.02	75	212	28.55	Maximum Power—7th Gear- Manual mode	2099	15.71	0.45
355.55	26,598	5.01	3.40	0.03	69	209	28.48	75% of Pull at Maximum Power—7th Gear - Manual mode	2175	15.42	0.45
243.53	17,766	5.14	2.20	0.03	68	206	28.49	50% of Pull at Maximum Power—7th Gear- Manual mode	2203	14.05	0.50
355.18	26,913	4.95	3.50	0.03	70	208	28.48	75% of Pull at Reduced Engine Speed— 5.1 mph (8.2 km/h)-Auto mode	1571	17.22	0.41
242.97	17,766	5.13	2.40	0.02	67	197	28.49	50% of Pull at Reduced Engine Speed— 5.2 mph (8.4 km/h)-Auto mode	1308	16.77	0.42

Lugging Ability 11th Gear

Click column headers to sort

Power	Speed	RPM	Slip	Increase Pull Pct	Pull Lbs
454.91	7.36	2100	2.90	0	23185
494.46	6.99	2000	3.20	14	26538
506.82	6.61	1899	3.40	24	28739
513.20	6.25	1800	3.70	33	30794
506.14	5.88	1700	4.00	39	32286
457.58	5.17	1500	4.40	43	33158
390.44	4.49	1300	4.30	41	32606
295.24	3.83	1100	3.70	25	28943

Unballasted Auto Mode Drawbar Power At Selected Speeds

Click column headers to sort

Setting	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	Air °F	Cool °F	inHg	Engine Speed RPM	Fuel Lb Hp Hr
4.10	428.99	42,003	3.83	7.20	16.50	0.02	71	211	28.57	1729	0.43
4.50	439.74	39,027	4.23	6.80	16.77	0.02	77	212	28.53	1705	0.42
5.00	449.93	35,501	4.75	5.10	16.72	0.02	76	212	28.54	1703	0.42
5.50	454.74	31,606	5.40	4.20	16.41	0.02	75	212	28.55	1915	0.43
6.10	452.91	28,802	5.90	3.60	16.62	0.02	77	212	28.52	1877	0.42
6.80	453.65	25,559	6.66	3.10	16.58	0.02	78	212	28.53	1905	0.42
7.60	453.82	22,958	7.41	2.80	16.80	0.02	79	212	28.52	1901	0.42
8.30	459.10	21,073	8.17	2.70	16.54	0.02	79	213	28.52	1887	0.42

Category: 4N/4 Quick Attach: Yes

Lift Capacity

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Combined Flow	118.00 gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	Cummins Diesel
Type	six cylinder vertical with turbocharger, air to air aftercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	912 cu in (14948 ml)
Compression Ratio	17.2 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst), SCR (selective catalyst reduction) and regenerative DPF (diesel particulate filter) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	four wheel drive with triples
Steering	hydrostatic and articulated
Transmission	selective gear fixed ratio with full range operator controlled power shift
Speeds	24 forward (23.48 mph max)
Wheelbase	137.80 in (3500 mm)
Front Tread Width	59.1" (1500 mm) to 163.8" (4160 mm) in
Rear Tread Width	59.1" (1500 mm) to 163.8" (4160 mm) in
Brakes	wet multiple disc hydraulically actuated by a foot pedal
Hydraulic Control	direct engine drive
Unladen Tractor Mass	48,040 lbs ( 21,790 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Engine Oil	SAE 10W-30

Sound Levels

Bystander	88.90 dB(A)
At No Load In 6th Gear	71.40 dB(A)
Transport Speed No Load 18th Gear	73.20 dB(A)

Tires & Tracks

Rear Tires	Six 480/80R46;***;12(85)
Front Tires	Six 480/80R46;***;19(130)
Height of Drawbar

Static Weight

Rear	N/A lbs
Front	N/A lbs
Total	N/A lbs
