John Deere 9420R Specs ( 2015-2021 )

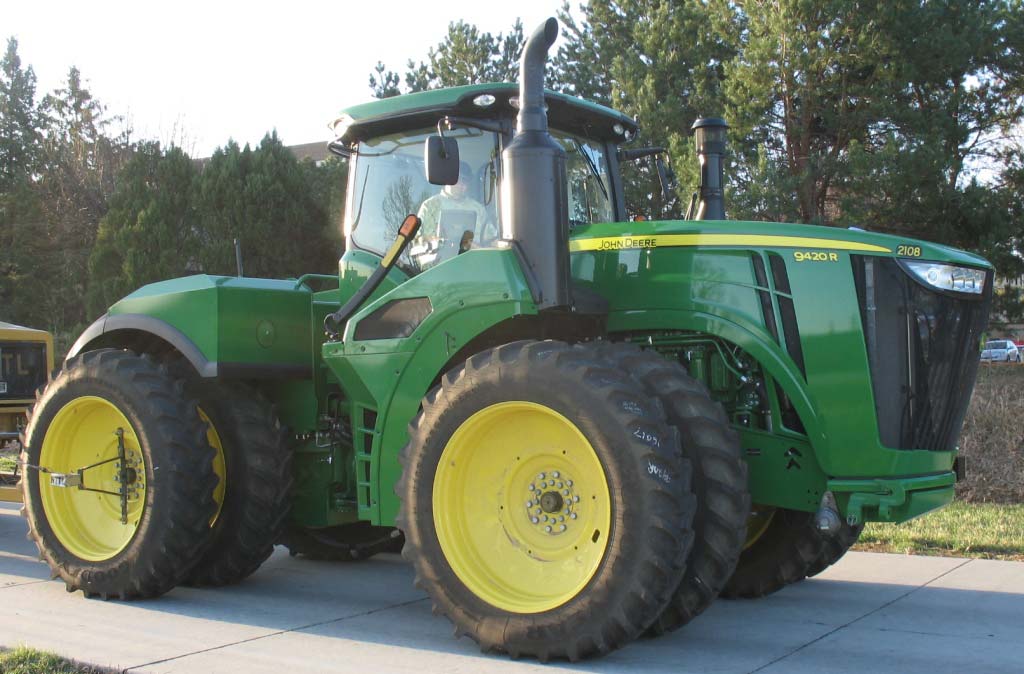

Name: John Deere 9420R
Brand: John Deere

Overview

The John Deere 9420R is a high-capacity four-wheel drive farm tractor built in Waterloo, Iowa, featuring a John Deere 13.5L 6-cylinder diesel engine with a maximum gross power of 462 hp. Equipped with an e18 PowerShift transmission and a 310-gallon fuel tank, this articulated machine is designed for heavy-duty agricultural tasks requiring significant hydraulic output and traction.

Ideal Applications

Heavy Tillage and Field Prep: With a ballasted weight of 48,700 lbs and 420 rated gross horsepower, this tractor provides the mass and engine power necessary for pulling large-scale tillage implements across expansive acreage.

High-Demand Hydraulic Operations: The closed-center pressure/flow compensated hydraulic system offers a 58 gpm pump flow and supports 4 to 8 rear valves, making it suitable for modern implements that require high-pressure fluid power.

Precision Field Work: The Command View Cab III is standard with AutoTrac and JDLink readiness, allowing operators to utilize integrated technology for efficient, automated steering and fleet management.

Production

Description	Built in Waterloo, Iowa, USA
Drive type	Four-wheel Drive (4WD) tractor
Manufacturer	John Deere

Engine

Engine type	John Deere 13.5L 6-cyl diesel
Bore/Stroke	5.197x6.496 inches (132 x 165 mm)
Coolant capacity	67.1 qts (63.5 L)
Description	John Deere PSS / diesel / 6-cylinder / liquid-cooled
Displacement	826.7 ci (13.5 L)
Emissions	Tier IV
Fuel system	electronic injection
Maximum Power (gross)	462 hp (344.5 kW)
Oil capacity	50.7 qts (48.0 L)
Rated Power (gross)	420 hp (313.2 kW)
Rated RPM	2100
Starter	electric
Starter volts	12
Engine (gross)	420 hp (313.2 kW)
Engine (max)	462 hp (344.5 kW)
PTO (claimed)	335 hp (249.8 kW)

Transmission

Gears	18 forward and 6 reverse
Oil capacity	291.6 qts (276.0 L)
Transmission	e18 PowerShift
Transmission type	18-speed full power shift
Type	full power shift

Mechanical

Cab	Command View Cab III standard with air-conditioning. AutoTrac ready; ISOBUS 11783; JDLink ready
Description	Articulated power steering / Hydraulic wet disc brakes
Differential lock	electro-hydraulic front and rear
Drive type	Four-wheel drive
Trailer brakes	hydraulic OptOptional

Capacity

Exhaust fluid (DEF)	22 gal (83.3 L)
Fuel	310 gal (1173.4 L)
Hydraulic system	73 gal (276.3 L)

Hydraulics

Capacity	73 gal (276.3 L)
Pressure	2900 psi (200.0 bar)
Pump flow	58 gpm (219.5 lpm)
Rear valves	4 to 8
SCV flow	35 gpm (132.5 lpm)
Type	closed-center pressure/flow compensated

Hitch

Control	draft sensing
Drawbar	Cat. 4
Rear lift	15000 lbs (6804 kg)
Rear Type	IV/IVN OptOptional

PTO

Clutch	electro-hydraulic
Rear PTO	independent OptOptional
Rear PTO Type	1000 (1.75)

Electrical

Batteries	3
Battery CCA	925
Battery volts	12
Charging amps	200
Charging system	alternator
Charging volts	12
Ground	negative

Dimensions & Tires

Clearance (drawbar)	15 inches (38 cm)
Front axle	4.33 by 120 inches (109 by 3048 mm) / 4.72 by 120 inches (119 by 3048 mm)
Length	314.3 inches (798 cm)
Rear axle	4.33 by 120 inches (109 by 3048 mm) / 4.72 by 120 inches (119 by 3048 mm)
Wheelbase	149.8 inches (380 cm)
Width	176 inches (447 cm)
Weight	41470 lbs (18810 kg)
Wheelbase	149.8 inches (380 cm)

John Deere 9420R Height

Cab	145 inches (368 cm)
Exhaust	157 inches (398 cm)
Hood	108 inches (274 cm)

John Deere 9420R Weight

Ballasted	48700 lbs (22090 kg)
Max Drawbar	5450 lbs*Cat. 4 and Cat. 4 HD (2472 kg)
Shipping	41470 lbs (18810 kg)

Speeds

Description	With group 47 (710/70R38) tires.

Nebraska Tractor Test Results

Test #2108

Download PDF

Test Date: April 2-15, 2015

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

369.02 hp

@ N/A rpm

Rated Engine Speed

331.67 hp

N/A lb/hp·hr

Standard PTO Speed

363.31 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	1,224 lb-ft (1,660 Nm)
Torque Rise	47.5%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW
Rated Engine Speed	331.67	247.33
Maximum Power (1 Hour)	369.02	275.18

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
331.67	2099	20.40	0.43	16.26	0.37
288.94	2150	19.20	0.47	15.05	0.39
216.63	2150	15.74	0.51	13.77	0.28
144.30	2150	12.46	0.61	11.58	0.25
72.33	2150	9.38	0.91	7.71	0.24
1.29	2150	6.75	36.93	0.19	0.19

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	Pull (lbs)	Speed	Slip	DEF lb/hp	Cool °F
Maximum Power—7th Gear- Manual mode	325.79	25,719	4.75	3.90	0.01	192
75% of Pull at Maximum Power—7th Gear - ...	254.82	19,285	4.96	2.70	0.01	191
50% of Pull at Maximum Power—7th Gear- M...	173.59	12,860	5.06	1.60	0.02	190
75% of Pull at Reduced Engine Speed— 5.0...	254.47	19,104	5.00	2.70	0.01	191
50% of Pull at Reduced Engine Speed— 5.1...	173.01	12,850	5.05	1.60	0.01	191

Unballasted At 2100 RPM Manual Mode

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	DEF lb/hp	Cool °F	Barometer Inch Hg	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air Dry F
1st Gear	235.79	41,673	2.13	2156	13.60	0.01	191	29.03	12.59	0.56	45
2nd Gear	285.78	39,949	2.68	2100	8.70	0.01	191	29.03	14.18	0.50	44
3rd Gear	295.67	36,940	3.00	2100	7.70	0.01	191	29.03	14.63	0.48	48
4th Gear	300.12	33,047	3.41	2099	6.40	0.01	192	28.63	14.83	0.47	63
5th Gear	321.77	31,979	3.77	2100	5.80	0.01	194	28.61	15.25	0.46	64
6th Gear	321.13	28,219	4.27	2100	4.60	0.01	193	28.65	15.25	0.46	61
7th Gear	325.79	25,719	4.75	2100	3.90	0.01	192	28.64	15.40	0.46	59
8th Gear	326.46	23,056	5.31	2100	3.50	0.01	191	28.63	15.46	0.46	56
9th Gear	325.06	20,636	5.91	2100	3.20	0.01	192	28.64	15.44	0.46	59
10th Gear	324.93	18,497	6.59	2100	2.90	0.01	193	28.64	15.44	0.46	61
11th Gear	325.04	16,694	7.30	2099	2.40	0.01	192	28.65	15.39	0.46	61
12th Gear	327.69	15,083	8.15	2100	2.00	0.01	192	28.64	15.58	0.45	61

Unballasted At 1800 RPM Manual Mode

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	DEF lb/hp	Cool °F	Barometer Inch Hg	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air Dry F
1st Gear	234.95	41,514	2.13	2156	13.60	0.01	190	29.03	12.51	0.56	46
2nd Gear	286.60	39,818	2.70	2101	8.30	0.01	190	29.03	14.21	0.50	44
3rd Gear	304.52	38,486	2.97	2074	7.80	0.01	192	28.83	14.89	0.47	48
4th Gear	323.04	37,192	3.26	2020	7.10	0.01	193	28.82	15.54	0.45	47
5th Gear	343.88	35,945	3.59	2016	6.60	0.01	192	28.84	15.83	0.44	49
6th Gear	356.90	35,060	3.82	1914	6.40	0.01	192	28.83	16.29	0.43	50
7th Gear	370.93	34,117	4.08	1843	6.20	0.01	194	28.84	16.77	0.42	52
8th Gear	374.03	31,486	4.46	1800	5.50	0.01	193	28.84	16.99	0.41	53
9th Gear	372.84	28,096	4.98	1799	4.60	0.01	194	28.85	17.06	0.41	54
10th Gear	375.72	25,314	5.57	1800	4.20	0.01	193	28.85	17.16	0.41	55
11th Gear	376.51	22,842	6.18	1800	3.70	0.01	193	28.85	17.17	0.41	56
12th Gear	378.77	20,560	6.91	1801	3.20	0.01	194	28.85	17.28	0.41	56
13th Gear	373.72	18,262	7.68	1801	2.80	0.01	194	28.85	17.07	0.41	57
14th Gear	377.71	16,560	8.56	1800	2.40	0.01	195	28.86	17.27	0.41	58

Lugging Ability In 11th Gear

Click column headers to sort

Power	kW	Speed	RPM	Slip	Increase In Pull Percent	Pull Kn	Pull Lbs	Speed Km H
322.89	240.78	7.31	2100	2.10	0	73.70	16568	11.76
355.14	264.83	6.94	2000	2.60	16	85.40	19198	11.17
366.85	273.56	6.57	1900	2.70	26	93.07	20924	10.57
373.49	278.51	6.21	1800	3.10	36	100.32	22553	9.99
367.94	274.37	5.86	1700	3.20	42	104.79	23558	9.43
310.21	231.32	4.81	1399	3.30	46	107.52	24171	7.74
286.37	213.55	4.47	1300	3.20	45	106.83	24017	7.19
230.65	172.00	3.79	1100	3.10	38	101.45	22807	6.10

Unballasted Auto Mode At Selected Speeds

Click column headers to sort

Power	Pull (lbs)	Speed	RPM	Slip	DEF lb/hp	Cool °F	Barometer Inch Hg	Condition	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air Dry F
229.48	40,951	2.11	1375	11.80	0.01	192	29.03	2.4 mph (3.8 km/h)	15.73	0.45	47
281.60	40,557	2.61	1664	9.60	0.01	192	29.03	2.9 mph (4.6 km/h)	16.07	0.44	45
295.35	36,762	3.01	1711	7.90	0.01	191	29.02	3.2 mph (5.2 km/h)	16.40	0.43	47
299.80	33,024	3.40	1706	6.50	0.01	194	28.62	3.6 mph (5.8 km/h)	16.48	0.43	63
320.57	31,843	3.78	1702	5.90	0.01	196	28.63	4.0 mph (6.4 km/h)	16.86	0.42	63
321.09	27,959	4.31	1724	4.60	0.01	193	28.88	4.5 mph (7.2 km/h)	17.15	0.41	60
325.18	25,990	4.69	1686	4.00	0.01	194	28.64	4.8 mph (7.8 km/h)	17.08	0.41	59
326.49	22,972	5.33	1712	3.50	0.01	193	28.64	5.5 mph (8.8 km/h)	17.05	0.41	57
324.91	20,883	5.84	1868	3.20	0.01	193	28.64	6.0 mph (9.6 km/h)	16.55	0.43	60
325.04	18,488	6.59	1901	2.60	0.01	193	28.64	6.7 mph (10.8 km/h)	16.49	0.43	61
325.59	16,615	7.35	1899	2.30	0.01	193	28.65	7.5 mph (12.0 km/h)	16.60	0.42	61
327.45	15,147	8.11	1888	2.00	0.01	193	28.65	8.2 mph (13.2 km/h)	16.36	0.43	61

Category: 4N/4 Quick Attach: Yes

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	John Deere Diesel
Type	six cylinder vertical with two turbochargers, air to air aftercooler and D.E.F.(diesel exhaust fluid) exhaust treatment
Displacement	826 cu in (13548 ml)
Compression Ratio	16.0 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst), SCR (selective catalyst reduction) and regenerative DPF (diesel particulate filter) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	four wheel drive with duals
Steering	hydrostatic and articulated
Transmission	selective gear fixed ratio with full range operator controlled power shift
Wheelbase	137.80 in (3500 mm)
Front Tread Width	59.1 (1500 mm) to 131.8 (3348 mm) in
Rear Tread Width	59.1 (1500 mm) to 131.8 (3348 mm) in
Brakes	wet multiple disc hydraulically actuated by a foot pedal
Hydraulic Control	direct engine drive
Unladen Tractor Mass	42,965 lbs ( 19,488 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Engine Oil	SAE 10W-30 API service classification CJ-4

Sound Levels

Bystander	87.40 dB(A)
At No Load In 7th Gear	70.80 dB(A)
Transport Speed No Load 18th Gear	72.70 dB(A)

Tires & Tracks

Ballast	Tested without ballast
