John Deere 9370R Specs ( 2015-2021 )

Name: John Deere 9370R
Brand: John Deere

Overview

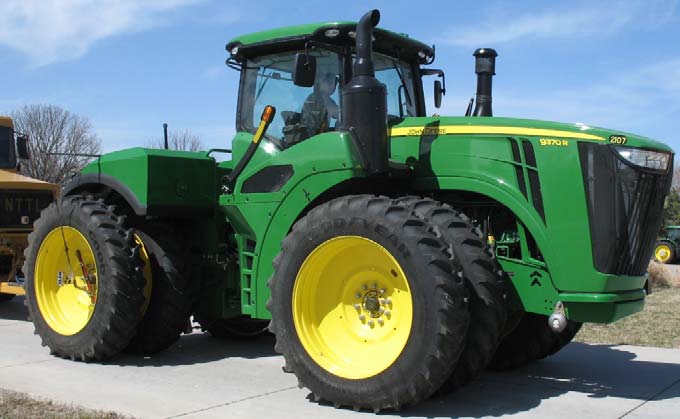

The John Deere 9370R is a four-wheel drive farm tractor produced in Waterloo, Iowa, between 2015 and 2021. It features a 9.0L 6-cylinder diesel engine rated at 370 gross horsepower and an e18 PowerShift transmission providing 18 forward and 6 reverse gears.

Ideal Applications

Tested Power Output: In Nebraska Tractor Test data, this model achieved a maximum of 354.6 PTO horsepower and 330.41 drawbar horsepower while generating a maximum pull of 38,965 lbs.

Fluid and Material Capacities: The chassis is configured with a 310-gallon fuel tank and a 22-gallon diesel exhaust fluid tank, supporting a liquid-cooled engine with a 44.4-quart coolant capacity.

Hydraulic and Hitch Configuration: This tractor is equipped with a closed-center pressure/flow compensated hydraulic system delivering 58 gpm pump flow and features a Category 4 drawbar with a 15,000 lb rear lift capacity.

Production

Description	Built in Waterloo, Iowa, USA
Drive type	Four-wheel Drive (4WD) tractor
Manufacturer	John Deere

Engine

Engine type	John Deere 9.0L 6-cyl diesel
Bore/Stroke	4.661x5.354 inches (118 x 136 mm)
Compression	16:1
Coolant capacity	44.4 qts (42.0 L)
Description	John Deere PSS / diesel / 6-cylinder / liquid-cooled
Displacement	549.2 ci (9.0 L)
Emissions	Tier IV
Fuel system	electronic high-pressure common rail
Maximum Power (gross)	407 hp (303.5 kW)
Oil capacity	35.9 qts (34.0 L)
Rated Power (gross)	370 hp (275.9 kW)
Rated RPM	2100
Starter	electric
Starter volts	12
Engine (gross)	370 hp (275.9 kW)
Engine (max)	407 hp (303.5 kW)
PTO (claimed)	335 hp (249.8 kW)

Transmission

Gears	18 forward and 6 reverse
Oil capacity	291.6 qts (276.0 L)
Transmission	e18 PowerShift
Transmission type	18-speed full power shift
Type	full power shift

Mechanical

Cab	Command View Cab III standard with air-conditioning. AutoTrac ready; ISOBUS 11783; JDLink ready
Description	Articulated power steering / Hydraulic wet disc brakes
Differential lock	electro-hydraulic front and rear
Drive type	Four-wheel drive
Trailer brakes	hydraulic OptOptional

Capacity

Exhaust fluid (DEF)	22 gal (83.3 L)
Fuel	310 gal (1173.4 L)
Hydraulic system	73 gal (276.3 L)

Hydraulics

Capacity	73 gal (276.3 L)
Pressure	2900 psi (200.0 bar)
Pump flow	58 gpm (219.5 lpm)
Rear valves	4 to 8
SCV flow	35 gpm (132.5 lpm)
Type	closed-center pressure/flow compensated

Hitch

Control	draft sensing
Drawbar	Cat. 4
Rear lift	15000 lbs (6804 kg)
Rear Type	IV/IVN OptOptional

PTO

Clutch	electro-hydraulic
Rear PTO	independent OptOptional
Rear PTO Type	1000 (1.75)

Electrical

Batteries	3
Battery CCA	925
Battery volts	12
Charging amps	200
Charging system	alternator
Charging volts	12
Ground	negative

Dimensions & Tires

Clearance (drawbar)	15 inches (38 cm)
Front axle	4.33 by 120 inches (109 by 3048 mm) / 4.72 by 120 inches (119 by 3048 mm)
Length	314.3 inches (798 cm)
Rear axle	4.33 by 120 inches (109 by 3048 mm) / 4.72 by 120 inches (119 by 3048 mm)
Wheelbase	149.8 inches (380 cm)
Width	176 inches (447 cm)
Weight	39200 lbs (17781 kg)
Wheelbase	149.8 inches (380 cm)

John Deere 9370R Height

Cab	145 inches (368 cm)
Exhaust	157 inches (398 cm)
Hood	108 inches (274 cm)

John Deere 9370R Weight

Ballasted	48700 lbs (22090 kg)
Max Drawbar	5450 lbs*Cat. 4 and Cat. 4 HD (2472 kg)
Shipping	39200 lbs (17781 kg)

Speeds

Description	With group 47 (710/70R38) tires.

Nebraska Tractor Test Results

Test #2107

Download PDF

Test Date: March 25 to April 2, 2015

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

354.60 hp

@ 1800 rpm

Rated Engine Speed

307.66 hp

N/A lb/hp·hr

Standard PTO Speed

352.25 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	1,129 lb-ft (1,531 Nm)
Torque Rise	46.6%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	Fuel gal/hr	DEF gal/hr
Rated Engine Speed	307.66	229.42	2099	17.33	0.36
Maximum Power (1 Hour)	354.60	264.43	1800	19.08	0.46

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
307.66	2099	17.33	0.40	17.75	0.36
268.10	2150	15.35	0.40	17.46	0.36
200.89	2150	12.34	0.43	16.28	0.28
133.92	2150	9.39	0.49	14.27	0.25
67.06	2150	6.78	0.71	9.89	0.21
0.59	2151	4.29	51.41	0.14	0.20

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	Pull (lbs)	Speed	Slip	Air °F	Cool °F
Maximum Power—7th Gear- Manual mode	292.24	22,917	4.78	3.10	52	188
75% of Pull at Maximum Power—7th Gear - ...	227.49	17,167	4.97	2.50	75	193
50% of Pull at Maximum Power—7th Gear- M...	155.08	11,449	5.08	1.40	77	186
75% of Pull at Reduced Engine Speed— 5.1...	227.43	17,050	5.00	2.50	76	205
50% of Pull at Reduced Engine Speed— 5.1...	154.91	11,498	5.05	1.40	77	194

Unballasted At 2100 RPM Manual Mode Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	DEF lb/hp	Engine RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr
1st	218.06	38,965	2.10	14.50	0.01	2160	14.44	0.49
2nd	263.78	38,178	2.60	11.90	0.01	2103	15.27	0.46
3rd	279.25	35,239	2.97	8.50	0.01	2100	16.19	0.43
4th	283.53	31,299	3.40	6.50	0.01	2100	16.41	0.43
5th	289.02	28,596	3.79	5.10	0.01	2099	16.76	0.42
6th	288.76	25,233	4.29	3.90	0.01	2100	16.76	0.42
7th	292.24	22,917	4.78	3.10	0.01	2100	16.86	0.42
8th	291.10	20,444	5.34	2.70	0.01	2099	16.86	0.42
9th	292.72	18,509	5.93	2.40	0.01	2100	16.91	0.42
10th	290.64	16,488	6.61	2.30	0.01	2100	16.82	0.42
11th	290.38	14,869	7.32	1.90	0.01	2099	16.86	0.42
12th	290.96	13,368	8.16	1.60	0.01	2100	16.79	0.42

Unballasted At 1800 RPM Manual Mode Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Speed	RPM	Slip	hp·hr/gal	lb/hp·hr	Pull Lbs
1st	219.94	2.12	2160	13.90	14.50	0.49	38985
2nd	265.09	2.62	2102	11.20	15.36	0.46	38064
3rd	279.62	2.87	2076	10.70	15.89	0.44	36588
4th	298.27	3.17	2016	9.20	16.28	0.43	35312
5th	309.98	3.40	1951	8.60	16.52	0.43	34265
6th	316.90	3.62	1842	7.70	16.74	0.42	32867
7th	323.20	3.95	1800	6.80	17.03	0.41	30694
8th	327.80	4.44	1800	5.60	17.31	0.41	27667
9th	327.02	4.97	1800	4.60	17.20	0.41	24672
10th	328.14	5.56	1800	4.00	17.37	0.41	22131
11th	329.33	6.18	1800	3.60	17.40	0.40	19981
12th	330.41	6.90	1800	3.00	17.46	0.40	17950
13th	325.74	7.68	1801	2.60	17.29	0.41	15909
14th	329.98	8.56	1801	2.20	17.45	0.40	14450

Unballasted Auto Mode Power At Selected Travel Speeds

Click column headers to sort

Setting	Power	Speed	hp·hr/gal	lb/hp·hr	DEF lb/hp	Engine RPM	Pull Lbs	Slip Pct
2.4 mph	215.61	2.10	16.43	0.43	0.02	1538	38571	11.90
2.9 mph	257.89	2.56	16.50	0.43	0.02	1665	37848	11.30
3.2 mph	279.29	2.98	17.01	0.41	0.02	1711	35176	8.60
3.6 mph	283.37	3.39	17.43	0.40	0.02	1543	31328	6.60
4.0 mph	288.37	3.80	17.64	0.40	0.02	1702	28485	5.20
4.5 mph	288.81	4.33	17.85	0.39	0.02	1724	25038	4.00
5.0 mph	292.02	4.85	17.88	0.39	0.01	1556	22584	3.10
5.5 mph	290.60	5.35	17.68	0.40	0.01	1711	20353	2.70
6.0 mph	292.09	5.86	17.59	0.40	0.01	1867	18707	2.50
6.7 mph	290.09	6.62	17.50	0.40	0.01	1901	16441	2.30
7.3 mph	289.59	7.24	17.74	0.40	0.01	1867	14999	1.90
8.2 mph	290.68	8.13	17.36	0.41	0.01	1888	13416	1.60

Category: 4N/4 Quick Attach: Yes

Lift Capacity

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Combined Flow	117.30 gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	John Deere
Type	six cylinder vertical with two turbochargers, air to air aftercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	548 cu in (8984 ml)
Compression Ratio	16.0
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst), SCR (selective catalyst reduction) and regenerative DPF (diesel particulate filter) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	four wheel drive with duals
Steering	hydrostatic and articulated
Transmission	selective gear fixed ratio with full range operator controlled power shift
Wheelbase	137.80 in (3500 mm)
Front Tread Width	60.2 (1530 mm) to 131.8 (3348 mm) in
Rear Tread Width	60.2 (1530 mm) to 131.8 (3348 mm) in
Brakes	wet multiple disc hydraulically actuated by foot pedal
Hydraulic Control	direct engine drive

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Engine Oil	SAE 10W-30

Sound Levels

Bystander	85.70 dB(A)
At No Load In 7th Gear	68.60 dB(A)
Transport Speed No Load 18th Gear	71.70 dB(A)

Tires & Tracks

Rear Tires	Four 480/80R46;***;14(95) psi (kPa)
Front Tires	Four 480/80R46;***;18(125) psi (kPa)
Height of Drawbar	20.50 in (520 mm)

Static Weight

Rear	17,650 lbs
Front	21,935 lbs
Total	39,585 lbs
