John Deere 8370RT Specs ( 2014-2019 )

Name: John Deere 8370RT
Brand: John Deere

Compare Tractor

Nebraska Test #2132

John Deere 8370RT

Max Drawbar HP 321.3 hp

Max Pull 38,116 lbs

Max Torque 1139 lb-ft

View Full Test Data →

Overview

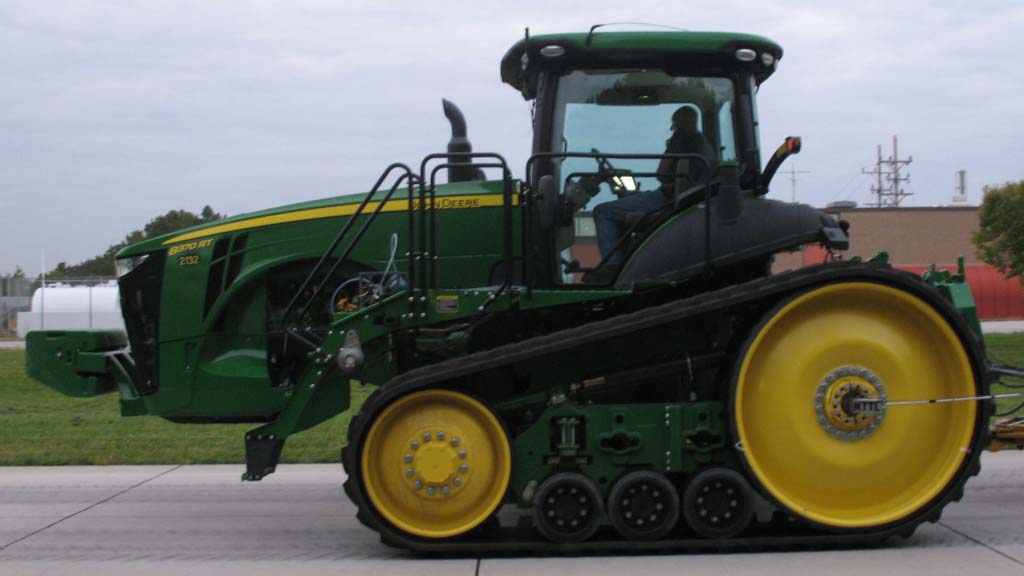

The John Deere 8370RT is a high-performance agricultural crawler tractor powered by a 9.0L 6-cylinder diesel engine producing 370 gross horsepower. Built in Waterloo, Iowa, it features an AutoPowr infinitely variable transmission and a robust hydraulic system with a 60 gpm pump flow and 15,000 lbs of rear lift capacity.

Ideal Applications

Heavy Tillage and Field Prep: With 370 gross horsepower and a Cat 4 drawbar, this crawler is engineered for demanding pull-behind implements requiring high power and traction.

Precision Implement Control: The closed-center load sensing hydraulics and 60 gpm pump flow allow for efficient operation of complex tools using 4 to 6 rear valves.

PTO-Driven Operations: An independent rear PTO providing 308 claimed horsepower makes this model suitable for high-capacity grain carts and large mowers.

Production

Description	Agricultural Crawler tractor / Built in Waterloo, Iowa, USA
Manufacturer	John Deere

Engine

Engine type	John Deere 9.0L 6-cyl diesel
Bore/Stroke	4.66x5.35 inches (118 x 136 mm)
Description	John Deere PowerTech PSS / dual variable geometry turbochargers diesel / 6-cylinder / liquid-cooled
Displacement	548 ci (9.0 L)
Emission control	selective catalyst reduction
Emissions	Tier 4B
Rated Power (gross)	370 hp (275.9 kW)
Starter	electric
Starter volts	12
Engine (gross)	370 hp (275.9 kW)
PTO (claimed)	308 hp (229.7 kW)

Transmission

Description	infinitely variable transmission (IVT)
Gears	infinite forward and reverse
Transmission	John Deere AutoPowr
Type	infinitely variable transmission (IVT)

Mechanical

Description	Hydraulic wet disc brakes / CommandView III cab standard with air-conditioning.
Drive type	Four-wheel drive
Trailer brakes	hydraulic (optional)

Capacity

Hydraulic system	10.6 gal (40.1 L)

Hydraulics

Capacity	10.6 gal (40.1 L)
Pump flow	60 gpm (227.1 lpm)
Rear valves	4 to 6
SCV flow	35 gpm (132.5 lpm)
Type	closed-center load sensing pressure flow compensated

Hitch

Drawbar	Cat 4
Rear lift	15000 lbs (6804 kg)
Rear Type	IVN/III

PTO

Front PTO	optional independent
Front PTO Type	1000 (1.75)
Rear PTO	independent
Rear PTO Type	1000 (1.75)

Electrical

Batteries	2
Battery CCA	925 (each)
Battery volts	12
Charging amps	240
Charging system	alternator
Ground	negative

Variants

8370R	wheeled tractor
8370RT	crawler

Nebraska Tractor Test Results

Test #2132

Download PDF

Test Date: October 1-13, 2015

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

359.53 hp

@ N/A rpm

Rated Engine Speed

320.98 hp

N/A lb/hp·hr

Standard PTO Speed

348.97 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	1139 lb.-ft. (1544 Nm) at 1601 rpm
Torque Rise	41.9%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	Fuel gal/hr	Fuel L/hr	DEF gal/hr	DEF L/hr
Rated Engine Speed	320.98	239.36	2101	17.55	66.43	0.32	1.21
Maximum Power (1 Hour)	359.53	268.10	1851	19.20	72.66	0.40	1.51

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
320.98	2101	17.55	0.38	18.29	0.32
280.05	2155	15.33	0.38	18.26	0.30
210.99	2166	12.11	0.40	17.43	0.23
141.37	2176	9.15	0.45	15.45	0.21
70.99	2187	6.43	0.63	11.04	0.14
1.21	2198	3.76	21.77	0.32	0.12

Auto Mode 2100 RPM (Unballasted)

Click column headers to sort

Setting	Power	Pull (lbs)	Speed	RPM	Slip	hp·hr/gal	DEF lb/hp	Cool °F	inHg	Fuel Lb Hp Hr	Temp Air Dry F
3.9 mph	276.26	28,805	3.60	1806	5.90	16.50	0.02	214	28.94	0.43	56
4.5 mph	282.07	24,906	4.25	1808	4.20	16.66	0.01	213	28.95	0.42	50
5.2 mph	283.17	21,091	5.04	1819	2.80	16.89	0.01	213	28.95	0.42	50
6.0 mph	285.66	18,493	5.79	1795	2.00	17.17	0.01	213	28.95	0.41	51
7.0 mph	288.51	15,900	6.81	1806	1.40	17.19	0.01	214	28.96	0.41	52
8.1 mph	286.70	13,580	7.92	1823	1.10	17.21	0.01	213	28.96	0.41	53
9.3 mph	282.87	11,580	9.16	1813	0.80	17.14	0.01	213	28.95	0.41	55

Manual Mode 2100 RPM (Unballasted)

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	hp·hr/gal	DEF lb/hp	Cool °F	inHg	Fuel Lb Hp Hr	Temp Air Dry F
6th	245.12	36,816	2.50	2122	14.30	14.19	0.01	206	28.91	0.49	57
7th	264.42	33,131	2.99	2100	9.60	15.10	0.01	209	28.94	0.46	56
8th	277.50	28,877	3.61	2100	5.90	15.81	0.01	208	28.94	0.44	56
9th	282.59	24,869	4.26	2100	4.10	16.11	0.01	204	28.95	0.44	50
10th	283.27	21,238	5.00	2100	2.80	16.19	0.01	211	28.95	0.43	49
11th	286.53	18,351	5.86	2100	2.00	16.34	0.01	206	28.95	0.43	51
12th	288.62	15,886	6.81	2100	1.50	16.55	0.01	213	28.95	0.42	52
13th	287.36	13,572	7.94	2100	1.10	16.52	0.01	208	28.96	0.42	53
14th	283.32	11,625	9.14	2100	0.80	16.16	0.01	214	28.95	0.43	54

Manual Mode 1850 RPM (Ballasted)

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	hp·hr/gal	DEF lb/hp	Cool °F	inHg	Fuel Lb Hp Hr	Temp Air Dry F
5th	224.04	38,116	2.21	2154	13.70	14.09	0.01	201	28.89	0.50	63
6th	249.79	36,237	2.59	2135	12.00	14.67	0.01	205	28.89	0.48	63
7th	271.20	34,807	2.93	2061	10.20	15.02	0.01	213	28.90	0.47	64
8th	291.35	33,977	3.22	1938	9.60	15.33	0.01	216	28.89	0.46	66
9th	304.57	31,468	3.63	1850	7.50	15.87	0.01	216	28.90	0.44	68
10th	311.72	26,996	4.33	1850	4.70	16.24	0.01	216	28.90	0.43	68
11th	316.85	23,265	5.11	1850	3.20	16.52	0.01	216	28.90	0.42	69
12th	319.88	20,125	5.96	1850	2.30	16.67	0.01	216	28.90	0.42	70
13th	320.47	17,272	6.96	1851	1.80	16.72	0.01	216	28.90	0.42	71
14th	316.46	14,794	8.02	1851	1.50	16.54	0.01	217	28.90	0.42	72
15th	314.33	12,627	9.34	1850	1.20	16.45	0.01	217	28.90	0.43	72

Manual Mode 1850 RPM (Unballasted)

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	hp·hr/gal	DEF lb/hp	Cool °F	inHg	Fuel Lb Hp Hr	Temp Air Dry F
6th	246.27	36,755	2.52	2123	13.80	14.33	0.01	206	28.91	0.49	56
7th	271.11	34,864	2.92	2063	10.30	15.00	0.01	212	28.91	0.47	58
8th	291.09	33,570	3.26	1955	9.10	15.41	0.01	215	28.92	0.46	59
9th	304.20	31,540	3.62	1850	7.60	15.85	0.01	216	28.92	0.44	61
10th	310.46	26,963	4.32	1849	4.80	16.19	0.01	216	28.92	0.43	63
11th	317.36	23,369	5.09	1850	3.30	16.51	0.01	215	28.93	0.42	65
12th	321.14	20,234	5.95	1850	2.30	16.73	0.01	216	28.93	0.42	65
13th	321.25	17,331	6.95	1850	1.70	16.76	0.01	216	28.92	0.42	67
14th	318.74	14,915	8.02	1850	1.30	16.64	0.01	216	28.92	0.42	68
15th	317.31	12,748	9.34	1850	1.00	16.59	0.01	216	28.92	0.42	67

Fuel Consumption Characteristics (Unballasted)

Click column headers to sort

Power	kW	Pull (lbs)	Pull (kN)	Speed	RPM	Slip	DEF lb/hp	DEF kg/kW	Cool °F	Cool °C	inHg	kPa	Condition	Fuel Hp Hr Gal	Fuel Kg Kw Hr	Fuel Kw H L	Fuel Lb Hp Hr	Speed Km H	Temp Air Dry C	Temp Air Dry F
282.59	210.73	24,869	110.62	4.26	2100	4.10	0.01	0.01	204	96	28.95	98.07	Maximum Power—9th Gear-Manual mode	16.11	0.26	3.17	0.44	6.86	10	50
222.18	165.68	18,607	82.77	4.48	2160	2.00	0.01	0.01	195	90	28.94	98.00	75% of Pull at Maximum Power—9th Gear-Manual mode	15.89	0.27	3.13	0.44	7.21	14	56
150.59	112.29	12,410	55.20	4.55	2172	1.00	0.01	0.01	188	86	28.93	97.97	50% of Pull at Maximum Power—9th Gear-Manual mode	14.49	0.29	2.85	0.48	7.32	14	57
221.81	165.40	18,621	82.83	4.47	1384	2.10	0.01	0.01	206	97	28.93	97.97	75% of Pull at Reduced Engine Speed—4.6 mph(7.4 km/h)-Auto mode	17.34	0.25	3.42	0.40	7.19	14	56
150.39	112.14	12,497	55.59	4.51	1384	1.00	0.02	0.01	189	87	28.92	97.93	50% of Pull at Reduced Engine Speed—4.6 mph(7.4 km/h)-Auto mode	16.62	0.26	3.27	0.42	7.26	14	57

Category: IVN Quick Attach: yes

Three Outlet Sets Combined

Sustained Pressure	2,517 psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	John Deere Diesel
Type	six cylinder vertical with two turbochargers and air to air aftercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	548 cu in (8984 ml)
Compression Ratio	16.0 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst), SCR (selective catalyst reduction) and regenerative DPF (diesel particulate filter) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	tracklayer-rubber tracked
Steering	electro-hydraulic differential steering controlled by steering wheel
Transmission	selective gear fixed ratio with full range operator controlled power shift
Brakes	wet multiple disc hydraulically actuated by foot pedal
Hydraulic Control	direct engine drive
Unladen Tractor Mass	36,035 lbs ( 16,345 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Engine Oil	SAE 10W-30

Sound Levels

Bystander	86.70 dB(A)
At No Load In 9th Gear	67.80 dB(A)
Transport Speed No Load 21st Gear	70.70 dB(A)

Tires & Tracks

Track Width	25.00 in (635 mm)
