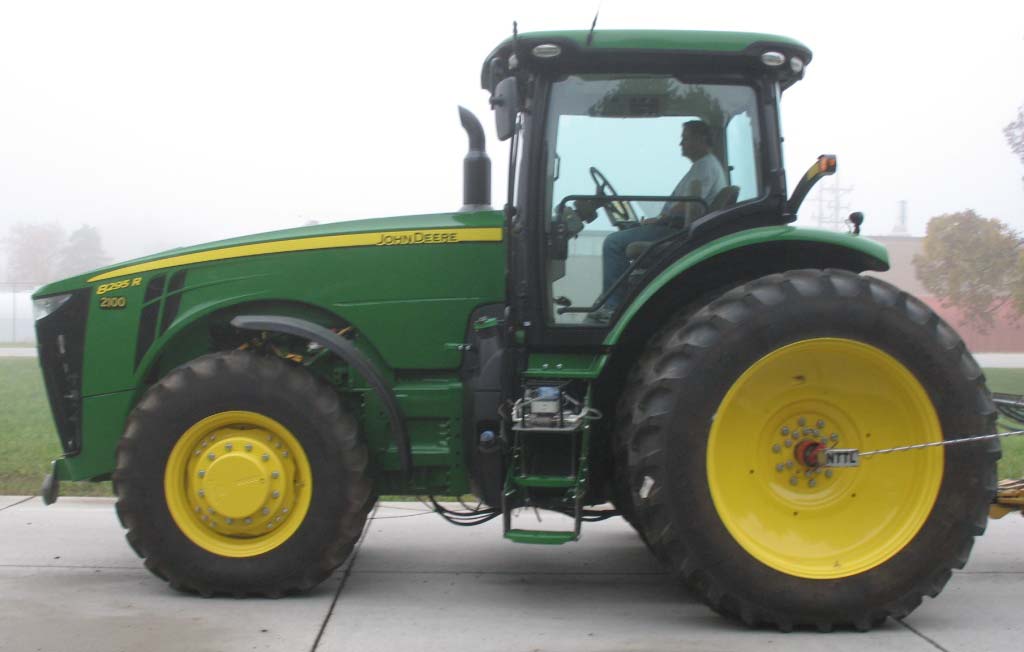

John Deere 8295R Specs ( 2009-2010 )

Name: John Deere 8295R
Brand: John Deere

Compare Tractor

Nebraska Test #2100

John Deere 8295R

Max Drawbar HP 270.7 hp

Max Pull 25,971 lbs

Max Torque 946 lb-ft

View Full Test Data →

Overview

The John Deere 8295R is a row-crop farm tractor manufactured in Waterloo, Iowa, between 2009 and 2010. It features a 9.0L 6-cylinder diesel engine with a rated gross power of 295 hp and is equipped with either a 16-speed full power shift or an infinitely variable transmission. The tractor is configured with a 120.1-inch wheelbase and a closed-center, pressure and flow compensated hydraulic system providing 44 gpm of total flow.

Ideal Applications

Tested Performance Metrics: Nebraska Tractor Test data for this model recorded a maximum tested PTO output of 292.97 hp and a maximum drawbar pull of 25,971 lbs.

Transmission and Drive Configuration: The 8295R is listed with a four-wheel drive system and offers a choice between a 16-speed PowerShift transmission or an IVT capable of 40 km/h or 50 km/h speeds.

Hitch and Lift Specifications: The rear Category III/IIIN hitch provides a lift capacity of 15,200 lbs, complemented by an optional front hitch with an 11,000 lb lift capacity.

Production

Description	Row-Crop tractor / Built in Waterloo, Iowa, USA
Manufacturer	John Deere

Engine

Engine type	John Deere 9.0L 6-cyl diesel
Air cleaner	dual paper elements
Bore/Stroke	4.661x5.354 inches (118 x 136 mm)
Compression	16.3:1
Coolant capacity	42.3 qts (40.0 L)
Description	John Deere / variable geometry turbocharger diesel / 6-cylinder 24-valve / liquid-cooled inline
Displacement	548 ci (9.0 L)
Emission control	selective catalyst reduction
Emissions	Tier 3
Fuel system	electronic high-pressure common rail
Maximum Power (gross)	324 hp (241.6 kW)
Operating RPM	1500-2100
Rated Power (gross)	295 hp (220.0 kW)
Rated Power (net)	284 hp (211.8 kW)
Rated RPM	2100
Starter	electric
Starter volts	12
Oil capacity	26.4 qts (1300 axle) (25.0 L)
Drawbar (tested)	222.05 hp (165.6 kW)
Engine (gross)	295 hp (220.0 kW)
Engine (max)	324 hp (241.6 kW)
Engine (net)	284 hp (211.8 kW)
PTO (claimed)	242 hp (180.5 kW)
PTO (tested)	281.46 hp (209.9 kW)

Transmission

Description	The IVT is available with either a 40 km/h or 50 km/h maximum speed.
Gears	16 forward and 4 reverse / infinite forward and reverse
Oil capacity	160 qts (151.4 L) / 160 qts (151.4 L)
Transmission	John Deere PowerShift / John Deere Infinitely Variable Transmission (IVT)
Transmission type	16-speed full power shift
Type	full power shift
Description	infinitely variable transmission (IVT)
Transmission type	16-speed full power shift
Description	infinitely variable transmission (IVT)
Transmission type	16-speed full power shift

Mechanical

Description	Differential hydraulic wet disc brakes / CommandView cab standard with heat and air-conditioning. Optional automatic temperature controls, electronically-controlled mirrors, sun shades, instructor seat, and front/rear windshield wipers.
Differential lock	hydraulic rear standard
Drive type	Four-wheel drive
Final drives	inboard planetary
Steering	hydrostatic power
Trailer brakes	hydraulic (optional)

Capacity

Exhaust fluid (DEF)	6.8 gal (25.7 L)
Fuel	180 gal (681.3 L)
Hydraulic system	40 gal (151.4 L)

Hydraulics

Capacity	40 gal (151.4 L)
Front valves	0 to 2
Pressure	2900 psi (200.0 bar)
Pump flow	35 gpm (132.5 lpm)
Rear valves	4 to 6
SCV flow	35 gpm (132.5 lpm)
Total flow	44 gpm (166.5 lpm)
Type	closed center, pressrue and flow compensated
Valves	3 to 5

Hitch

Drawbar	Cat 3
Front Hitch	optional with ILS
Front lift	11,000 lbs (4989 kg)
Front lift (at ends)	11450 lbs (5193 kg)
Rear Arms	hydraulic center link optional
Rear lift	15,200 lbs (6894 kg)
Rear Type	III/IIIN

PTO

Front PTO	optional independent
Front PTO Type	1000 (1.75)
Rear PTO	independent
Rear PTO Type	1000 (1-3/4)

Electrical

Batteries	2
Battery CCA	925
Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Clearance (front axle)	23.9 inches (1300 axle Group 42 tires) (60 cm)
Clearance (rear axle)	24.9 inches (Group 47 tires) (63 cm)
Front axle	1300 MFWD / 1500 MFWD / ILS 42 KPH / ILS 50 KPH
Front tread	62 to 88 inches (157 to 223 cm)
Ground clearance	27 inches (68 cm)
Height (cab)	127.7 inches (324 cm)
Length	241.3 inches (612 cm)
Rear axle	4.724 by 96 inches (119 by 2438 mm) / 4.724 by 118.5 inches (119 by 3009 mm)
Wheelbase	120.1 inches (305 cm)
Width	137.3 inches (warning lamps) (348 cm)
Front tire	420/85R34
Rear tire	480/80R50
Weight	27553 to 32691 pounds
Wheelbase	120.1 inches (305 cm)
Ag front	420/85R34
Ag rear	480/80R50
Standard tires (ag)	Front: 380/80R38. Rear: 480/80R50

8295R Serial Number Location

Description	Rear of tractor to right of PTO.

John Deere 8295R Weight

Max capacity	39683 lbs (18000 kg)
Max front axle	17637 lbs (8000 kg)
Max rear axle	25353 lbs (11500 kg)

OCED Tractor Test 1969

Description	Diesel 16-speed 4WDApril 22 - May 26, 2010Link: OCED Tractor Test 1969 file / PTO performance / Drawbar performance / Gear 8 used for power test. / Gear 3 used for pull test.
Fuel use	14.8 gal/hour (56.0 l/hour) / 13.2 gal/hour (50.0 l/hour) / 14.3 gal/hour (54.1 l/hour) / 13.2 gal/hour (50.0 l/hour)
Max power	281.46 hp (209.9 kW) / 222.05 hp (165.6 kW)
Max pull	31,099 lbs (14106 kg)
Power at rated engine speed	250.71 hp (187.0 kW)
Power at rated PTO speed	272.77 hp (203.4 kW)

OCED Tractor Test 2100

Description	Diesel 16-speed 4WDOctober 11 - 29, 2014Link: OCED Tractor Test 2100 file / PTO performance / Drawbar performance / Gear 9 used for power test. / Gear 6 used for pull test.
Fuel use	14.8 gal/hour (56.0 l/hour) / 13.7 gal/hour (51.9 l/hour) / 14.7 gal/hour (55.6 l/hour) / 13.7 gal/hour (51.9 l/hour)
Max power	292.97 hp (218.5 kW) / 238.33 hp (177.7 kW)
Max pull	25970 lbs (11779 kg)
Power at rated engine speed	260.40 hp (194.2 kW)
Power at rated PTO speed	283.57 hp (211.5 kW)

References

Description	8R/8RT Series published in 2009, by John Deere / 8R/8RT Series - Top 10 Feature & Benefits, plus Tractor Optimization Tips published in 2009, by John Deere

Speeds

Description	With 480/80R50 rear tires. R3 speed at 2300 RPM and R4 speed at 1500 RPM. / With 480/80R50 rear tires.

Variants

8295RT	crawler tractor

Nebraska Tractor Test Results

Test #2100

Download PDF

Test Date: October 22 - 29, 2014

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

292.97 hp

@ 1749 rpm

Rated Engine Speed

260.40 hp

N/A lb/hp·hr

Standard PTO Speed

283.57 hp

@ 1000 rpm PTO

Torque Statistics

Maximum Torque	946 lb.-ft. (1283 Nm) at 1550 rpm
Torque Rise	45.2%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM	Fuel gal/hr	DEF gal/hr
Rated Engine Speed	260.40	194.18	2099	1048	13.74	0.32
Standard PTO Speed (1000 rpm)	283.57	211.46	2003	1000	14.69	0.34
Maximum Power (1 Hour)	292.97	218.47	1749		14.82	0.33

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
260.40	2099	13.74	0.37	18.95	0.32
227.27	2155	12.33	0.38	18.43	0.26
171.32	2166	9.77	0.40	17.53	0.20
114.94	2177	7.50	0.46	15.33	0.18
57.55	2185	5.61	0.69	10.25	0.10
3.85	2197	3.37	6.16	1.14	0.08

Unballasted Front Drive Engaged 2100 RPM Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	kW	Pull (lbs)	Pull (kN)	Speed	RPM	Slip	Air °F	Air °C	Cool °F	Cool °C	Barometer Inch Hg	Barometer Kpa	Def Consumption Kg Kw H	Def Consumption Lb Hp Hr	Fuel Consumption Hp Hr Gal	Fuel Consumption Kg Kw H	Fuel Consumption Kw H L	Fuel Consumption Lb Hp Hr	Speed Km H
6th Gear	212.65	158.57	25,970	115.52	3.08	2100	13.90	57	14	194	90	28.35	96.00	0.01	0.01	15.46	0.28	3.05	0.46	4.95
7th Gear	232.74	173.55	22,312	99.25	3.92	2100	5.60	58	15	197	92	28.82	97.60	0.01	0.01	16.94	0.25	3.34	0.42	6.30
8th Gear	236.59	176.42	19,319	85.93	4.59	2100	3.80	58	15	196	91	28.82	97.60	0.01	0.01	17.19	0.25	3.39	0.41	7.39
9th Gear	238.33	177.72	16,701	74.29	5.35	2099	3.00	58	14	200	93	28.82	97.60	0.01	0.01	17.40	0.25	3.43	0.40	8.61
10th Gear	237.57	177.16	14,355	63.85	6.21	2100	2.60	57	14	199	93	28.81	97.56	0.01	0.01	17.37	0.25	3.42	0.41	9.99
11th Gear	237.42	177.04	12,292	54.68	7.24	2099	1.90	57	14	204	95	28.81	97.56	0.01	0.01	17.30	0.25	3.41	0.41	11.65
12th Gear	235.97	175.96	10,555	46.95	8.38	2100	1.60	58	14	204	95	28.82	97.60	0.01	0.01	17.24	0.25	3.40	0.41	13.49

Unballasted Front Drive Engaged 1750 RPM Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	kW	Pull (lbs)	Pull (kN)	Speed	RPM	Slip	Air °F	Air °C	Cool °F	Cool °C	Barometer Inch Hg	Barometer Kpa	Def Consumption Kg Kw H	Def Consumption Lb Hp Hr	Fuel Consumption Hp Hr Gal	Fuel Consumption Kg Kw H	Fuel Consumption Kw H L	Fuel Consumption Lb Hp Hr	Speed Km H
6th Gear	214.09	159.65	25,971	115.52	3.10	2101	13.40	57	14	195	90	28.35	96.00	0.01	0.01	15.57	0.28	3.07	0.45	4.98
7th Gear	242.88	181.11	25,248	112.31	3.61	2016	9.40	59	15	201	94	28.36	96.04	0.01	0.01	16.69	0.26	3.29	0.42	5.81
8th Gear	259.35	193.39	24,032	106.90	4.05	1918	7.30	61	16	213	100	28.36	96.04	0.01	0.01	17.39	0.25	3.43	0.41	6.52
9th Gear	264.65	197.35	22,193	98.72	4.48	1803	5.60	62	17	215	101	28.36	96.04	0.01	0.01	17.85	0.24	3.52	0.39	7.20
10th Gear	267.35	199.36	19,711	87.68	5.09	1750	4.10	57	14	213	101	28.81	97.56	0.01	0.01	18.16	0.24	3.58	0.39	8.18
11th Gear	268.17	199.97	16,845	74.93	5.97	1750	3.20	57	14	213	101	28.81	97.56	0.01	0.01	18.16	0.24	3.58	0.39	9.61
12th Gear	269.75	201.15	14,612	65.00	6.92	1750	2.50	57	14	213	101	28.82	97.60	0.01	0.01	18.29	0.23	3.60	0.39	11.14
13th Gear	270.74	201.89	12,377	55.05	8.21	1750	2.00	57	14	214	101	28.82	97.60	0.01	0.01	18.41	0.23	3.63	0.38	13.20

Unballasted Front Drive Engaged Fuel Consumption Characteristics

Click column headers to sort

Power	kW	Pull (lbs)	Pull (kN)	Speed	RPM	Slip	Air °F	Air °C	Cool °F	Cool °C	Barometer Inch Hg	Barometer Kpa	Condition	Def Consumption Kg Kw H	Def Consumption Lb Hp Hr	Fuel Consumption Hp Hr Gal	Fuel Consumption Kg Kw H	Fuel Consumption Kw H L	Fuel Consumption Lb Hp Hr	Speed Km H
238.33	177.72	16,701	74.29	5.35	2099	3.00	58	14	200	93	28.82	97.60	Maximum Power—9th Gear	0.01	0.01	17.40	0.25	3.43	0.40	8.61
185.52	138.34	12,521	55.69	5.56	2159	2.10	58	14	189	87	28.83	97.63	75% of Pull at Maximum Power—9th Gear	0.01	0.01	16.40	0.26	3.23	0.43	8.95
125.66	93.70	8,369	37.23	5.63	2169	1.20	60	16	187	86	28.82	97.60	50% of Pull at Maximum Power—9th Gear	0.01	0.01	14.56	0.29	2.87	0.48	9.06
185.42	138.27	12,529	55.73	5.55	1397	2.10	58	15	208	98	28.83	97.63	75% of Pull at Reduced Engine Speed—12th Gear	0.01	0.01	18.33	0.23	3.61	0.38	8.93
125.39	93.50	8,337	37.08	5.64	1407	1.20	61	16	190	88	28.81	97.56	50% of Pull at Reduced Engine Speed—12th Gear	0.01	0.01	17.23	0.25	3.39	0.41	9.08

Category: III/IVN Quick Attach: Yes

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	John Deere
Type	Diesel six cylinder vertical with two turbochargers and air to air aftercooler and D.E.F (diesel exhaust fluid) exhaust treatment
Displacement	548 cu in (8984 ml)
Compression Ratio	16.0 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst), SCR (selective catalyst reduction) and regenerative DPF (diesel particulate filter) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist with duals
Steering	hydrostatic
Transmission	selective gear fixed ratio with full range operator controlled power shift
Speeds	16 forward (24.08 mph max)
Wheelbase	121.30 in (3080 mm)
Front Tread Width	60.0 (1524 mm) to 88.0 (2235 mm) in
Rear Tread Width	60.0 (1524 mm) to 132.6 (3368 mm) in
Brakes	wet multiple disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	11,412 kg

Consumables

Fuel	No. 2 Diesel
DEF Fluid	N/A

Tires & Tracks

Rear Tires	Four 480/80R46;***;12(85)
Front Tires	Two 420/90R30;***;20(140)
Height of Drawbar	19.5 in (495 mm)

Static Weight

Rear	15,105 lbs
Front	10,230 lbs
Total	25,335 lbs
