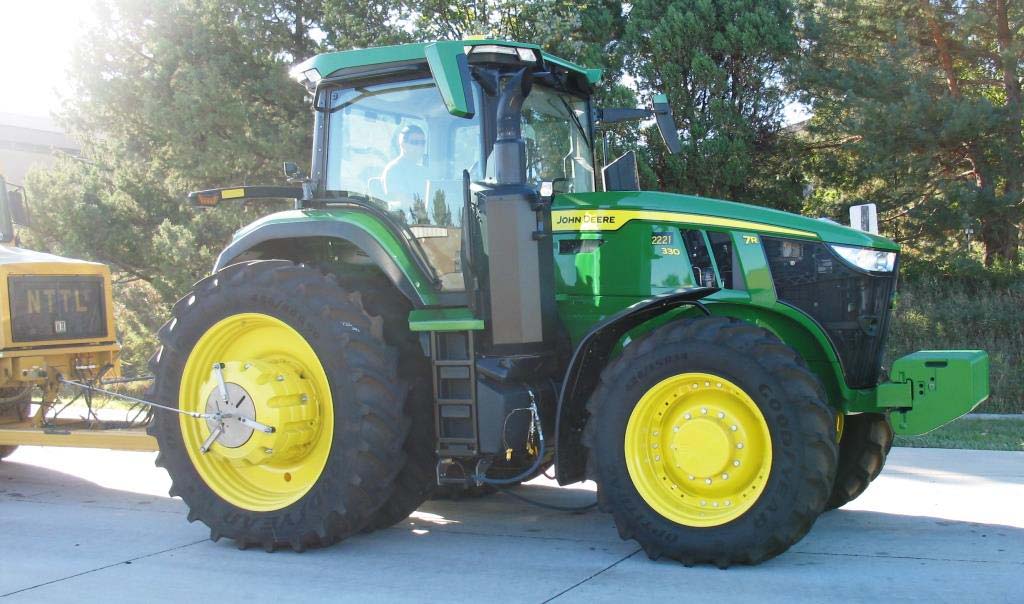

John Deere 7R 330 Specs ( 2019-Present )

Name: John Deere 7R 330
Brand: John Deere

Overview

The John Deere 7R 330 is a row-crop tractor manufactured in Waterloo, Iowa, since 2019, featuring a 9.0L 6-cylinder turbocharged diesel engine. It is equipped with a 115.2-inch wheelbase and offers transmission options including a 23-speed full power shift or an infinitely variable transmission. The tractor is rated at a gross engine power of 330 hp and features a Tier IV emissions-compliant fuel system.

Ideal Applications

Tested Pull and Drawbar Performance: Nebraska Tractor Test data indicates a maximum tested pull of 32,713 lbs and a maximum drawbar output of 294.77 hp.

Hydraulic and Hitch Capacity: The tractor is equipped with a 43 gpm pump flow hydraulic system and a rear Type III/IIIN hitch with a lift capacity of 15,200 lbs.

Engine and PTO Specifications: The 9.0L engine is listed with a maximum gross power of 363 hp and achieved a tested maximum PTO power of 303.69 hp.

Production

Description	Row-Crop tractor / Built in Waterloo, Iowa, USA / Original price was $324,608 in 2020
Manufacturer	John Deere

Engine

Engine type	John Deere 9.0L 6-cyl diesel
Bore/Stroke	4.66x5.35 inches (118 x 136 mm)
Compression	16.0:1
Description	John Deere / turbocharged diesel / 6-cylinder / liquid-cooled
Displacement	549 ci (9.0 L)
Emissions	Tier IV
Fuel system	electronic high-pressure common rail
Maximum Power (gross)	363 hp (270.7 kW)
Rated Power (gross)	330 hp (246.1 kW)
Starter	electric
Starter volts	12
Drawbar (tested)	264.21 hp (197.0 kW)
Engine (gross)	330 hp (246.1 kW)
Engine (max)	363 hp (270.7 kW)
PTO (claimed)	260 hp (193.9 kW)
PTO (tested)	303.69 hp (226.5 kW)

Transmission

Gears	23 forward and 11 reverse / infinite forward and reverse
Transmission	e23
Type	full power shift / infinitely variable transmission
Description	infinitely variable transmission
Transmission type	23-speed full power shift
Description	infinitely variable transmission
Transmission type	23-speed full power shift

Mechanical

Cab	Cab standard with air-conditioning.
Description	Power steering
Differential lock	electro-hydraulic rear
Drive type	Four-wheel drive
Final drives	inboard planetary

Capacity

Exhaust fluid (DEF)	6.9 gal (26.1 L)
Fuel	122 gal (e23) (461.8 L)
Hydraulic system	17.2 gal (65.1 L)

Hydraulics

Capacity	17.2 gal (65.1 L)
Front valves	0 to 1
Pressure	2958 psi (204.0 bar)
Pump flow	43 gpm (162.8 lpm)
Rear valves	4 to 6
SCV flow	35 gpm (rear) (132.5 lpm)
Type	closed-center pressure flow compensated

Hitch

Control	electro-hydraulic draft sensing
Front Hitch	IIIN
Front lift (at 24"/610mm)	6994 lbs (3172 kg)
Front lift (at ends)	7690 lbs (3488 kg)
Rear lift (at 24"/610mm)	15200 lbs (6894 kg)
Rear Type	III/IIIN

PTO

Clutch	1000:1940
Engine RPM	540@1950
Front PTO	independent OptOptional
Front PTO Type	1000 (1.375)
Rear PTO	independent
Rear PTO Type	1000 (1.75)

Electrical

Batteries	2
Battery CCA	925
Battery Group	31
Battery volts	12
Charging amps	210
Charging system	alternator
Ground	negative

Dimensions & Tires

Clearance (front axle)	19.5 inches (49 cm)
Front tread	60 to 88 inches (152 to 223 cm)
Length	218 inches (553 cm)
Rack-and-pinion rear axle	4.33 by 118.5 inches (109 by 3009 mm) / 4.33 by 100.4 inches (109 by 2550 mm) / 4.33 by 110.5 inches (109 by 2806 mm) / 4.72 by 100.4 inches (119 by 2550 mm) / 4.72 by 118.5 inches (119 by 3009 mm)
Wheelbase	115.2 inches (292 cm)
Front tire	420/85R34
Rear tire	480/80R50
Wheelbase	115.2 inches (292 cm)
Standard tires (ag)	Front: 420/85R34. Rear: 480/80R50

John Deere 7R 330 attachments

Description	front-end loader

OCED Tractor Test 2221

Description	Diesel e23 4WDSeptember 17 - October 9, 2020Link: OCED Tractor Test 2221 file / PTO performance / Drawbar performance / Gear 11 used for power test. / Gear 7 used for pull test.
Fuel use	15.2 gal/hour (57.5 l/hour) / 14.3 gal/hour (54.1 l/hour) / 15.2 gal/hour (57.5 l/hour) / 15.1 gal/hour (57.2 l/hour)
Max power	303.69 hp (226.5 kW) / 264.21 hp (197.0 kW)
Max pull	25364 lbs (11505 kg)
Power at rated engine speed	271.52 hp (202.5 kW)
Power at rated PTO speed	296.93 hp (221.4 kW)

References

Description	7R Tractors published in 2019, by John Deere

Nebraska Tractor Test Results

Test #2221

Download PDF

Test Date: September 17 to October 9, 2020

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

303.69 hp

@ 1751 rpm

Rated Engine Speed

271.52 hp

N/A lb/hp·hr

Standard PTO Speed

296.93 hp

@ 1000 rpm PTO

Torque Statistics

Maximum Torque	996 lb-ft (1,350 Nm)
Torque Rise	46.6%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM
Rated Engine Speed	271.52	202.47	2100
Standard PTO Speed (1000 rpm)	296.93	221.42	1950	1000
Maximum Power (1 Hour)	303.69	226.46	1751

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
271.52	2100	14.33	0.37	N/A	0.73
236.97	2157	12.87	0.38	N/A	0.70
178.67	2167	10.33	0.40	N/A	0.53
119.71	2179	7.94	0.46	N/A	0.30
60.23	2191	5.86	0.68	N/A	0.17
1.61	2198	4.54	19.65	N/A	0.22

Manual Mode 2100 Engine RPM (Unballasted) Front Drive Engaged

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	inHg	Engine RPM	Fuel Lb Hp Hr	Temp Air F	Temp Cool F
7th Gear	211.47	25,364	3.13	13.50	15.26	0.03	29.08	2154	0.46	51	218
8th Gear	241.25	24,409	3.71	10.00	16.05	0.03	29.09	2124	0.44	54	218
9th Gear	256.31	22,014	4.37	6.00	16.82	0.03	29.00	2100	0.42	57	218
10th Gear	260.88	19,132	5.11	4.70	17.21	0.03	29.00	2100	0.41	59	217
11th Gear	264.21	16,569	5.98	3.60	17.45	0.03	29.00	2100	0.40	53	217
12th Gear	262.22	14,223	6.91	3.00	17.29	0.03	29.00	2099	0.40	52	218
13th Gear	261.74	12,233	8.02	2.60	17.29	0.03	29.00	2100	0.40	55	217

Ballasted Front Drive Engaged 1800 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	inHg	Engine RPM	Fuel Lb Hp Hr	Temp Air F	Temp Cool F
6th Gear	235.62	32,713	2.71	13.00	15.71	0.03	29.03	2114	0.45	46	219
7th Gear	258.24	30,975	3.13	9.10	16.66	0.03	29.03	2050	0.42	49	219
8th Gear	276.14	29,537	3.51	7.60	17.09	0.03	29.04	1959	0.41	50	219
9th Gear	286.18	28,186	3.81	6.70	17.44	0.03	29.05	1844	0.40	50	218
10th Gear	291.13	25,095	4.35	5.40	17.80	0.03	29.05	1800	0.39	50	218
11th Gear	292.56	21,596	5.08	4.40	17.89	0.03	29.05	1800	0.39	50	218
12th Gear	294.77	18,774	5.89	3.70	17.97	0.03	29.06	1800	0.39	50	218
13th Gear	292.45	16,032	6.84	3.10	17.92	0.03	29.06	1800	0.39	51	218
14th Gear	292.21	13,934	7.87	2.60	17.92	0.03	29.07	1800	0.39	52	218
15th Gear	291.49	11,994	9.11	2.30	17.76	0.03	29.07	1800	0.39	52	218

Manual Mode 1800 Engine RPM (Unballasted) Front Drive Engaged

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	inHg	Engine RPM	Fuel Lb Hp Hr	Temp Air F	Temp Cool F
7th Gear	211.74	25,362	3.14	13.30	15.27	0.03	29.08	2153	0.46	51	218
8th Gear	241.87	24,412	3.72	10.00	16.11	0.03	29.09	2131	0.43	53	217
9th Gear	261.51	23,422	4.19	8.10	16.68	0.03	29.10	2055	0.42	57	217
10th Gear	279.89	22,264	4.72	7.00	17.27	0.03	29.10	1980	0.40	58	217
11th Gear	286.18	21,576	4.98	6.40	17.46	0.03	29.10	1800	0.40	59	218
12th Gear	290.67	18,777	5.81	4.90	17.75	0.03	29.10	1800	0.39	59	218
13th Gear	293.15	16,245	6.77	4.10	17.87	0.03	29.10	1800	0.39	60	218
14th Gear	294.05	14,151	7.79	3.40	17.93	0.02	29.10	1800	0.39	60	218
15th Gear	293.24	12,152	9.05	2.90	17.91	0.02	29.10	1800	0.39	61	218

Fuel Consumption Characteristics (Unballasted) Front Drive Engaged

Click column headers to sort

Power	kW	Pull (lbs)	Pull (kN)	Speed	km/h	Slip	DEF lb/hp	Air °F	Air °C	Cool °F	Cool °C	inHg	kPa	Condition	Def Kg Kw H	Engine RPM	Fuel Hp Hr Gal	Fuel Kg Kw H	Fuel Kw H L	Fuel Lb Hp Hr
264.21	197.02	16,569	73.70	5.98	9.62	3.60	0.03	53	12	217	103	29.00	98.19	Power at Rated Engine Speed—11th Gear-Manual mode	0.02	2100	17.45	0.24	3.44	0.40
204.70	152.64	12,389	55.11	6.20	9.97	2.70	0.03	68	20	217	103	28.99	98.15	75% of Pull at Rated Engine Speed—11th Gear-Manual mode	0.02	2159	16.44	0.26	3.24	0.43
138.28	103.12	8,244	36.67	6.29	10.12	1.80	0.03	68	20	216	102	28.98	98.14	50% of Pull at Rated Engine Speed—11th Gear-Manual mode	0.02	2172	14.87	0.29	2.93	0.47
204.36	152.39	12,282	54.63	6.24	10.04	2.70	0.02	69	21	217	103	28.98	98.14	75% of Pull at Reduced Engine Speed—6.5 mph-Auto mode	0.01	1429	18.17	0.23	3.58	0.38
138.54	103.31	8,251	36.70	6.30	10.14	1.80	0.02	69	21	216	102	28.98	98.12	50% of Pull at Reduced Engine Speed—6.5 mph-Auto mode	0.01	1237	17.15	0.25	3.38	0.41

Lugging Ability In 13th Gear

Click column headers to sort

Power	kW	Speed	km/h	RPM	Slip	Increase In Pull Percent	Pull Kn	Pull Lbs
260.00	193.88	8.01	12.89	2100	2.70	0	54.14	12171
281.42	209.85	7.60	12.23	1999	3.10	14	61.79	13892
288.57	215.19	7.20	11.58	1899	3.40	24	66.90	15040
289.99	216.24	6.80	10.94	1800	3.70	31	71.18	16003
287.37	214.29	6.40	10.30	1700	4.00	38	74.93	16846
264.70	197.38	5.63	9.05	1499	4.40	45	78.51	17649
227.72	169.81	4.88	7.85	1300	4.40	44	77.92	17516
182.16	135.84	4.14	6.66	1100	4.00	36	73.44	16511

Unballasted Front Drive Engaged Auto Mode

Click column headers to sort

Setting	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	inHg	Engine RPM	Fuel Lb Hp Hr	Temp Air F	Temp Cool F
3.5 mph (5.6 km/h)	205.36	24,929	3.09	10.80	17.28	0.02	29.09	1352	0.40	51	217
4.1 mph (6.6 km/h)	238.36	24,404	3.66	10.30	17.13	0.02	29.09	1594	0.41	55	217
4.7 mph (7.6 km/h)	255.75	21,785	4.41	6.10	17.86		29.00	1588	0.39	59	218
5.3 mph (8.6 km/h)	260.13	19,340	5.05	4.90	17.93	0.02	29.00	1562	0.39	61	217
6.2 mph (10.0 km/h)	262.64	16,577	5.94	3.60	18.23	0.02	29.00	1571	0.38	54	217
7.2 mph (11.6 km/h)	262.20	14,168	6.94	3.00	18.30		28.99	1594	0.38	52	217
8.3 mph (13.4 km/h)	261.52	12,179	8.05	2.50	18.08		29.00	1594	0.39	56	217

Category: III Quick Attach: Yes

Lift Capacity

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	John Deere
Type	Diesel six cylinder vertical with turbocharger, air to air aftercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	548 cu in (8984 ml)
Compression Ratio	16.0 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	regenerative particulate filter integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist with duals
Steering	hydrostatic
Transmission	selective gear fixed ratio with full range operator controlled power shift
Speeds	23 forward (26.10 mph max)
Wheelbase	115.20 in (2925 mm)
Front Tread Width	60.0 to 88.0 in
Rear Tread Width	60.0 to 128.9 in
Brakes	wet multiple disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	25,245 lbs ( 11,451 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
