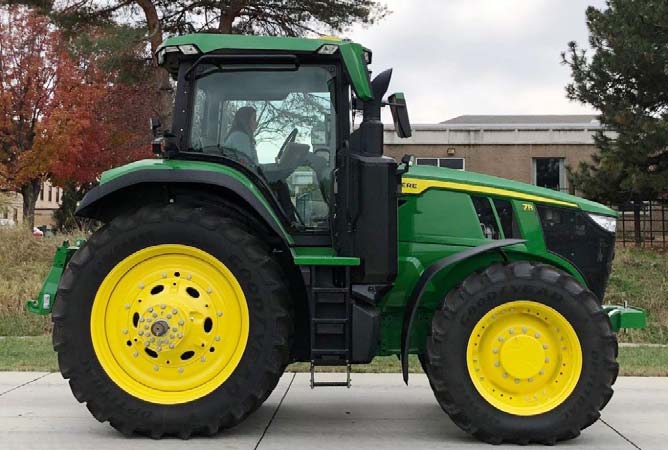

John Deere 7R 210 Specs ( 2019-Present )

Name: John Deere 7R 210
Brand: John Deere

Overview

The John Deere 7R 210 is a row-crop tractor produced in Waterloo, Iowa, since 2019, powered by a 6.8L 6-cylinder turbocharged diesel engine. It is equipped with either an e23 full power shift or an infinitely variable transmission and features a four-wheel drive mechanical configuration. Performance data indicates a gross engine rating of 210 hp and a tested maximum PTO power of 205.32 hp.

Ideal Applications

Nebraska Test Performance: In official testing, this model achieved a maximum drawbar pull of 21,510 lbs and a maximum drawbar power of 193.31 hp.

Hydraulic System Specifications: The tractor utilizes a closed-center pressure flow compensated system with a pump flow of 43 gpm and a standard pressure of 2,958 psi.

Hitch and Lift Ratings: The rear III/IIIN hitch is rated for a lift capacity of 15,200 lbs at 24 inches, while the front IIIN hitch is rated for 6,994 lbs at 24 inches.

Production

Description	Row-Crop tractor / Built in Waterloo, Iowa, USA / Original price was $246 in 884 with 2020
Manufacturer	John Deere

Engine

Engine type	John Deere 6.8L 6-cyl diesel
Bore/Stroke	4.19x5.00 inches (106 x 127 mm)
Compression	17.2:1
Description	John Deere / turbocharged diesel / 6-cylinder / liquid-cooled
Displacement	415 ci (6.8 L)
Emissions	Tier IV
Fuel system	electronic high-pressure common rail
Maximum Power (gross)	231 hp (172.3 kW)
Rated Power (gross)	210 hp (156.6 kW)
Starter	electric
Starter volts	12
Drawbar (tested)	170.77 hp (127.3 kW)
Engine (gross)	210 hp (156.6 kW)
Engine (max)	231 hp (172.3 kW)
PTO (claimed)	170 hp (126.8 kW)
PTO (tested)	205.32 hp (153.1 kW)

Transmission

Gears	23 forward and 11 reverse / infinite forward and reverse
Transmission	e23
Type	full power shift / infinitely variable transmission
Description	infinitely variable transmission
Transmission type	23-speed full power shift
Description	infinitely variable transmission
Transmission type	23-speed full power shift

Mechanical

Cab	Cab standard with air-conditioning.
Description	Power steering
Differential lock	electro-hydraulic rear
Drive type	Four-wheel drive
Final drives	inboard planetary

Capacity

Exhaust fluid (DEF)	6.9 gal (26.1 L)
Fuel	122 gal (e23) (461.8 L)
Hydraulic system	17.2 gal (65.1 L)

Hydraulics

Capacity	17.2 gal (65.1 L)
Front valves	0 to 1
Pressure	2958 psi (204.0 bar)
Pump flow	43 gpm (162.8 lpm)
Rear valves	4 to 6
SCV flow	35 gpm (rear) (132.5 lpm)
Type	closed-center pressure flow compensated

Hitch

Control	electro-hydraulic draft sensing
Front Hitch	IIIN
Front lift (at 24"/610mm)	6994 lbs (3172 kg)
Front lift (at ends)	7690 lbs (3488 kg)
Rear lift (at 24"/610mm)	15200 lbs (6894 kg)
Rear Type	III/IIIN

PTO

Clutch	1000:1940
Engine RPM	540@1950
Front PTO	independent OptOptional
Front PTO Type	1000 (1.375)
Rear PTO	independent
Rear PTO Type	1000 (1.75)

Electrical

Batteries	2
Battery CCA	925
Battery Group	31
Battery volts	12
Charging amps	210
Charging system	alternator
Ground	negative

Dimensions & Tires

Clearance (front axle)	19.5 inches (49 cm)
Front tread	60 to 88 inches (152 to 223 cm)
Length	217 inches (551 cm)
Rack-and-pinion rear axle	4.33 by 118.5 inches (109 by 3009 mm) / 4.33 by 100.4 inches (109 by 2550 mm) / 4.33 by 110.5 inches (109 by 2806 mm) / 4.72 by 100.4 inches (119 by 2550 mm) / 4.72 by 118.5 inches (119 by 3009 mm)
Wheelbase	115.2 inches (292 cm)
Front tire	420/90R30
Rear tire	480/80R46
Wheelbase	115.2 inches (292 cm)
Standard tires (ag)	Front: 420/90R30. Rear: 480/80R46

John Deere 7R 210 attachments

Description	front-end loader

OCED Tractor Test 2179A

Description	Diesel e23 4WDSeptember 5 - 8, 2017Link: OCED Tractor Test 2179A file / PTO performance / Drawbar performance / Gear 10 used for power test. / Gear 5 used for pull test.
Fuel use	11.0 gal/hour (41.6 l/hour) / 10.4 gal/hour (39.4 l/hour) / 11.0 gal/hour (41.6 l/hour) / 10.3 gal/hour (39.0 l/hour)
Max power	205.32 hp (153.1 kW) / 170.77 hp (127.3 kW)
Max pull	21510 lbs (9756 kg)
Power at rated engine speed	182.22 hp (135.9 kW)
Power at rated PTO speed	199.07 hp (148.4 kW)

References

Description	7R Tractors published in 2019, by John Deere

Nebraska Tractor Test Results

Test #2179A

Download PDF

Test Date: September 5 - 8, 2017

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

205.32 hp

@ 1702 rpm

Rated Engine Speed

182.22 hp

N/A lb/hp·hr

Standard PTO Speed

199.07 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	673 lb-ft (912 Nm) at 1501 rpm
Torque Rise	47.6%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM
Rated Engine Speed	182.22	135.88	2099
Maximum Power (1 Hour)	205.32	153.11	1702

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
182.22	2099	10.37	0.40	17.58	0.23
159.05	2153	9.42	0.41	16.89	0.19
119.98	2165	7.52	0.44	15.96	0.15
80.29	2172	6.00	0.52	13.39	0.11
40.56	2182	4.35	0.75	9.32	0.07
1.73	2192	2.63	10.61	0.66	0.09

Manual Mode 2100 RPM (Unballasted)

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	lb/hp·hr	DEF lb/hp	Barom	Engine RPM	Temp Air F	Temp Cool F
5th Gear	131.97	21,510	2.31	13.60	14.17	0.49	0.01	28.87	2154	68	215
6th Gear	148.61	21,022	2.65	13.10	14.71	0.48	0.01	28.89	2124	53	216
7th Gear	165.51	19,353	3.21	6.40	15.97	0.44	0.01	28.89	2099	56	216
8th Gear	168.99	16,683	3.80	4.00	16.30	0.43	0.01	28.89	2100	62	215
9th Gear	169.27	14,481	4.38	3.20	16.46	0.43	0.01	28.97	2100	59	216
10th Gear	170.77	12,588	5.09	2.50	16.60	0.42	0.01	28.97	2099	62	215
11th Gear	168.52	10,705	5.90	2.10	16.40	0.43	0.01	28.97	2100	64	216
12th Gear	169.86	9,352	6.81	1.80	16.56	0.42	0.01	28.97	2100	64	216
13th Gear	168.02	7,981	7.90	1.60	16.39	0.43	0.01	28.96	2100	66	217
14th Gear	166.37	6,889	9.06	1.30	16.26	0.43	0.01	28.96	2100	67	217

Unballasted Front Drive Engaged 1700 RPM Max Power

Click column headers to sort

Gear	Power	Speed	Slip	hp·hr/gal	Barom	Def Consumption	Engine RPM	Pull Lbs	Temp Air F
5th Gear	131.22	2.28	14.50	14.08	28.87	0.01	2154	21607	69
6th Gear	148.91	2.66	13.00	14.72	28.89	0.01	2126	21015	53
7th Gear	167.69	3.16	7.10	16.00	28.89	0.01	2078	19944	60
8th Gear	178.52	3.53	6.30	16.46	28.87	0.01	2005	18979	66
9th Gear	185.89	3.89	5.20	16.71	28.87	0.01	1902	17915	72
10th Gear	190.06	4.33	4.20	17.18	28.87	0.01	1816	16471	73
11th Gear	191.25	4.72	3.40	17.32	28.97	0.01	1700	15212	64
12th Gear	192.34	5.46	2.70	17.48	28.97	0.01	1700	13204	67
13th Gear	191.53	6.34	2.30	17.47	28.96	0.01	1700	11323	66
14th Gear	193.31	7.28	1.90	17.50	28.94	0.01	1700	9953	68
15th Gear	191.71	8.44	1.70	17.37	28.94	0.01	1700	8515	68

Fuel Consumption Characteristics (Unballasted) Front Drive Engaged

Click column headers to sort

Power	Pull (lbs)	Speed	Slip	hp·hr/gal	inHg	Condition	Def Consumption Lb Hp Hr	Engine RPM	Fuel Lb Hp Hr	Temp Air Dry F	Temp Cooling F
170.77	12,588	5.09	2.50	16.60	28.97	Power at Rated Engine Speed—10th Gear- Manual mode	0.01	2099	0.42	62	215
132.60	9,438	5.27	1.80	15.53	28.92	75% of Pull at Rated Engine Speed—10th Gear-Manual mode	0.01	2158	0.45	69	215
89.64	6,303	5.33	1.10	13.63	28.93	50% of Pull at Rated Engine Speed—10th Gear-Manual mode	0.01	2169	0.51	69	215
132.75	9,486	5.25	1.80	17.45	28.92	75% of Pull at Reduced Engine Speed—5.3mph(8.6 km/h)-Auto mode	0.01	1400	0.40	68	215
89.38	6,341	5.29	1.10	16.79	28.83	50% of Pull at Reduced Engine Speed—5.3 mph(8.6 km/h)-Auto mode	0.02	1224	0.42	71	214

Unballasted Front Drive Engaged Auto Mode

Click column headers to sort

Power	Speed	Slip	hp·hr/gal	Barom	Def Consumption	Engine RPM	Pull Lbs	Target Speed	Temp Air F
165.62	3.29	5.50	17.12	28.89	0.01	1616	18877	3.5 mph	58
169.00	3.82	4.00	17.49	28.89	0.02	1599	16585	4.0 mph	66
168.61	4.26	3.30	17.44	28.97	0.01	1532	14840	4.3 mph	61
170.22	5.09	2.50	17.66	28.97	0.01	1580	12545	5.2 mph	63
168.72	5.84	2.10	17.63	28.97	0.01	1563	10837	6.0 mph	65
169.44	6.84	1.80	17.70	28.97	0.01	1594	9293	6.9 mph	67
167.60	7.96	1.50	17.57	28.96	0.01	1601	7896	8.1 mph	66
166.67	9.09	1.10	17.52	28.94	0.01	1570	6878	9.2 mph	67

Category: III Quick Attach: Yes

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	John Deere
Type	Diesel six cylinder vertical with turbocharger, air to air aftercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	414 cu in (6788 ml)
Compression Ratio	17.2 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst), SCR (selective catalyst reduction) and regenerative DPF (diesel particulate filter) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist with duals
Steering	hydrostatic
Transmission	selective gear fixed ratio with full range operator controlled power shift
Wheelbase	115.20 in (2925 mm)
Front Tread Width	60.0 to 88.0 in
Rear Tread Width	60.0 to 128.9 in
Brakes	wet multiple disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	22,290 lbs ( 10,111 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Engine Oil	SAE 15W-40 API CJ-4

Sound Levels

Bystander	83.40 dB(A)
At No Load In 9th Gear Fwd Disengaged	66.80 dB(A)
At No Load In 9th Gear Fwd Engaged	66.90 dB(A)
Transport Speed No Load 21st Gear	69.20 dB(A)

Tires & Tracks

Rear Tires	Four 480/80R46; ***; 12 (85) psi (kPa)
Front Tires	Two 420/90R30; ***; 14 (95) psi (kPa)
Height of Drawbar	19.5 in (495 mm)

Static Weight

Rear	14,790 lbs
Front	7,675 lbs
Total	22,465 lbs
