John Deere 7310R Specs ( 2015-2019 )

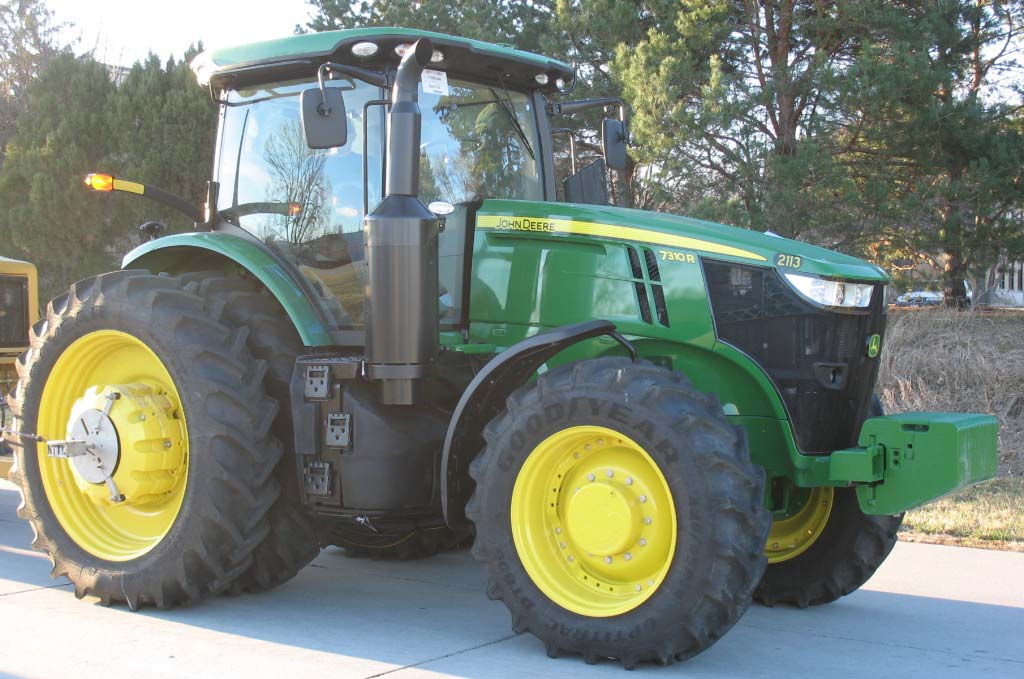

Name: John Deere 7310R
Brand: John Deere

Overview

The John Deere 7310R is a row-crop farm tractor manufactured in Waterloo, Iowa, between 2015 and 2019. It features a 9.0L 6-cylinder PowerTech PSS diesel engine with dual turbochargers, providing a gross engine power of 310 hp and a tested PTO performance of 309.83 hp.

Ideal Applications

Transmission and Drive Configuration: Equipped with either a 23-speed e23 full power shift or an AutoPowr IVT infinitely variable transmission, the tractor includes a 1300 MFWD or Triple-Link Suspension front axle and inboard planetary final drives.

Tested Power and Pull Capacity: Under Nebraska Tractor Test 2113, the unit achieved a maximum drawbar performance of 289.64 hp and a maximum pull of 31,119 lbs while utilizing a high-pressure common rail fuel system.

Hydraulic and Hitch Specifications: The closed-center pressure-flow compensated hydraulic system provides a standard pump flow of 42.8 gpm, supporting a Category III/IIIN rear hitch with a lift capacity of 15,200 lbs and up to six rear valves.

Production

Description	Row-Crop tractor / Built in Waterloo, Iowa, USA
Manufacturer	John Deere

Engine

Engine type	John Deere 9.0L 6-cyl diesel
Exhaust fluid (DEF)	6.8 gal (25.7 L)
Air cleaner	two stage dry
Bore/Stroke	4.66x5.35 inches (118 x 136 mm)
Compression	16:1
Coolant capacity	47 qts (44.5 L)
Description	John Deere PowerTech PSS / dual turbochargers diesel / 6-cylinder 24-valve / liquid-cooled inline
Displacement	549 ci (9.0 L)
Emissions	Stage IV
Fuel system	electronic high-pressure common rail
Maximum Power (gross)	352 hp (262.5 kW)
Maximum Power (net)	338.2 hp (252.2 kW)
Operating RPM	1550-2100
Rated Power (gross)	310 hp (231.2 kW)
Rated Power (net)	298 hp (222.2 kW)
Rated RPM	2100
Starter	electric
Starter volts	12
Torque	1070.9 lb-ft (1452.1 Nm)
Torque RPM	1600
Oil capacity	28.5 qts (27.0 L)
Oil change	500 h
Drawbar (tested)	255.61 hp (190.6 kW)
Engine (gross)	310 hp (231.2 kW)
Engine (max)	352 hp (262.5 kW)
Engine (net)	298 hp (222.2 kW)
PTO (claimed)	260 hp (193.9 kW)
PTO (tested)	309.83 hp (231.0 kW)

Transmission

Clutch	hydraulic wet disc
Description	Full power shift transmission with manual, automatic, and custom-programmed shift modes. Available in 40 KPH or 50 KPH versions. / Hydro-mechanical transmission with infinite speed ranges. Available in 40 KPH and 50 KPH versions.
Gears	23 forward and 11 reverse / infinite forward and reverse
Oil capacity	169.1 qts (160.0 L) / 169.1 qts (160.0 L)
Transmission	John Deere e23 / John Deere AutoPowr IVT
Type	full power shift / infinitely variable transmission
Description	infinitely variable transmission
Transmission type	23-speed full power shift
Description	infinitely variable transmission
Transmission type	23-speed full power shift

Mechanical

Cab	Cab standard with air-conditioning. AutoTrac ready
Description	Hydraulic wet disc brakes
Differential lock	electro-hydraulic rear
Drive type	Four-wheel drive
Final drives	inboard planetary
Steering	hydrostatic power

Capacity

E23 Fuel	125.5 gal (475.0 L)
E23 G49 Fuel	131.1 gal (496.2 L)
Exhaust fluid (DEF)	6.8 gal (25.7 L)
Hydraulic system	42.3 gal (160.1 L)
IVT Fuel	137.4 gal (520.1 L)
IVT G49 Fuel	143.5 gal (543.1 L)

Hydraulics

Capacity	42.3 gal (160.1 L)
Front SCV flow	33.3 gpm (126.0 lpm)
Pressure	2958 psi (204.0 bar)
Pump flow	42.8 gpm*Standard 63cc pump (162.0 lpm)
Rear SCV flow	34.9 gpm (132.1 lpm)
Rear valves	3 to 6
Type	closed center pressure-flow compensated
Valves	3 to 6

Hitch

Control	electro-hydraulic draft sensing
Front Hitch	IIIN
Front lift	11464 lbs (5200 kg)
Front lift (at ends)	11464 lbs (5200 kg)
Rear Arms	hydraulic center link (optional)
Rear lift	15200 lbs (6894 kg)
Rear Type	III/IIIN

PTO

Engine RPM	1000@1940
Front PTO	independent OptOptional
Front PTO Type	1000 (1.375)
Rear PTO	independent
Rear PTO Type	540:1950

Electrical

Batteries	2
Battery CCA	925
Battery Group	31
Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Bar rear axle	4.33 by 100.4 inches (109 by 2550 mm) / 4.33 by 118.5 inches (109 by 3009 mm) / 4.72 by 100.4 inches (119 by 2550 mm) / 4.72 by 118.5 inches (119 by 3009 mm)
Clearance (drawbar)	14 inches (G47 tires) (35 cm)
Clearance (front axle)	19.5 inches (49 cm)
Clearance (rear axle)	23 inches (G47 tires) (58 cm)
Description	Flange rear axle
Front axle	1300 MFWD / Triple-Link Suspension MFWD
Front tread	60 to 88 inches (152 to 223 cm)
Height (cab)	132 inches (335 cm)
Length	218 inches (553 cm)
Rear axle	4.33 by 100.4 inches (109 by 2550 mm) / 4.33 by 118.5 inches (109 by 3009 mm) / 4.72 by 100.4 inches (119 by 2550 mm) / 4.72 by 118.5 inches (119 by 3009 mm)
Weight	24970 lbs (11326 kg)
Wheelbase	115.2 inches (292 cm)
Front tire	540/65R34
Rear tire	650/85R38
Weight	24970 lbs (11326 kg)
Wheelbase	115.2 inches (292 cm)
Ag front	540/65R34 / 320/85R38
Ag rear	650/85R38 / 320/90R54

7310R Serial Numbers

Location:	Serial number plate on right side of tractor frame, above front axle.

John Deere 7310R Height

Cab	128 inches (G47 tires) (325 cm)

John Deere 7310R attachments

Description	front-end loader

OCED Tractor Test 2113

Description	Diesel e23 4WDMarch 23 - April 2, 2015Link: OCED Tractor Test 2113 file / PTO performance / Drawbar performance / Gear 11 used for power test. / Gear 8 used for pull test.
Fuel use	16.0 gal/hour (60.6 l/hour) / 14.8 gal/hour (56.0 l/hour) / 16.0 gal/hour (60.6 l/hour) / 14.8 gal/hour (56.0 l/hour)
Max power	309.83 hp (231.0 kW) / 255.61 hp (190.6 kW)
Max pull	227.62 lbs (103 kg)
Power at rated engine speed	272.40 hp (203.1 kW)
Power at rated PTO speed	302.41 hp (225.5 kW)

Speeds

Description	With Group 48 rear tires. Top speeds is achieved at reduced engine rpm. F23 at 1900rpm and R11 at 1865rpm.

Nebraska Tractor Test Results

Test #2113

Download PDF

Test Date: March 23 to April 2, 2015

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

309.83 hp

@ 1751 rpm

Rated Engine Speed

272.40 hp

0.38 lb/hp·hr

Standard PTO Speed

302.41 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	991 lb-ft (1,226 Nm)
Torque Rise	45.5%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	Fuel gal/hr	Fuel L/hr	DEF gal/hr	DEF L/hr
Maximum Power (1 Hour)	309.83	231.04	1751	16.04	60.71	0.34	1.29

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
272.40	2100	14.77	0.38	18.45	0.31
237.67	2155	13.13	0.39	18.10	0.29
179.17	2166	10.38	0.41	17.26	0.24
120.14	2176	7.89	0.46	15.24	0.20
60.20	2185	5.55	0.65	10.85	0.17
1.11	2198	3.02	19.16	0.37	0.20

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	kW	Pull (lbs)	Pull (kN)	Speed	km/h	Slip	Air °F	Air °C	Cool °F	Cool °C
Maximum Power—11th Gear-Manual mode	255.61	190.60	16,189	72	5.92	9.53	3.10	43	6	218	103
75% of Pull at Maximum Power—11th Gear-M...	198.77	148.22	12,116	54	6.15	9.90	2.10	45	7	218	103
50% of Pull at Maximum Power—11th Gear-M...	134.13	100.02	8,064	36	6.24	10.04	1.30	45	7	217	103
75% of Pull at Reduced Engine Speed— 6.3...	198.48	148.00	12,022	53	6.19	9.96	2.20	45	7	217	103
50% of Pull at Reduced Engine Speed— 6.5...	134.67	100.42	8,085	36	6.25	10.06	1.20	45	7	216	102

Manual Mode 2100 RPM (Unballasted)

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	hp·hr/gal	lb/hp·hr	DEF lb/hp	Barometer Hg	Temp Air F	Temp Cool F
8th	227.62	24,964	3.42	2102	13.90	15.58	0.45	0.01	28.94	44	217
9th	248.01	21,524	4.32	2100	5.70	16.72	0.42	0.01	28.87	44	219
10th	254.89	18,812	5.08	2100	4.00	17.16	0.41	0.01	28.88	43	218
11th	255.61	16,189	5.92	2100	3.10	17.26	0.41	0.01	28.86	43	218
12th	255.43	13,981	6.85	2100	2.50	17.35	0.41	0.01	28.89	43	219
13th	254.33	11,998	7.95	2100	2.10	17.27	0.41	0.01	28.89	44	218
14th	252.27	10,358	9.13	2100	1.70	17.16	0.41	0.01	28.89	44	219

Ballasted Front Drive Engaged 1750 RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	hp·hr/gal	lb/hp·hr	DEF lb/hp	Barometer Hg	Temp Air F	Temp Cool F
6th	220.59	31,119	2.66	2127	13.80	15.16	0.46	0.01	28.84	50	219
7th	242.21	29,185	3.12	2075	10.00	16.17	0.44	0.01	28.84	52	219
8th	259.17	28,107	3.46	1977	8.90	16.49	0.43	0.01	28.83	55	219
9th	271.64	26,985	3.78	1869	7.90	16.97	0.41	0.01	28.83	57	219
10th	277.54	25,258	4.12	1750	7.00	17.39	0.40	0.01	28.83	59	219
11th	281.23	21,787	4.84	1750	5.40	17.66	0.40	0.01	28.82	60	219
12th	284.40	18,971	5.62	1750	4.60	17.96	0.39	0.01	28.82	61	219
13th	286.28	16,386	6.55	1750	3.70	18.00	0.39	0.01	28.82	63	219
14th	286.48	14,237	7.55	1751	3.00	18.04	0.39	0.01	28.81	64	219
15th	283.71	12,146	8.76	1750	2.50	17.85	0.39	0.01	28.81	65	219

Unballasted Front Drive Engaged 1750 RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	hp·hr/gal	lb/hp·hr	DEF lb/hp	Barometer Hg	Temp Air F	Temp Cool F
8th	228.88	24,979	3.44	2101	13.40	15.60	0.45	0.01	28.95	44	217
9th	256.16	23,556	4.08	2040	8.60	16.62	0.42	0.01	28.92	46	218
10th	273.29	22,099	4.64	1971	7.20	17.19	0.41	0.01	28.91	47	218
11th	283.28	21,216	5.01	1831	6.10	17.64	0.40	0.01	28.90	48	218
12th	285.94	19,275	5.56	1750	5.10	17.87	0.39	0.01	28.89	48	218
13th	288.02	16,606	6.50	1750	3.90	18.02	0.39	0.01	28.88	49	219
14th	289.64	14,492	7.50	1750	3.20	18.11	0.39	0.01	28.87	49	219
15th	288.91	12,436	8.71	1750	2.60	18.04	0.39	0.01	28.86	49	219

Unballasted Front Drive Engaged Auto Mode

Click column headers to sort

Setting	Power	Pull (lbs)	RPM	Slip	hp·hr/gal	lb/hp·hr	DEF lb/hp	Barometer Hg	Speed Actual Mph	Temp Air F	Temp Cool F
3.90	220.23	24,143	1497	9.30	17.05	0.41	0.01	28.94	3.42	45	217
4.70	247.50	21,242	1588	5.50	17.73	0.40	0.01	28.87	4.37	43	219
5.30	249.09	18,598	1562	4.00	18.00	0.39	0.01	28.88	5.02	43	218
6.20	254.73	16,209	1572	3.10	18.03	0.39	0.01	28.87	5.89	43	218
7.20	253.90	13,847	1594	2.50	18.18	0.39	0.01	28.89	6.88	43	218
8.30	250.87	11,785	1594	2.00	18.15	0.39	0.01	28.89	7.98	44	218
9.40	245.58	10,095	1562	1.80	18.01	0.39	0.01	28.89	9.12	44	218

Engine

Make	John Deere Diesel
Type	six cylinder vertical with two turbochargers, air to air aftercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	548 cu in (8984 ml)
Compression Ratio	16.0 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst), SCR (selective catalyst reduction) and regenerative DPF (diesel particulate filter) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist with duals
Steering	hydrostatic
Transmission	selective gear fixed ratio with full range operator controlled power shift
Wheelbase	115.20 in (2925 mm)
Front Tread Width	60.0 (1524 mm) to 88.0 (2235 mm) in
Rear Tread Width	60.0 (1524 mm) to 128.9 (3272 mm) in
Brakes	wet multiple disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	24,750 lbs ( 11,226 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution

Tires & Tracks

Rear Tires	***, 480/80R50
Front Tires	***, 420/85R34
Height of Drawbar	20.50 in (520 mm)

Static Weight

Rear	N/A lbs
Front	N/A lbs
Total	N/A lbs
