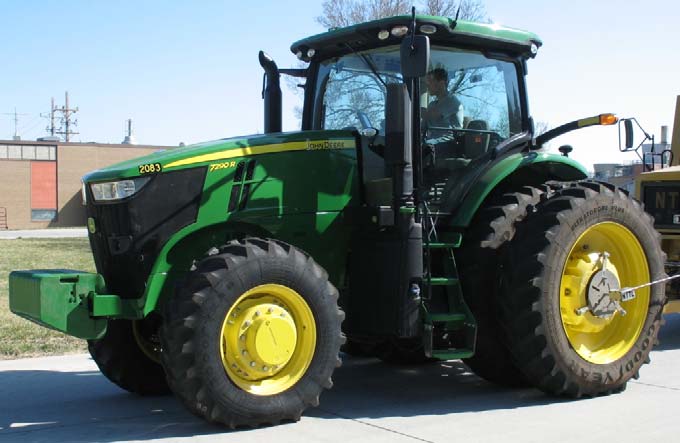

John Deere 7290R Specs ( 2014-2019 )

Name: John Deere 7290R
Brand: John Deere

Overview

The John Deere 7290R is a row-crop tractor manufactured in Waterloo, Iowa, from 2014 to 2019, featuring a 9.0L 6-cylinder turbocharged diesel engine rated at 290 gross horsepower. It was offered with either the e23 full power shift or the AutoPowr infinitely variable transmission and includes a Tier 4 emissions system using selective catalytic reduction. The tractor is equipped with a closed-center pressure and flow compensated hydraulic system and was listed with an original 2014 price of $248,818.

Ideal Applications

Tested Power and Pulling Performance: According to Nebraska Tractor Test data, this model achieved a maximum tested drawbar performance of 249.78 hp and a maximum pull of 28,363 lbs.

Lifting and Hitch Specifications: The tractor is equipped with a Category III/IIIN rear hitch providing a lift capacity of 22,500 lbs and offers an optional front hitch rated at 11,464 lbs.

Transmission and Hydraulic Configuration: The 7290R features a 43 gpm hydraulic pump flow supporting up to six rear SCVs and is available with either a 23-speed power shift or an infinitely variable transmission.

Production

Description	Row-Crop tractor / Built in Waterloo, Iowa, USA / Original price was $248,818 in 2014
Manufacturer	John Deere

Engine

Engine type	John Deere 9.0L 6-cyl diesel
Air cleaner	two stage dry
Bore/Stroke	4.66x5.35 inches (118 x 136 mm)
Compression	16:1
Coolant capacity	47 qts (44.5 L)
Description	John Deere / turbocharged diesel / 6-cylinder 24-valve / liquid-cooled inline
Displacement	549 ci (9.0 L)
Emission control	selective catalytic reduction (SCR)
Emissions	Tier 4
Fuel system	electronic high pressure common rail
Maximum Power (gross)	319 hp (237.9 kW)
Maximum Power (net)	310.1 hp (231.2 kW)
Operating RPM	1550-2100
Rated Power (gross)	290 hp (216.3 kW)
Rated Power (net)	278 hp (207.3 kW)
Rated RPM	2100
Starter	electric
Starter volts	12
Torque	962.5 lb-ft (1305.2 Nm)
Torque RPM	1600
Oil capacity	28.5 qts (27.0 L)
Oil change	500 h
Drawbar (tested)	223.85 hp (166.9 kW)
Engine (gross)	290 hp (216.3 kW)
Engine (max)	319 hp (237.9 kW)
Engine (net)	278 hp (207.3 kW)
PTO (claimed)	242 hp (180.5 kW)
PTO (tested)	282.68 hp (210.8 kW)

Transmission

Clutch	hydraulic wet disc
Description	Full power shift transmission with manual, automatic, and custom-programmed shift modes. Available in 40 KPH or 50 KPH versions. / Hydro-mechanical transmission with infinite speed ranges. Available in 40 KPH and 50 KPH versions.
Gears	23 forward and 11 reverse / infinite forward and reverse
Oil capacity	169.1 qts (160.0 L) / 169.1 qts (160.0 L)
Transmission	John Deere e23 / John Deere AutoPowr IVT
Type	full power shift / infinitely variable transmission
Description	infinitely variable transmission
Transmission type	23-speed full power shift
Description	infinitely variable transmission
Transmission type	23-speed full power shift

Mechanical

Cab	Cab standard with air-conditioning. AutoTrac ready
Description	Hydraulic wet disc brakes / CommandView III cab standard with air-conditioning. Optional premium cab with seat or cab suspension, right-hand windshield wiper, and electric mirror control.
Differential lock	full-locking electro-hydraulic rear
Drive type	Four-wheel drive
Final drives	inboard planetary
Steering	hydrostatic power
Trailer brakes	hydraulic (optional)

Capacity

E23 Fuel	143.7 gal (543.9 L)
E23 G49 tires Fuel	148.5 gal (562.1 L)
Exhaust fluid (DEF)	6.8 gal (25.7 L)
Fuel	125 gal (e23) (473.1 L)
Hydraulic system	17.2 gal (65.1 L)
IVT Fuel	155.6 gal (588.9 L)
IVT G49 tires Fuel	160.4 gal (607.1 L)

Hydraulics

Capacity	17.2 gal (65.1 L)
Front SCV flow	33 gpm (124.9 lpm)
Front valves	0 to 2
Mid valves	0 to 3
Pressure	2958 psi (204.0 bar)
Pump flow	43 gpm (162.8 lpm)
Rear SCV flow	35 gpm (132.5 lpm)
Rear valves	3 to 6
Type	closed-center pressure and flow compensated
Valves	3 to 6

Hitch

Control	electro-hydraulic draft sensing
Drawbar	Cat. 3 adjustable swinging drawbar. Optional heavy-duty support.
Front Hitch	IIIN OptOptional
Front lift	11464 lbs (5200 kg)
Front lift (at ends)	11464 lbs (5200 kg)
Rear Arms	hydraulic center link OptOptional
Rear lift	22500 lbs (10206 kg)
Rear Type	III/IIIN

PTO

Engine RPM	540@1950 / 1000@1940
Front PTO	independent
Front PTO Type	1000 (1.375)
Rear PTO	independent
Rear PTO Type	1000 (1.75)

Electrical

Batteries	2
Battery CCA	925
Battery Group	31
Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Bar rear axle	4.33 by 100.4 inches (109 by 2550 mm) / 4.33 by 118.5 inches (109 by 3009 mm) / 4.72 by 100.4 inches (119 by 2550 mm) / 4.72 by 118.5 inches (119 by 3009 mm)
Clearance (drawbar)	14 inches (G47 tires) (35 cm)
Clearance (front axle)	24 inches (G42 tires) (60 cm)
Clearance (rear axle)	23 inches (G47 tires) (58 cm)
Description	Flange rear axle
Front axle	1300 MFWD / Triple-Link Suspension Plus
Front tread	60 to 88 inches (152 to 223 cm)
Height (cab)	132 inches (335 cm)
Length	218 inches (553 cm)
Rear axle	4.33 by 100.4 inches (109 by 2550 mm) / 4.33 by 118.5 inches (109 by 3009 mm) / 4.72 by 100.4 inches (119 by 2550 mm) / 4.72 by 118.5 inches (119 by 3009 mm)
Rear tread	77.5 to 100 inches (196 to 254 cm) / 86.9 to 109.4 inches (220 to 277 cm) / 95 to 117.4 inches (241 to 298 cm)
Weight	27180 lbs (12328 kg)
Wheelbase	115 inches (292 cm)
Front tire	380/80R38
Rear tire	480/80R50
Weight	27180 lbs (12328 kg)
Wheelbase	115 inches (292 cm)
Ag front	540/65R34 / 320/85R38
Ag rear	650/85R38 / 320/90R54
Standard tires (ag)	Front: 380/80R38. Rear: 480/80R50

7290R Serial Numbers

Location:	Right side of tractor frame above front axle.

John Deere 7290R Height

Cab	128 inches (G47 tires) (325 cm)

John Deere 7290R attachments

Description	front-end loader

OCED Tractor Test 2083

Description	Diesel IVT 4WDApril 7 - 22, 2014Link: OCED Tractor Test 2083 file / PTO performance / Drawbar performance / Pull at 9 KPH / Pull at 4.8 KPH
Fuel use	14.7 gal/hour (55.6 l/hour) / 13.7 gal/hour (51.9 l/hour) / 14.8 gal/hour (56.0 l/hour) / 13.6 gal/hour (51.5 l/hour)
Max power	280.06 hp (208.8 kW) / 211.58 hp (157.8 kW)
Max pull	24028 lbs (10899 kg)
Power at rated engine speed	245.99 hp (183.4 kW)
Power at rated PTO speed	274.21 hp (204.5 kW)

OCED Tractor Test 2091

Description	Diesel e23 4WDJune 20 - 30, 2014Link: OCED Tractor Test 2091 file / PTO performance / Drawbar performance / Gear 11 used for power test. / Gear 7 used for pull test.
Fuel use	14.7 gal/hour (55.6 l/hour) / 13.6 gal/hour (51.5 l/hour) / 14.7 gal/hour (55.6 l/hour) / 13.5 gal/hour (51.1 l/hour)
Max power	282.68 hp (210.8 kW) / 223.85 hp (166.9 kW)
Max pull	23099 lbs (10477 kg)
Power at rated engine speed	249.96 hp (186.4 kW)
Power at rated PTO speed	278.29 hp (207.5 kW)

Speeds

Description	With Group 48 rear tires and 50 kph option. / With 50 KPH speed option.

Tractor Tests

Description	OECD 2083: diesel IVT 4WD / OECD 2091: diesel e23 4WD

Nebraska Tractor Test Results

Test #2083

Download PDF

Test Date: April 7-22, 2014

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

280.06 hp

@ 1751 rpm

Rated Engine Speed

245.99 hp

N/A lb/hp·hr

Standard PTO Speed

274.21 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	896 lb-ft (1,215 Nm)
Torque Rise	45.8%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	Fuel gal/hr	Fuel L/hr	DEF gal/hr	DEF L/hr
Maximum Power (1 Hour)	280.06	208.84	1751	14.70	55.63	0.33	1.24

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
245.99	2100	13.73	0.39	N/A	0.29
214.67	2153	12.40	0.41	N/A	0.25
161.54	2163	9.89	0.43	N/A	0.23
108.52	2174	7.67	0.50	N/A	0.14
54.30	2184	5.56	0.72	N/A	0.11
0.67	2196	3.43	35.77	N/A	0.10

Manual Mode 2100 Engine RPM (Unballasted)

Click column headers to sort

Setting	Power	Pull (lbs)	Speed	Slip	inHg	Crank Shaft RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air F	Temp Cooling F
3.00	169.87	24,028	2.66	12.50	28.79	2154	13.73	0.51	55	218
3.90	205.95	21,016	3.68	6.40	28.65	2102	15.12	0.46	55	218
4.30	209.40	19,182	4.09	4.70	28.66	2100	15.38	0.46	56	218
4.70	207.29	17,311	4.50	3.60	28.58	2100	15.18	0.46	73	218
5.10	208.51	16,031	4.88	3.10	28.60	2100	15.32	0.46	70	218
5.60	211.58	14,755	5.38	2.60	28.69	2100	15.52	0.45	53	217
6.20	206.36	12,892	6.01	2.20	28.67	2100	15.16	0.46	60	218
6.80	208.67	12,020	6.51	2.00	28.66	2100	15.31	0.46	62	218
7.50	211.82	10,853	7.32	1.80	28.63	2100	15.51	0.45	67	218
8.10	212.08	10,140	7.84	1.60	28.63	2100	15.57	0.45	68	218
8.70	212.93	9,550	8.36	1.40	28.61	2100	15.58	0.45	71	218

Ballasted Front Drive Engaged 1750 RPM Maximum Power

Click column headers to sort

Setting	Power	Pull (lbs)	Speed	Slip	inHg	Crankshaft RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air F	Temp Cooling F
2.70	179.00	28,363	2.37	14.10	28.75	2140	13.57	0.52	56	217
3.20	206.04	27,198	2.85	9.60	28.87	2064	14.86	0.47	47	217
4.00	230.75	26,442	3.28	8.10	28.87	1900	15.64	0.45	47	217
4.30	234.76	25,621	3.44	6.90	28.84	1808	16.03	0.44	49	218
4.70	238.48	24,374	3.67	5.90	28.83	1750	16.30	0.43	49	217
5.10	240.78	22,632	3.99	4.80	28.83	1750	16.46	0.43	51	217
5.60	242.06	20,021	4.54	3.90	28.81	1750	16.55	0.42	51	218
6.20	240.20	18,221	4.94	3.30	28.80	1750	16.42	0.43	52	218
6.80	243.35	16,743	5.45	2.90	28.80	1750	16.66	0.42	52	218
7.50	245.92	15,613	5.91	2.60	28.80	1751	16.83	0.42	53	218
8.10	246.96	14,561	6.36	2.30	28.79	1750	16.85	0.42	52	218
8.70	248.63	13,360	6.98	2.10	28.77	1749	17.04	0.41	54	218
9.40	249.29	12,418	7.53	1.90	28.78	1750	17.07	0.41	55	218
10.20	249.78	11,372	8.24	1.70	28.77	1750	17.11	0.41	55	218

Unballasted Front Drive Engaged 1750 RPM Maximum Power

Click column headers to sort

Setting	Power	Pull (lbs)	Speed	Slip	inHg	Crankshaft RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air F	Temp Cooling F
3.00	169.98	24,047	2.66	12.50	28.78	2154	13.74	0.51	55	218
3.90	205.81	21,078	3.66	6.60	28.65	2100	15.11	0.46	55	218
4.30	216.57	20,601	3.95	5.50	28.66	2044	15.49	0.45	57	218
4.70	229.90	20,404	4.23	5.10	28.67	1986	15.76	0.44	57	219
5.10	234.77	20,056	4.39	4.90	28.68	1909	15.97	0.44	58	219
5.60	237.69	19,775	4.51	4.80	28.68	1780	16.21	0.43	59	218
6.20	237.35	17,923	4.97	3.80	28.69	1750	16.23	0.43	59	218
6.80	241.31	16,558	5.47	3.40	28.70	1750	16.51	0.42	60	218
7.50	243.32	15,166	6.02	3.00	28.71	1750	16.67	0.42	60	218
8.10	245.08	14,365	6.40	2.80	28.71	1751	16.76	0.42	60	218
8.70	246.67	13,279	6.97	2.50	28.71	1750	16.88	0.42	60	218
9.40	247.72	12,269	7.57	2.20	28.71	1750	16.94	0.41	59	219
10.20	248.55	11,231	8.30	2.00	28.70	1751	17.01	0.41	60	218

Unballasted Front Drive Engaged Auto Mode

Click column headers to sort

Setting	Power	Pull (lbs)	Speed	Slip	inHg	Crankshaft RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air F	Temp Cooling F
3.00	166.05	23,898	2.61	14.20	28.79	1688	14.69	0.48	56	217
3.90	206.33	21,210	3.65	6.50	28.66	1848	15.90	0.44	57	217
4.30	208.29	19,104	4.09	4.50	28.67	1850	16.05	0.44	56	218
4.70	206.10	17,264	4.48	3.60	28.58	1850	15.92	0.44	74	218
5.10	207.87	15,998	4.88	3.10	28.59	1850	15.97	0.44	72	218
5.60	210.64	14,706	5.37	2.70	28.69	1850	16.06	0.44	58	218
6.20	207.20	12,855	6.05	2.20	28.66	1850	16.14	0.43	61	217
6.80	208.15	12,014	6.50	2.00	28.65	1850	16.33	0.43	63	217
7.50	211.86	10,820	7.34	1.80	28.63	1850	16.35	0.43	68	217
8.10	213.53	10,151	7.89	1.60	28.62	1850	16.48	0.43	70	218
8.70	214.94	9,514	8.47	1.50	28.61	1850	16.51	0.42	71	218

Unballasted Front Drive Engaged Fuel Consumption Characteristics

Click column headers to sort

Power	Pull (lbs)	Speed	RPM	Slip	Air °F	Cool °F	Barometer Inch Hg	Condition	Fuel Hp Hr Gal	Fuel Lb Hp Hr
211.58	14,755	5.38	2100	2.60	53	217	28.69	Maximum Power - 5.6 mph Manual mode	15.52	0.45
163.28	11,010	5.56	2157	1.90	78	218	28.54	75% of Pull at Maximum Power - Manual mode	14.48	0.48
110.80	7,371	5.64	2169	1.10	79	217	28.53	50% of Pull at Maximum Power - Manual mode	12.81	0.55
162.95	11,020	5.55	1354	1.90	80	217	28.52	75% of Pull at Reduced Engine Speed - Custom mode	16.60	0.42
109.89	7,361	5.60	1092	1.10	79	215	28.51	50% of Pull at Reduced Engine Speed - Custom mode	15.96	0.44

Category: III Quick Attach: Yes

Lift Capacity

One 100mm One 115mm Cyl

Max Force 18,302 lbs

Two Cyl 100mm

Max Force 15,862 lbs

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	John Deere Diesel
Type	six cylinder vertical with two turbochargers, air to air aftercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	548 cu in (8984 ml)
Compression Ratio	16.0 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	regenerative particulate filter integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist with duals
Steering	hydrostatic
Transmission	Infinitely variable with two mechanical ranges and automatic shifting between ranges
Wheelbase	115.20 in (2925 mm)
Brakes	wet multiple disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	24,280 lbs ( 11,013 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution

Sound Levels

Bystander	84.50 dB(A)
At No Load 4.6 Mph 1200 RPM Fwd Disengaged	64.50 dB(A)
At No Load 4.6 Mph 1200 RPM Fwd Engaged	64.40 dB(A)
At No Load 4.6 Mph 2190 RPM Fwd Disengaged	69.20 dB(A)
At No Load 4.6 Mph 2190 RPM Fwd Engaged	69.30 dB(A)
Transport Speed No Load Full Auto Mode	70.70 dB(A)
Transport Speed No Load Manual Mode	71.60 dB(A)

Tires & Tracks

Rear Tires	***, 480/80R46
Front Tires	***, 420/90R30
Height of Drawbar	18.50 in (470 mm)

Static Weight

Rear	N/A lbs
Front	N/A lbs
Total	N/A lbs

John Deere 7290R Specs ( 2014-2019 )

Overview

Ideal Applications

Production

Engine

Transmission

Mechanical

Capacity

Hydraulics

Hitch

PTO

Electrical

Dimensions & Tires

7290R Serial Numbers

John Deere 7290R Height

John Deere 7290R attachments

OCED Tractor Test 2083

OCED Tractor Test 2091

Speeds

Tractor Tests

Nebraska Tractor Test Results

PTO Performance

Maximum Power & Fuel Consumption

Torque Statistics

PTO Power Curve

Maximum Power & Fuel Consumption Details

Varying Power & Fuel Consumption

Drawbar Performance

Manual Mode 2100 Engine RPM (Unballasted)

Ballasted Front Drive Engaged 1750 RPM Maximum Power

Unballasted Front Drive Engaged 1750 RPM Maximum Power

Unballasted Front Drive Engaged Auto Mode

Unballasted Front Drive Engaged Fuel Consumption Characteristics

Hydraulic Performance

Lift Capacity

Three Outlet Sets Combined

Single Outlet Set

Technical Specifications

Engine

Chassis

Consumables

Sound Levels

Sound Levels

Tires & Weight

Tires & Tracks

Static Weight

Test Remarks
