John Deere 7270R Specs ( 2014-Present )

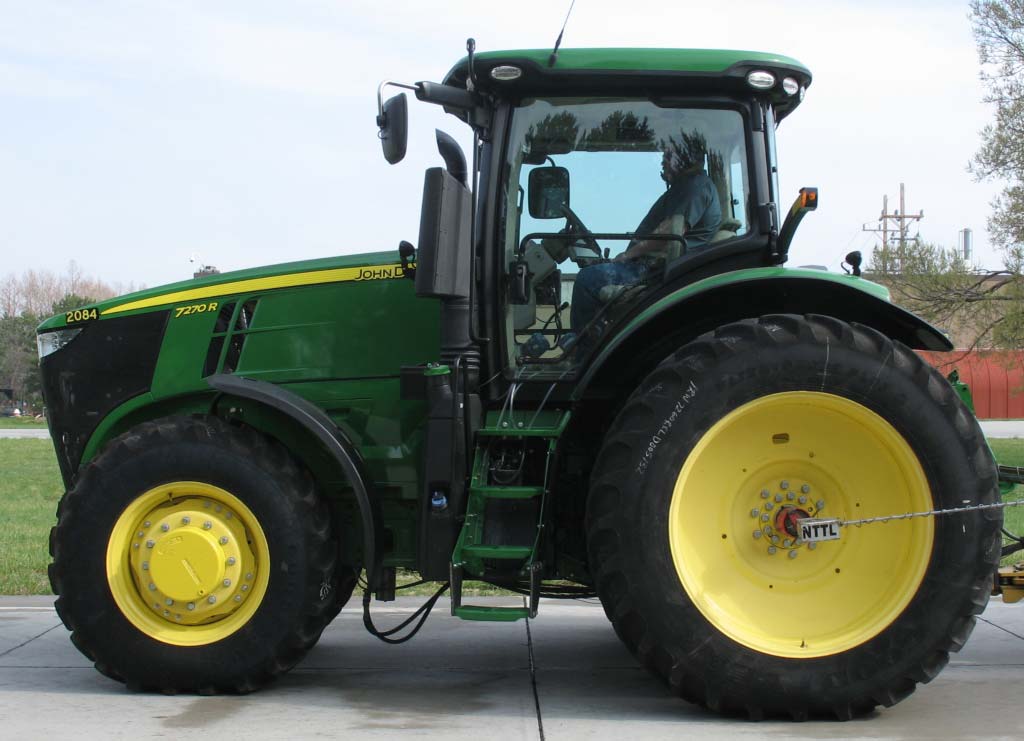

Name: John Deere 7270R
Brand: John Deere

Compare Tractor

Nebraska Test #2084

John Deere 7270R

Max Drawbar HP 230.7 hp

Max Pull 23,296 lbs

Max Torque 822 lb-ft

View Full Test Data →

Overview

The John Deere 7270R is a row-crop farm tractor manufactured in Waterloo, Iowa, since 2014, featuring a 9.0L 6-cylinder diesel engine with a gross rated power of 270 hp. This model is equipped with either an e23 full power shift or an AutoPowr IVT transmission and utilizes a closed-center pressure-flow compensated hydraulic system with a pump flow of 42.8 gpm.

Ideal Applications

Tested Performance and Pulling Capacity: According to OECD and Nebraska test data, the 7270R demonstrated a maximum pull of 23,296 lbs and reached a maximum tested PTO power of 256.06 hp.

Transmission and Speed Configuration: This tractor offers a choice between a 23-speed e23 power shift transmission with manual and automatic modes or an infinitely variable transmission (IVT), both available in 40 KPH and 50 KPH versions.

Hydraulic and Hitch Specifications: The 7270R features a Category 3/3N rear hitch with a lift capacity of 15,200 lbs and supports between 3 to 6 rear SCVs with a maximum pressure of 2,958 psi.

Production

Description	Row-Crop tractor / Built in Waterloo, Iowa, USA
Manufacturer	John Deere

Engine

Engine type	John Deere 9.0L 6-cyl diesel
Air cleaner	two stage dry
Bore/Stroke	4.66x5.35 inches (118 x 136 mm)
Compression	16:1
Coolant capacity	47 qts (44.5 L)
Description	John Deere PowerTech PVX / variable geometry turbocharger diesel / 6-cylinder 24-valve / liquid-cooled inline
Displacement	549 ci (9.0 L)
Emission control	cooled exhaust gas recirculation
Emissions	Stage IIIB
Fuel system	electronic high-pressure common rail
Maximum Power (gross)	311 hp (231.9 kW)
Maximum Power (net)	298.4 hp (222.5 kW)
Operating RPM	1550-2100
Rated Power (gross)	270 hp (201.3 kW)
Rated Power (net)	259 hp (193.1 kW)
Rated RPM	2100
Starter	electric
Starter volts	12
Torque	918.3 lb-ft (1245.2 Nm)
Torque RPM	1600
Oil capacity	28.5 qts (27.0 L)
Oil change	500 h
Drawbar (tested)	203.00 hp (151.4 kW)
Engine (gross)	270 hp (201.3 kW)
Engine (max)	311 hp (231.9 kW)
Engine (net)	259 hp (193.1 kW)
PTO (claimed)	224 hp (167.0 kW)
PTO (tested)	256.06 hp (190.9 kW)

Transmission

Clutch	hydraulic wet disc
Description	Full power shift transmission with manual, automatic, and custom-programmed shift modes. Available in 40 KPH or 50 KPH versions. / Hydro-mechanical transmission with infinite speed ranges. Available in 40 KPH and 50 KPH versions.
Gears	23 forward and 11 reverse / infinite forward and reverse
Oil capacity	169.1 qts (160.0 L) / 169.1 qts (160.0 L)
Transmission	John Deere e23 / John Deere AutoPowr IVT
Type	full power shift / infinitely variable transmission
Description	infinitely variable transmission
Transmission type	23-speed full power shift
Description	infinitely variable transmission
Transmission type	23-speed full power shift

Mechanical

Cab	Cab standard with air-conditioning. AutoTrac ready
Description	Hydraulic wet disc brakes
Differential lock	electro-hydraulic rear
Drive type	Four-wheel drive
Final drives	inboard planetary
Steering	hydrostatic power
Trailer brakes	hydraulic (optional)

Capacity

E23 Fuel	143.7 gal (543.9 L)
E23 G49 tires Fuel	148.5 gal (562.1 L)
Exhaust fluid (DEF)	6.8 gal (25.7 L)
Fuel	125 gal (e23) (473.1 L)
Hydraulic system	42.3 gal (160.1 L)
IVT Fuel	155.6 gal (588.9 L)
IVT G49 tires Fuel	160.4 gal (607.1 L)

Hydraulics

Capacity	42.3 gal (160.1 L)
Front SCV flow	33.3 gpm (126.0 lpm)
Front valves	0 to 2
Mid valves	0 to 3
Pressure	2958 psi (204.0 bar)
Pump flow	42.8 gpm*Standard 63cc pump (162.0 lpm)
Rear SCV flow	34.9 gpm (132.1 lpm)
Rear valves	3 to 6
Type	closed center pressure-flow compensated
Valves	3 to 6

Hitch

Control	electro-hydraulic draft sensing
Drawbar	Cat. 3 adjustable swinging drawbar. Optional heavy-duty support.
Front Hitch	IIIN
Front lift	11464 lbs (5200 kg)
Front lift (at ends)	11464 lbs (5200 kg)
Rear Arms	hydraulic center link (optional)
Rear lift	15200 lbs (6894 kg)
Rear Type	III/IIIN

PTO

Engine RPM	540@1950 / 1000@1940
Front PTO	independent OptOptional
Front PTO Type	1000 (1.375)
Rear PTO	independent
Rear PTO Type	1000 (1.75)

Electrical

Batteries	2
Battery CCA	925
Battery Group	31
Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Bar rear axle	4.33 by 100.4 inches (109 by 2550 mm) / 4.33 by 118.5 inches (109 by 3009 mm) / 4.72 by 100.4 inches (119 by 2550 mm) / 4.72 by 118.5 inches (119 by 3009 mm)
Clearance (drawbar)	14 inches (G47 tires) (35 cm)
Clearance (front axle)	19.5 inches (49 cm)
Clearance (rear axle)	23 inches (G47 tires) (58 cm)
Description	Flange rear axle
Front axle	1300 MFWD / Triple-Link Suspension MFWD
Front tread	60 to 88 inches (152 to 223 cm)
Height (cab)	132 inches (335 cm)
Length	218 inches (553 cm)
Rear axle	4.33 by 100.4 inches (109 by 2550 mm) / 4.33 by 118.5 inches (109 by 3009 mm) / 4.72 by 100.4 inches (119 by 2550 mm) / 4.72 by 118.5 inches (119 by 3009 mm)
Rear tread	77.5 to 100 inches (196 to 254 cm) / 86.9 to 109.4 inches (220 to 277 cm) / 95 to 117.4 inches (241 to 298 cm)
Weight	23845 lbs (10816 kg)
Wheelbase	115.2 inches (292 cm)
Front tire	540/65R34
Rear tire	650/85R38
Weight	23845 lbs (10816 kg)
Wheelbase	115.2 inches (292 cm)
Ag front	540/65R34 / 320/85R38
Ag rear	650/85R38 / 320/90R54
Standard tires (ag)	Front: 380/80R38. Rear: 480/80R50

7270R Serial Numbers

Location:	Serial number plate on right side of tractor frame, above front axle.

John Deere 7270R Height

Cab	128 inches (G47 tires) (325 cm)

John Deere 7270R attachments

Description	front-end loader

OCED Tractor Test 2084

Description	Diesel e23 4WDApril 18 - 23, 2014Link: OCED Tractor Test 2084 file / PTO performance / Drawbar performance / Gear 9 used for power test. / Gear 7 used for pull test.
Fuel use	14.4 gal/hour (54.5 l/hour) / 13.3 gal/hour (50.3 l/hour) / 14.2 gal/hour (53.7 l/hour) / 13.2 gal/hour (50.0 l/hour)
Max power	256.06 hp (190.9 kW) / 203.00 hp (151.4 kW)
Max pull	23264 lbs (10552 kg)
Power at rated engine speed	227.46 hp (169.6 kW)
Power at rated PTO speed	247.52 hp (184.6 kW)

Speeds

Description	With Group 48 rear tires. Top speeds is achieved at reduced engine rpm. F23 at 1900rpm and R11 at 1865rpm.

Nebraska Tractor Test Results

Test #2084

Download PDF

Test Date: April 18 - 23, 2014

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

256.06 hp

@ 1800 rpm

Rated Engine Speed

227.46 hp

N/A lb/hp·hr

Standard PTO Speed

247.52 hp

@ 1000 rpm PTO

Torque Statistics

Maximum Torque	822 lb-ft (1114 Nm) at 1500 rpm
Torque Rise	44.3%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM
Rated Engine Speed	227.46	169.62	2100
Standard PTO Speed (1000 rpm)	247.52	184.58	1950	1000
Maximum Power (1 Hour)	256.06	190.94	1800

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
227.46	2100	13.25	0.41	17.16	0.40
198.12	2153	11.82	0.42	16.75	0.46
149.22	2164	9.24	0.43	16.15	0.36
99.93	2174	6.90	0.48	14.48	0.25
50.25	2185	4.85	0.68	10.37	0.10
0.57	2194	2.63	32.11	0.22	0.15

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	kW	Pull (lbs)	Pull (kN)	Speed	Slip	inHg
Maximum Power—9th Gear- Manual mode	203.00	151.38	17,921	80	4.25	4.20	28.89
75% of Pull at Maximum Power—9th Gear-Ma...	158.57	118.25	13,409	60	4.43	2.70	28.89
50% of Pull at Maximum Power— 9th Gear-M...	107.64	80.26	8,969	40	4.50	1.70	28.88
75% of Pull at Reduced Engine Speed— 4.6...	159.21	118.72	13,402	60	4.46	2.70	28.89
50% of Pull at Reduced Engine Speed— 4.6...	107.33	80.03	8,955	40	4.49	1.80	28.86

Auto Mode (Unballasted) Loads Based On 2100 RPM

Click column headers to sort

Setting	Power	kW	Pull (lbs)	Pull (kN)	Speed	Slip	hp·hr/gal	inHg	Crankshaft RPM	Fuel Kg Kw H	Fuel Lb Hp Hr	Kw H L	Speed Km H	Temp Air Dry F	Temp Cooling F
3.4 mph (5.4 km/h)	171.67	128.01	22,081	98.22	2.92	7.80	15.10	28.90	1297	0.28	0.46	2.98	4.70	53	217
3.9 mph (6.2 km/h)	200.08	149.20	20,810	92.57	3.61	6.10	16.00	28.89	1574	0.27	0.44	3.15	5.80	57	218
4.5 mph (7.2 km/h)	200.90	149.81	17,600	78.29	4.28	3.90	16.12	28.78	1582	0.26	0.43	3.17	6.89	71	219
5.1 mph (8.2 km/h)	203.29	151.59	15,495	68.93	4.92	3.00	16.22	28.78	1566	0.26	0.43	3.20	7.92	69	219
6.0 mph (9.6 km/h)	204.66	152.61	13,261	58.99	5.79	2.50	16.19	28.78	1586	0.26	0.43	3.19	9.32	72	219
6.8 mph (11.0 km/h)	203.46	151.72	11,451	50.94	6.66	2.10	16.11	28.77	1589	0.26	0.44	3.17	10.72	69	219
8.0 mph (12.8 km/h)	201.19	150.02	9,691	43.11	7.79	1.70	16.00	28.78	1601	0.27	0.44	3.15	12.53	72	219
9.1 mph (14.6 km/h)	200.09	149.21	8,397	37.35	8.94	1.40	15.81	28.78	1578	0.27	0.44	3.12	14.39	73	219

Manual Mode 2100 RPM (Unballasted)

Click column headers to sort

Gear	Power	kW	Pull (lbs)	Pull (kN)	Speed	Slip	hp·hr/gal	inHg	Crankshaft RPM	Fuel Kg Kw H	Fuel Lb Hp Hr	Kw H L	Speed Km H	Temp Air Dry F	Temp Cooling F
7th Gear	180.31	134.46	23,264	103.48	2.91	14.40	14.00	28.89	2121	0.30	0.50	2.76	4.68	50	218
8th Gear	200.10	149.21	20,582	91.55	3.65	6.00	15.23	28.89	2099	0.28	0.46	3.00	5.87	55	218
9th Gear	203.00	151.38	17,921	79.72	4.25	4.20	15.39	28.89	2101	0.28	0.46	3.03	6.84	59	219
10th Gear	203.75	151.94	15,393	68.47	4.96	3.00	15.47	28.78	2100	0.28	0.45	3.05	7.98	70	219
11th Gear	204.54	152.52	13,310	59.20	5.76	2.50	15.56	28.76	2100	0.27	0.45	3.06	9.27	66	219
12th Gear	203.67	151.87	11,468	51.01	6.66	2.10	15.46	28.77	2100	0.28	0.45	3.05	10.72	69	219
13th Gear	201.13	149.98	9,771	43.46	7.72	1.70	15.28	28.77	2100	0.28	0.46	3.01	12.42	72	219
14th Gear	200.10	149.21	8,469	37.67	8.86	1.40	15.18	28.78	2100	0.28	0.46	2.99	14.26	73	220

Manual Mode 1800 RPM (Unballasted) Maximum Power

Click column headers to sort

Gear	Power	kW	Pull (lbs)	Pull (kN)	Speed	Slip	hp·hr/gal	inHg	Crankshaft RPM	Fuel Kg Kw H	Fuel Lb Hp Hr	Kw H L	Speed Km H	Temp Air Dry F	Temp Cooling F
7th Gear	180.53	134.62	23,296	103.63	2.91	14.30	13.98	28.89	2118	0.31	0.50	2.75	4.68	48	219
8th Gear	204.93	152.81	22,038	98.03	3.49	7.90	14.99	28.89	2050	0.28	0.47	2.95	5.62	58	219
9th Gear	217.43	162.13	20,812	92.57	3.92	6.20	15.43	28.89	1978	0.28	0.45	3.04	6.31	58	219
10th Gear	224.15	167.14	19,005	84.54	4.43	4.60	15.62	28.79	1902	0.27	0.45	3.08	7.12	69	220
11th Gear	229.48	171.12	17,657	78.54	4.87	3.80	15.94	28.77	1800	0.27	0.44	3.14	7.84	69	220
12th Gear	230.65	171.99	15,288	68.00	5.66	3.00	15.98	28.78	1800	0.27	0.44	3.15	9.11	70	220
13th Gear	230.05	171.55	13,130	58.40	6.57	2.50	15.99	28.78	1800	0.27	0.44	3.15	10.57	73	221
14th Gear	229.24	170.94	11,389	50.66	7.55	2.00	16.00	28.78	1799	0.27	0.44	3.15	12.15	73	221
15th Gear	227.44	169.60	9,749	43.36	8.75	1.70	15.82	28.78	1800	0.27	0.44	3.12	14.08	73	220

Category: III Quick Attach: Yes

Lift Capacity

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	John Deere Diesel
Type	six cylinder vertical with two turbochargers, air to air aftercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	414 cu in (6788 ml)
Compression Ratio	16.0
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	regenerative particulate filter integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist with duals
Steering	Electro-Hydraulic
Transmission	selective gear fixed ratio with full range operator controlled power shift
Speeds	23 forward (26.10 mph max)
Wheelbase	115.20 in (2925 mm)
Front Tread Width	60.0 (1524 mm) to 88.0 (2235 mm) in
Rear Tread Width	60.0 (1524 mm) to 128.9 (3272 mm) in
Brakes	wet multiple disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	24,090 lbs ( 10,927 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution

Sound Levels

Bystander	84.40 dB(A)

At No Load In 9th Gear

Tires & Tracks

Rear Tires	Four 480/80R46;***;12(85) psi(kPa)
Front Tires	Two 420/90R30;***;15(105) psi(kPa)
Height of Drawbar	18.50 in (470 mm)

Static Weight

Rear	16,215 lbs
Front	8,050 lbs
Total	24,265 lbs

John Deere 7270R Specs ( 2014-Present )

Overview

Ideal Applications

Production

Engine

Transmission

Mechanical

Capacity

Hydraulics

Hitch

PTO

Electrical

Dimensions & Tires

7270R Serial Numbers

John Deere 7270R Height

John Deere 7270R attachments

OCED Tractor Test 2084

Speeds

Nebraska Tractor Test Results

PTO Performance

Maximum Power & Fuel Consumption

Torque Statistics

PTO Power Curve

Maximum Power & Fuel Consumption Details

Varying Power & Fuel Consumption

Drawbar Performance

Fuel Consumption Characteristics

Auto Mode (Unballasted) Loads Based On 2100 RPM

Manual Mode 2100 RPM (Unballasted)

Manual Mode 1800 RPM (Unballasted) Maximum Power

Hydraulic Performance

Lift Capacity

Three Outlet Sets Combined

Single Outlet Set

Technical Specifications

Engine

Chassis

Consumables

Sound Levels

Sound Levels

At No Load In 9th Gear

Tires & Weight

Tires & Tracks

Static Weight

Test Remarks
