Home / John Deere / 6195R

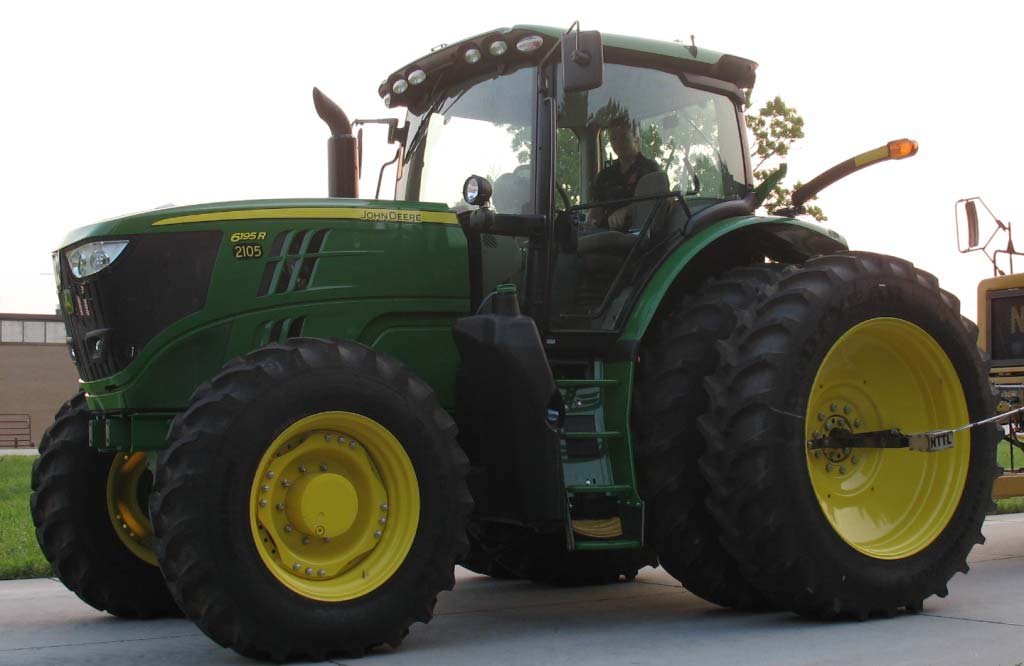

John Deere 6195R Specs ( 2015-2021 )

Name: John Deere 6195R
Brand: John Deere

Compare Tractor

Nebraska Test #2105

John Deere 6195R AutoQuad-Plus

Max Drawbar HP 180.6 hp

Max Pull 19,383 lbs

Max Torque 628 lb-ft

View Full Test Data →

Overview

The John Deere 6195R is a row-crop tractor manufactured in Waterloo, Iowa, between 2015 and 2021, featuring a 6.8L 6-cylinder turbocharged diesel engine. This 4WD model is equipped with a standard air-conditioned cab and a 110.2-inch wheelbase. Nebraska Tractor Test data identifies a maximum PTO output of 189.23 hp and a maximum drawbar pull of 19,383 lbs.

Ideal Applications

Tested Mechanical Performance: The 6.8L engine produced a tested maximum PTO power of 189.23 hp and a maximum drawbar power of 180.57 hp at 2100 rated RPM.

Hydraulic and Hitch Configuration: This tractor utilizes a closed-center pressure flow compensated hydraulic system with a 41 gpm pump flow and is equipped with a Rear Type III/IIIN hitch rated for 9,480 lbs lift.

Transmission and Chassis Layout: Available drivetrain configurations include 16, 20, and 24-speed partial power shifts or an infinitely variable transmission, supported by a triple-link suspension front axle and inboard planetary final drives.

Production

Description	Row-Crop tractor / Built in Waterloo, Iowa, USA / Original price was $173,991 in 2017
Manufacturer	John Deere

Engine

Engine type	John Deere 6.8L 6-cyl diesel
Exhaust fluid (DEF)	5.3 gal (20.1 L)
Fuel tank	88.5 gal (335.0 L)
Bore/Stroke	4.19x5.00 inches (106 x 127 mm)
Coolant capacity	29.6 qts (28.0 L)
Cooling system	viscous-drive fan
Description	John Deere / turbocharged diesel / 6-cylinder / liquid-cooled
Displacement	415 ci (6.8 L)
Emission control	diesel particulate filter with selective catalytic reduction (SCR) (DPF)
Emissions	Tier 4
Fuel system	electronic high-pressure common rail
Idle RPM	850-2250
Maximum Power (gross)	235 hp (175.2 kW)
Maximum Power (net)	229 hp (170.8 kW)
Operating RPM	1550-2100
Rated Power (gross)	195 hp (145.4 kW)
Rated Power (net)	182 hp (135.7 kW)
Rated RPM	2100
Starter	electric
Starter volts	12
Torque	671 lb-ft (909.9 Nm)
Torque RPM	1600
Drawbar (tested)	156.92 hp (117.0 kW)
Engine (gross)	195 hp (145.4 kW)
Engine (max)	235 hp (175.2 kW)
Engine (net)	182 hp (135.7 kW)
PTO (claimed)	159 hp (118.6 kW)
PTO (tested)	189.23 hp (141.1 kW)

Transmission

Description	Four power-shift gears (1-4) in four synchronized ranges (A-D). Push-button clutch for range shifts. / Four power-shift gears (1-4) in Five synchronized ranges (A-E). Push-button clutch and automatic shift mode. / Eight power-shift gears in three electronically-shifted ranges. Automatic and manual shifting modes available.
Gears	16 forward and reverse / 20 forward and reverse / 24 forward and reverse / infinite forward and reverse
Transmission	PowerQuad Plus / AutoQuad Plus Eco / Direct Drive / AutoPowr IVT
Type	partial power shift / partial power shift / eight-speed power shift / infinitely variable transmission
Description	infinitely variable transmission
Transmission type	16-speed partial power shift / 20-speed partial power shift / 24-speed eight-speed power shift
Description	infinitely variable transmission
Transmission type	16-speed partial power shift / 20-speed partial power shift / 24-speed eight-speed power shift

Mechanical

Cab	Cab standard with air-conditioning.
Description	Power steering
Differential lock	electro-hydraulic front and rear
Drive type	Four-wheel drive
Final drives	inboard planetary
Trailer brakes	hydraulic OptOptional

Hydraulics

Pressure	2900 psi (200.0 bar)
Pump flow	41 gpm (155.2 lpm)
Rear valves	3 to 6
SCV flow	26.4 gpm (99.9 lpm)
Type	closed center pressure flow compensated (PFC)
Valves	up to 6

Hitch

Front Hitch	IIIN
Front lift	7275 lbs (3299 kg)
Rear lift (at 24"/610mm)	9480 lbs (4300 kg)
Rear Type	III/IIIN

PTO

Clutch	electro-hydraulic
Engine RPM	1000@1969
Front PTO	independent
Front PTO Type	1000
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)

Electrical

Battery volts	12
Charging amps	200
Charging system	alternator
Charging volts	14
Ground	negative

Dimensions & Tires

Front axle	Triple Link Suspension
Height (cab)	126.2 inches (320 cm)
Length	198.6 inches (504 cm)
Max weight	29652 lbs (13450 kg)
Rack-and-pinion rear axle	3.94 by 100.4 inches (100 by 2550 mm) / 3.94 by 110.5 inches (100 by 2806 mm) / 3.94 by 118.5 inches (100 by 3009 mm)
Shipping weight	19610 lbs (8895 kg)
Wheelbase	110.2 inches (279 cm)
Width	100.4 inches (255 cm)
Front tire	420/90R30
Rear tire	480/80R46
Weight	19610 lbs (8895 kg)
Wheelbase	110.2 inches (279 cm)
Standard tires (ag)	Front: 420/90R30. Rear: 480/80R46

John Deere 6195R attachments

Description	front-end loader

OCED Tractor Test 2105

Description	Diesel AutoQuad Plus 4WDJune 25 - 30, 2015Link: OCED Tractor Test 2105 file / PTO performance / Drawbar performance
Fuel use	10.3 gal/hour (39.0 l/hour) / 9.7 gal/hour (36.7 l/hour) / 10.4 gal/hour (39.4 l/hour) / 9.7 gal/hour (36.7 l/hour)
Max power	189.23 hp (141.1 kW) / 156.92 hp (117.0 kW)
Max pull	19375 lbs (8788 kg)
Power at rated engine speed	164.56 hp (122.7 kW)
Power at rated PTO speed	184.51 hp (137.6 kW)

References

Description	Operator's Manual 6145R, 6155R, 6155RH, 6175R, 6195R and 6125R (OMAL218252) published in 2016 / Operator's Manual 6145R, 6155R, 6155RH, 6175R, 6195R and 6125R (OMAL225966) published in 2021

Speeds

Description	With SRI 925 rear tires. Rear speeds are 4% faster than forward. / With SRI 925 rear tires. Rear speeds are 4% faster than forward. / With SRI 925 rear tires. Rear speeds are 4% faster than forward.

Nebraska Tractor Test Results

Test #2105

Download PDF

Test Date: June 25 - 30, 2015

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

189.23 hp

@ 1750 rpm

Rated Engine Speed

164.56 hp

N/A lb/hp·hr

Standard PTO Speed

184.51 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	628 lb.-ft. (851 Nm) at 1350 rpm
Torque Rise	52.6%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	Fuel gal/hr	Fuel L/hr	DEF gal/hr	DEF L/hr
Maximum Power (1 Hour)	189.23	141.11	1750	10.32	39.08	0.35	1.32

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
164.56	2100	9.68	0.41	17.00	0.32
143.61	2159	8.82	0.43	16.29	0.31
109.05	2182	7.29	0.47	14.95	0.28
74.35	2223	6.03	0.57	12.34	0.24
37.50	2242	4.41	0.82	8.51	0.23
2.86	2250	2.90	7.12	0.98	0.24

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	Pull (lbs)	Speed	Slip	DEF lb/hp	Air °F	Cool °F
Power at Rated Engine Speed—7th (B3) Gea...	156.92	11,411	5.16	3.10	0.01	68	196
75% of Pull at Rated Engine Speed—7th (B...	123.60	8,561	5.41	2.20	0.02	80	195
50% of Pull at Rated Engine Speed—7th (B...	84.05	5,706	5.52	1.40	0.01	79	190
75% of Pull at Reduced Engine Speed—11th...	123.18	8,548	5.41	2.20	0.01	81	196
50% of Pull at Reduced Engine Speed—11th...	84.05	5,677	5.55	1.40	0.01	81	189

Unballasted Front Drive Engaged 2100 RPM Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	hp·hr/gal	Air °F	Cool °F	Barometer Inch Hg	Def Consumption Lb Hp Hr	Fuel Consumption Lb Hp Hr
4th (A4)	139.63	19,375	2.71	2106	12.30	14.45	69	200	28.68	0.02	0.49
5th (B1)	153.21	16,507	3.48	2100	5.60	15.90	71	199	28.68	0.01	0.44
6th (B2)	155.34	13,635	4.27	2100	3.80	16.00	68	196	28.69	0.01	0.44
7th (B3)	156.92	11,411	5.16	2100	3.10	16.21	68	196	28.69	0.01	0.43
8th (C1)	155.82	10,240	5.71	2100	2.70	16.13	72	198	28.70	0.01	0.43
9th (B4)	156.48	9,234	6.36	2100	2.40	16.16	69	200	28.69	0.01	0.43
10th (C2)	157.71	8,568	6.90	2100	2.20	16.22	73	200	28.70	0.01	0.43
11th (C3)	157.19	7,102	8.30	2099	1.80	16.24	73	200	28.69	0.01	0.43

Unballasted Front Drive Engaged 1750 RPM Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	hp·hr/gal	Air °F	Cool °F	Barometer Inch Hg	Def Consumption Lb Hp Hr	Fuel Consumption Lb Hp Hr
4th (A4)	139.74	19,383	2.71	2104	12.20	14.46	69	199	28.68	0.02	0.48
5th (B1)	159.81	18,224	3.29	2026	7.50	15.84	73	202	28.68	0.02	0.44
6th (B2)	170.24	17,216	3.71	1873	6.30	16.49	76	199	28.68	0.01	0.43
7th (B3)	177.29	15,782	4.21	1749	5.10	17.21	71	200	28.70	0.01	0.41
8th (C1)	176.60	14,136	4.69	1750	4.20	17.10	76	202	28.70	0.01	0.41
9th (B4)	178.95	12,810	5.24	1750	3.50	17.34	70	203	28.69	0.01	0.40
10th (C2)	178.81	11,769	5.70	1750	3.20	17.28	75	203	28.70	0.01	0.41
11th (C3)	180.57	9,864	6.87	1750	2.60	17.49	74	201	28.70	0.01	0.40
12th (C4)	179.67	7,965	8.46	1751	2.00	17.35	74	203	28.70	0.01	0.40

Category: III Quick Attach: No

Lift Capacity

Three Outlet Sets Combined

Sustained Pressure	2,382 psi
Flow Rate (min press)	N/A gpm
Max Power	56.40 hp

Single Outlet Set

Sustained Pressure	2,096 psi
Flow Rate (min press)	N/A gpm
Max Power	40.00 hp

Engine

Make	John Deere Diesel
Type	six cylinder vertical with two turbochargers, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	414 cu in (6788 ml)
Compression Ratio	17.0 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst), SCR (selective catalyst reduction) and regenerative DPF (diesel particulate filter) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist with duals
Steering	hydrostatic
Transmission	selective gear fixed ratio with partial (4) range operator controlled power shift
Speeds	20 forward (26.10 mph max)
Wheelbase	110.20 in (2800 mm)
Brakes	wet multiple disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	18,550 lbs ( 8,414 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Engine Oil	SAE 10W-30

Tires & Tracks

Rear Tires	Four 480/80R46;***;12(85)
Front Tires	Two 420/90R30;***;12(85)
Height of Drawbar	21.5 in (545 mm)

Static Weight

Rear	12,625 lbs
Front	6,100 lbs
Total	18,725 lbs
