John Deere 6175R Specs ( 2015-2021 )

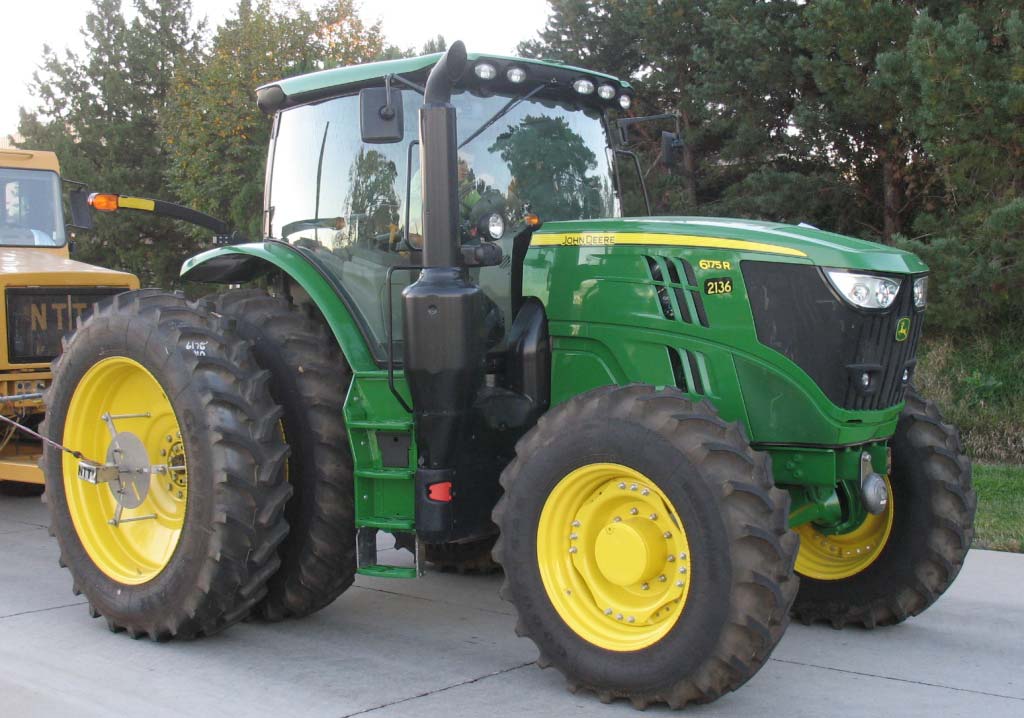

Name: John Deere 6175R
Brand: John Deere

Overview

The John Deere 6175R is a Row-Crop farm tractor produced between 2015 and 2021 in Waterloo, Iowa, powered by a 6.8L 6-cylinder turbocharged diesel engine. It features a Tier 4 emission control system and offers multiple transmission options including PowerQuad Plus, AutoQuad Plus Eco, Direct Drive, and AutoPowr IVT. The tractor is configured with a closed center pressure flow compensated hydraulic system and a 110.2-inch wheelbase.

Ideal Applications

Tested Performance Metrics: Nebraska Tractor Test data for this model recorded a maximum tested PTO output of 174.93 hp and a maximum drawbar pull of 18,323 lbs.

Powertrain and Transmission Configuration: The mechanical layout includes a four-wheel drive system with triple link suspension and transmission choices ranging from a 16-speed partial power shift to an infinitely variable transmission (IVT).

Hydraulic and Hitch Specifications: This model is equipped with a 41 gpm hydraulic pump supporting up to six rear valves and features a rear lift capacity of 9,480 lbs at 24 inches.

Production

Description	Row-Crop tractor / Built in Waterloo, Iowa, USA / Original price was $164,721 in 2017
Manufacturer	John Deere

Engine

Engine type	John Deere 6.8L 6-cyl diesel
Exhaust fluid (DEF)	5.3 gal (20.1 L)
Fuel tank	88.5 gal (335.0 L)
Bore/Stroke	4.19x5.00 inches (106 x 127 mm)
Coolant capacity	29.6 qts (28.0 L)
Cooling system	viscous-drive fan
Description	John Deere / turbocharged diesel / 6-cylinder / liquid-cooled
Displacement	415 ci (6.8 L)
Emission control	diesel particulate filter with selective catalytic reduction (SCR) (DPF)
Emissions	Tier 4
Fuel system	electronic high-pressure common rail
Idle RPM	850-2250
Maximum Power (gross)	215 hp (160.3 kW)
Maximum Power (net)	209 hp (155.9 kW)
Operating RPM	1550-2100
Rated Power (gross)	175 hp (130.5 kW)
Rated Power (net)	164 hp (122.3 kW)
Rated RPM	2100
Starter	electric
Starter volts	12
Torque	612 lb-ft (829.9 Nm)
Torque RPM	1600
Drawbar (tested)	136.14 hp (101.5 kW)
Engine (gross)	175 hp (130.5 kW)
Engine (max)	215 hp (160.3 kW)
Engine (net)	164 hp (122.3 kW)
PTO (claimed)	142 hp (105.9 kW)
PTO (tested)	174.93 hp (130.4 kW)

Transmission

Description	Four power-shift gears (1-4) in four synchronized ranges (A-D). Push-button clutch for range shifts. / Four power-shift gears (1-4) in Five synchronized ranges (A-E). Push-button clutch and automatic shift mode. / Eight power-shift gears in three electronically-shifted ranges. Automatic and manual shifting modes available.
Gears	16 forward and reverse / 20 forward and reverse / 24 forward and reverse / infinite forward and reverse
Transmission	PowerQuad Plus / AutoQuad Plus Eco / Direct Drive / AutoPowr IVT
Type	partial power shift / partial power shift / eight-speed power shift / infinitely variable transmission
Description	infinitely variable transmission
Transmission type	16-speed partial power shift / 20-speed partial power shift / 24-speed eight-speed power shift
Description	infinitely variable transmission
Transmission type	16-speed partial power shift / 20-speed partial power shift / 24-speed eight-speed power shift

Mechanical

Cab	Cab standard with air-conditioning.
Description	Power steering
Differential lock	electro-hydraulic front and rear
Drive type	Four-wheel drive
Final drives	inboard planetary
Trailer brakes	hydraulic OptOptional

Hydraulics

Pressure	2900 psi (200.0 bar)
Pump flow	41 gpm (155.2 lpm)
Rear valves	3 to 6
SCV flow	26.4 gpm (99.9 lpm)
Type	closed center pressure flow compensated (PFC)
Valves	up to 6

Hitch

Front Hitch	IIIN
Front lift	7275 lbs (3299 kg)
Rear lift (at 24"/610mm)	9480 lbs (4300 kg)
Rear Type	III/IIIN

PTO

Clutch	electro-hydraulic
Engine RPM	540@1950
Front PTO	independent
Front PTO Type	1000
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)

Electrical

Battery volts	12
Charging amps	200
Charging system	alternator
Charging volts	14
Ground	negative

Dimensions & Tires

Front axle	Triple Link Suspension
Height (cab)	126.2 inches (320 cm)
Length	198.6 inches (504 cm)
Max weight	27999 lbs (12700 kg)
Rack-and-pinion rear axle	3.94 by 100.4 inches (100 by 2550 mm) / 3.94 by 110.5 inches (100 by 2806 mm) / 3.94 by 118.5 inches (100 by 3009 mm)
Shipping weight	19610 lbs (8895 kg)
Wheelbase	110.2 inches (279 cm)
Width	100.4 inches (255 cm)
Front tire	420/90R30
Rear tire	480/80R46
Weight	19610 lbs (8895 kg)
Wheelbase	110.2 inches (279 cm)
Standard tires (ag)	Front: 420/90R30. Rear: 480/80R46

John Deere 6175R attachments

Description	front-end loader

OCED Tractor Test 2136

Description	Diesel AutoQuad Plus 4WDOctober 7 - 22, 2015Link: OCED Tractor Test 2136 file / PTO performance / Drawbar performance
Fuel use	9.6 gal/hour (36.3 l/hour) / 8.8 gal/hour (33.3 l/hour) / 9.3 gal/hour (35.2 l/hour) / 8.8 gal/hour (33.3 l/hour)
Max power	174.93 hp (130.4 kW) / 136.14 hp (101.5 kW)
Max pull	18308 lbs (8304 kg)
Power at rated engine speed	143.91 hp (107.3 kW)
Power at rated PTO speed	162.90 hp (121.5 kW)

References

Description	Operator's Manual 6145R, 6155R, 6155RH, 6175R, 6195R and 6125R (OMAL218252) published in 2016 / Operator's Manual 6145R, 6155R, 6155RH, 6175R, 6195R and 6125R (OMAL225966) published in 2021

Speeds

Description	With SRI 925 rear tires. Rear speeds are 4% faster than forward. / With SRI 925 rear tires. Rear speeds are 4% faster than forward. / With SRI 925 rear tires. Rear speeds are 4% faster than forward.

Nebraska Tractor Test Results

Test #2136

Download PDF

Test Date: October 7-22, 2015

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

174.93 hp

@ 1701 rpm

Rated Engine Speed

143.91 hp

N/A lb/hp·hr

Standard PTO Speed

162.90 hp

@ 1000 rpm PTO

Torque Statistics

Maximum Torque	560 lb-ft (759 Nm)
Torque Rise	55.7%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM	Fuel gal/hr	Fuel L/hr	DEF gal/hr	DEF L/hr
Rated Engine Speed	143.91	107.31	2100	1072	8.82	33.39	0.17	0.64
Standard PTO Speed (1000 rpm)	162.90	121.48	1959	1000	9.33	35.33	0.24	0.92
Maximum Power (1 Hour)	174.93	130.44	1701		9.60	36.32	0.21	0.79

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
143.91	2100	8.82	0.43	N/A	0.17
125.80	2161	8.16	0.46	N/A	0.14
95.88	2194	6.84	0.50	N/A	0.09
64.88	2223	5.66	0.61	N/A	0.07
33.06	2242	4.42	0.94	N/A	0.06
0.52	2250	3.04	41.24	N/A	0.05

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	kW	Pull (lbs)	Pull (kN)	Speed	km/h	Slip	DEF lb/hp	DEF kg/kW	Air °F	Air °C	Cool °F	Cool °C
Power at Rated Engine Speed—7th (B3) Gea...	136.14	101.52	9,837	44	5.19	8.35	2.70	0.01	0.01	60	15	188	86
75% of Pull at Rated Engine Speed—7th (B...	106.61	79.50	7,324	33	5.46	8.79	1.90	0.01	0.01	71	22	187	86
50% of Pull at Rated Engine Speed—7th (B...	72.83	54.31	4,916	22	5.56	8.95	1.20	0.02	0.01	72	22	187	86
75% of Pull at Reduced Engine Speed—11th...	107.66	80.28	7,423	33	5.44	8.75	1.90	0.02	0.01	74	23	188	86
50% of Pull at Reduced Engine Speed—11th...	72.73	54.23	4,875	22	5.59	9.00	1.20	0.02	0.01	74	23	186	86

Unballasted Front Drive Engaged 2100 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	hp·hr/gal	lb/hp·hr	DEF lb/hp	inHg	Temp Air F	Temp Cool F
3rd (A3)	114.61	18,308	2.35	2183	10.60	13.76	0.51	0.02	28.70	47	188
4th (A4)	130.78	17,059	2.88	2100	7.00	14.81	0.47	0.02	28.73	53	188
5th (B1)	134.59	14,306	3.53	2100	4.80	15.27	0.46	0.01	28.72	61	188
6th (B2)	135.60	11,804	4.31	2100	3.40	15.38	0.46	0.01	28.62	61	188
7th (B3)	136.14	9,837	5.19	2099	2.70	15.44	0.45	0.01	28.61	60	188
8th (C1)	135.09	8,819	5.75	2099	2.40	15.34	0.46	0.01	28.63	66	189
9th (B4)	132.67	7,779	6.40	2100	2.10	15.08	0.46	0.01	28.62	65	187
10th (C2)	133.71	7,213	6.95	2101	1.90	15.17	0.46	0.01	28.62	66	190
11th (C3)	133.10	5,973	8.36	2100	1.50	15.13	0.46	0.01	28.63	68	189

Unballasted Front Drive Engaged 1700 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	hp·hr/gal	lb/hp·hr	DEF lb/hp	inHg	Temp Air F	Temp Cool F
3rd (A3)	114.69	18,323	2.35	2183	10.80	13.75	0.51	0.02	28.70	48	188
4th (A4)	133.21	17,731	2.82	2076	7.90	14.79	0.47	0.02	28.73	55	188
5th (B1)	149.75	17,076	3.29	1999	6.70	15.77	0.44	0.01	28.73	57	189
6th (B2)	156.05	15,987	3.66	1829	5.80	16.37	0.43	0.01	28.73	58	191
7th (B3)	161.01	14,649	4.12	1700	4.80	16.87	0.42	0.01	28.63	62	193
8th (C1)	161.54	13,233	4.58	1700	4.00	16.94	0.41	0.01	28.62	69	196
9th (B4)	162.27	11,908	5.11	1700	3.30	17.03	0.41	0.01	28.62	64	196
10th (C2)	162.05	10,919	5.57	1700	3.00	17.05	0.41	0.01	28.62	68	196
11th (C3)	162.17	9,071	6.71	1700	2.40	16.99	0.41	0.01	28.63	67	197
12th (C4)	159.47	7,246	8.25	1699	1.90	16.78	0.42	0.01	28.62	67	197

Category: III Quick Attach: No

Lift Capacity

Three Outlet Sets Combined

Sustained Pressure	2,920 psi
Delivery Pressure	2,463 psi
Flow Rate (min press)	N/A gpm
Max Power	57.70 hp

Single Outlet Set

Sustained Pressure	2,110 psi
Flow Rate (min press)	N/A gpm
Max Power	37.70 hp

Engine

Make	John Deere
Type	six cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	414 cu in (6788 ml)
Compression Ratio	17.0 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst), SCR (selective catalyst reduction) and regenerative DPF (diesel particulate filter) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist with duals
Steering	hydrostatic
Transmission	selective gear fixed ratio with partial (4) range operator controlled power shift
Wheelbase	110.20 in (2800 mm)
Brakes	wet multiple disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	18,490 lbs ( 8,387 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution

Tires & Tracks

Rear Tires	***, 480/80R46
Front Tires	***, 420/90R30
Height of Drawbar	22.00 in (560 mm)

Static Weight

Rear	12,615 lbs
Front	6,050 lbs
Total	18,665 lbs
