Home / John Deere / 6115M

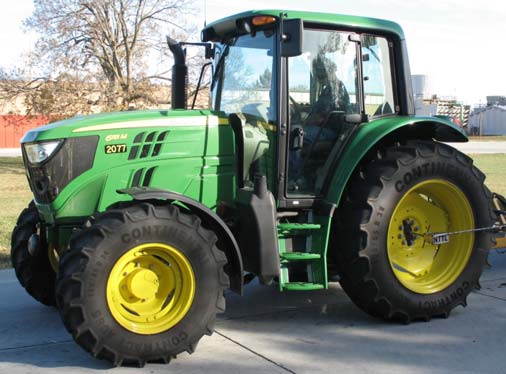

John Deere 6115M Specs ( 2013-2015 )

Name: John Deere 6115M
Brand: John Deere

Overview

The John Deere 6115M is a utility tractor manufactured from 2013 to 2015 in Mannheim, Germany, featuring a 4.5L 4-cylinder PowerTech PVX diesel engine. Available in two- or four-wheel drive, the model offers multiple transmission configurations including the 24-speed PowrQuad Plus and a hydraulic system with a pump flow of 21.1 gpm. Official performance testing recorded a maximum PTO power of 108.65 hp and a rear lift capacity of 5,154 lbs.

Ideal Applications

Tested Power and Pull Performance: Nebraska Tractor Test results show a maximum PTO output of 108.65 hp and a maximum drawbar pull capacity of 10,544 lbs using the 4.5L turbo-intercooled diesel engine.

Transmission and Drive Configuration: The tractor is listed with four transmission options including SyncroPlus, PowrQuad, PowrQuad Plus, and AutoQuad Plus, supporting up to 24 forward and reverse gears.

Hydraulic and Hitch Specifications: Equipped with an open center pressure compensated hydraulic system, the unit provides 2,900 psi of pressure and is rated for a Category II/IIIN rear hitch with electrohydraulic load sensing.

Production

Description	Utility tractor / Built in Mannheim, Baden-Württemberg, Germany
Manufacturer	John Deere
Original price	$68,644 (2014 SyncroPlus ROPS 2WD )

Engine

Engine type	John Deere 4.5L 4-cyl diesel
Bore/Stroke	4.19x5.00 inches (106 x 127 mm)
Compression	16.1:1
Coolant capacity	23.3 qts (22.1 L)
Description	John Deere PowerTech PVX / variable geometry turbocharger with intercooler diesel / 4-cylinder / liquid-cooled
Displacement	276 ci (4.5 L)
Emission control	cooled exhaust gas recirculation
Emissions	Interim Tier IV
Fuel system	high pressure common rail
Maximum Power (gross)	119 hp (88.7 kW)
Oil capacity	16.9 qts (16.0 L)
Rated Power (gross)	115 hp (85.8 kW)
Rated RPM	2100
Starter	electric
Starter volts	12
Torque	382 lb-ft (518.0 Nm)
Torque RPM	1600
Drawbar (tested)	90.58 hp (67.5 kW)
Engine (gross)	115 hp (85.8 kW)
Engine (max)	119 hp (88.7 kW)
PTO (claimed)	95 hp (70.8 kW)
PTO (tested)	2101 hp (1566.7 kW)

Transmission

Clutch	wet disc / wet disc / wet disc / wet disc
Gears	12 forward and 4 reverse / 16 forward and reverse / 24 forward and reverse / 24 forward and reverse
Oil capacity	55 qts (52.1 L) / 55 qts (52.1 L) / 55 qts (52.1 L)
Transmission	SyncroPlus / PowrQuad / PowrQuad Plus / AutoQuad Plus
Type	fully synchronized / partial power shift / partial power shift / partial power shift
Transmission type	12-speed fully synchronized / 16-speed partial power shift / 24-speed partial power shift
Transmission type	12-speed fully synchronized / 16-speed partial power shift / 24-speed partial power shift

Mechanical

Cab	Two-post foldable ROPS. Cab optional with air-conditioning. GreenStar (optional); AutoTrac (optional)
Description	Hydraulic wet disc brakes
Differential lock	Electro-hydraulic rear
Drive type	Two- or four-wheel drive
Steering	hydrostatic power

Capacity

Fuel	58 gal (219.5 L)
Hydraulic system	13.7 gal (51.9 L)

Hydraulics

Capacity	13.7 gal (51.9 L)
Mid valves	2 or 3 (optional)
Pressure	2900 psi (200.0 bar)
Pump flow	21.1 gpm (79.9 lpm)
Rear valves	1 to 3
SCV flow	21.1 gpm (79.9 lpm)
Type	open center pressure compensated

Hitch

Control	electrohydraulic load sensing
Drawbar	Cat. II
Rear lift (at 24"/610mm)	5154 lbs (2337 kg)
Rear Type	II/IIIN

PTO

Engine RPM	540@1932
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)

Electrical

Battery volts	12
Charging amps	90
Charging system	alternator
Charging volts	14
Ground	negative

Dimensions & Tires

Bar rear axle	3.1 by 100.6 inches (78 by 2555 mm)
Clearance (front axle)	20.47 inches (4WD) (51 cm)
Description	Flange rear axle
Front tread	60.4 to 80.4 inches (2WD) (153 to 204 cm)
Max weight	19180 lbs (8700 kg)
Weight	11486 lbs (5210 kg)
Wheelbase	101.6 inches (258 cm)
Front tire	10.00-16
Rear tire	460/85R34 (2WD)
Weight	11486 lbs (5210 kg)
Wheelbase	101.6 inches (258 cm)
Standard tires (ag)	Front: 10.00-16. Rear: 460/85R34 (2WD)

6115M Serial Number Location

Description	Serial number plate on the right side of the tractor frame, above the front axle.

John Deere 6115M attachments

Description	front-end loader

OCED Tractor Test 2077

Description	Diesel 24-speed PowrQuad Plus 4WDOctober 31 - November 15, 2013Link: OCED Tractor Test 2077 file / PTO performance / Drawbar performance
Fuel use	6.5 gal/hour (24.6 l/hour) / 4577.3 gal/hour (17325.1 l/hour) / 6.5 gal/hour (24.6 l/hour) / 6.3 gal/hour (23.8 l/hour)
Max power	108.65 hp (81.0 kW) / 90.58 hp (67.5 kW)
Max pull	10489 lbs (4757 kg)
Power at rated engine speed	2101 hp (1566.7 kW)
Power at rated PTO speed	105.30 hp (78.5 kW)

References

Description	6M Series Tractors published in 2013, by John Deere / Specialty Tractors published in 2014, by John Deere

Nebraska Tractor Test Results

Test #2077

Download PDF

Test Date: October 31 to November 15, 2013

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

108.65 hp

@ N/A rpm

Rated Engine Speed

96.38 hp

0.46 lb/hp·hr

Standard PTO Speed

105.30 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	364 lb.-ft. (493 Nm) at 1401 rpm
Torque Rise	51.0%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW
Maximum Power (1 Hour)	108.65	81.02

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
96.38	N/A	6.29	0.46	15.31	N/A
84.44	N/A	5.80	0.48	14.57	N/A
64.33	N/A	4.87	0.53	13.21	N/A
43.32	N/A	3.97	0.64	10.91	N/A
21.95	N/A	3.02	0.97	7.27	N/A
0.93	N/A	2.29	17.38	0.40	N/A

Unballasted Front Drive Engaged 2100 Engine RPM Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	Air °F	Cool °F	Barometer Inch Hg	Fuel Hp Hr Gal	Fuel Lb Hp Hr
7th (B3)	80.74	10,489	2.89	2098	14.10	62	191	28.50	12.72	0.55
8th (C1)	86.06	9,198	3.51	2100	7.70	65	190	28.49	13.55	0.52
9th (B4)	85.70	8,310	3.87	2100	6.10	64	191	28.50	13.57	0.52
10th (C2)	87.56	7,542	4.36	2100	4.90	60	189	28.54	13.94	0.50
11th (C3)	90.58	6,450	5.27	2100	3.90	60	189	28.54	14.34	0.49
12th (D1)	89.04	5,538	6.03	2100	3.20	62	190	28.53	14.01	0.50
13th (C4)	87.56	5,036	6.52	2100	2.70	56	189	28.60	13.80	0.51
14th (D2)	87.69	4,495	7.32	2100	2.50	58	190	28.59	13.78	0.51
15th (D3)	88.14	3,763	8.79	2100	2.20	64	190	28.49	13.92	0.51

Unballasted Front Drive Engaged 1800 Engine RPM Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	Air °F	Cool °F	Barometer Inch Hg	Fuel Hp Hr Gal	Fuel Lb Hp Hr
7th (B3)	80.95	10,544	2.88	2089	13.90	63	191	28.49	12.76	0.55
8th (C1)	88.67	10,028	3.32	2034	9.90	61	192	28.50	13.64	0.52
9th (B4)	90.39	9,451	3.59	1997	8.30	64	193	28.50	13.74	0.51
10th (C2)	93.82	9,087	3.88	1919	7.40	64	192	28.50	14.39	0.49
11th (C3)	98.67	8,375	4.42	1800	6.00	61	193	28.55	15.11	0.47
12th (D1)	99.04	7,299	5.09	1800	4.90	62	194	28.50	15.14	0.46
13th (C4)	98.16	6,663	5.53	1800	3.90	57	190	28.59	14.99	0.47
14th (D2)	98.53	5,951	6.21	1800	3.40	59	191	28.56	15.04	0.47
15th (D3)	98.53	4,943	7.48	1800	2.90	63	190	28.49	15.09	0.47
16th (E1)	96.59	4,281	8.46	1800	2.50	63	192	28.49	14.80	0.48

Unballasted Front Drive Disengaged Fuel Consumption Characteristics

Click column headers to sort

Power	Pull (lbs)	Speed	RPM	Slip	Air °F	Cool °F	Barometer Inch Hg	Condition	Fuel Hp Hr Gal	Fuel Lb Hp Hr
88.65	6,518	5.10	2100	6.10	61	189	28.55	Maximum Power—11th (C3) Gear	14.00	0.50
71.25	4,908	5.45	2195	4.10	57	189	28.87	75% of Pull at Maximum Power—11th (C3) Gear	12.93	0.54
48.90	3,291	5.57	2215	2.80	57	188	28.87	50% of Pull at Maximum Power—11th (C3) Gear	11.12	0.63
71.23	4,943	5.41	1591	4.20	55	189	28.86	75% of Pull at Reduced Engine Speed—14th (D2) Gear	14.66	0.48
48.74	3,302	5.54	1606	2.70	56	188	28.86	50% of Pull at Reduced Engine Speed—14th (D2) Gear	13.23	0.53

Unballasted Front Drive Disengaged Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	Air °F	Cool °F	Barometer Inch Hg	Fuel Hp Hr Gal	Fuel Lb Hp Hr
9th (B4)	76.78	7,875	3.66	2173	13.40	65	191	28.50	12.12	0.58
10th (C2)	82.94	7,631	4.08	2101	10.10	64	191	28.50	13.11	0.54
11th (C3)	88.65	6,518	5.10	2100	6.10	61	189	28.55	14.00	0.50
12th (D1)	87.91	5,609	5.88	2100	4.80	62	189	28.51	13.81	0.51
13th (C4)	87.87	5,155	6.39	2100	3.90	57	189	28.59	13.82	0.51
14th (D2)	87.60	4,573	7.19	2100	3.40	58	188	28.58	13.78	0.51
15th (D3)	88.39	3,842	8.63	2099	3.10	63	190	28.48	14.03	0.50

Unballasted Front Drive Engaged Fuel Consumption Characteristics

Click column headers to sort

Power	Pull (lbs)	Speed	RPM	Slip	Air °F	Cool °F	Barometer Inch Hg	Condition	Fuel Hp Hr Gal	Fuel Lb Hp Hr
90.58	6,450	5.27	2100	3.90	60	189	28.54	Maximum Power—11th (C3) Gear	14.34	0.49
71.91	4,855	5.55	2194	3.00	57	189	28.89	75% of Pull at Maximum Power—11th (C3) Gear	13.00	0.54
48.94	3,243	5.66	2215	2.00	57	188	28.87	50% of Pull at Maximum Power—11th (C3) Gear	11.05	0.64
71.85	4,887	5.51	1590	3.00	55	188	28.85	75% of Pull at Reduced Engine Speed—14th (D2) Gear	14.72	0.48
48.77	3,253	5.62	1606	2.00	57	188	28.86	50% of Pull at Reduced Engine Speed—14th (D2) Gear	13.13	0.54

Category: IIIN Quick Attach: none

Two Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	John Deere Diesel
Type	four cylinder vertical with turbocharger and air to air intercooler
Displacement	276 cu in (4525 ml)
Compression Ratio	17.2 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements
Exhaust	regenerative particulate filter integrated within an underhood muffler with vertical outlet
Crankshaft	lengthwise

Chassis

Type	front wheel assist
Steering	hydrostatic
Transmission	selective gear fixed ratio with partial (4) range operator controlled powershift
Front Tread Width	62.4 (1584 mm) to 79.4 (2016 mm) in
Rear Tread Width	63.5 (1612 mm) to 75.4 (1916 mm) in
Brakes	wet disc hydraulically operated by two foot pedals which can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	10,815 lbs ( 4,906 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	N/A
Engine Oil	SAE 10W-30

Tires & Tracks

Ballast	Tested without ballast
