John Deere 5130M Specs ( 2022-Present )

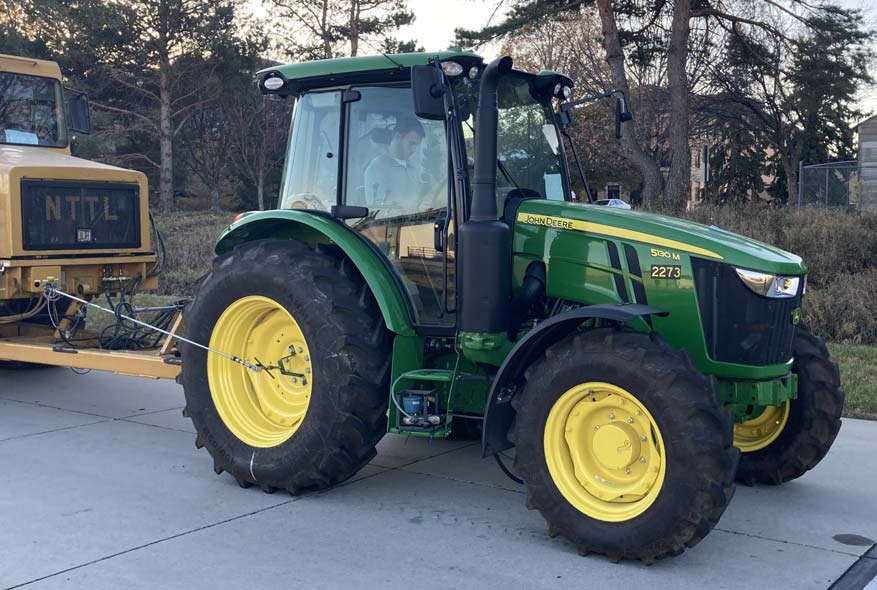

Name: John Deere 5130M
Brand: John Deere

Overview

The John Deere 5130M is a utility farm tractor produced since 2022, featuring a 4.5L 4-cylinder Tier IV diesel engine rated at 130 hp. It is equipped with standard four-wheel drive, a climate-controlled cab, and a transmission available in 16-speed or 32-speed power shift configurations.

Ideal Applications

Verified Performance Data: Nebraska Tractor Test results recorded a maximum PTO output of 125.53 hp and a maximum drawbar pull of 10,377 lbs.

Transmission and Drive Configuration: This model utilizes either the PowrQuad PLUS or Powr8 transmission systems providing up to 32 forward speeds and includes an electro-hydraulic rear differential lock.

Hydraulic and Hitch Capacity: The 5130M features an open center hydraulic system with a 25.6 gpm pump flow supporting a rear lift capacity of 6,975 lbs and a front lift capacity of 4,257 lbs.

Production

Description	Utility tractor / Built in Pune, India / Original price was $110,745 in 2023
Manufacturer	John Deere

Engine

Engine type	John Deere 4.5L 4-cyl diesel
Exhaust fluid (DEF)	3.17 gal (12.0 L)
Fuel tank	43.7 gal (165.4 L)
Bore/Stroke	4.19x5.00 inches (106 x 127 mm)
Description	John Deere 4045 EWL / diesel / 4-cylinder / liquid-cooled
Displacement	276 ci (4.5 L)
Emissions	Tier IV
Maximum Power	133.9 hp (99.8 kW)
Power	130 hp (96.9 kW)
Rated RPM	2200
Starter	electric
Starter volts	12
Torque	399 lb-ft (541.0 Nm)
Torque RPM	1600
PTO (claimed)	115 hp (85.8 kW)

Transmission

Description	Four power shift gears in four ranges. / Eight power shift gears in three ranges. Four gears in reverse.
Gears	16 forward and reverse / 32 forward and 16 reverse
Transmission	PowrQuad PLUS / Powr8
Type	4-speed power shift / 8-speed power shift
Transmission type	16-speed 4-speed power shift / 32-speed 8-speed power shift
Transmission type	16-speed 4-speed power shift / 32-speed 8-speed power shift

Mechanical

Cab	Cab standard with air-conditioning.
Description	Power steering
Differential lock	electro-hydraulic rear
Drive type	Four-wheel drive

Hydraulics

Mid valves	2 or 3
Pump flow	25.6 gpm (96.9 lpm)
Rear valves	2 or 3
SCV flow	19.3 gpm (73.1 lpm)
Type	open center

Hitch

Control	position control and lower-link draft sensing
Front Hitch	II/I
Front lift	4257 lbs (1930 kg)
Rear lift	6975 lbs (3163 kg)
Rear Type	II/I

PTO

Clutch	electro-hydraulic
Engine RPM	540@2100
Rear PTO	independent
Rear PTO Type	540 (1.375)

Electrical

Battery volts	12
Charging amps	120
Charging system	alternator
Ground	negative

Dimensions & Tires

Front tread	51.1 to 78.6 inches (129 to 199 cm)
Length	161 inches (408 cm)
Max Drawbar	3197 lbs (1450 kg)
Rear tread	53.1 to 90 inches (134 to 228 cm)
Shipping weight	9185 lbs (4166 kg)
Wheelbase	92.5 inches (234 cm)
Front tire	12.4R24
Rear tire	18.4R30
Weight	9185 lbs (4166 kg)
Wheelbase	92.5 inches (234 cm)
Standard tires (ag)	Front: 12.4R24. Rear: 18.4R30

References

Description	5M Tractors published in 2022, by John Deere

Nebraska Tractor Test Results

Test #2273

Download PDF

Test Date: November 13 - 16, 2023

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

125.53 hp

@ 1902 rpm

Rated Engine Speed

116.88 hp

N/A lb/hp·hr

Standard PTO Speed

121.43 hp

@ 540 rpm PTO

Torque Statistics

Maximum Torque	378 lb-ft (512 Nm)
Torque Rise	35.4%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM
Rated Engine Speed	116.88	87.16	2201
Standard PTO Speed (1000 rpm)	121.43	90.55	2100	540
Maximum Power (1 Hour)	125.53	93.61	1902

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
116.88	2201	6.90	0.42	16.95	0.41
101.56	2251	6.36	0.44	15.98	0.39
77.20	2281	5.27	0.48	14.65	0.29
51.88	2300	4.21	0.57	12.31	0.21
25.90	2299	2.98	0.81	8.70	0.17
0.28	2300	1.91	47.94	0.15	0.09

Unballasted Front Drive Engaged 2200 Engine RPM Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	inHg	Engine RPM	Fuel Lb Hp Hr	Temp Air F	Temp Cool F
6th(B2)	98.16	10,377	3.55	13.00	14.02	0.04	28.91	2233	0.50	45	198
7th(B3)	107.25	8,602	4.68	5.70	15.34	0.04	28.91	2200	0.46	51	198
8th(B4)	109.21	7,011	5.84	3.90	15.68	0.04	28.91	2200	0.45	51	198
9th(C1)	109.78	6,821	6.04	3.70	15.77	0.04	28.91	2200	0.45	53	198
10th(C2)	111.82	5,573	7.53	2.80	16.03	0.04	28.90	2200	0.44	56	199
11th(C3)	111.22	4,442	9.39	2.00	16.00	0.04	28.90	2201	0.44	58	201

Unballasted Front Drive Engaged 1900 Engine RPM Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	inHg	Engine RPM	Fuel Lb Hp Hr	Temp Air F	Temp Cool F
6th(B2)	98.28	10,318	3.58	12.30	14.13	0.04	28.91	2235	0.50	47	198
7th(B3)	109.87	9,500	4.34	7.40	15.67	0.04	28.91	2079	0.45	51	199
8th(B4)	114.52	8,678	4.95	5.90	16.61	0.04	28.91	1900	0.42	53	198
9th(C1)	115.36	8,449	5.12	5.60	16.75	0.04	28.91	1900	0.42	55	198
10th(C2)	118.43	6,901	6.44	3.80	17.20	0.04	28.90	1900	0.41	57	200
11th(C3)	119.74	5,577	8.05	2.70	17.39	0.04	28.90	1900	0.40	58	201

Fuel Consumption Characteristics (Unballasted) Front Drive Engaged

Click column headers to sort

Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	inHg	Condition	Engine RPM	Fuel Lb Hp Hr	Temp Air Dry F	Temp Cooling F
109.21	7,011	5.84	3.90	15.68	0.04	28.91	Power at Rated Engine Speed—8th(B4) Gear	2200	0.45	51	198
85.93	5,281	6.10	2.60	14.53	0.04	28.85	75% of Pull at Rated Engine Speed—8th(B4) Gear	2266	0.48	67	200
58.74	3,527	6.25	1.60	12.38	0.04	28.85	50% of Pull at Rated Engine Speed—8th(B4) Gear	2295	0.57	68	198
85.47	5,236	6.12	2.60	16.69	0.04	28.85	75% of Pull at Reduced Engine Speed—10th(C2) Gear	1785	0.42	68	196
58.77	3,523	6.26	1.60	15.41	0.04	28.84	50% of Pull at Reduced Engine Speed—10th(C2) Gear	1805	0.46	68	193

Category: 2 Quick Attach: None

Lift Capacity

Cylinder Size 75mm

Max Force 6,979 lbs

Cylinder Size 80mm

Max Force 7,872 lbs

Three Outlet Sets Combined

Sustained Pressure	2,338 psi
Flow Rate (min press)	21.70 gpm
Max Power	28.30 hp

Single Outlet Set

Sustained Pressure	2,374 psi
Flow Rate (min press)	21.50 gpm
Max Power	28.60 hp

Engine

Make	John Deere
Type	Diesel four cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	276 cu in (4525 ml)
Compression Ratio	16.9 to 1
Rated Engine Speed	2200 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	regenerative aftertreatment system consisting of DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) with a vertical exhaust
Crankshaft	lengthwise

Chassis

Type	front wheel assist
Steering	hydrostatic
Transmission	selective gear fixed ratio with partial (4) range operator controlled powershift
Wheelbase	92.50 in (2350 mm)
Front Tread Width	55.0 to 78.7 in
Rear Tread Width	58.9 to 70.7 in
Brakes	wet disc hydraulically actuated by two foot pedals which can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	9,910 lbs ( 4,495 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution

Tires & Tracks

Rear Tires	Two 460/85R34;**;12 (85) psi (kPa)
Front Tires	Two 340/85R24;**;12 (85) psi (kPa)
Height of Drawbar	20.50 in (520 mm)

Static Weight

Rear	6,300 lbs
Front	3,785 lbs
Total	10,085 lbs
