John Deere 5095M Specs ( 2008-2011 )
Overview
The John Deere 5095M is a farm utility tractor manufactured between 2008 and 2011 in Augusta, Georgia, featuring a 4.5L 4-cylinder turbocharged diesel engine. It was produced in 2WD and 4WD configurations with options for a ROPS or a climate-controlled cab, providing a rated engine power of 95 horsepower. The tractor supports multiple transmission types, including 12, 16, and 32-speed partially synchronized systems, with tested PTO performance reaching up to 90.11 horsepower.
Ideal Applications
Engine and PTO Performance:
The 4.5L PowerTech M 4045 engine produces 372 lb-ft of torque at 1600 RPM and achieved a maximum tested PTO output of 90.11 horsepower in official performance evaluations.
Hydraulic and Hitch Capacity:
The open center hydraulic system delivers a total flow of 24.7 gpm and supports a rear hitch lift capacity of 5,150 pounds on models equipped with the PowrReverser transmission.
Transmission and Chassis Configuration:
Mechanical options include 12, 16, or 32-speed synchronized transmissions with inboard planetary final drives, all integrated into a chassis with an 85.6-inch wheelbase.
Production
| Description | Utility tractor / Built in Augusta, Georgia, USA |
|---|---|
| Manufacturer | John Deere |
| Original price | $41,234 (2009 2WD ROPS) |
Engine
| Cab Fuel tank | 43.7 gal (165.4 L) |
|---|---|
| Engine type | John Deere 4.5L 4-cyl diesel |
| Exhaust fluid (DEF) | 3.17 gal (12.0 L) |
| ROPS Fuel tank | 37.7 gal (142.7 L) |
| Air cleaner | dry |
| Bore/Stroke | 4.19x5.00 inches (106 x 127 mm) |
| Coolant capacity | 12 qts (11.4 L) |
| Description | John Deere PowerTech M 4045 / turbocharged diesel / 4-cylinder / liquid-cooled |
| Displacement | 276 ci (4.5 L) |
| Emissions | Tier 3 |
| Maximum Power | 97.8 hp (72.9 kW) |
| Power | 95 hp (70.8 kW) |
| Rated Power (gross) | 95 hp (70.8 kW) |
| Rated RPM | 2200 |
| Starter | electric |
| Starter volts | 12 |
| Torque | 372 lb-ft (504.4 Nm) |
| Torque RPM | 1600 |
| Oil capacity | 8.8 qts (8.3 L) |
| Engine (gross) | 95 hp (70.8 kW) |
| PTO (claimed) | 80 hp (59.7 kW) |
| PTO (tested) | 84.42 hp (63.0 kW) |
Transmission
| Clutch | wet disc |
|---|---|
| Description | Operated via two levers and foot clutch. Speed shift lever selects three forward gears or reverse. Range shift lever selects one of four ranges. Synchronized shuttle shift or speed change shift while moving using the clutch. Tractor must be stopped to change range. |
| Gears | 16 forward and reverse / 12 forward and 4 reverse / 16 forward and reverse / 32 forward and 16 reverse |
| Transmission | SyncReverser / SyncShuttle Plus / PowrReverser / PowrReverser Plus |
| Type | partially synchronized / partially synchronized / partially synchronized with power shuttle |
| Transmission type | 16-speed partially synchronized / 12-speed partially synchronized / 16-speed partially synchronized with power shuttle / 32-speed |
| Transmission type | 16-speed partially synchronized / 12-speed partially synchronized / 16-speed partially synchronized with power shuttle / 32-speed |
Mechanical
| Cab | Two-post folding ROPS. Cab optional with air-conditioning |
|---|---|
| Description | Hydraulic wet disc brakes / Foldable ROPS. Optional deluxe ROPS with upgraded seat. Optional cab with heat and air conditioning. |
| Differential lock | shift-on-the-move electro-hydraulic rear differential lock |
| Drive type | Two- or four-wheel drive |
| Final drives | inboard planetary |
| Steering | hydrostatic power |
Capacity
| Front diff. | 5.3 qts (5.0 L) |
|---|---|
| Front hubs | 0.84 qts (each) (0.8 L) |
| Fuel | 30.3 gal (ROPS) (114.7 L) |
| Hydraulic system | 11.9 gal (45.0 L) |
Hydraulics
| 10o↔104oF [-12o↔40oC] | : BIO HY-GARD JDM 20D |
|---|---|
| -10oF [-23oC]↑ | : HY-GARD / : JDM J20C |
| Capacity | 11.9 gal (45.0 L) |
| Mid valves | 2 or 3 |
| Oil type | -10oF [-23oC]↑ : HY-GARD -10oF [-23oC]↑ : JDM J20C 10o↔104oF [-12o↔40oC] : BIO HY-GARD JDM 20D ([-23oC][-23oC][-12o↔40oC]) |
| Pressure | 2828 psi (195.0 bar) |
| Pump flow | 18.4 gpm (69.6 lpm) |
| Rear valves | 2 or 3 |
| SCV flow | 18.4 gpm (PowReverser) (69.6 lpm) |
| Steering flow | 6.3 gpm (23.8 lpm) |
| Steering press. | 1922 psi (132.5 bar) |
| Total flow | 24.7 gpm (93.5 lpm) |
| Type | open center |
| Valves | 0, 2 or 3 (rear) |
Hitch
| Control | position control and lower-link draft sensing |
|---|---|
| Front Hitch | II/I |
| Front lift | 4257 lbs (1930 kg) |
| Rear lift | 5150 lbs (PowrReverser) (2336 kg) |
| Rear lift (at 24"/610mm) | 3,595 lbs (1630 kg) |
| Rear Type | independent electrohyraulic |
PTO
| Clutch | electro-hydraulic |
|---|---|
| Engine RPM | 540@2100 |
| Rear PTO | independent electrochydraulic |
| Rear PTO Type | 540/540E |
Electrical
| Battery CCA | 925 |
|---|---|
| Battery Group | 31 |
| Battery volts | 12 |
| Cab Charging amps | 120 |
| Charging amps | 70 (ROPS) |
| Charging system | alternator |
| Ground | negative |
| ROPS Charging amps | 90 |
Dimensions & Tires
| 2WD Clearance (front axle) | 18.8 inches (47 cm) |
|---|---|
| 2WD Front tread | 58.6 to 78.3 inches (148 to 198 cm) |
| 4WD Clearance (front axle) | 17.9 inches (45 cm) |
| 4WD Front tread | 52.8 to 77 inches (134 to 195 cm) |
| Cab Length | 161 inches (408 cm) |
| Rear tread | 59.6 to 71.4 inches (151 to 181 cm) |
| ROPS Length | 160 inches (406 cm) |
| Wheelbase | 85.6 inches (217 cm) |
| Front tire | 11L-15 |
| Rear tire | 480/80R30 |
| Weight | 6591 to 8150 pounds |
| Wheelbase | 85.6 inches (217 cm) |
| Ag front | 11L-15 (2WD) / 7.50-16 (2WD) |
| Ag rear | 480/80R30 / 14.9-28 |
| Industrial front | 11LL-15 (2WD) |
| Industrial rear | 19.5-24 |
| Lawn/turf front | 27/12LL-15 (2WD) |
| Lawn/turf rear | 22.5LL-16.1 |
| Standard tires (ag) | Front: 12.4R24. Rear: 18.4R30 |
5095M Serial Number Location
| Description | Serial number plate on the left side of the 5095M ttactor frame, above the front axle. |
|---|
John Deere 5095M Weight
| 2WD Cab Shipping | 8580 lbs (3891 kg) |
|---|---|
| 2WD ROPS Shipping | 8140 lbs (3692 kg) |
| 4WD Cab Shipping | 9185 lbs (4166 kg) |
| 4WD ROPS Shipping | 8765 lbs (3975 kg) |
| Max Drawbar | 3197 lbs (1450 kg) |
| Operating | 6,591 lbs (2WD ROPS) (2989 kg) |
John Deere 5095M attachments
| Description | front-end loader |
|---|
Nebraska Tractor Test 1961
| Description | Diesel 16-speed 4WDOctober 5 - 13, 2009Link: Nebraska Tractor Test 1961 file / PTO performance |
|---|---|
| Fuel use | 5.0 gal/hour (18.9 l/hour) / 5.2 gal/hour (19.7 l/hour) / 5.1 gal/hour (19.3 l/hour) |
| Max power | 84.42 hp (63.0 kW) |
| Power at rated engine speed | 80.34 hp (59.9 kW) |
| Power at rated PTO speed | 83.03 hp (61.9 kW) |
References
| Description | New 5M Series published in 2009, by John Deere / 5M Series published in 2011, by John Deere |
|---|
Speeds
| Description | With 16.9-30 rear tires. / With 16.9-30 rear tires. / With 16.9-30 rear tires. |
|---|
Variants
| 5095MH | high-clearance |
|---|
Nebraska Tractor Test Results

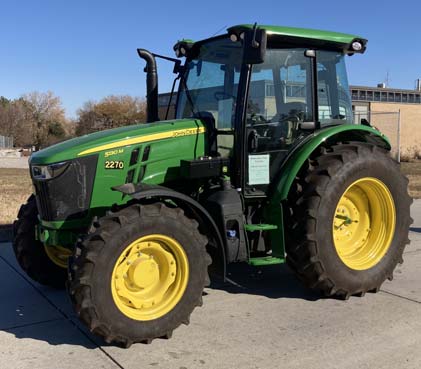

Test #2270
Test Date:
November 9 - 13, 2023
Location:
Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln Nebraska 68583-0832
This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.
Maximum Power & Fuel Consumption
Max Power (1 Hour)
90.11 hp
@ N/A rpm
Rated Engine Speed
83.01 hp
N/A lb/hp·hr
Standard PTO Speed
87.38 hp
@ N/A rpm PTO
Torque Statistics
| Maximum Torque | 272 lb-ft (368 Nm) |
|---|---|
| Torque Rise | 37.1% |
PTO Power Curve
Maximum Power & Fuel Consumption Details
| Condition | HP | kW | RPM | DEF gal/hr | DEF L/hr |
|---|---|---|---|---|---|
| Rated Engine Speed | 83.01 | 61.90 | 2201 | 0.31 | 1.16 |
| Maximum Power (1 Hour) | 90.11 | 67.19 | 1902 | 0.38 | 1.45 |
Varying Power & Fuel Consumption
Click column headers to sort
| Power | RPM | gal/hr | lb/hp·hr | hp·hr/gal | DEF gal/hr |
|---|---|---|---|---|---|
| 83.01 | 2201 | 5.39 | 0.46 | 15.40 | 0.31 |
| 72.08 | 2252 | 5.01 | 0.49 | 14.38 | 0.37 |
| 54.61 | 2272 | 4.35 | 0.56 | 12.56 | 0.29 |
| 36.74 | 2295 | 3.55 | 0.68 | 10.35 | 0.25 |
| 18.50 | 2300 | 2.73 | 1.04 | 6.77 | 0.18 |
| 0.46 | 2301 | 1.93 | 29.27 | 0.24 | 0.16 |
