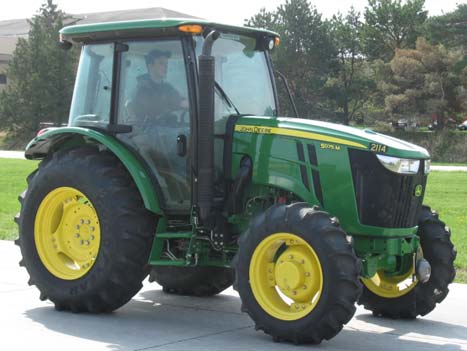

John Deere 5075M Specs ( 2008-2025 )
Overview
The John Deere 5075M is a 75-horsepower utility farm tractor manufactured in Augusta, Georgia, from 2008 to 2025. It features a 3.0L 5-cylinder turbocharged diesel engine and is available with multiple transmission configurations, including the 16-speed PowrReverser and 32-speed options, supported by an open-center hydraulic system with a total flow of 20.9 gpm.
Ideal Applications
Tested PTO Performance:
During Nebraska Tractor Test 1959, the 5075M achieved a maximum PTO power of 65.58 hp at 2200 RPM and a fuel consumption rate of 3.9 gallons per hour.
Hydraulic and Hitch Capacity:
The rear Type II/I hitch is rated for a lift capacity of 3,595 lbs at 24 inches, supported by a hydraulic system providing 2828 psi of pressure and 14.6 gpm pump flow.
Mechanical and Chassis Configuration:
This model is listed with an operating weight ranging from 6,017 to 7,800 pounds, featuring inboard planetary final drives and shift-on-the-move electro-hydraulic rear differential locks.
Production
| Description | Utility tractor / Built in Augusta, Georgia, USA |
|---|---|
| Manufacturer | John Deere |
| Original price | $38,512 (2009 2WD ROPS) |
Engine
| Engine type | John Deere 3.0L 5-cyl diesel |
|---|---|
| Air cleaner | dry |
| Bore/Stroke | 3.385x4.134 inches (86 x 105 mm) |
| Coolant capacity | 10.4 qts (9.8 L) |
| Description | John Deere PowerTech 5030 / turbocharged diesel / 5-cylinder / liquid-cooled |
| Displacement | 186 ci (3.0 L) |
| Power | 75 hp (55.9 kW) |
| Rated RPM | 2200 |
| Starter volts | 12 |
| Torque | 300 lb-ft (406.8 Nm) |
| Torque RPM | 1400 |
| Oil capacity | 10.4 qts (9.8 L) |
| PTO (claimed) | 60 hp (44.7 kW) |
| PTO (tested) | 65.58 hp (48.9 kW) |
Transmission
| Description | Operated via two levers and foot clutch. Speed shift lever selects three forward gears or reverse. Range shift lever selects one of four ranges. Synchronized shuttle shift or speed change shift while moving using the clutch. Tractor must be stopped to change range. |
|---|---|
| Gears | 16 forward and reverse / 12 forward and 4 reverse / 16 forward and reverse / 32 forward and 16 reverse |
| Transmission | SyncReverser / SyncShuttle Plus / PowrReverser / PowrReverser Plus |
| Type | partially synchronized / partially synchronized / partially synchronized with power shuttle |
| Transmission type | 16-speed partially synchronized / 12-speed partially synchronized / 16-speed partially synchronized with power shuttle / 32-speed |
| Transmission type | 16-speed partially synchronized / 12-speed partially synchronized / 16-speed partially synchronized with power shuttle / 32-speed |
Mechanical
| Description | Hydraulic wet disc brakes / Foldable ROPS. Optional deluxe ROPS with upgraded seat. Optional cab with heat and air conditioning. |
|---|---|
| Differential lock | shift-on-the-move electro-hydraulic rear differential lock |
| Drive | 4x2 2WD |
| Final drives | inboard planetary |
| Steering | hydrostatic power |
Capacity
| Front diff. | 5.3 qts (5.0 L) |
|---|---|
| Front hubs | 0.84 qts (each) (0.8 L) |
| Fuel | 22.3 gal (ROPS) (84.4 L) |
| Hydraulic system | 11.9 gal (45.0 L) |
Hydraulics
| 10o↔104oF [-12o↔40oC] | : BIO HY-GARD JDM 20D |
|---|---|
| -10oF [-23oC]↑ | : HY-GARD / : JDM J20C |
| Capacity | 11.9 gal (45.0 L) |
| Oil type | -10oF [-23oC]↑ : HY-GARD -10oF [-23oC]↑ : JDM J20C 10o↔104oF [-12o↔40oC] : BIO HY-GARD JDM 20D ([-23oC][-23oC][-12o↔40oC]) |
| Pressure | 2828 psi (195.0 bar) |
| Pump flow | 14.6 gpm (55.3 lpm) |
| Steering flow | 6.3 gpm (23.8 lpm) |
| Steering press. | 1922 psi (132.5 bar) |
| Total flow | 20.9 gpm (79.1 lpm) |
| Type | open center |
| Valves | 0, 2 or 3 (rear) |
Hitch
| Rear lift (at 24"/610mm) | 3,595 lbs (1630 kg) |
|---|---|
| Rear Type | II/I |
PTO
| Rear PTO | independent electrohydraulic |
|---|---|
| Rear PTO Type | 540/540E |
Electrical
| Battery CCA | 925 |
|---|---|
| Battery Group | 31 |
| Battery volts | 12 |
| Charging amps | 70 (ROPS) |
| Charging system | alternator |
| Ground | negative |
Dimensions & Tires
| Front tread | 57.6 to 82.6 inches (2WD) (146 to 209 cm) / 52.8 to 75 inches (4WD) (134 to 190 cm) |
|---|---|
| Ground clearance | 18.8 inches (front axle) (47 cm) |
| Rear tread | 53.1 to 80.9 inches (134 to 205 cm) |
| Wheelbase | 85.6 inches (217 cm) |
| Front tire | 7.5-16 |
| Rear tire | 16.9-30 |
| Weight | 6017 to 7800 pounds |
| Wheelbase | 85.6 inches (217 cm) |
| Ag front | 7.5-16 (2WD) / 11L-15 (2WD) |
| Ag rear | 16.9-30 / 14.9-28 |
| Industrial front | 11LL-15 (2WD) |
| Industrial rear | 19.5L-24 |
| Lawn/turf front | 27/12LL-15 (2WD) |
| Lawn/turf rear | 22.5LL-16.1 |
5075M Serial Numbers
| Location: | Tractor frame on front left side. |
|---|
John Deere 5075M Weight
| Operating | 6,017 lbs (2WD ROPS) (2729 kg) |
|---|
John Deere 5075M attachments
| Description | front-end loader |
|---|
Nebraska Tractor Test 1959
| Description | Diesel 16-speed 4WDSeptember 22 - October 6, 2009Link: Nebraska Tractor Test 1959 file / PTO performance |
|---|---|
| Fuel use | 3.9 gal/hour (14.8 l/hour) / 4.2 gal/hour (15.9 l/hour) / 4.1 gal/hour (15.5 l/hour) |
| Max power | 65.58 hp (48.9 kW) |
| Power at rated engine speed | 60.12 hp (44.8 kW) |
| Power at rated PTO speed | 60.63 hp (45.2 kW) |
References
| Description | New 5M Series published in 2009, by John Deere / 5M Series published in 2011, by John Deere |
|---|
Speeds
| Description | With 16.9-30 rear tires. / With 16.9-30 rear tires. / With 16.9-30 rear tires. |
|---|
Nebraska Tractor Test Results
Test #2114
Test Date:
April 15 - 20, 2015
Location:
Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln Nebraska 68583-0832
This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.
Maximum Power & Fuel Consumption
Max Power (1 Hour)
63.75 hp
@ 1750 rpm
Rated Engine Speed
60.58 hp
N/A lb/hp·hr
Standard PTO Speed
61.02 hp
@ 540 rpm PTO
Torque Statistics
| Maximum Torque | 208 lb.-ft. (282 Nm) at 1249 rpm |
|---|---|
| Torque Rise | 43.6% |
PTO Power Curve
Maximum Power & Fuel Consumption Details
| Condition | HP | kW | RPM | PTO RPM |
|---|---|---|---|---|
| Rated Engine Speed | 60.58 | 45.18 | 2197 | 565 |
| Standard PTO Speed (1000 rpm) | 61.02 | 45.50 | 2100 | 540 |
| Maximum Power (1 Hour) | 63.75 | 47.53 | 1750 |
Varying Power & Fuel Consumption
Click column headers to sort
| Power | RPM | gal/hr | lb/hp·hr | hp·hr/gal | DEF gal/hr |
|---|---|---|---|---|---|
| 60.58 | 2197 | 4.70 | 0.55 | 12.88 | N/A |
| 52.54 | 2238 | 4.40 | 0.59 | 11.94 | N/A |
| 39.67 | 2263 | 3.87 | 0.69 | 10.24 | N/A |
| 26.69 | 2286 | 3.37 | 0.89 | 7.91 | N/A |
| 13.49 | 2300 | 2.76 | 1.44 | 4.88 | N/A |
| 1.02 | 2300 | 2.02 | 13.86 | 0.51 | N/A |
