Fendt 1167 Vario MT Specs ( 2020-1100 )

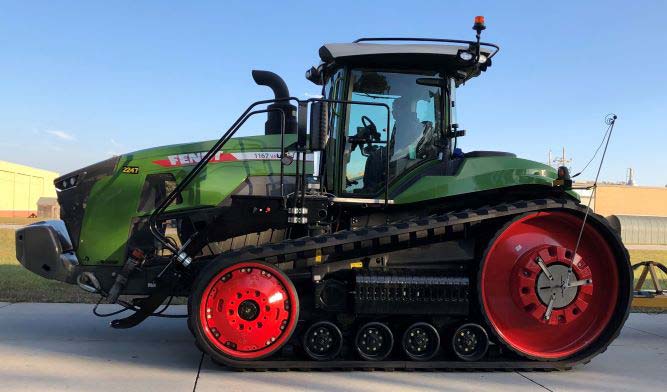

Name: Fendt 1167 Vario MT
Brand: Fendt

Overview

The Fendt 1167 Vario MT is an agricultural crawler tractor introduced in 2020, powered by a 16.2L MAN six-cylinder turbocharged diesel engine. It features a VarioDrive continuously-variable transmission and a track-based drive system with a 118-inch wheelbase. The machine is rated at 663.8 gross engine horsepower and has a listed maximum operating weight of 59,000 lbs.

Ideal Applications

Nebraska Test Performance: In official testing, this model recorded a maximum drawbar performance of 512.65 hp and a maximum pull of 62,858 lbs.

Engine and Torque Output: The MAN D4276 diesel engine is rated for 663.8 gross horsepower and produces 2286 lb-ft of torque at 1450 RPM.

Hydraulic and Transmission Configuration: The vehicle is equipped with a VarioDrive CVT with infinite gears and a closed center pressure-flow compensated hydraulic system providing a 58.1 gpm pump flow.

Production

Description	Agricultural Crawler tractor
Manufacturer	Fendt (a part of AGCO)

Engine

Engine type	MAN 16.2L 6-cyl diesel
Exhaust fluid (DEF)	35.7 gal (135.1 L)
Fuel tank	350 gal (1324.8 L)
Bore/Stroke	5.59x6.69 inches (142 x 170 mm)
Description	MAN D4276 / turbocharged diesel / 6-cylinder / liquid-cooled inline
Displacement	988.6 ci (16.2 L)
Emissions	Tier IV
Oil change	500 h
Rated Power (gross)	663.8 hp (495.0 kW)
Rated RPM	1730
Starter	electric
Starter volts	24
Torque	2286 lb-ft (3099.8 Nm)
Torque RPM	1450
Engine (gross)	663.8 hp (495.0 kW)

Transmission

Description	continuously-variable transmission
Gears	infinite forward and reverse
Transmission	VarioDrive CVT
Type	continuously-variable transmission

Mechanical

Cab	Cab standard with air-conditioning.
Drive	crawler

Hydraulics

Pressure	2900 psi (200.0 bar)
Pump flow	58.1 gpm (219.9 lpm)
Rear valves	4 to 8
Type	closed center pressure-flow compensated

PTO

Rear PTO	independent
Rear PTO Type	1000/1000E

Electrical

Batteries	3
Battery volts	12
Charging amps	325
Charging system	alternator
Ground	negative

Dimensions & Tires

Gauge	88 to 128 inches (223 to 325 cm)
Ground clearance	14.1 inches (35 cm)
Height	148 inches (375 cm)
Length	266 inches (675 cm)
Max weight	59000 lbs (26762 kg)
Weight	42000 lbs (19051 kg)
Wheelbase	118 inches (299 cm)
Width	116.1 inches*Minimum width (294 cm)

Dimensions & Tracks

Description	Tracks
Weight	42000 lbs (19051 kg)
Wheelbase	118 inches (299 cm)

References

Description	Fednt 1100 Vario MT Series published in 2020, by Fendt / Fednt 1100 Vario MT published in 2020, by Fendt

Variants

MT867	similar Challenger model

Nebraska Tractor Test Results

Test #2247

Download PDF

Test Date: October 26 to November 9, 2021

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

604.95 hp

@ 1600 rpm

Rated Engine Speed

598.71 hp

N/A lb/hp·hr

Standard PTO Speed

602.27 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	2,099 lb-ft (2,846 Nm)
Torque Rise	15.5%
At Engine RPM	1050 rpm

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	DEF gal/hr	DEF L/hr
Maximum Power (1 Hour)	604.95	451.11	1600	2.09	7.92

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
598.71	1730	29.90	0.35	20.03	2.33
512.44	1742	25.79	0.35	19.87	1.98
385.61	1752	20.28	0.37	19.02	1.26
258.98	1761	14.95	0.40	17.32	1.10
130.17	1770	10.06	0.54	12.94	0.68
2.37	1779	5.26	15.49	0.45	0.07

Ballasted At 1730 Engine RPM

Click column headers to sort

Power	Pull (lbs)	Speed	RPM	Slip	DEF lb/hp	Barometer Inch Hg	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air F	Temp Cooling F	Travel Speed Setting
368.86	62,858	2.20	1744	13.30	0.05	28.84	14.89	0.47	50	200	2.5 mph (4.0 km/h)
440.05	57,252	2.89	1740	8.70	0.04	28.84	16.05	0.44	51	198	3.1 mph (5.0 km/h)
494.42	52,282	3.55	1730	6.50	0.04	28.83	16.74	0.42	51	198	3.7 mph (6.0 km/h)
508.89	45,230	4.22	1730	4.30	0.04	28.82	17.16	0.41	53	196	4.3 mph (7.0 km/h)
508.79	41,841	4.56	1730	3.60	0.04	28.82	17.20	0.41	54	197	4.7 mph (7.5 km/h)
512.33	39,347	4.88	1730	3.10	0.04	28.82	17.23	0.41	55	197	5.0 mph (8.0 km/h)
506.98	34,294	5.54	1730	2.40	0.04	28.83	17.22	0.41	58	197	5.6 mph (9.0 km/h)
508.11	30,812	6.19	1731	1.90	0.04	28.83	17.24	0.41	57	195	6.2 mph (10.0 km/h)
512.65	28,285	6.80	1729	1.60	0.04	28.83	17.29	0.40	58	197	6.8 mph (11.0 km/h)
511.80	25,803	7.44	1730	1.20	0.04	28.82	17.10	0.41	59	197	7.5 mph (12.0 km/h)
505.00	23,447	8.08	1730	1.00	0.04	28.82	16.98	0.41	59	197	8.1 mph (13.0 km/h)

Manual Mode 1730 Engine RPM (Unballasted)

Click column headers to sort

Power	Pull (lbs)	Speed	RPM	Slip	DEF lb/hp	Barometer Inch Hg	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air F	Temp Cooling F	Travel Speed Setting
409.95	46,628	3.30	1741	12.80	0.04	29.11	15.48	0.45	43	199	3.7 mph (6.0 km/h)
470.68	44,384	3.98	1737	9.90	0.04	29.10	16.06	0.44	44	197	4.3 mph (7.0 km/h)
485.08	41,777	4.36	1737	7.90	0.04	29.15	16.59	0.42	47	197	4.7 mph (7.5 km/h)
490.03	38,996	4.71	1730	6.60	0.04	29.15	16.63	0.42	47	197	5.0 mph (8.0 km/h)
490.73	33,935	5.43	1730	4.30	0.04	29.19	16.93	0.41	43	194	5.6 mph (9.0 km/h)
496.16	30,650	6.08	1729	3.40	0.04	29.19	17.00	0.41	44	194	6.2 mph (10.0 km/h)
503.22	28,055	6.73	1731	2.70	0.04	29.14	17.22	0.41	48	195	6.8 mph (11.0 km/h)
508.31	25,831	7.38	1731	2.10	0.04	29.14	17.29	0.40	48	196	7.5 mph (12.0 km/h)
506.80	23,579	8.06	1730	1.60	0.04	29.13	17.06	0.41	48	194	8.1 mph (13.0 km/h)

Manual Mode 1600 Engine RPM (Unballasted)

Click column headers to sort

Power	Pull (lbs)	Speed	RPM	Slip	DEF lb/hp	Barometer Inch Hg	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air F	Temp Cooling F	Travel Speed Setting
408.32	46,607	3.29	1741	13.30	0.04	29.11	15.39	0.45	43	199	3.7 mph (6.0 km/h)
469.24	44,240	3.98	1737	9.90	0.04	29.10	16.13	0.43	44	198	4.3 mph (7.0 km/h)
481.67	41,273	4.38	1720	7.30	0.04	29.10	16.64	0.42	46	197	4.7 mph (7.5 km/h)
483.09	38,009	4.77	1680	5.20	0.04	29.10	16.89	0.41	46	197	5.0 mph (8.0 km/h)
493.83	34,155	5.42	1634	4.00	0.04	29.10	17.35	0.40	47	197	5.6 mph (9.0 km/h)
496.08	30,617	6.08	1599	3.30	0.04	29.18	17.38	0.40	46	192	6.2 mph (10.0 km/h)
501.45	27,843	6.76	1601	2.50	0.04	29.13	17.39	0.40	48	194	6.8 mph (11.0 km/h)
504.74	25,621	7.39	1600	2.10	0.04	29.12	17.51	0.40	48	194	7.5 mph (12.0 km/h)
495.06	23,073	8.05	1599	1.60	0.04	29.12	17.28	0.40	48	194	8.1 mph (13.0 km/h)

Fuel Consumption Characteristics (Unballasted)

Click column headers to sort

Power	Pull (lbs)	Speed	RPM	Slip	DEF lb/hp	Air °F	Cool °F	Barometer Inch Hg	Condition	Fuel Hp Hr Gal	Fuel Lb Hp Hr
490.73	33,935	5.43	1730	4.30	0.04	43	194	29.19	Power at Rated Engine Speed—5.6 mph(9.0 km/h)	16.93	0.41
377.15	25,456	5.56	1748	1.90	0.04	48	201	29.12	75% of Pull at Rated Engine Speed—5.6 mph(9.0km/h)	16.89	0.41
253.75	16,966	5.61	1758	0.80	0.04	47	203	29.11	50% of Pull at Rated Engine Speed—5.6 mph(9.0km/h)	15.28	0.46
377.06	25,433	5.57	1242	1.90	0.06	47	193	29.11	75% of Pull at Reduced Engine Speed—5.6 mph(9.0km/h)	18.25	0.38
253.78	16,942	5.62	1186	0.70	0.07	48	194	29.11	50% of Pull at Reduced Engine Speed—5.6 mph(9.0km/h)	17.71	0.39

Category: 4N Quick Attach: yes

Lift Capacity

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Combined Flow	123.60 gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	MAN Diesel
Type	six cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) technology
Displacement	986 cu in (16154 ml)
Bore & Stroke	5.591" x 6.693" (142.0 mm x 170.0 mm)
Compression Ratio	18.0 to 1
Rated Engine Speed	1730 rpm
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) with a vertical muffler
Crankshaft	lengthwise

Chassis

Type	Tracklayer-rubber tracked
Steering	electro-hydraulic differential steering controlled by steering wheel
Transmission	CVT. Infinitely variable hydrostatic using variable displacement pump and motors
Brakes	wet multiple disc hydraulically actuated by foot pedal
Hydraulic Control	direct engine drive
Unladen Tractor Mass	43,665 lbs ( 19,806 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Engine Oil	SAE 10W-40 API service classification CK-4

Sound Levels

Bystander	88.50 dB(A)
At No Load At 4 6 Mph Engine Speed 1040 RPM	61.60 dB(A)
At No Load At 4 6 Mph Engine Speed 1770 RPM	69.50 dB(A)

Tires & Tracks

Height of Drawbar

Static Weight

Rear	N/A lbs
Front	N/A lbs
Total	N/A lbs
