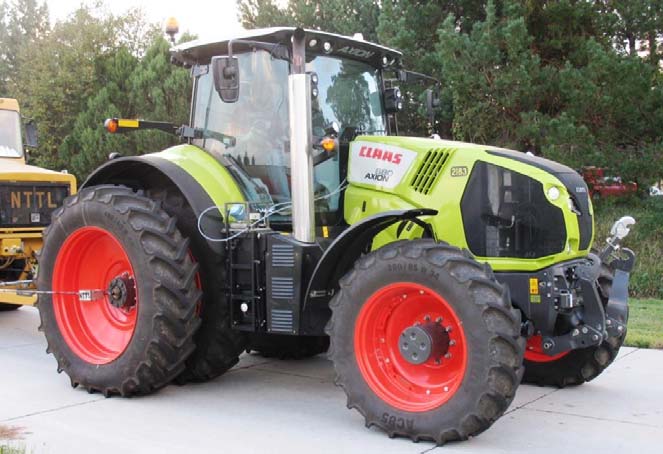

Claas Axion 880 Specs ( 2018-Present )

Name: Claas Axion 880
Brand: Claas

Overview

The Claas Axion 880 is a four-wheel drive row-crop tractor produced from 2018 to the present, featuring an FPT 6.7L 6-cylinder turbocharged diesel engine and a CMATIC continuously variable transmission. This model is equipped with a Rear Type III hitch, a 40 gpm hydraulic pump, and an operating weight of 24,055 lbs.

Ideal Applications

Tested Performance and Output: According to Nebraska Tractor Test data, the Axion 880 recorded a maximum tested PTO power of 253.72 hp and a maximum pull of 23,331 lbs.

Engine and Emissions Configuration: The liquid-cooled FPT diesel engine utilizes selective catalytic reduction to meet Tier IV emissions standards and is equipped with a 120-gallon fuel tank and an 11-gallon DEF tank.

Transmission and Drivetrain Layout: The mechanical configuration consists of a CMATIC continuously variable transmission with infinite gears, four-wheel drive, and power steering.

Production

Description	Row-Crop tractor
Manufacturer	Claas

Engine

Engine type	FPT 6.7L 6-cyl diesel
Exhaust fluid (DEF)	11 gal (41.6 L)
Fuel tank	120 gal (454.2 L)
Bore/Stroke	4.09x5.20 inches (104 x 132 mm)
Description	FPT / turbocharged intercooled diesel / 6-cylinder / liquid-cooled
Displacement	410.6 ci (6.7 L)
Emission control	selective catalytic reduction
Emissions	Tier IV
Maximum Power	280 hp (208.8 kW)
Oil change	600 h
Power	265 hp (197.6 kW)
Starter	electric
Starter volts	12
Drawbar (tested)	192.96 hp (143.9 kW)
PTO (claimed)	245 hp (182.7 kW)
PTO (tested)	253.72 hp (189.2 kW)

Transmission

Description	continuously variable transmission
Gears	infinite forward and reverse
Transmission	CMATIC
Type	continuously variable transmission

Mechanical

Cab	Cab standard with air-conditioning.
Description	Power steering / Wet disc brakes
Drive type	Four-wheel drive

Hydraulics

Front valves	2 OptOptional
Pump flow	40 gpm (151.4 lpm)
Rear valves	4 or 5

Hitch

Rear Type	III

PTO

Rear PTO	independent
Rear PTO Type	540/1000

Electrical

Battery volts	12
Ground	negative

Dimensions & Tires

Operating weight	24055 lbs (10911 kg)
Weight	24055 lbs (10911 kg)

OCED Tractor Test 2183

Description	Diesel IVT 4WDSeptember 19 - 29, 2017Link: OCED Tractor Test 2183 file / PTO performance / Drawbar performance / Pull at 9 KPH / Pull at 4 KPH
Fuel use	13.4 gal/hour (50.7 l/hour) / 12.8 gal/hour (48.4 l/hour) / 13.4 gal/hour (50.7 l/hour) / 13.0 gal/hour (49.2 l/hour)
Max power	253.72 hp (189.2 kW) / 192.96 hp (143.9 kW)
Max pull	23316 lbs (10576 kg)
Power at rated engine speed	228.46 hp (170.4 kW)
Power at rated PTO speed	249.34 hp (185.9 kW)

Nebraska Tractor Test Results

Test #2183

Download PDF

Test Date: September 19 to 29, 2017

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

253.72 hp

@ 1801 rpm

Rated Engine Speed

228.46 hp

N/A lb/hp·hr

Standard PTO Speed

249.34 hp

@ 1000 rpm PTO

Torque Statistics

Maximum Torque	837 lb-ft (1,135 Nm)
Torque Rise	50.0%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM	DEF gal/hr	DEF L/hr
Rated Engine Speed	228.46	170.36	2150	1114	0.77	2.91
Standard PTO Speed (1000 rpm)	249.34	185.94	1930	1000	0.81	3.06
Maximum Power (1 Hour)	253.72	189.20	1801		0.82	3.11

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
228.46	2150	12.84	0.39	17.79	0.77
196.88	2181	11.37	0.40	17.32	0.69
148.07	2185	8.84	0.42	16.75	0.53
98.91	2188	6.53	0.46	15.15	0.43
49.63	2192	4.40	0.62	11.27	0.28
1.81	2196	2.47	9.55	0.73	0.12

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	kW	Pull (lbs)	Pull (kN)	Speed	km/h	Slip	DEF lb/hp	Air °F	Cool °F
Power at Rated Engine Speed—5.6 mph (9.0...	192.96	143.89	13,376	60	5.41	8.71	3.20	0.04	70	187
75% of Pull at Rated Engine Speed—5.6 mp...	145.27	108.32	9,961	44	5.47	8.80	2.40	0.04	82	198
50% of Pull at Rated Engine Speed—5.6 mp...	98.09	73.15	6,645	30	5.54	8.91	1.60	0.04	83	208
75% of Pull at Reduced Engine Speed—Auto...	145.81	108.73	9,942	44	5.50	8.85	2.40	0.04	83	212
50% of Pull at Reduced Engine Speed—Auto...	98.02	73.09	6,546	29	5.62	9.04	1.50	0.04	83	210

Manual Mode 2150 Engine RPM

Click column headers to sort

Setting	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	lb/hp·hr	DEF lb/hp	inHg	Crank RPM	Temp Air	Temp Coolant
2.5 mph (4.0 km/h)	133.48	23,316	2.15	14.20	12.60	0.56	0.05	28.87	2168	54	196
3.1 mph (5.0 km/h)	169.44	22,163	2.87	8.20	13.71	0.51	0.05	28.87	2163	54	192
3.7 mph (6.0 km/h)	183.40	19,430	3.54	5.30	14.61	0.48	0.04	28.88	2150	56	191
4.2 mph (6.8 km/h)	190.39	17,794	4.01	4.50	14.64	0.48	0.04	28.89	2150	55	193
4.7 mph (7.5 km/h)	185.81	15,686	4.44	4.00	14.30	0.49	0.04	28.59	2150	66	188
5.1 mph (8.2 km/h)	188.76	13,959	5.07	3.40	14.49	0.48	0.04	28.59	2150	70	187
5.6 mph (9.0 km/h)	192.96	13,376	5.41	3.20	14.88	0.47	0.04	28.59	2150	70	187
6.2 mph (10.0 km/h)	195.31	12,135	6.04	2.90	15.03	0.47	0.04	28.59	2150	70	187
6.8 mph (11.0 km/h)	197.80	11,106	6.68	2.70	15.22	0.46	0.04	28.59	2150	72	187
7.5 mph (12.0 km/h)	196.62	10,146	7.27	2.50	15.20	0.46	0.04	28.59	2150	74	186
8.2 mph (13.2 km/h) boosted	200.30	9,291	8.09	2.20	15.05	0.47	0.04	28.59	2150	74	191

Manual Mode 1800 Engine RPM

Click column headers to sort

Setting	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	lb/hp·hr	DEF lb/hp	inHg	Crank RPM	Temp Air	Temp Coolant
2.5 mph (4.0 km/h)	133.75	23,331	2.15	14.10	12.46	0.56	0.05	28.87	2168	54	196
3.1 mph (5.0 km/h)	169.53	22,178	2.87	8.30	13.67	0.51	0.05	28.87	2163	54	192
3.7 mph (6.0 km/h)	189.53	20,917	3.40	6.30	14.47	0.48	0.04	28.88	2086	55	194
4.2 mph (6.8 km/h)	200.19	19,869	3.78	5.50	14.66	0.48	0.04	28.90	2045	55	195
4.7 mph (7.6 km/h)	201.55	17,917	4.22	4.60	14.70	0.48	0.04	28.90	2008	56	197
5.1 mph (8.2 km/h)	208.10	17,123	4.56	4.30	15.11	0.46	0.04	28.90	1974	55	196
5.6 mph (9.0 km/h)	212.85	16,535	4.83	4.10	15.56	0.45	0.04	28.90	1926	56	196
6.2 mph (10.0 km/h)	217.68	15,379	5.31	3.80	15.97	0.44	0.04	28.90	1904	57	193
6.8 mph (11.0 km/h)	223.82	15,005	5.59	3.70	16.44	0.43	0.04	28.90	1800	59	190
7.5 mph (12.0 km/h)	223.74	13,840	6.06	3.40	16.41	0.43	0.04	28.90	1800	59	190
8.2 mph (13.2 km/h)	222.43	12,344	6.76	3.10	16.33	0.43	0.04	28.89	1800	60	190
8.9 mph (14.4 km/h)	218.19	11,107	7.37	2.80	15.99	0.44	0.04	28.90	1800	60	191
*9.9 mph (16.0 km/h) boosted	221.33	10,129	8.19	2.50	15.25	0.46	0.04	28.90	1800	60	197

Automatic Mode

Click column headers to sort

Setting	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	lb/hp·hr	DEF lb/hp	inHg	Crank RPM	Temp Air	Temp Coolant
3.7 mph (6.0 km/h)	182.05	19,766	3.46	5.60	15.36	0.46	0.04	28.90	1574	58	199
4.2 mph (6.8 km/h)	190.43	17,893	4.00	4.70	15.95	0.44	0.04	28.90	1511	58	197
4.7 mph (7.5 km/h)	185.19	15,679	4.43	3.80	16.57	0.42	0.04	28.55	1466	77	207
5.2 mph (8.4 km/h)	188.13	14,184	4.97	3.40	16.54	0.42	0.04	28.56	1470	78	208
5.7 mph (9.2 km/h)	192.63	13,188	5.48	3.10	16.42	0.43	0.04	28.56	1484	78	207
6.2 mph (10.0 km/h)	195.22	12,179	6.02	2.90	16.47	0.43	0.04	28.56	1538	78	203
6.8 mph (11.0 km/h)	197.76	11,158	6.65	2.60	16.27	0.43	0.04	28.55	1541	81	204
7.5 mph (12.0 km/h)	196.24	10,253	7.18	2.40	15.95	0.44	0.04	28.55	1583	81	206
8.2 mph (13.2 km/h) boosted	200.09	9,405	7.98	2.20	16.08	0.44	0.04	28.55	1533	82	208

Category: III Quick Attach: Yes

Lift Capacity

Three Outlet Sets Combined

Sustained Pressure	2,761 psi
Delivery Pressure	2,482 psi
Flow Rate (min press)	39.10 gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	2,753 psi
Delivery Pressure	2,327 psi
Flow Rate (min press)	29.80 gpm
Max Power	N/A hp

Engine

Make	F.P.T. Diesel
Type	six cylinder vertical with turbocharger, air to air intercooler and D.E.F. exhaust treatment
Displacement	410 cu in (6728 ml)
Compression Ratio	17.5 to 1
Rated Engine Speed	2150 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist with duals
Steering	hydrostatic
Transmission	Infinitely variable with four mechanical ranges and automatic shifting between ranges
Wheelbase	117.30 in (2980 mm)
Front Tread Width	61.0 to 88.6 in
Rear Tread Width	61.4 to 124.0 in
Brakes	wet disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	24,055 lbs ( 10,911 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Transmission	Claas Agrishift GA12 fluid
Hydraulic	Claas Agrishift GA12 fluid

Sound Levels

Bystander	83.30 dB(A)

At No Load 4 6 Mph 1260 RPM

At No Load 4 6 Mph 2190 RPM

Tires & Tracks

Rear Tires	Four 480/80R46; ***; 12(85) psi(kPa)
Front Tires	Two 380/85R34; ***; 23(160) psi(kPa)
Height of Drawbar	20.50 in (520 mm)

Static Weight

Rear	14,655 lbs
Front	9,575 lbs
Total	24,230 lbs
