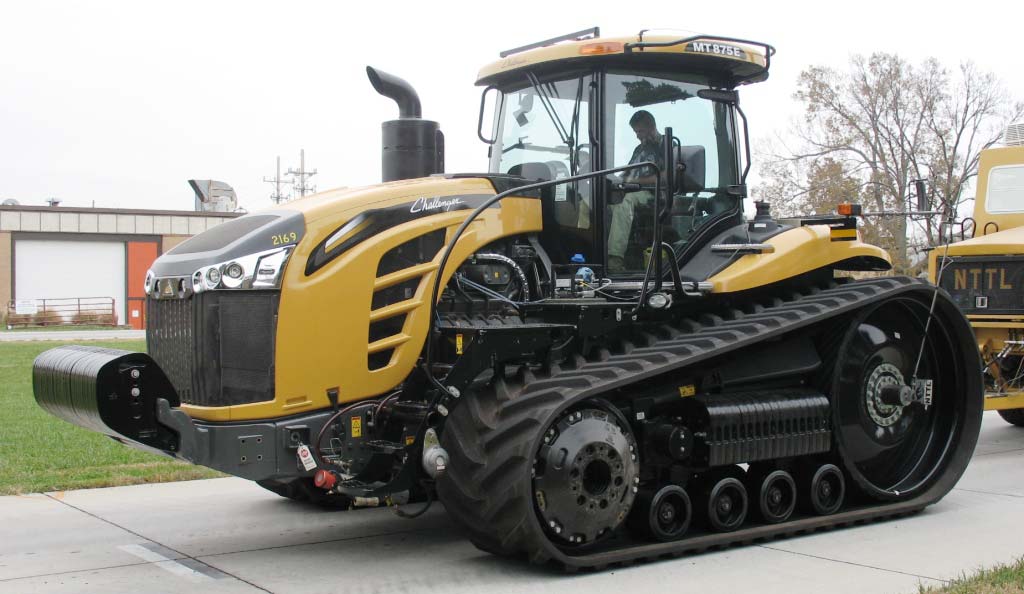

Challenger MT875E Specs ( 2014-2020 )

Production

Description	Agricultural Crawler tractor / Built in Jackson, Minnesota, USA
Manufacturer	Challenger (a part of AGCO)

Engine

Engine type	AGCO Power 16.8L 12-cyl diesel
Exhaust fluid (DEF)	30.5 gal (115.4 L)
Fuel tank	330 gal (1249.0 L)
Bore/Stroke	4.370x5.709 inches (111 x 145 mm)
Description	AGCO Power / turbocharged diesel / 12-cylinder 48-valve / liquid-cooled
Displacement	1027.5 ci (16.8 L)
Emission control	selective catalytic reduction (SCR)
Emissions	Tier IV
Maximum Power	637 hp (475.0 kW)
Power (gross)	590 hp (440.0 kW)
Starter	electric
Starter volts	12
Torque	2095 lb-ft (2840.8 Nm)
Torque RPM	1500
Drawbar (tested)	445.03 hp (331.9 kW)
Engine (gross)	590 hp (440.0 kW)
PTO (claimed)	425 hp (316.9 kW)
PTO (tested)	561.47 hp (418.7 kW)

Transmission

Clutch	hydraulic wet disc
Gears	16 forward and 4 reverse
Transmission	Caterpillar
Transmission type	16-speed full power shift
Type	full power shift

Mechanical

Cab	Cab standard with air-conditioning.
Drive	crawler
Steering	power differential

Hydraulics

Pressure	2900 psi (200.0 bar)
Pump flow	58.1 gpm (219.9 lpm)
SCV flow	26.4 gpm (99.9 lpm)
Type	closed center pressure flow compensated
Valves	4 to 6

Hitch

Drawbar	Cat. 4
Rear lift	19500 lbs (8845 kg)

PTO

Clutch	electronic
Rear PTO	independent
Rear PTO Type	1000 (1.75)

Electrical

Batteries	4
Battery CCA	1000
Battery volts	12
Charging amps	300 (2x 150)
Charging system	alternator
Ground	negative

Dimensions & Tires

Description	Bar rear axle
Front axle	Bar
Gauge	90 to 128 inches (228 to 325 cm)

Challenger MT875E Tracks

Width	18 inches (45 cm) / 27.5 inches (69 cm) / 30 inches (76 cm) / 36 inches (91 cm)

Challenger MT875E Weight

Max capacity	55913 lbs (25362 kg)
Max Drawbar	10000 lbs (Cat. 4) (4536 kg)
Shipping	42596 lbs (19321 kg)

Dimensions & Tracks

Description	18-inch tracks
Weight	42596 lbs (19321 kg)

OCED Tractor Test 2169

Description	Diesel 16-speed crawlerOctober 26 - November 7, 2016Link: OCED Tractor Test 2169 file / PTO performance / Drawbar performance / Gear 8 used for power test. / Gear 4 used for pull test.
Fuel use	30.2 gal/hour (114.3 l/hour) / 30.2 gal/hour (114.3 l/hour) / 31.4 gal/hour (118.8 l/hour) / 30.0 gal/hour (113.6 l/hour)
Max power	561.47 hp (418.7 kW) / 445.03 hp (331.9 kW)
Max pull	44282 lbs (20086 kg)
Power at rated engine speed	504.83 hp (376.5 kW)
Power at rated PTO speed	554.35 hp (413.4 kW)

References

Description	MT700E & MT800E Series Challenger Track Tractors published in 2015, by AGCO / Challenger MT800E Series Tractors published in 2013, by AGCO / MT800E Series Tractors published in 2017, by AGCO / Challenger X-Edition published in 2015, by AGCO

Nebraska Tractor Test Results

Test #2169

Download PDF

Test Date: October 26 to November 7, 2016

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

561.47 hp

@ 1799 rpm

Rated Engine Speed

504.83 hp

N/A lb/hp·hr

Standard PTO Speed

554.35 hp

@ 1000 rpm PTO

Torque Statistics

Maximum Torque	1,919 lb-ft (2,602 Nm)
Torque Rise	52.0%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM
Rated Engine Speed	504.83	376.45	2100	1061
Standard PTO Speed (1000 rpm)	554.35	413.38	1979	1000
Maximum Power (1 Hour)	561.47	418.69	1799

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
504.83	2100	30.15	0.42	16.74	1.00
437.34	2140	27.29	0.44	16.03	0.93
331.13	2161	22.55	0.48	14.68	0.54
221.74	2170	17.81	0.56	12.45	0.27
111.24	2179	13.15	0.83	8.46	0.24
1.97	2186	8.46	30.04	0.23	0.02

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	Pull (lbs)	Speed	Slip	inHg
Power at Rated Engine Speed—8th Gear	445.03	29,413	5.68	2.40	28.94
75% of Pull at Rated Engine Speed—8th Ge...	346.51	22,064	5.89	1.40	28.91
50% of Pull at Rated Engine Speed—8th Ge...	234.34	14,741	5.96	0.60	28.89
75% of Pull at Reduced Engine Speed—12th...	346.55	22,009	5.91	1.40	28.89
50% of Pull at Reduced Engine Speed—12th...	234.42	14,695	5.99	0.60	28.89

Unballasted At 2100 Engine RPM Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	DEF lb/hp	inHg	Engine RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air Dry F	Temp Coolant F
4th Gear	355.47	44,282	3.01	13.00	0.02	28.65	2127	12.58	0.56	73	177
5th Gear	422.42	42,192	3.76	7.60	0.02	28.93	2100	14.08	0.50	59	174
6th Gear	439.20	37,759	4.36	4.70	0.02	28.94	2100	14.60	0.48	54	174
7th Gear	440.45	33,047	5.00	3.10	0.02	28.95	2100	14.65	0.48	54	173
8th Gear	445.03	29,413	5.68	2.40	0.02	28.94	2100	14.81	0.47	52	173
9th Gear	441.71	25,798	6.42	1.70	0.02	28.94	2099	14.67	0.48	56	174
10th Gear	442.78	22,872	7.26	1.40	0.02	28.92	2100	14.74	0.48	56	174
11th Gear	434.16	19,803	8.23	0.90	0.02	28.93	2100	14.40	0.49	57	174

Ballasted At 1800 Engine RPM Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	DEF lb/hp	inHg	Engine RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air Dry F	Temp Coolant F
3rd Gear	357.38	56,210	2.39	12.90	0.02	28.81	2131	12.82	0.55	61	174
4th Gear	430.61	53,574	3.01	9.30	0.02	28.84	2036	14.10	0.50	61	177
5th Gear	469.90	50,513	3.49	7.20	0.02	28.83	1936	15.33	0.46	62	178
6th Gear	489.71	48,367	3.80	6.20	0.02	28.82	1852	16.08	0.44	62	178
7th Gear	497.75	44,009	4.24	4.50	0.02	28.85	1800	16.44	0.43	62	180
8th Gear	504.55	39,186	4.83	3.40	0.02	28.78	1800	16.64	0.42	60	179
9th Gear	503.38	34,436	5.48	2.40	0.02	28.77	1800	16.61	0.42	60	179
10th Gear	507.74	30,658	6.21	1.80	0.02	28.77	1799	16.80	0.42	60	179
11th Gear	500.40	26,653	7.04	1.30	0.02	28.80	1799	16.51	0.42	60	179
12th Gear	501.53	23,659	7.95	1.00	0.02	28.78	1799	16.58	0.42	61	179
13th Gear	504.88	19,955	9.49	0.70	0.02	28.79	1800	16.69	0.42	61	179

Unballasted At 1800 Engine RPM Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	DEF lb/hp	inHg	Engine RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air Dry F	Temp Coolant F
4th Gear	360.43	44,222	3.06	11.60	0.02	28.64	2126	12.77	0.55	73	177
5th Gear	417.47	43,118	3.64	10.00	0.02	28.63	2085	13.96	0.50	73	179
6th Gear	446.03	41,393	4.05	8.20	0.02	28.64	2020	14.72	0.48	75	181
7th Gear	471.04	40,338	4.38	6.60	0.02	28.64	1908	15.48	0.45	72	181
8th Gear	484.84	38,566	4.72	5.60	0.02	28.64	1805	16.07	0.44	71	182
9th Gear	487.67	33,903	5.40	3.70	0.02	28.65	1800	16.21	0.43	71	183
10th Gear	498.44	30,470	6.14	2.80	0.02	28.65	1800	16.57	0.42	68	181
11th Gear	492.09	26,475	6.97	2.00	0.02	28.64	1800	16.32	0.43	67	181
12th Gear	494.86	23,521	7.89	1.40	0.02	28.67	1800	16.34	0.43	67	181
13th Gear	498.28	19,802	9.44	1.00	0.02	28.62	1800	16.47	0.43	69	182

Engine

Make	AGCO Power Diesel
Type	twelve cylinder vee with 4 turbochargers, two stage air to water aftercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	1026 cu in (16838 ml)
Compression Ratio	16.7 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	tracklayer-rubber tracked
Steering	electro-hydraulic differential steering controlled by steering wheel
Transmission	selective gear fixed ratio with full range operator controlled power shift
Speeds	20 forward (24.86 mph max)
Brakes	wet multiple disc hydraulically actuated by foot pedal
Hydraulic Control	direct engine drive

Consumables

Fuel	No. 2 Diesel
DEF Fluid	N/A
Engine Oil	SAE 10W-40 API CJ-4

Sound Levels

Bystander	90.20 dB(A)
At No Load In 6th Gear	74.30 dB(A)

Tires & Tracks

Height of Drawbar

Static Weight

Rear	N/A lbs
Front	N/A lbs
Total	N/A lbs
