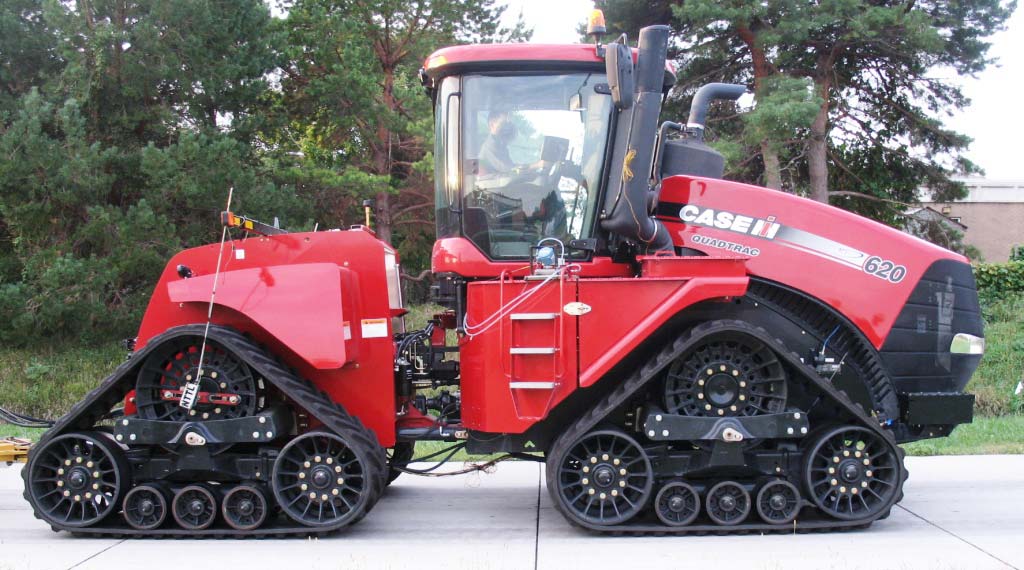

CaseIH Steiger 620 Quadtrac Specs ( 2014-2023 )

Name: CaseIH Steiger 620 Quadtrac
Brand: CaseIH

Overview

The CaseIH Steiger 620 Quadtrac is an articulated crawler tractor produced in Fargo, North Dakota, between 2014 and 2023. It features a 12.9L 6-cylinder FPT diesel engine rated at 620 hp and uses a 16-speed full power shift transmission. The vehicle is configured with an operating weight of 60,145 lbs and a 154-inch wheelbase utilizing 30-inch or 36-inch tracks.

Ideal Applications

Tested Performance Capabilities: Nebraska Tractor Test data recorded a maximum drawbar performance of 561.94 hp and a maximum pull of 57,556 lbs using the 16-speed crawler configuration.

Engine and Emissions Configuration: The liquid-cooled FPT engine is equipped with two-stage turbocharging, electronic high pressure common rail fuel injection, and selective catalytic reduction to meet Tier 4 emissions standards.

Hitch and Hydraulic Specifications: The tractor is equipped with a Category 4 drawbar and a rear lift capacity of 19,728 lbs at 24 inches, supported by a pressure flow compensated hydraulic system with a pump flow of 42 gpm.

Production

Description	Articulated Crawler tractor / Built in Fargo, North Dakota, USA / Original price was $567,632 in 2015
Manufacturer	CaseIH (a part of CNH)

Engine

Engine type	FPT 12.9L 6-cyl diesel
Exhaust fluid (DEF)	85 gal (321.7 L)
Fuel tank	470 gal (1779.0 L)
Bore/Stroke	5.31x5.91 inches (135 x 150 mm)
Compression	15.5:1
Cooling system	hydraulically-driven fan
Description	FPT / two-stage turbocharged air-to-water intercooled air-to-air aftercooled diesel / 6-cylinder / liquid-cooled
Displacement	787 ci (12.9 L)
Emission control	selective catalytic reduction (SCR)
Emissions	Tier 4
Fuel system	electronic high pressure common rail
Maximum Power	682 hp (508.6 kW)
Power	620 hp (462.3 kW)
Rated RPM	2100
Starter	electric
Starter volts	24
Drawbar (tested)	507.20 hp (378.2 kW)
Engine (max)	682 hp (508.6 kW)
PTO (claimed)	473 hp (352.7 kW)
PTO (tested)	539.07 hp (402.0 kW)

Transmission

Clutch	electro-hydraulic wet disc
Gears	16 forward and 2 reverse
Transmission type	16-speed full power shift
Type	full power shift

Mechanical

Brakes	hydraulic wet disc
Cab	Surveyor Cab standard with air-conditioning.
Drive	articulated crawler
Final drives	planetary
Steering	hydraulic articulated
Trailer brakes	hydraulic *Optional.

Hydraulics

Pump flow	42 gpm (159.0 lpm)
SCV flow	35 gpm (132.5 lpm)
Type	pressure flow compensated
Valves	4 to 8

Hitch

Drawbar	Cat. 4
Rear Arms	quick coupler
Rear lift (at 24"/610mm)	19728 lbs (8948 kg)
Rear Type	IVN

PTO

Engine RPM	1000@1811
Rear PTO	independent
Rear PTO Type	1000 *1.75 inch shaft

Electrical

Batteries	2
Battery CCA	1000
Battery volts	12
Charging amps	240
Charging system	alternator
Ground	negative

Dimensions & Tires

Description	Flange rear axle
Front axle	Flange
Wheelbase	154 inches (391 cm)

CaseIH Steiger 620 Quadtrac Tracks

Width	30 inches (76 cm) / 36 inches (91 cm)

CaseIH Steiger 620 Quadtrac Weight

Max capacity	64000 lbs (29030 kg)
Operating	60145 lbs (27281 kg)
Shipping	48780 lbs (22126 kg)

Dimensions & Tracks

Description	30-inch tracks
Weight	48780 to 60145 pounds
Wheelbase	154 inches (391 cm)

OCED Tractor Test 2165

Description	Diesel 16-speed crawlerSeptember 30 - October 10, 2016Link: OCED Tractor Test 2165 file / PTO performance / Drawbar performance / Gear 5 used for power test. / Gear 2 used for pull test.
Fuel use	27.9 gal/hour (105.6 l/hour) / 26.1 gal/hour (98.8 l/hour) / 27.2 gal/hour (103.0 l/hour) / 30.5 gal/hour (115.4 l/hour)
Max power	539.07 hp (402.0 kW) / 507.20 hp (378.2 kW)
Max pull	57556 lbs (26107 kg)
Power at rated engine speed	479.06 hp (357.2 kW)
Power at rated PTO speed	531.84 hp (396.6 kW)

References

Description	Steiger 370-620 Tractors published in 2014, by CaseIH

Variants

620	wheeled tractor
620QT	crawler tractor

Nebraska Tractor Test Results

Test #2165

Download PDF

Test Date: N/A

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

539.07 hp

@ N/A rpm

Rated Engine Speed

479.06 hp

0.38 lb/hp·hr

Standard PTO Speed

531.84 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	1,765 lb-ft (2,393 Nm)
Torque Rise	47.4%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW
Maximum Power (1 Hour)	539.07	401.98

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
479.06	2101	26.15	0.38	18.32	2.44
416.26	2147	23.61	0.40	17.63	2.04
314.09	2159	18.82	0.42	16.69	1.56
210.45	2170	14.17	0.47	14.85	1.16
105.73	2180	9.58	0.64	11.04	0.62
1.59	2189	5.20	22.92	0.31	0.21

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	kW	Pull (lbs)	Pull (kN)	Speed	Slip	DEF lb/hp	DEF kg/kW	Cool °F	Cool °C
Power at Rated Engine Speed—5th Gear	507.20	378.22	35,120	156	5.42	2.90	0.05	0.03	206	97
75% of Pull at Rated Engine Speed—5th Ge...	391.62	292.03	26,320	117	5.58	1.70	0.05	0.03	195	90
50% of Pull at Rated Engine Speed—5th Ge...	266.13	198.45	17,542	78	5.69	0.90	0.05	0.03	194	90
75% of Pull at Reduced Engine Speed—9th ...	391.41	291.87	26,298	117	5.58	1.60	0.04	0.02	197	92
50% of Pull at Reduced Engine Speed—9th ...	265.52	197.99	17,580	78	5.67	0.90	0.05	0.03	182	83

Drawbar Performance At 2100 Engine RPM

Click column headers to sort

Gear	Power	kW	Pull (lbs)	Pull (kN)	Speed	km/h	RPM	Slip	hp·hr/gal	lb/hp·hr	DEF lb/hp	inHg	kPa	Def Kg Kwh	Kg Kwh	Kwh L	Temp Air Dry C	Temp Air Dry F	Temp Cool Med C	Temp Cool Med F
2nd Gear	439.98	328.09	57,556	256.02	2.87	4.62	2108	14.60	14.75	0.48	0.06	29.07	98.44	0.04	0.29	2.91	11	52	94	201
3rd Gear	482.90	360.09	48,487	215.68	3.74	6.01	2102	7.50	15.94	0.44	0.06	29.05	98.37	0.03	0.27	3.14	14	57	92	198
4th Gear	502.48	374.70	40,392	179.67	4.67	7.51	2099	4.00	16.54	0.42	0.05	28.70	97.19	0.03	0.26	3.26	13	55	96	204
5th Gear	507.20	378.22	35,120	156.22	5.42	8.71	2099	2.90	16.63	0.42	0.05	28.67	97.09	0.03	0.26	3.28	13	55	97	206
6th Gear	506.35	377.59	31,753	141.24	5.98	9.62	2099	2.40	16.62	0.42	0.05	28.69	97.16	0.03	0.26	3.27	12	54	97	206
7th Gear	503.91	375.77	28,710	127.71	6.59	10.60	2100	2.10	16.54	0.42	0.05	28.67	97.09	0.03	0.26	3.26	13	55	95	203
8th Gear	504.27	376.03	26,042	115.84	7.26	11.68	2100	1.70	16.55	0.42	0.05	28.69	97.16	0.03	0.26	3.26	14	56	97	207
9th Gear	502.10	374.41	23,528	104.66	8.00	12.87	2100	1.40	16.47	0.43	0.05	28.66	97.05	0.03	0.26	3.24	14	57	96	205

Drawbar Performance At 1900 Engine RPM

Click column headers to sort

Gear	Power	kW	Pull (lbs)	Pull (kN)	Speed	km/h	RPM	Slip	hp·hr/gal	lb/hp·hr	DEF lb/hp	inHg	kPa	Def Kg Kwh	Kg Kwh	Kwh L	Temp Air Dry C	Temp Air Dry F	Temp Cool Med C	Temp Cool Med F
2nd Gear	447.18	333.46	57,503	255.79	2.92	4.69	2117	13.50	14.93	0.47	0.06	29.06	98.41	0.04	0.29	2.94	11	51	94	201
3rd Gear	492.12	366.97	51,644	229.72	3.57	5.75	2054	9.50	15.79	0.44	0.05	29.06	98.41	0.03	0.27	3.11	14	57	94	202
4th Gear	532.58	397.14	49,065	218.25	4.07	6.55	1916	8.20	15.95	0.44	0.04	29.05	98.37	0.03	0.27	3.14	15	59	97	206
5th Gear	558.43	416.42	43,619	194.02	4.80	7.72	1900	4.90	16.65	0.42	0.04	29.08	98.47	0.03	0.26	3.28	8	46	96	205
6th Gear	561.94	419.04	39,566	176.00	5.33	8.57	1900	4.00	16.73	0.42	0.04	29.06	98.41	0.03	0.26	3.30	9	48	97	206
7th Gear	559.25	417.03	35,744	159.00	5.87	9.44	1900	3.50	16.62	0.42	0.04	29.05	98.37	0.03	0.26	3.27	16	60	96	206
8th Gear	561.24	418.52	32,408	144.16	6.50	10.45	1900	2.80	16.70	0.42	0.04	29.05	98.37	0.03	0.26	3.29	16	61	98	208
9th Gear	561.31	418.57	29,334	130.48	7.18	11.55	1900	2.30	16.68	0.42	0.04	29.04	98.34	0.03	0.26	3.29	16	61	96	204
10th Gear	560.95	418.30	26,572	118.20	7.92	12.74	1901	2.00	16.66	0.42	0.04	29.05	98.37	0.03	0.26	3.28	17	62	98	209

Category: IVN Quick Attach: yes

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Hitch Dimensions (No Load)

Dimension	Inches	mm
a	32.60	827
b	29.90	760
c	23.20	590
d	22.00	558
e	13.50	342
f	13.40	340
g	35.00	890
h	4.60	117
i	22.80	578
j	21.60	550
k	29.00	736
l	56.30	1431
m	34.30	871
n	46.50	1181
o	7.90	200
p	45.40	1154
q	40.90	1039
r	38.50	978

Engine

Make	F.P.T. Diesel
Type	six cylinder vertical with two turbochargers, two stage air to water intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	786 cu in (12880 ml)
Bore & Stroke	5.315" x 5.906" (135.0 mm x 150.0 mm)
Compression Ratio	15.5 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	4WD with rubber tracks
Steering	hydrostatic and articulated
Transmission	selective gear fixed ratio with full range operator controlled powershift
Brakes	single wet disc hydraulically actuated by foot pedal
Hydraulic Control	direct engine drive

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Transmission	Akcela Hy-Tran Ultraction fluid
