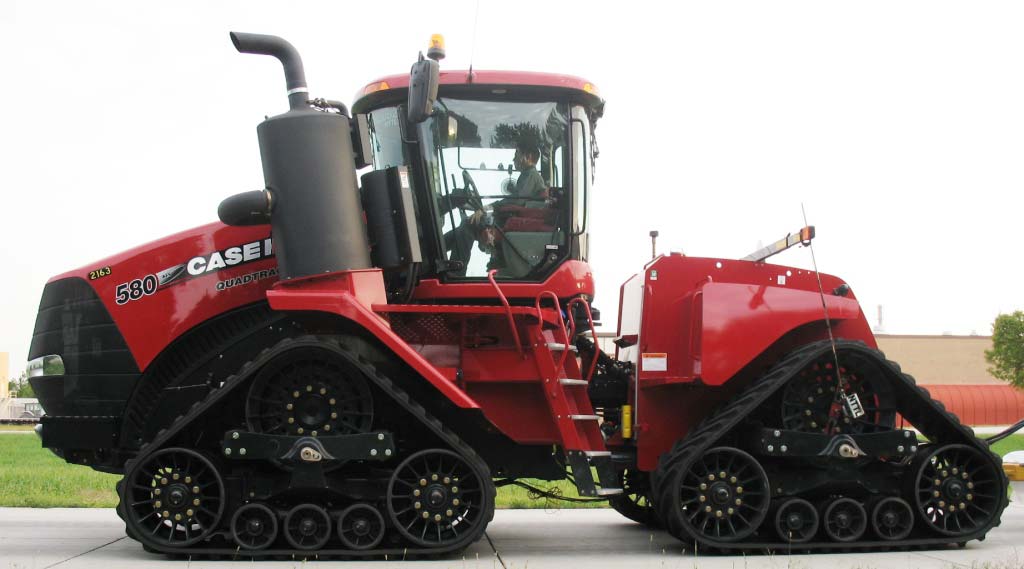

CaseIH Steiger 580 Quadtrac Specs ( 2014-2023 )

Name: CaseIH Steiger 580 Quadtrac
Brand: CaseIH

Overview

The CaseIH Steiger 580 Quadtrac is an articulated crawler tractor produced in Fargo, North Dakota, between 2014 and 2023. It features a 12.9L 6-cylinder FPT diesel engine with two-stage turbocharging, delivering a rated 580 hp and a maximum 638 hp through a 16-speed full power shift transmission.

Ideal Applications

Tested Drawbar Performance: During Nebraska Tractor Test evaluations, this model achieved a maximum tested drawbar performance of 517.37 hp and a maximum pull of 54,741 lbs.

High-Capacity Fluid Systems: The configuration includes a 470-gallon fuel tank and an 85-gallon diesel exhaust fluid reservoir to support the Tier 4 emissions-compliant engine.

Hydraulic and Hitch Specifications: This tractor is equipped with a Category 4 drawbar and a pressure flow compensated hydraulic system providing 42 gpm of pump flow and 19,728 lbs of rear lift capacity.

Production

Description	Articulated Crawler tractor / Built in Fargo, North Dakota, USA / Original price was $533,976 in 2015
Manufacturer	CaseIH (a part of CNH)

Engine

Engine type	FPT 12.9L 6-cyl diesel
Exhaust fluid (DEF)	85 gal (321.7 L)
Fuel tank	470 gal (1779.0 L)
Bore/Stroke	5.31x5.91 inches (135 x 150 mm)
Cooling system	hydraulically-driven fan
Description	FPT / two-stage turbocharged air-to-water intercooled air-to-air aftercooled diesel / 6-cylinder / liquid-cooled
Displacement	787 ci (12.9 L)
Emission control	selective catalytic reduction (SCR)
Emissions	Tier 4
Fuel system	electronic high pressure common rail
Maximum Power	638 hp (475.8 kW)
Power	580 hp (432.5 kW)
Rated RPM	2100
Starter	electric
Starter volts	24
PTO (claimed)	473 hp (352.7 kW)

Transmission

Gears	16 forward and 2 reverse
Transmission type	16-speed full power shift
Type	full power shift

Mechanical

Brakes	hydraulic wet disc
Cab	Surveyor Cab standard with air-conditioning.
Drive	articulated crawler
Final drives	planetary
Steering	hydraulic articulated
Trailer brakes	hydraulic *Optional.

Hydraulics

Pump flow	42 gpm (159.0 lpm)
SCV flow	35 gpm (132.5 lpm)
Type	pressure flow compensated
Valves	4 to 8

Hitch

Drawbar	Cat. 4
Rear Arms	quick coupler
Rear lift (at 24"/610mm)	19728 lbs (8948 kg)
Rear Type	IVN

PTO

Rear PTO	independent
Rear PTO Type	1000 *1.75 inch shaft

Electrical

Batteries	2
Battery CCA	1000
Battery volts	12
Charging amps	240
Charging system	alternator
Ground	negative

Dimensions & Tires

Description	Flange rear axle
Front axle	Flange
Max weight	64000 lbs (29030 kg)
Weight	48780 lbs (22126 kg)
Wheelbase	154 inches (391 cm)

CaseIH Steiger 580 Quadtrac Tracks

Width	30 inches (76 cm) / 36 inches (91 cm)

Dimensions & Tracks

Description	30-inch tracks
Weight	48780 lbs (22126 kg)
Wheelbase	154 inches (391 cm)

References

Description	Steiger 370-620 Tractors published in 2014, by CaseIH

Variants

580	wheeled tractor
580QT	crawler tractor

Nebraska Tractor Test Results

Test #2163

Download PDF

Test Date: N/A

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

533.70 hp

@ 1900 rpm

Rated Engine Speed

475.26 hp

N/A lb/hp·hr

Standard PTO Speed

532.55 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	1755 lb-ft (2379 Nm) at 1400 rpm
Torque Rise	47.7%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM
Rated Engine Speed	475.26	354.40	2101
Maximum Power (1 Hour)	533.70	397.98	1900

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
475.26	2101	26.15	0.39	18.17	2.13
412.86	2148	23.65	0.40	17.46	1.91
311.69	2160	18.78	0.42	16.60	1.49
208.85	2170	14.15	0.48	14.76	1.11
104.72	2180	9.64	0.65	10.86	0.62
1.43	2190	5.37	26.24	0.27	0.23

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	kW	Pull (lbs)	Pull (kN)	Speed	RPM	Slip	Air °F	Air °C	Cool °F	Cool °C
Power at Rated Engine Speed—5th Gear	460.87	343.67	31,824	142	5.43	2099	2.70	78	26	201	94
75% of Pull at Rated Engine Speed—5th Ge...	356.23	265.64	23,863	106	5.60	2139	1.60	85	30	199	93
50% of Pull at Rated Engine Speed—5th Ge...	240.32	179.21	15,920	71	5.66	2148	0.90	85	30	192	98
75% of Pull at Reduced Engine Speed—9th ...	355.27	264.92	23,654	105	5.63	1479	1.60	86	30	199	93
50% of Pull at Reduced Engine Speed—9th ...	240.56	179.39	15,875	71	5.68	1482	0.90	86	30	185	85

Drawbar Performance At 2100 Engine RPM

Click column headers to sort

Gear	Power	kW	Pull (lbs)	Pull (kN)	Speed	RPM	Slip	DEF lb/hp	Cool °F	inHg	Def Kg Kw H	Fuel Hp Hr Gal	Fuel Kg Kw H	Fuel Kw H L	Fuel Lb Hp Hr	Speed Km H	Temp Air Dry F
2nd Gear	410.55	306.15	52,714	234.48	2.92	2107	13.10	0.05	199	28.61	0.03	14.56	0.29	2.87	0.48	4.70	79
3rd Gear	441.07	328.90	44,271	196.93	3.74	2099	7.40	0.05	201	28.62	0.03	15.64	0.27	3.08	0.45	6.01	81
4th Gear	455.96	340.01	36,514	162.42	4.69	2099	3.70	0.05	200	28.70	0.03	16.04	0.27	3.16	0.44	7.54	79
5th Gear	460.87	343.67	31,824	141.56	5.43	2099	2.70	0.05	201	28.69	0.03	16.21	0.26	3.19	0.43	8.74	78
6th Gear	461.04	343.80	28,828	128.23	6.00	2099	2.20	0.05	200	28.69	0.03	16.28	0.26	3.21	0.43	9.66	80
7th Gear	459.03	342.30	26,066	115.95	6.60	2100	1.80	0.05	201	28.70	0.03	16.17	0.26	3.18	0.43	10.62	81
8th Gear	458.82	342.14	23,651	105.20	7.28	2099	1.50	0.05	200	28.68	0.03	16.17	0.26	3.18	0.43	11.71	83
9th Gear	455.36	339.56	21,292	94.71	8.02	2100	1.30	0.05	202	28.70	0.03	16.02	0.27	3.16	0.44	12.91	83

Drawbar Performance At 1900 Engine RPM

Click column headers to sort

Gear	Power	kW	Pull (lbs)	Pull (kN)	Speed	RPM	Slip	DEF lb/hp	Cool °F	inHg	Def Kg Kw H	Fuel Hp Hr Gal	Fuel Kg Kw H	Fuel Kw H L	Fuel Lb Hp Hr	Speed Km H	Temp Air Dry F
2nd Gear	415.60	309.91	54,741	243.50	2.85	2080	14.10	0.05	199	28.63	0.03	14.46	0.30	2.85	0.49	4.58	78
3rd Gear	457.46	341.12	49,986	222.35	3.44	2008	11.10	0.04	199	28.61	0.03	15.13	0.28	2.98	0.46	5.53	79
4th Gear	500.65	373.33	45,700	203.28	4.11	1900	6.60	0.04	204	28.69	0.03	16.22	0.26	3.19	0.43	6.61	72
5th Gear	512.77	382.37	39,895	177.46	4.82	1899	4.60	0.04	203	28.70	0.03	16.64	0.26	3.28	0.42	7.76	73
6th Gear	515.00	384.04	36,148	160.79	5.34	1899	3.70	0.04	204	28.69	0.03	16.69	0.26	3.29	0.42	8.59	74
7th Gear	516.02	384.79	32,767	145.75	5.91	1900	3.00	0.04	203	28.70	0.03	16.76	0.25	3.30	0.42	9.50	75
8th Gear	517.37	385.80	29,747	132.32	6.52	1899	2.40	0.04	203	28.72	0.03	16.79	0.25	3.31	0.42	10.49	77
9th Gear	516.41	385.09	26,886	119.59	7.20	1900	2.00	0.04	205	28.70	0.03	16.77	0.25	3.30	0.42	11.59	78
10th Gear	516.76	385.34	24,394	108.51	7.95	1900	1.70	0.04	206	28.72	0.03	16.78	0.25	3.31	0.42	12.79	79

Category: IVN Quick Attach: yes

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Hitch Dimensions (No Load)

Dimension	Inches	mm
a	32.60	827
b	29.90	760
c	23.20	590
d	22.00	558
e	13.50	342
f	13.40	340
g	35.00	890
h	4.60	117
i	22.80	578
j	21.60	550
k	29.00	736
l	56.30	1431
m	34.30	871
n	46.50	1181
o	7.90	200
p	45.40	1154
q	40.90	1039
r	38.50	978

Engine

Make	F.P.T.
Type	Diesel six cylinder vertical with two turbochargers, two stage air to water intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	786 cu in (12880 ml)
Bore & Stroke	5.315" x 5.906" (135.0 mm x 150.0 mm)
Compression Ratio	15.5 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	4WD with rubber tracks
Steering	hydrostatic and articulated
Transmission	selective gear fixed ratio with full range operator controlled powershift
Speeds	16 forward (21.01 mph max)
Brakes	single wet disc hydraulically actuated by foot pedal
Hydraulic Control	direct engine drive

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Transmission	Akcela Hy-Tran Ultraction fluid

Sound Levels

Bystander	87.90 dB(A)
At No Load In 4th Gear	73.60 dB(A)

Tires & Tracks

Ballast	Tested without ballast
