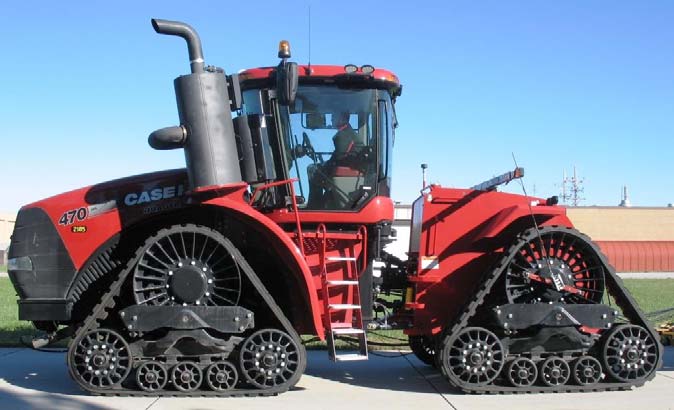

CaseIH Steiger 470 Rowtrac Specs ( 2014-2023 )

Name: CaseIH Steiger 470 Rowtrac
Brand: CaseIH

Overview

The CaseIH Steiger 470 Rowtrac is an articulated row-crop crawler tractor manufactured in Fargo, North Dakota, between 2014 and 2023. It is powered by a 12.9L 6-cylinder FPT diesel engine rated at 470 hp and features a 16-speed full power shift transmission with a 160-inch wheelbase.

Ideal Applications

Nebraska Test Performance: Actual tested performance for this configuration recorded a maximum drawbar output of 412.07 hp and a maximum pull of 46,977 lbs.

Hydraulic and Hitch Capacity: This model is equipped with a pressure flow compensated hydraulic system delivering a 42 gpm pump flow and a Category IVN rear hitch with a 20,000 lb lift capacity.

Chassis and Track Configuration: The articulated crawler design supports multiple track widths ranging from 16 to 30 inches and has a maximum weight of 57,050 lbs.

Production

Description	Articulated Crawler tractor / Built in Fargo, North Dakota, USA / Original price was $459,349 in 2015
Manufacturer	CaseIH (a part of CNH)

Engine

Engine type	FPT 12.9L 6-cyl diesel
Exhaust fluid (DEF)	42 gal (159.0 L)
Fuel tank	250 gal (946.2 L)
Bore/Stroke	5.31x5.91 inches (135 x 150 mm)
Cooling system	viscous fan drive
Description	FPT / wastegate turbocharged air-to-air aftercooled diesel / 6-cylinder / liquid-cooled
Displacement	787 ci (12.9 L)
Emission control	selective catalytic reduction (SCR)
Emissions	Tier 4
Fuel system	electronic high pressure common rail
Maximum Power	517 hp (385.5 kW)
Power	470 hp (350.5 kW)
Rated RPM	2100
Starter	electric
Starter volts	24
PTO (claimed)	405 hp (302.0 kW)

Transmission

Gears	16 forward and 2 reverse
Transmission type	16-speed full power shift
Type	full power shift

Mechanical

Brakes	hydraulic wet disc
Cab	Surveyor Cab standard with air-conditioning.
Drive	articulated crawler
Final drives	planetary
Steering	hydraulic articulated
Trailer brakes	hydraulic *Optional.

Hydraulics

Pump flow	42 gpm (159.0 lpm)
SCV flow	35 gpm (132.5 lpm)
Type	pressure flow compensated
Valves	4 to 8

Hitch

Drawbar	Cat. 4
Rear Arms	quick coupler
Rear lift (at 24"/610mm)	20000 lbs (9072 kg)
Rear Type	IVN

PTO

Rear PTO	independent
Rear PTO Type	1000 *1.75 inch shaft

Electrical

Batteries	2
Battery CCA	1000
Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Description	Flange rear axle
Front axle	Flange
Height (cab)	151.3 inches (384 cm)
Length	315 inches (800 cm)
Max weight	57050 lbs (25877 kg)
Weight	43510 lbs (19736 kg)
Wheelbase	160 inches (406 cm)
Width	96 inches (minimum) (243 cm)

CaseIH Steiger 470 Rowtrac Tracks

Width	16 inches (40 cm) / 18 inches (45 cm) / 24 inches (60 cm) / 30 inches (76 cm)

Dimensions & Tracks

Description	16-inch tracks
Weight	43510 lbs (19736 kg)
Wheelbase	160 inches (406 cm)

References

Description	Steiger 370-620 Tractors published in 2014, by CaseIH

Variants

470	wheeled tractor
470QT	crawler
470RT	row-crop crawler

Nebraska Tractor Test Results

Test #2185

Download PDF

Test Date: October 18 - 23, 2017

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

472.68 hp

@ 1900 rpm

Rated Engine Speed

419.16 hp

N/A lb/hp·hr

Standard PTO Speed

468.77 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	1541 lb-ft (2089 Nm) at 1400 rpm
Torque Rise	47.0%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM
Rated Engine Speed	419.16	312.57	2101
Maximum Power (1 Hour)	472.68	352.47	1900

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
419.16	2101	23.75	0.40	17.65	1.94
364.22	2148	21.47	0.41	16.97	1.75
274.52	2157	17.11	0.44	16.04	1.35
184.24	2170	12.63	0.48	14.58	1.01
92.31	2179	8.65	0.66	10.67	0.61
3.44	2189	5.25	10.66	0.66	0.23

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	kW	Pull (lbs)	Pull (kN)	Speed	RPM	Slip	DEF lb/hp	Air °F	Air °C	Cool °F	Cool °C
Power at Rated Engine Speed—4th Gear	364.26	271.63	27,864	124	4.90	2100	2.70	0.05	44	7	203	95
75% of Pull at Rated Engine Speed—4th Ge...	282.83	210.90	20,837	93	5.09	2152	1.40	0.05	62	17	191	88
50% of Pull at Rated Engine Speed—4th Ge...	191.06	142.47	13,894	62	5.16	2164	0.70	0.06	64	18	202	94
75% of Pull at Reduced Engine Speed—8th ...	282.34	210.54	20,855	93	5.08	1413	1.50	0.05	68	20	201	94
50% of Pull at Reduced Engine Speed—8th ...	191.48	142.79	13,870	62	5.18	1430	0.70	0.05	69	21	197	91

Drawbar Performance At 2100 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	Air °F	Cool °F	Barometer Inch Hg	Def Consumption Lb Hp Hr	Fuel Consumption Lb Hp Hr	Fuel Efficiency Hp Hr Gal
1st Gear	313.39	46,761	2.52	2101	12.80	61	202	28.67	0.05	0.51	13.86
2nd Gear	349.27	40,861	3.21	2100	7.50	62	205	28.68	0.05	0.48	14.71
3rd Gear	359.39	33,732	4.00	2099	4.50	63	202	28.67	0.05	0.46	15.14
4th Gear	364.26	27,864	4.90	2100	2.70	44	203	28.82	0.05	0.46	15.34
5th Gear	364.79	24,120	5.67	2100	2.00	46	203	28.82	0.05	0.46	15.39
6th Gear	364.70	21,871	6.25	2099	1.60	52	202	28.82	0.05	0.46	15.27
7th Gear	361.30	19,689	6.88	2100	1.30	53	202	28.82	0.05	0.46	15.13
8th Gear	359.15	17,777	7.58	2099	1.10	56	202	28.83	0.05	0.46	15.07
9th Gear	352.15	15,827	8.34	2100	0.90	62	201	28.82	0.05	0.47	14.82

Drawbar Performance At 1900 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	Air °F	Cool °F	Barometer Inch Hg	Def Consumption Lb Hp Hr	Fuel Consumption Lb Hp Hr	Fuel Efficiency Hp Hr Gal
1st Gear	307.18	46,977	2.45	2077	14.40	62	203	28.67	0.05	0.51	13.75
2nd Gear	353.90	44,467	2.99	2028	10.80	62	205	28.68	0.05	0.48	14.59
3rd Gear	388.21	42,134	3.46	1899	8.80	63	203	28.67	0.05	0.45	15.50
4th Gear	408.19	35,163	4.35	1900	4.50	45	203	28.82	0.05	0.43	16.26
5th Gear	410.53	30,403	5.07	1900	3.30	48	202	28.82	0.05	0.43	16.39
6th Gear	412.07	27,602	5.60	1899	2.60	52	202	28.82	0.05	0.43	16.46
7th Gear	410.80	24,955	6.17	1900	2.10	54	202	28.82	0.05	0.43	16.41
8th Gear	410.32	22,594	6.81	1900	1.70	58	201	28.82	0.05	0.43	16.32
9th Gear	407.55	20,348	7.51	1900	1.40	62	201	28.82	0.05	0.43	16.32
10th Gear	405.74	18,388	8.27	1900	1.10	62	201	28.82	0.05	0.43	16.22

Category: IVN Quick Attach: yes

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Hitch Dimensions (No Load)

Dimension	Inches	mm
a	39.00	990
b	30.70	780
c	28.80	731
d	27.90	709
e	14.90	378
f	14.90	379
g	34.00	864
h	1.20	30
i	22.80	578
j	19.10	485
k	30.50	775
l	60.10	1527
m	30.40	771
n	43.00	1093
o	6.30	160
p	49.80	1265
q	43.70	1111
r	39.40	1000

Engine

Make	F.P.T. Diesel
Type	six cylinder vertical with turbocharger, air to air intercooler, and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	786 cu in (12880 ml)
Compression Ratio	16.5 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	4WD with rubber tracks
Steering	hydrostatic and articulated
Transmission	selective gear fixed ratio with full range operator controlled powershift
Brakes	wet disc hydraulically operated by foot pedal
Hydraulic Control	direct engine drive

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Transmission	Akcela Hy-Tran Ultraction fluid

Sound Levels

Bystander	90.30 dB(A)
At No Load In 4th Gear	73.60 dB(A)

Tires & Tracks

Rear Tracks	2 x 16.0 in (406 mm)
Height of Drawbar	20.50 in (520 mm)

Static Weight

Rear	23,885 lbs
Front	30,425 lbs
Total	54,310 lbs
