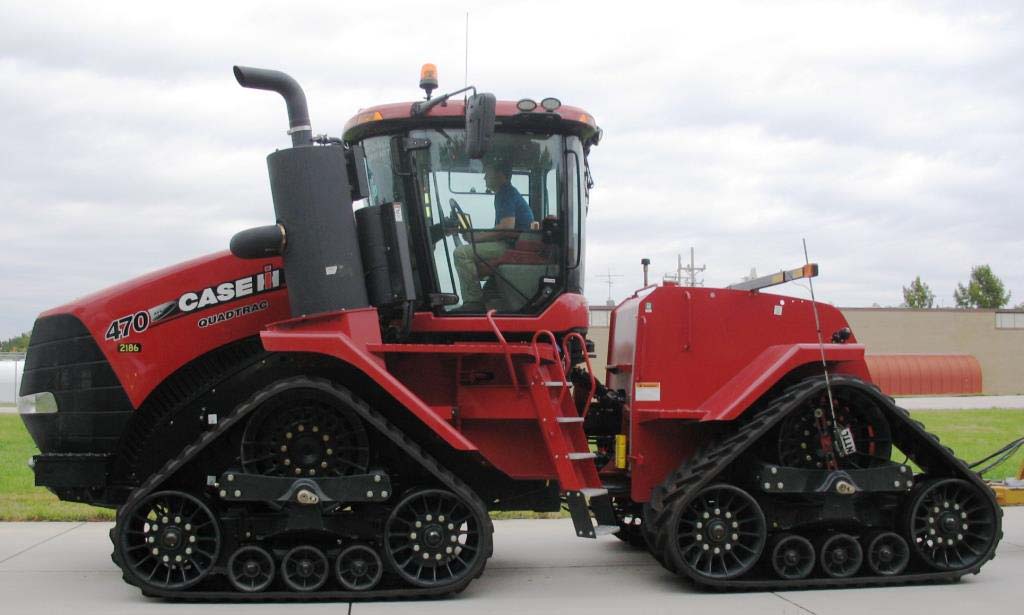

CaseIH Steiger 470 Quadtrac Specs ( 2014-2023 )

Name: CaseIH Steiger 470 Quadtrac
Brand: CaseIH

Overview

The CaseIH Steiger 470 Quadtrac is a high-horsepower articulated crawler tractor featuring a 12.9L FPT diesel engine and a 16-speed full power shift transmission. Built in Fargo, North Dakota, this machine is designed for heavy-duty farm operations with a maximum weight of 60,000 lbs and a robust Tier 4 emission-compliant power plant delivering up to 517 maximum horsepower.

Ideal Applications

Heavy Tillage and Pulling: Utilizing a Cat. 4 drawbar and articulated crawler drive with 30 or 36-inch tracks, this tractor is built to handle large implements while maintaining traction through its planetary final drives.

Large-Scale Implement Management: Equipped with a pressure flow compensated hydraulic system and up to 8 valves, it supports complex machinery requiring precise fluid control and a rear lift capacity of 20,000 lbs.

High-Output Field Work: The 310-gallon fuel tank combined with a 405 hp claimed PTO allows for extended operation times when running demanding 1000 RPM independent rear PTO equipment.

Production

Description	Articulated Crawler tractor / Built in Fargo, North Dakota, USA / Original price was $468,109 in 2015
Manufacturer	CaseIH (a part of CNH)

Engine

Engine type	FPT 12.9L 6-cyl diesel
Exhaust fluid (DEF)	85 gal (321.7 L)
Fuel tank	310 gal (1173.4 L)
Bore/Stroke	5.31x5.91 inches (135 x 150 mm)
Cooling system	viscous fan drive
Description	FPT / wastegate turbocharged air-to-air aftercooled diesel / 6-cylinder / liquid-cooled
Displacement	787 ci (12.9 L)
Emission control	selective catalytic reduction (SCR)
Emissions	Tier 4
Fuel system	electronic high pressure common rail
Maximum Power	517 hp (385.5 kW)
Power	470 hp (350.5 kW)
Rated RPM	2100
Starter	electric
Starter volts	24
PTO (claimed)	405 hp (302.0 kW)

Transmission

Gears	16 forward and 2 reverse
Transmission type	16-speed full power shift
Type	full power shift

Mechanical

Brakes	hydraulic wet disc
Cab	Surveyor Cab standard with air-conditioning.
Drive	articulated crawler
Final drives	planetary
Steering	hydraulic articulated
Trailer brakes	hydraulic *Optional.

Hydraulics

Pump flow	42 gpm (159.0 lpm)
SCV flow	35 gpm (132.5 lpm)
Type	pressure flow compensated
Valves	4 to 8

Hitch

Drawbar	Cat. 4
Rear Arms	quick coupler
Rear lift (at 24"/610mm)	20000 lbs (9072 kg)
Rear Type	IVN

PTO

Rear PTO	independent
Rear PTO Type	1000 *1.75 inch shaft

Electrical

Batteries	2
Battery CCA	1000
Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Description	Flange rear axle
Front axle	Flange
Max weight	60000 lbs (27216 kg)
Weight	46500 lbs (21092 kg)
Wheelbase	154 inches (391 cm)

CaseIH Steiger 470 Quadtrac Tracks

Width	30 inches (76 cm) / 36 inches (91 cm)

Dimensions & Tracks

Description	30-inch tracks
Weight	46500 lbs (21092 kg)
Wheelbase	154 inches (391 cm)

References

Description	Steiger 370-620 Tractors published in 2014, by CaseIH

Variants

470	wheeled tractor
470QT	crawler
470RT	row-crop crawler

Nebraska Tractor Test Results

Test #2186

Download PDF

Test Date: October 12 - 17, 2017

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Rated Engine Speed

422.14 hp

N/A lb/hp·hr

Standard PTO Speed

472.19 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	1,561 lb-ft (2,117 Nm)
Torque Rise	47.9%

PTO Power Curve

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
422.14	2101	23.73	0.39	N/A	1.92
366.74	2148	21.27	0.41	N/A	1.60
276.40	2156	16.98	0.43	N/A	1.19
184.90	2167	12.88	0.49	N/A	0.87
92.91	2178	8.95	0.67	N/A	0.59
2.38	2187	5.10	14.97	N/A	0.22

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	kW	Pull (lbs)	Pull (kN)	Speed	RPM	Slip	Air °F	Cool °F	inHg
Power at Rated Engine Speed—4th Gear	372.34	277.65	29,218	130	4.78	2099	2.00	55	194	28.79
75% of Pull at Rated Engine Speed—4th Ge...	288.12	214.85	21,873	97	4.94	2151	1.20	57	187	28.79
50% of Pull at Rated Engine Speed—4th Ge...	194.37	144.94	14,596	65	4.99	2163	0.60	57	183	28.79
75% of Pull at Reduced Engine Speed—8th ...	287.95	214.72	21,892	97	4.93	1413	1.20	57	182	28.80
50% of Pull at Reduced Engine Speed—8th ...	194.03	144.69	14,607	65	4.98	1420	0.60	57	180	28.80

Maximum Power In Selected Gears At 2100 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	inHg	Crank Shaft RPM	Fuel Lb Hp Hr	Temp Air F	Temp Cool F
1st Gear	342.73	50,899	2.53	9.30	14.67	0.05	29.08	2098	0.48	54	188
2nd Gear	364.60	43,034	3.18	5.30	15.36	0.04	29.06	2099	0.46	59	194
3rd Gear	373.20	35,754	3.91	3.40	15.78	0.05	29.05	2100	0.44	62	200
4th Gear	372.34	29,218	4.78	2.00	15.70	0.04	28.79	2099	0.45	55	194
5th Gear	374.62	25,475	5.51	1.60	15.75	0.04	28.79	2100	0.44	55	198
6th Gear	372.93	23,015	6.08	1.30	15.69	0.04	28.81	2100	0.45	55	196
7th Gear	370.68	20,821	6.68	1.10	15.63	0.04	28.80	2100	0.45	55	200
8th Gear	368.05	18,785	7.35	0.90	15.44	0.04	28.79	2101	0.45	56	195
9th Gear	366.87	17,019	8.09	0.80	15.50	0.04	28.79	2100	0.45	56	200

Maximum Power In Selected Gears At 1900 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	inHg	Crank Shaft RPM	Fuel Lb Hp Hr	Temp Air F	Temp Cool F
1st Gear	330.82	51,680	2.40	9.60	15.03	0.05	29.07	2003	0.47	57	186
2nd Gear	381.24	50,561	2.83	8.20	15.81	0.05	29.05	1928	0.44	61	197
3rd Gear	411.03	44,540	3.46	5.60	16.41	0.05	29.04	1900	0.43	64	203
4th Gear	419.75	36,919	4.27	3.40	16.72	0.05	28.79	1900	0.42	55	198
5th Gear	423.91	32,176	4.94	2.60	16.89	0.05	28.79	1900	0.41	55	201
6th Gear	424.04	29,143	5.46	2.00	16.91	0.05	28.80	1900	0.41	55	200
7th Gear	423.55	26,451	6.01	1.70	16.90	0.05	28.80	1900	0.41	55	202
8th Gear	421.89	23,910	6.62	1.40	16.82	0.05	28.79	1900	0.42	56	200
9th Gear	423.08	21,767	7.29	1.20	16.84	0.05	28.79	1900	0.42	57	201
10th Gear	421.08	19,684	8.02	1.00	16.81	0.05	28.79	1900	0.42	57	202

Category: IVN Quick Attach: yes

Lift Capacity

Max Force 19,728 lbs

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	F.P.T. Diesel
Type	six cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	786 cu in (12880 ml)
Compression Ratio	15.5 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	4WD with rubber tracks
Steering	hydrostatic and articulated
Transmission	selective gear fixed ratio with full range operator controlled powershift
Brakes	single wet disc hydraulically actuated by foot pedal
Hydraulic Control	direct engine drive

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Transmission	Akcela Hy-Tran Ultraction fluid

Sound Levels

Bystander	88.60 dB(A)
At No Load In 4th Gear	74.30 dB(A)

Tires & Tracks

Height of Drawbar	20.50 in (520 mm)

Static Weight

Rear	23,155 lbs
Front	34,490 lbs
Total	57,645 lbs
