CaseIH Steiger 470 Specs ( 2014-2023 )

Name: CaseIH Steiger 470
Brand: CaseIH

Overview

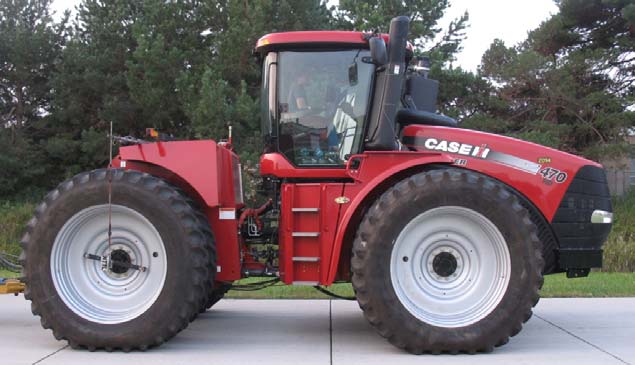

The CaseIH Steiger 470 is a four-wheel drive farm tractor produced from 2014 to 2023 at the Fargo, North Dakota facility. It is powered by a 12.9L FPT 6-cylinder diesel engine and features a 16-speed full power shift transmission with a 148-inch wheelbase. The machine is equipped with a Category 4 drawbar and is rated for a maximum weight of 49,500 lbs.

Ideal Applications

Tested Power Performance: Nebraska Tractor Test results recorded a maximum PTO output of 468.35 hp and a maximum drawbar power of 435.16 hp with a maximum pull of 43,495 lbs.

Mechanical and Transmission Configuration: The tractor utilizes a 16-speed full power shift transmission with inboard planetary final drives and 5.0-inch bar axles on both the front and rear.

Hydraulic and Hitch Specifications: The hydraulic system features a pressure flow compensated pump with a 42 gpm flow rate, supporting a rear lift capacity of 20,000 lbs at 24 inches.

Production

Description	Built in Fargo, North Dakota, USA / Original price was $378,190 in 2015
Drive type	Four-wheel Drive (4WD) tractor
Manufacturer	CaseIH (a part of CNH)

Engine

Engine type	FPT 12.9L 6-cyl diesel
Exhaust fluid (DEF)	42 gal (159.0 L)
Fuel tank	310 gal (1173.4 L)
Bore/Stroke	5.31x5.91 inches (135 x 150 mm)
Cooling system	viscous fan drive
Description	FPT / wastegate turbocharged air-to-air aftercooled diesel / 6-cylinder / liquid-cooled
Displacement	787 ci (12.9 L)
Emission control	selective catalytic reduction (SCR)
Emissions	Tier 4
Fuel system	electronic high pressure common rail
Maximum Power	517 hp (385.5 kW)
Power	470 hp (350.5 kW)
Rated RPM	2100
Starter	electric
Starter volts	12
Drawbar (tested)	387.67 hp (289.1 kW)
PTO (claimed)	405 hp (302.0 kW)
PTO (tested)	468.35 hp (349.2 kW)

Transmission

Gears	16 forward and 2 reverse
Transmission type	16-speed full power shift
Type	full power shift

Mechanical

Brakes	hydraulic wet disc
Cab	Surveyor Cab standard with air-conditioning.
Drive type	Four-wheel drive
Final drives	inboard planetary
Steering	hydraulic articulated
Trailer brakes	hydraulic OptOptional

Hydraulics

Pump flow	42 gpm (159.0 lpm)
SCV flow	35 gpm (132.5 lpm)
Type	pressure flow compensated
Valves	4 to 8

Hitch

Drawbar	Cat. 4
Rear Arms	quick coupler
Rear lift (at 24"/610mm)	20000 lbs (9072 kg)
Rear Type	IVN

PTO

Engine RPM	1000@1998 (early)
Rear PTO	independent
Rear PTO Type	1000 (1.75)

Electrical

Batteries	2
Battery CCA	1000
Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Ag front	710/70R42
Ag rear	710/70R42
Bar rear axle	5.0 by 120 inches (127 by 3048 mm)
Front axle	Bar: 5.0 by 120 inches (127 by 3048 mm)
Height (cab)	151.3 inches (384 cm)
Length	291 inches (739 cm)
Max weight	49500 lbs (22453 kg)
Weight	40159 lbs (18216 kg)
Wheelbase	148 inches (375 cm)
Width	120 inches*At axle ends. (304 cm)
Front tire	710/70R42
Rear tire	710/70R42
Weight	40159 lbs (18216 kg)
Wheelbase	148 inches (375 cm)

OCED Tractor Test 2094

Description	Diesel 16-speed 4WDSeptember 11 - 22, 2014Link: OCED Tractor Test 2094 file / PTO performance / Drawbar performance / Gear 4 used for power test. / Gear 1 used for pull test.
Fuel use	25.3 gal/hour (95.8 l/hour) / 24.1 gal/hour (91.2 l/hour) / 24.4 gal/hour (92.4 l/hour) / 24.1 gal/hour (91.2 l/hour)
Max power	468.35 hp (349.2 kW) / 387.67 hp (289.1 kW)
Max pull	43495 lbs (19729 kg)
Power at rated engine speed	417.16 hp (311.1 kW)
Power at rated PTO speed	459.94 hp (343.0 kW)

References

Description	Steiger 370-620 Tractors published in 2014, by CaseIH

Variants

470	wheeled tractor
470QT	crawler
470RT	row-crop crawler
T9.530	similar New Holland model

Nebraska Tractor Test Results

Test #2094

Download PDF

Test Date: September 11 - 22, 2014

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

468.35 hp

@ 1901 rpm

Rated Engine Speed

417.16 hp

N/A lb/hp·hr

Standard PTO Speed

459.94 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	1514 lb.-ft. (2053 Nm) at 1400 rpm
Torque Rise	45.2%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	Fuel gal/hr	Fuel L/hr	DEF gal/hr	DEF L/hr
Rated Engine Speed	417.16	311.07	2101	24.08	91.14	1.85	7.02
Maximum Power (1 Hour)	468.35	349.25	1901	25.27	95.66	2.21	8.37

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
417.16	2101	24.08	0.41	17.33	1.85
362.45	2146	21.52	0.42	16.84	1.66
272.67	2155	17.24	0.44	15.82	1.28
182.74	2163	13.06	0.50	14.00	0.89
91.74	2176	9.04	0.69	10.15	0.52
2.17	2185	5.29	17.16	0.41	0.26

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	kW	Pull (lbs)	Pull (kN)	Speed	Slip	DEF lb/hp	Air °F	Cool °F
Maximum Power—4th Gear	387.67	289.08	29,229	130	4.97	3.40	0.04	63	202
75% of Pull at Maximum Power—4th Gear	300.22	223.87	21,896	97	5.14	2.30	0.04	75	203
50% of Pull at Maximum Power—4th Gear	202.87	151.28	14,604	65	5.21	1.50	0.04	77	204
75% of Pull at Reduced Engine Speed—8th ...	299.40	223.26	21,969	98	5.11	2.40	0.04	76	204
50% of Pull at Reduced Engine Speed—8th ...	202.86	151.27	14,588	65	5.22	1.50	0.03	78	202

Drawbar Performance At 2100 Engine RPM Selected Gears

Click column headers to sort

Gear	Power	kW	Pull (lbs)	Pull (kN)	Speed	RPM	Slip	Air °F	Cool °F	Barometer Inch Hg	Def Consumption Kg Kw H	Def Consumption Lb Hp Hr	Fuel Consumption Hp Hr Gal	Fuel Consumption Kg Kw H	Fuel Consumption Kw H L	Fuel Consumption Lb Hp Hr	Speed Km H
1st Gear	300.48	224.07	43,495	193.48	2.59	2142	13.50	64	204	28.75	0.03	0.05	14.08	0.30	2.77	0.50	4.17
2nd Gear	365.08	272.24	42,703	189.95	3.21	2100	9.70	64	205	28.74	0.03	0.04	15.13	0.28	2.98	0.46	5.17
3rd Gear	384.64	286.82	35,392	157.43	4.08	2100	4.60	68	203	28.75	0.02	0.04	15.95	0.27	3.14	0.44	6.56
4th Gear	387.67	289.08	29,229	130.02	4.97	2099	3.40	63	202	28.66	0.02	0.04	16.11	0.27	3.17	0.44	8.00
5th Gear	387.68	289.09	25,307	112.57	5.75	2100	2.70	60	203	28.67	0.03	0.04	16.08	0.27	3.17	0.44	9.25
6th Gear	390.18	290.95	23,136	102.91	6.33	2100	2.40	61	203	28.67	0.03	0.04	16.27	0.26	3.21	0.43	10.18
7th Gear	387.17	288.71	20,890	92.92	6.95	2099	2.10	65	203	28.67	0.02	0.04	16.08	0.27	3.17	0.44	11.18
8th Gear	389.50	290.45	19,098	84.95	7.65	2099	1.90	71	203	28.67	0.02	0.04	16.18	0.26	3.19	0.43	12.31
9th Gear	385.65	287.58	17,158	76.32	8.43	2100	1.70	73	202	28.66	0.02	0.04	16.35	0.26	3.22	0.43	13.57

Drawbar Performance At 1900 Engine RPM Maximum Power

Click column headers to sort

Gear	Power	kW	Pull (lbs)	Pull (kN)	Speed	RPM	Slip	Air °F	Cool °F	Barometer Inch Hg	Def Consumption Kg Kw H	Def Consumption Lb Hp Hr	Fuel Consumption Hp Hr Gal	Fuel Consumption Kg Kw H	Fuel Consumption Kw H L	Fuel Consumption Lb Hp Hr	Speed Km H
1st Gear	300.99	224.44	43,364	192.89	2.61	2143	13.00	65	204	28.75	0.03	0.05	14.10	0.30	2.78	0.50	4.19
2nd Gear	365.86	272.82	42,347	188.37	3.24	2104	8.80	64	205	28.74	0.03	0.04	15.20	0.28	3.00	0.46	5.21
3rd Gear	411.62	306.94	41,051	182.60	3.76	1985	6.80	69	204	28.75	0.03	0.04	16.40	0.26	3.23	0.43	6.05
4th Gear	427.20	318.56	36,225	161.13	4.42	1900	5.20	68	203	28.75	0.03	0.04	16.88	0.25	3.33	0.42	7.11
5th Gear	432.36	322.41	31,460	139.94	5.15	1900	4.00	61	203	28.66	0.03	0.04	17.06	0.25	3.36	0.41	8.29
6th Gear	434.61	324.09	28,661	127.49	5.69	1900	3.10	62	203	28.67	0.03	0.04	17.19	0.25	3.39	0.41	9.16
7th Gear	433.19	323.03	25,982	115.57	6.25	1900	2.80	65	203	28.67	0.03	0.04	17.18	0.25	3.38	0.41	10.06
8th Gear	435.16	324.50	23,697	105.41	6.89	1899	2.50	67	203	28.66	0.03	0.04	17.23	0.25	3.39	0.41	11.09
9th Gear	432.87	322.79	21,409	95.23	7.58	1898	2.20	73	203	28.67	0.03	0.04	17.05	0.25	3.36	0.41	12.20
10th Gear	430.62	321.11	19,354	86.09	8.34	1900	2.00	73	203	28.67	0.03	0.04	16.93	0.25	3.33	0.42	13.42

Category: IVN Quick Attach: yes

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	FPT Industrial Diesel
Type	six cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	786 cu in (12880 ml)
Compression Ratio	16.5 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) with a vertical muffler
Crankshaft	lengthwise

Chassis

Type	four wheel drive with duals
Steering	hydrostatic and articulated
Transmission	selective gear fixed ratio with full range operator controlled powershift
Speeds	18 forward (23.13 mph max)
Wheelbase	148 in (3759 mm)
Front Tread Width	60.0 (1524 mm) to 130.0 (3302 mm) in
Rear Tread Width	60.0 (1524 mm) to 130.0 (3302 mm) in
Brakes	wet disc hydraulically operated by foot pedal
Hydraulic Control	direct engine drive

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Transmission	Akcela Hy-Tran Ultraction fluid

Sound Levels

Bystander	87.80 dB(A)
At No Load In 4th Gear	73.90 dB(A)

Tires & Tracks

Ballast	Tested without ballast
