CaseIH Steiger 420 Rowtrac Specs ( 2014-2023 )

Name: CaseIH Steiger 420 Rowtrac
Brand: CaseIH

Compare Tractor

Nebraska Test #2184

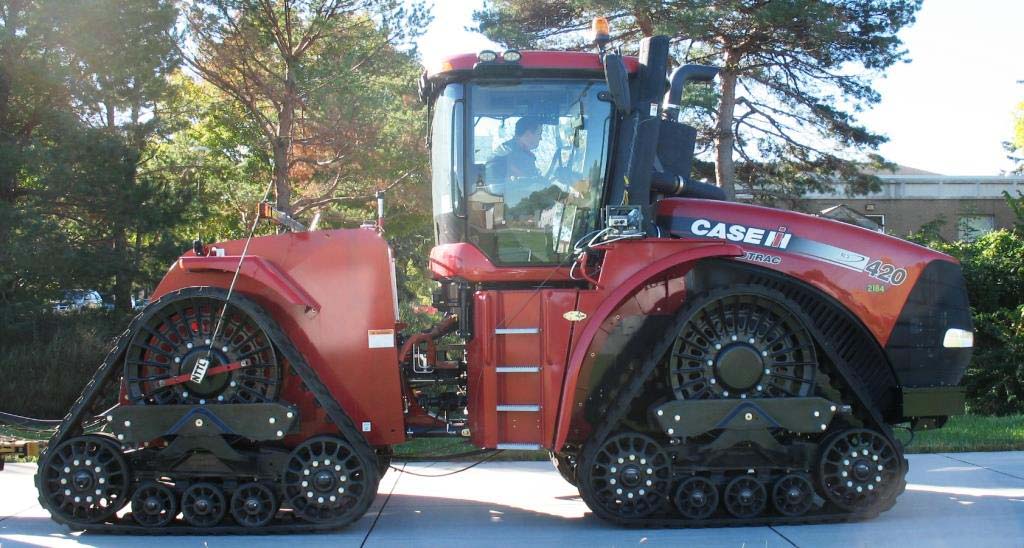

Case IH Steiger 420 RowTrac

Max Drawbar HP 362.0 hp

Max Pull 40,793 lbs

Max Torque 1366 lb-ft

View Full Test Data →

Overview

The CaseIH Steiger 420 Rowtrac is an articulated crawler tractor manufactured in Fargo, North Dakota, between 2014 and 2023. It features an FPT 12.9L 6-cylinder diesel engine with a rated output of 420 hp and a 16-speed full power shift transmission. The machine is equipped with a Category 4 hitch providing 20,000 lbs of rear lift and supports track widths ranging from 16 to 30 inches.

Ideal Applications

Tested Drawbar Performance: Nebraska Tractor Test data for this model recorded a maximum drawbar performance of 362.01 hp and a maximum pull of 40,793 lbs.

Engine and Emission Specifications: The Tier 4 compliant FPT engine utilizes selective catalytic reduction and a wastegate turbocharger to achieve a maximum power rating of 462 hp.

Hydraulic System Capacity: The hydraulic system uses a pressure flow compensated pump with a rated flow of 42 gpm and supports between 4 to 8 valves.

Production

Description	Articulated Crawler tractor / Built in Fargo, North Dakota, USA / Original price was $429,264 in 2015
Manufacturer	CaseIH (a part of CNH)

Engine

Engine type	FPT 12.9L 6-cyl diesel
Exhaust fluid (DEF)	42 gal (159.0 L)
Fuel tank	250 gal (946.2 L)
Bore/Stroke	5.31x5.91 inches (135 x 150 mm)
Cooling system	viscous fan drive
Description	FPT / wastegate turbocharged air-to-air aftercooled diesel / 6-cylinder / liquid-cooled
Displacement	787 ci (12.9 L)
Emission control	selective catalytic reduction (SCR)
Emissions	Tier 4
Fuel system	electronic high pressure common rail
Maximum Power	462 hp (344.5 kW)
Power	420 hp (313.2 kW)
Rated RPM	2100
Starter	electric
Starter volts	24
PTO (claimed)	355 hp (264.7 kW)

Transmission

Gears	16 forward and 2 reverse
Transmission type	16-speed full power shift
Type	full power shift

Mechanical

Brakes	hydraulic wet disc
Cab	Surveyor Cab standard with air-conditioning.
Drive	articulated crawler
Final drives	planetary
Steering	hydraulic articulated
Trailer brakes	hydraulic *Optional.

Hydraulics

Pump flow	42 gpm (159.0 lpm)
SCV flow	35 gpm (132.5 lpm)
Type	pressure flow compensated
Valves	4 to 8

Hitch

Drawbar	Cat. 4
Rear Arms	quick coupler
Rear lift (at 24"/610mm)	20000 lbs (9072 kg)
Rear Type	IVN

PTO

Rear PTO	independent
Rear PTO Type	1000 *1.75 inch shaft

Electrical

Batteries	2
Battery CCA	1000
Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Description	Flange rear axle
Front axle	Flange
Height (cab)	151.3 inches (384 cm)
Length	315 inches (800 cm)
Max weight	57050 lbs (25877 kg)
Weight	43510 lbs (19736 kg)
Wheelbase	160 inches (406 cm)
Width	96 inches (minimum) (243 cm)

CaseIH Steiger 420 Rowtrac Tracks

Width	16 inches (40 cm) / 18 inches (45 cm) / 24 inches (60 cm) / 30 inches (76 cm)

Dimensions & Tracks

Description	16-inch tracks
Weight	43510 lbs (19736 kg)
Wheelbase	160 inches (406 cm)

References

Description	Steiger 370-620 Tractors published in 2014, by CaseIH

Variants

420	wheeled tractor
420RT	crawler tractor

Nebraska Tractor Test Results

Test #2184

Download PDF

Test Date: October 10 -16, 2017

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

419.01 hp

@ 1900 rpm

Rated Engine Speed

368.01 hp

0.40 lb/hp·hr

Standard PTO Speed

415.22 hp

@ 1000 rpm PTO

Torque Statistics

Maximum Torque	1366 lb-ft (1853 Nm) at 1400 rpm
Torque Rise	48.5%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM	DEF gal/hr	DEF L/hr
Rated Engine Speed	368.01	274.42	2101		1.84	6.96
Standard PTO Speed (1000 rpm)	415.22	309.63	1811	1000	2.13	8.04
Maximum Power (1 Hour)	419.01	312.46	1900		2.21	8.35

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
368.01	2101	21.19	0.40	17.37	1.84
320.34	2151	19.34	0.42	16.56	1.64
241.36	2159	15.41	0.45	15.67	1.29
161.59	2171	11.70	0.51	13.81	0.94
81.14	2180	8.37	0.72	9.70	0.61
2.06	2187	5.03	17.08	0.41	0.23

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	kW	Pull (lbs)	Pull (kN)	Speed	km/h	Slip	Cool °F	Cool °C	inHg	kPa
Power at Rated Engine Speed—4th Gear	318.15	237.24	24,275	108	4.92	7.91	2.50	198	92	28.97	98.10
75% of Pull at Rated Engine Speed—4th Ge...	247.55	184.59	18,176	81	5.11	8.22	1.20	191	88	28.77	97.43
50% of Pull at Rated Engine Speed—4th Ge...	166.95	124.49	12,123	54	5.16	8.30	0.60	187	86	28.76	97.39
75% of Pull at Reduced Engine Speed—8th ...	247.91	184.86	18,181	81	5.11	8.22	1.20	182	83	28.75	97.36
50% of Pull at Reduced Engine Speed—8th ...	166.94	124.48	12,138	54	5.16	8.30	0.60	179	82	28.75	97.36

Drawbar Performance At 2100 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	DEF lb/hp	inHg	Crank Shaft RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air Dry F	Temp Cooling F
1st Gear	287.31	40,793	2.65	8.10	0.05	28.78	2099	14.27	0.49	49	188
2nd Gear	312.16	35,802	3.27	5.70	0.05	28.78	2100	14.74	0.48	52	193
3rd Gear	317.67	29,499	4.04	3.50	0.05	28.78	2101	15.11	0.46	56	201
4th Gear	318.15	24,275	4.92	2.50	0.05	28.97	2100	15.03	0.47	53	198
5th Gear	317.01	20,920	5.68	1.80	0.05	28.96	2100	15.03	0.47	55	197
6th Gear	316.30	18,934	6.27	1.50	0.05	28.96	2100	14.96	0.47	57	204
7th Gear	313.32	17,046	6.89	1.10	0.06	28.95	2100	14.75	0.47	59	196
8th Gear	311.32	15,383	7.59	0.90	0.06	28.93	2100	14.73	0.48	58	202
9th Gear	304.43	13,664	8.36	0.70	0.05	28.92	2100	14.44	0.48	61	206

Drawbar Performance At 1900 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	DEF lb/hp	inHg	Crank Shaft RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air Dry F	Temp Cooling F
1st Gear	256.31	39,896	2.41	7.60	0.05	28.78	1901	14.92	0.47	55	202
2nd Gear	310.03	40,129	2.90	7.70	0.05	28.79	1901	15.43	0.45	54	202
3rd Gear	354.67	37,245	3.57	5.80	0.05	28.77	1900	15.96	0.44	57	205
4th Gear	359.75	30,850	4.37	4.10	0.06	28.97	1900	16.10	0.43	53	203
5th Gear	361.05	26,647	5.08	3.00	0.05	28.96	1900	16.28	0.43	56	204
6th Gear	362.01	24,170	5.62	2.40	0.06	28.96	1900	16.26	0.43	57	207
7th Gear	360.34	21,844	6.19	1.90	0.06	28.96	1900	16.25	0.43	57	206
8th Gear	359.68	19,760	6.83	1.50	0.06	28.93	1900	16.15	0.43	59	207
9th Gear	356.47	17,758	7.53	1.20	0.06	28.93	1901	15.99	0.44	60	206
10th Gear	354.18	16,024	8.29	0.90	0.06	28.93	1900	15.96	0.44	60	206

Category: IVN Quick Attach: yes

Lift Capacity

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	F.P.T. Diesel
Type	six cylinder vertical with turbocharger, air to air intercooler, and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	786 cu in (12880 ml)
Compression Ratio	16.5 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	4WD with rubber tracks
Steering	hydrostatic and articulated
Transmission	selective gear fixed ratio with full range operator controlled powershift
Speeds	16 forward (19.00 mph max)
Brakes	wet disc hydraulically operated by foot pedal
Hydraulic Control	direct engine drive

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Engine Oil	SAE 10W40 API service classification CJ-4
Transmission	Akcela Hy-Tran Ultraction fluid

Sound Levels

Bystander	89.80 dB(A)
At No Load 4th Gear	73.20 dB(A)

Tires & Tracks

Rear Tracks	2 x 16.0 in (406 mm)
Height of Drawbar	20.50 in (520 mm)

Static Weight

Rear	23,885 lbs
Front	30,425 lbs
Total	54,310 lbs
