CaseIH Steiger 400 Rowtrac Specs

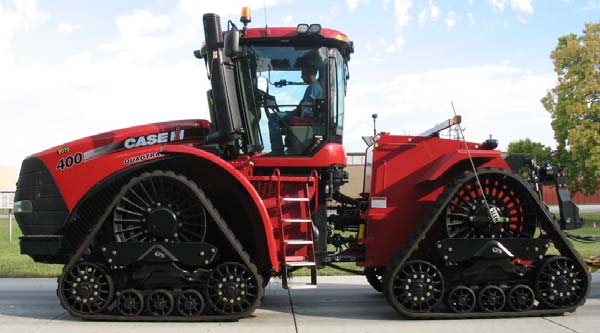

Name: CaseIH Steiger 400 Rowtrac
Brand: CaseIH

Overview

The CaseIH Steiger 400 Rowtrac is an articulated agricultural crawler tractor manufactured in Fargo, North Dakota, featuring an FPT 12.9L six-cylinder diesel engine. It is equipped with a 16-speed full power shift transmission and was listed with an original price of $388,579 in 2013.

Ideal Applications

Engine and PTO Performance: The FPT 12.9L turbocharged diesel engine is rated at 400 hp and delivered a maximum tested PTO output of 400.72 hp at 2100 RPM.

Tested Drawbar and Pull Capacity: Nebraska Tractor Test data recorded a maximum drawbar performance of 353.09 hp and a maximum pull capacity of 38,462 lbs.

Chassis and Track Configuration: This articulated crawler utilizes tracks available in widths of 16, 18, or 24 inches and features an operating weight of 55,785 lbs with a 160-inch wheelbase.

Production

Description	Agricultural Crawler tractor / Built in Fargo, North Dakota, USA / Original price was $388,579 in 2013
Manufacturer	CaseIH

Engine

Engine type	FPT 12.9L 6 -cyl diesel
Exhaust fluid (DEF)	46 gal (174.1 L)
Fuel tank	250 gal (946.2 L)
Bore/Stroke	5.315x5.906 inches (135 x 150 mm)
Cooling system	viscous fan
Description	FPT / turbocharged air-to-air aftercooled diesel / 6 -cylinder 24-valve / liquid-cooled
Displacement	787 ci (12.9 L)
Emission control	selective catalytic reduction (SCR)
Emissions	Interim Tier 4
Fuel system	electronic unit injector system
Maximum Power	440 hp (328.1 kW)
Power	400 hp (298.3 kW)
Rated RPM	2100
Starter	electric
Starter volts	12
Drawbar (tested)	306.20 hp (228.3 kW)
PTO (claimed)	340 hp (253.5 kW)
PTO (tested)	400.72 hp (298.8 kW)

Transmission

Clutch	electro-hydraulic wet disc
Gears	16 forward and 2 reverse
Transmission type	16-speed full power shift
Type	full power shift

Mechanical

Cab	Surveyor Cab standard with air-conditioning.
Description	Wet disc brakes
Drive	articulated crawler
Final drives	inboard planetary

Hydraulics

Pump flow	42 gpm (159.0 lpm)
Rear valves	4 to 8
SCV flow	35 gpm (132.5 lpm)
Type	pressure flow compensated

Hitch

Control	lower link draft sensing
Drawbar	Category 4, Swinging
Rear Arms	fixed
Rear lift (at 24"/610mm)	20000 lbs (9072 kg)
Rear Type	IVNl IIIN (optional)

PTO

Rear PTO	independent
Rear PTO Type	1000 (1.375)

Electrical

Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Flange rear axle	4.5 inch diameter (114 mm)
Front axle	Flange: 4.5 inch diameter (114 mm)
Height (cab)	151.3 inches (384 cm)
Length	315 inches (800 cm)
Max Width	144 inches (365 cm)
Min Width	96 inches (243 cm)
Wheelbase	160 inches (406 cm)

CaseIH Steiger 400 Rowtrac Tracks

Width	16 inches (40 cm) / 18 inches (45 cm) / 24 inches (60 cm)

CaseIH Steiger 400 Rowtrac Weight

Max capacity	57050 lbs (25877 kg)
Operating	55785 lbs (25304 kg)

Dimensions & Tracks

Description	16-inch tracks
Weight	51000 to 55785 pounds
Wheelbase	160 inches (406 cm)

References

Description	Steiger Rowtrac New 2013 Preview published in 2012, by CaseIH

Nebraska Tractor Test Results

Test #2070

Download PDF

Test Date: September 24 - 30, 2013

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

400.72 hp

@ 1900 rpm

Rated Engine Speed

350.21 hp

N/A lb/hp·hr

Standard PTO Speed

386.12 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	1,298 lb-ft (1,760 Nm)
Torque Rise	48.3%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	Fuel gal/hr	Fuel L/hr	DEF gal/hr	DEF L/hr
Rated Engine Speed	350.21	261.16	2100	20.04	75.87	1.39	5.27
Standard PTO Speed (1000 rpm)	386.12	287.93	1998	21.10	79.86	1.50	5.67
Maximum Power (1 Hour)	400.72	298.82	1900	21.33	80.74	1.47	5.57

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
350.21	2100	20.04	0.40	17.47	1.39
302.05	2130	18.03	0.42	16.75	1.21
227.89	2142	14.53	0.45	15.68	0.90
152.79	2154	11.11	0.51	13.75	0.60
76.85	2166	7.81	0.72	9.84	0.34
1.55	2178	4.85	22.08	0.32	0.14

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	kW	Pull (lbs)	Pull (kN)	Speed	km/h	Slip	Air °F	Air °C	Cool °F	Cool °C
Maximum Power—4th Gear	306.20	228.33	23,091	103	4.97	8.00	1.60	72	22	207	97
75% of Pull at Maximum Power—4th Gear	234.22	174.65	17,256	77	5.09	8.19	1.00	64	18	192	89
50% of Pull at Maximum Power—4th Gear	157.79	117.66	11,512	51	5.14	8.27	0.60	67	19	184	84
75% of Pull at Reduced Engine Speed—8th ...	234.36	174.76	17,187	76	5.12	8.23	1.00	65	18	184	84
50% of Pull at Reduced Engine Speed—8th ...	158.25	118.00	11,490	51	5.17	8.31	0.60	69	20	181	83

Drawbar Performance At 2100 Engine RPM

Click column headers to sort

Gear	Power	kW	Pull (lbs)	Pull (kN)	Speed	km/h	Slip	Air °F	Air °C	Cool °F	Cool °C	Barometer Inch Hg	Barometer Kpa	Engine Speed RPM	Fuel Consumption Hp Hr Gal	Fuel Consumption Kg Kw H	Fuel Consumption Kw H L	Fuel Consumption Lb Hp Hr
1st Gear	276.15	205.93	38,019	169.11	2.73	4.39	5.60	57	14	193	89	28.57	96.75	2100	14.55	0.29	2.87	0.48
2nd Gear	304.16	226.81	34,303	152.59	3.33	5.35	4.30	59	15	194	90	28.56	96.72	2100	15.06	0.28	2.97	0.47
3rd Gear	309.40	230.72	28,438	126.50	4.08	6.57	2.80	62	16	207	97	28.56	96.72	2099	15.33	0.28	3.02	0.46
4th Gear	306.20	228.33	23,091	102.71	4.97	8.00	1.60	72	22	207	97	28.55	96.68	2100	15.24	0.28	3.00	0.46
5th Gear	305.95	228.15	20,014	89.03	5.73	9.22	1.20	73	23	207	97	28.55	96.68	2099	15.22	0.28	3.00	0.46
6th Gear	306.06	228.23	18,194	80.93	6.31	10.15	1.00	76	24	206	97	28.55	96.68	2099	15.25	0.28	3.00	0.46
7th Gear	299.98	223.70	16,243	72.25	6.93	11.15	0.90	74	24	207	97	28.55	96.68	2099	14.96	0.29	2.95	0.47
8th Gear	299.60	223.41	14,742	65.58	7.62	12.26	0.80	77	25	207	97	28.55	96.68	2100	14.96	0.29	2.95	0.47
9th Gear	293.05	218.52	13,106	58.30	8.39	13.49	0.70	76	25	207	97	28.55	96.68	2100	14.59	0.29	2.87	0.48

Drawbar Performance At 1900 Engine RPM

Click column headers to sort

Gear	Power	kW	Pull (lbs)	Pull (kN)	Speed	km/h	Slip	Air °F	Air °C	Cool °F	Cool °C	Barometer Inch Hg	Barometer Kpa	Engine Speed RPM	Fuel Consumption Hp Hr Gal	Fuel Consumption Kg Kw H	Fuel Consumption Kw H L	Fuel Consumption Lb Hp Hr
1st Gear	253.06	188.71	38,462	171.09	2.47	3.98	5.90	58	14	191	88	28.57	96.75	1907	14.92	0.29	2.94	0.47
2nd Gear	298.75	222.77	37,784	168.07	2.97	4.77	5.70	60	16	206	97	28.57	96.75	1900	15.45	0.28	3.04	0.46
3rd Gear	346.42	258.32	36,033	160.28	3.61	5.80	5.10	61	16	207	97	28.56	96.72	1900	16.03	0.27	3.16	0.44
4th Gear	350.36	261.26	29,586	131.61	4.44	7.15	2.90	73	23	207	97	28.55	96.68	1900	16.22	0.26	3.20	0.43
5th Gear	351.62	262.20	25,629	114.00	5.15	8.28	2.00	73	23	208	98	28.54	96.65	1900	16.34	0.26	3.22	0.43
6th Gear	353.09	263.30	23,338	103.81	5.67	9.12	1.70	76	25	208	98	28.55	96.68	1900	16.42	0.26	3.23	0.43
7th Gear	349.31	260.48	20,986	93.35	6.25	10.05	1.30	75	24	207	97	28.55	96.68	1900	16.26	0.26	3.20	0.43
8th Gear	351.09	261.81	19,169	85.27	6.87	11.06	1.20	76	24	208	98	28.55	96.68	1900	16.35	0.26	3.22	0.43
9th Gear	348.12	259.59	17,255	76.75	7.57	12.17	1.00	75	24	208	98	28.55	96.68	1900	16.18	0.26	3.19	0.43
10th Gear	345.49	257.63	15,565	69.23	8.32	13.39	0.80	75	24	208	98	28.55	96.68	1900	16.09	0.27	3.17	0.44

Category: IVN Quick Attach: yes

Lift Capacity

Max Force 21,903 lbs

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	F.P.T. Diesel
Type	six cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	786 cu in (12880 ml)
Compression Ratio	15.5 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Crankshaft	lengthwise

Chassis

Type	Tracklayer - rubber tracked
Steering	hydrostatic and articulated
Transmission	selective gear fixed ratio with full range operator controlled powershift
Brakes	wet disc hydraulically operated by foot pedal
Hydraulic Control	direct engine drive
Unladen Tractor Mass	25,304 kg

Consumables

Fuel	No. 2 Diesel
DEF Fluid	N/A
Transmission	Hytran Ultra Action fluid

Sound Levels

Bystander	90.30 dB(A)
At No Load In 4th Gear	74.80 dB(A)

Tires & Tracks

Rear Tracks	2 x 18.0 in (455 mm)
Height of Drawbar	21.00 in (535 mm)

Static Weight

Rear	26,330 lbs
Front	29,630 lbs
Total	55,960 lbs
