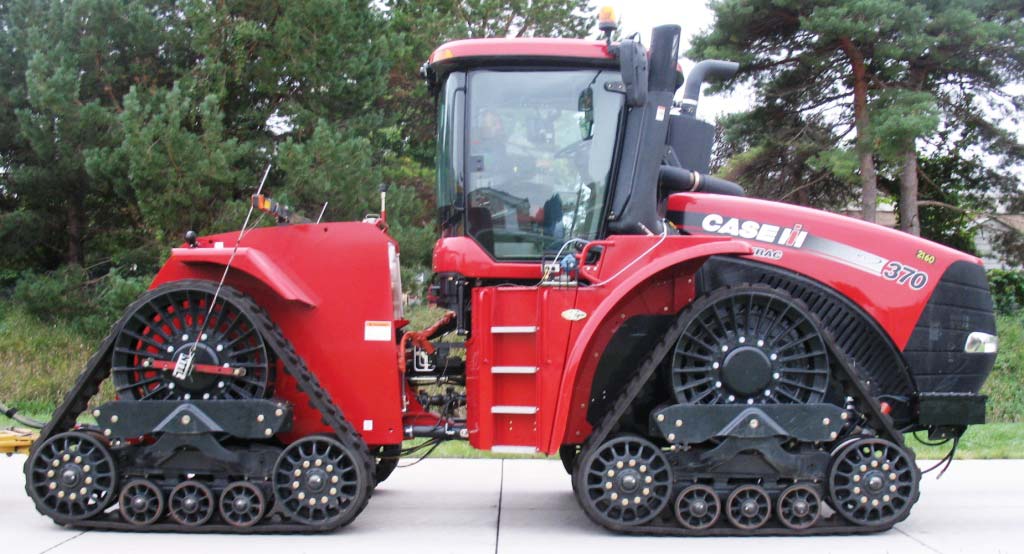

CaseIH Steiger 370 Rowtrac Specs ( 2014-Present )

Name: CaseIH Steiger 370 Rowtrac
Brand: CaseIH

Compare Tractor

Nebraska Test #2160

Case IH Steiger 370 RowTrac

Max PTO HP 364.9 hp

Max Drawbar HP 316.6 hp

Max Pull 36,644 lbs

Max Torque 1248 lb-ft

View Full Test Data →

Overview

The CaseIH Steiger 370 Rowtrac is an articulated crawler tractor powered by an 8.7L 6-cylinder FPT diesel engine, manufactured in Fargo, North Dakota since 2014. This model features a 16-speed full power shift transmission, a Category 4 drawbar, and a rear lift capacity of 20,000 lbs at 24 inches.

Ideal Applications

Tested Power Output: In Nebraska Tractor Test data, the engine achieved a maximum tested PTO output of 364.88 hp and a maximum drawbar performance of 316.65 hp with a pull of 36,644 lbs.

Hydraulic and Hitch Configuration: The tractor is equipped with a pressure flow compensated hydraulic system providing a pump flow of 40 gpm and 4 to 8 valves to support the Category IVN rear hitch.

Track and Weight Specifications: The articulated crawler configuration utilizes track widths ranging from 16 to 30 inches on a 160-inch wheelbase, with a maximum operating weight of 56,850 lbs.

Production

Description	Articulated Crawler tractor / Built in Fargo, North Dakota, USA / Original price was $381,618 in 2015
Manufacturer	CaseIH

Engine

Engine type	FPT 8.7L 6-cyl diesel
Exhaust fluid (DEF)	42 gal (159.0 L)
Fuel tank	250 gal (946.2 L)
Bore/Stroke	4.61x5.31 inches (117 x 135 mm)
Cooling system	viscous fan drive
Description	FPT / variable-geometry turbocharger air-to-air aftercooled diesel / 6-cylinder / liquid-cooled
Displacement	531 ci (8.7 L)
Emission control	selective catalytic reduction (SCR)
Emissions	Tier 4
Fuel system	electronic high pressure common rail
Maximum Power	405 hp (302.0 kW)
Power	370 hp (275.9 kW)
Rated RPM	2000
Starter	electric
Starter volts	24
PTO (claimed)	311 hp (231.9 kW)

Transmission

Gears	16 forward and 2 reverse
Transmission type	16-speed full power shift
Type	full power shift

Mechanical

Cab	Surveyor Cab standard with air-conditioning.
Description	Hydraulic wet disc brakes
Drive	articulated crawler
Final drives	planetary
Steering	hydraulic articulated
Trailer brakes	hydraulic *Optional.

Hydraulics

Pump flow	40 gpm (151.4 lpm)
SCV flow	35 gpm (132.5 lpm)
Type	pressure flow compensated
Valves	4 to 8

Hitch

Drawbar	Cat. 4
Rear Arms	quick coupler
Rear lift (at 24"/610mm)	20000 lbs (9072 kg)
Rear Type	IVN

PTO

Rear PTO	independent
Rear PTO Type	1000 *1.75 inch shaft

Electrical

Batteries	2
Battery CCA	1000
Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Description	Flange rear axle
Front axle	Flange
Height (cab)	151.3 inches (384 cm)
Length	315 inches (800 cm)
Max weight	56850 lbs (25787 kg)
Weight	42260 lbs (19169 kg)
Wheelbase	160 inches (406 cm)
Width	96 inches (minimum) (243 cm)

CaseIH Steiger 370 Rowtrac Tracks

Width	16 inches (40 cm) / 18 inches (45 cm) / 24 inches (60 cm) / 30 inches (76 cm)

Dimensions & Tracks

Description	16-inch tracks
Weight	42260 lbs (19169 kg)
Wheelbase	160 inches (406 cm)

References

Description	Steiger 370-620 Tractors published in 2014, by CaseIH

Variants

370	wheeled tractor
370RT	crawler tractor

Nebraska Tractor Test Results

Test #2160

Download PDF

Test Date: September 13 - 20, 2016

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

364.88 hp

@ 1800 rpm

Rated Engine Speed

322.13 hp

N/A lb/hp·hr

Standard PTO Speed

363.28 hp

@ 1000 rpm PTO

Torque Statistics

Maximum Torque	1248 lb-ft (1691 Nm) at 1400 rpm
Torque Rise	0.474%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM
Rated Engine Speed	322.13	240.21	2000
Standard PTO Speed (1000 rpm)	363.28	270.90	1811	1000
Maximum Power	364.88	272.09	1800

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
322.13	2000	17.02	0.37	18.92	1.87
289.15	2110	16.05	0.39	18.01	1.41
218.09	2121	12.74	0.41	17.12	1.04
146.42	2137	9.66	0.46	15.16	0.67
73.79	2149	6.62	0.63	11.14	0.39
1.20	2166	3.63	21.22	0.33	0.23

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	Pull (lbs)	Speed	Slip
Power at Rated Engine Speed—4th Gear	280.37	22,236	4.73	1.80
75% of Pull at Rated Engine Speed—4th Ge...	222.68	16,665	5.01	1.50
50% of Pull at Rated Engine Speed—4th Ge...	150.28	11,101	5.08	0.80
75% of Pull at Reduced Engine Speed—8th ...	222.89	16,659	5.02	1.50
50% of Pull at Reduced Engine Speed—8th ...	150.64	11,116	5.08	0.80

Drawbar Performance At 2000 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	DEF lb/hp	Barometer Inch Hg	Engine RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air Dry F	Temp Coolant F
1st Gear	254.07	36,644	2.60	5.50	0.05	28.78	2002	15.96	0.44	73	210
2nd Gear	279.81	32,981	3.18	3.90	0.05	28.80	2000	16.36	0.43	70	206
3rd Gear	280.12	26,935	3.90	2.40	0.05	28.78	2000	16.47	0.43	71	212
4th Gear	280.37	22,236	4.73	1.80	0.06	28.98	1999	16.47	0.43	62	210
5th Gear	276.30	19,041	5.44	1.60	0.06	28.98	2000	16.21	0.43	62	212
6th Gear	274.63	17,235	5.98	1.50	0.06	28.95	2000	16.06	0.44	63	206
7th Gear	267.81	15,290	6.57	1.40	0.06	28.95	2000	15.72	0.45	63	212
8th Gear	266.84	13,844	7.23	1.20	0.06	28.97	1999	15.63	0.45	63	205
9th Gear	261.42	12,318	7.96	1.00	0.06	28.96	1999	15.30	0.46	63	211
10th Gear	258.90	11,087	8.76	0.90	0.06	28.94	2000	15.21	0.46	63	208

Drawbar Performance At 1800 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	DEF lb/hp	Barometer Inch Hg	Engine RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air Dry F	Temp Coolant F
1st Gear	227.50	36,488	2.34	5.90	0.05	28.78	1800	16.24	0.43	74	205
2nd Gear	268.01	35,395	2.84	4.80	0.05	28.80	1802	16.55	0.42	71	211
3rd Gear	314.17	34,278	3.44	4.50	0.04	28.76	1799	16.65	0.42	72	212
4th Gear	316.65	28,195	4.21	2.80	0.04	28.80	1800	16.78	0.42	68	213
5th Gear	315.74	24,287	4.88	2.00	0.04	28.79	1800	16.78	0.42	68	214
6th Gear	315.32	22,001	5.38	1.70	0.04	28.78	1800	16.77	0.42	69	214
7th Gear	310.61	19,723	5.91	1.40	0.05	28.79	1799	16.48	0.43	69	214
8th Gear	308.44	17,795	6.50	1.20	0.05	28.80	1800	16.40	0.43	69	214
9th Gear	304.14	15,934	7.16	1.10	0.05	28.79	1800	16.15	0.43	69	214
10th Gear	303.41	14,448	7.88	1.00	0.05	28.78	1800	16.11	0.44	69	216
11th Gear	294.21	12,766	8.64	0.80	0.05	28.80	1800	15.63	0.45	69	215

Category: IVN Quick Attach: yes

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	FPT Industrial Diesel
Type	six cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	531 cu in (8704 ml)
Compression Ratio	15.9 to 1
Rated Engine Speed	2000 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	4WD with rubber tracks
Steering	hydrostatic and articulated
Transmission	selective gear fixed ratio with full range operator controlled powershift
Speeds	16 forward (19.00 mph max)
Brakes	wet disc hydraulically operated by foot pedal
Hydraulic Control	direct engine drive
Unladen Tractor Mass	24,102 kg

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Engine Oil	SAE 10W40 API service classification CJ-4
Transmission	Akcela Hy-Tran Ultraction fluid

Sound Levels

Bystander	88.00 dB(A)
At No Load In 4th Gear	73.80 dB(A)

Tires & Tracks

Rear Tracks	2 x 16.0 in (406 mm)
Height of Drawbar	21.50 in (545 mm)

Static Weight

Rear	24,060 lbs
Front	29,250 lbs
Total	53,310 lbs
