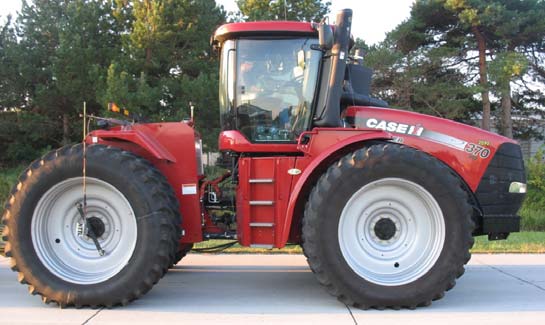

CaseIH Steiger 370 Specs ( 2014-2023 )

Name: CaseIH Steiger 370
Brand: CaseIH

Overview

The CaseIH Steiger 370 is a four-wheel drive farm tractor manufactured in Fargo, North Dakota, between 2014 and 2023. It features an FPT 8.7L 6-cylinder diesel engine rated at 370 hp, integrated with a 16-speed full power shift transmission. The platform includes a closed center load sensing hydraulic system and a Surveyor Cab with standard air-conditioning.

Ideal Applications

Tested Drawbar and PTO Performance: According to Nebraska Tractor Test 2092, this model achieved a maximum PTO power of 366.46 hp and a maximum drawbar pull of 37,765 lbs.

Engine and Emissions Configuration: The FPT diesel engine is equipped with a variable-geometry turbocharger, electronic high-pressure common rail fuel system, and selective catalytic reduction to meet Tier 4 emission standards.

Chassis and Hydraulic Capacity: This articulated 4WD tractor is built on a 148-inch wheelbase with a 42,000-lb maximum weight capacity and a hydraulic system providing a 40 gpm pump flow.

Production

Description	Built in Fargo, North Dakota, USA / Original price was $314,043 in 2015
Drive type	Four-wheel Drive (4WD) tractor
Manufacturer	CaseIH (a part of CNH)

Engine

Engine type	FPT 8.7L 6-cyl diesel
Air cleaner	two stage dry
Bore/Stroke	4.61x5.31 inches (117 x 135 mm)
Compression	15.9:1
Coolant capacity	13.2 qts (12.5 L)
Cooling system	viscous fan drive
Description	FPT / variable-geometry turbocharger air-to-air aftercooled diesel / 6-cylinder / liquid-cooled inline
Displacement	531 ci (8.7 L)
Emission control	selective catalytic reduction (SCR)
Emissions	Tier 4
Firing order	1-4-2-6-3-5
Fuel system	electronic high pressure common rail
Idle RPM	850-2350
Maximum Power	405 hp (302.0 kW)
Oil capacity	26.4 qts (25.0 L)
Power	370 hp (275.9 kW)
Rated RPM	2000
Starter	electric
Starter volts	12
Torque	1361 lb-ft (1845.5 Nm)
Torque RPM	1400
Drawbar (tested)	300.99 hp (224.4 kW)
PTO (claimed)	311 hp (231.9 kW)
PTO (tested)	366.46 hp (273.3 kW)

Transmission

Clutch	electro-hydraulic
Gears	16 forward and 2 reverse
Oil capacity	66.6 qts (63.0 L)
Transmission type	16-speed full power shift
Type	full power shift

Mechanical

Cab	Surveyor Cab standard with air-conditioning.
Description	Hydraulic wet disc brakes
Drive type	Four-wheel drive
Final drives	inboard planetary
Steering	hydraulic articulated
Trailer brakes	hydraulic OptOptional

Capacity

Exhaust fluid (DEF)	42 gal (159.0 L)
Fuel	220 gal (832.7 L)
Hydraulic system	62.5 gal (236.6 L)

Hydraulics

Capacity	62.5 gal (236.6 L)
Pump flow	40 gpm (151.4 lpm)
SCV flow	35 gpm (132.5 lpm)
Type	closed center load sensing
Valves	4 to 8

Hitch

Drawbar	Cat. 4
Rear Arms	quick coupler
Rear lift (at 24"/610mm)	20000 lbs (9072 kg)
Rear Type	IVN

PTO

Engine RPM	1000@1998 (early)
Rear PTO	independent
Rear PTO Type	1000 (1.75)

Electrical

Batteries	2
Battery CCA	1000
Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Ag front	710/70R42
Ag rear	710/70R42
Bar rear axle	4.5 by 120 inches (114 by 3048 mm) / 5.0 by 120 inches (127 by 3048 mm)
Clearance (drawbar)	17.4 inches (44 cm)
Front axle	Bar: 4.5 by 120 inches (114 by 3048 mm) / Bar: 5.0 by 120 inches (127 by 3048 mm)
Height (cab)	144.2 inches (366 cm)
Height (exhaust)	157 inches (398 cm)
Length	291 inches (739 cm)
Wheelbase	148 inches (375 cm)
Width	100.4 inches (frame) (255 cm)
Front tire	710/70R42
Rear tire	710/70R42
Weight	38469 to 38759 pounds
Wheelbase	148 inches (375 cm)

CaseIH Steiger 370 Weight

Max capacity	42000 lbs (standard) (19051 kg)
Shipping	38469 lbs (17449 kg)

OCED Tractor Test 2092

Description	Diesel 16-speed 4WDSeptember 9 - 29, 2014Link: OCED Tractor Test 2092 file / PTO performance / Drawbar performance / Gear 4 used for power test. / Gear 1 used for pull test.
Fuel use	19.2 gal/hour (72.7 l/hour) / 17.4 gal/hour (65.9 l/hour) / 19.0 gal/hour (71.9 l/hour) / 17.4 gal/hour (65.9 l/hour)
Max power	366.46 hp (273.3 kW) / 300.99 hp (224.4 kW)
Max pull	37687 lbs (17094 kg)
Power at rated engine speed	323.32 hp (241.1 kW)
Power at rated PTO speed	364.07 hp (271.5 kW)

References

Description	Steiger 370-620 Tractors published in 2014, by CaseIH

Speeds

Description	With group 47 tires.

Variants

370	wheeled tractor
370RT	crawler tractor
T9.435	similar New Holland model

Nebraska Tractor Test Results

Test #2092

Download PDF

Test Date: September 9 - 29, 2014

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

366.46 hp

@ 1800 rpm

Rated Engine Speed

323.32 hp

N/A lb/hp·hr

Standard PTO Speed

364.07 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	1,239 lb-ft (1,665 Nm)
Torque Rise	45.9%
At Engine RPM	1400 rpm

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM
Maximum Power (1 Hour)	366.46	273.27	1800

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
323.32	1999	17.37	0.38	N/A	1.90
289.74	2107	16.31	0.40	N/A	1.47
218.41	2121	12.99	0.42	N/A	1.10
147.21	2138	9.94	0.47	N/A	0.72
74.10	2152	6.79	0.64	N/A	0.41
1.92	2165	3.81	13.92	N/A	0.24

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	Pull (lbs)	Speed	RPM	Slip
Maximum Power—4th Gear	300.99	23,664	4.77	2000	3.10
75% of Pull at Maximum Power—4th Gear	241.24	17,817	5.08	2112	2.40
50% of Pull at Maximum Power—4th Gear	163.32	11,868	5.16	2130	1.50
75% of Pull at Reduced Engine Speed—8th ...	241.73	17,646	5.14	1406	2.30
50% of Pull at Reduced Engine Speed—8th ...	163.58	11,786	5.21	1414	1.50

Drawbar Performance At 2000 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	inHg	Crankshaft RPM	Fuel Lb Hp Hr	Temp Air F	Temp Coolant F
1st Gear	254.71	37,687	2.53	13.80	15.17	0.05	28.96	2095	0.46	56	203
2nd Gear	290.96	35,026	3.12	8.10	16.64	0.06	28.96	2000	0.42	53	205
3rd Gear	301.26	28,993	3.90	4.60	17.34	0.06	28.95	2000	0.41	60	212
4th Gear	300.99	23,664	4.77	3.10	17.27	0.05	28.92	2000	0.41	56	214
5th Gear	300.12	20,453	5.50	2.50	17.26	0.05	28.90	2000	0.41	55	216
6th Gear	302.68	18,733	6.06	2.30	17.36	0.05	28.91	2000	0.40	56	215
7th Gear	300.01	16,899	6.66	2.00	17.23	0.05	28.91	1999	0.41	57	215
8th Gear	300.79	15,387	7.33	1.90	17.33	0.05	28.93	2000	0.41	57	215
9th Gear	296.68	13,786	8.07	1.70	17.10	0.05	28.93	2000	0.41	62	215

Drawbar Performance At 1800 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	inHg	Crankshaft RPM	Fuel Lb Hp Hr	Temp Air F	Temp Coolant F
1st Gear	255.32	37,765	2.54	13.60	15.22	0.05	28.97	2089	0.46	58	203
2nd Gear	295.43	36,857	3.01	9.40	16.52	0.06	28.96	1959	0.43	60	213
3rd Gear	327.05	35,370	3.47	6.90	17.19	0.05	28.94	1825	0.41	61	216
4th Gear	338.29	30,123	4.21	5.10	17.60	0.05	28.94	1800	0.40	62	217
5th Gear	338.28	25,852	4.91	3.40	17.53	0.05	28.91	1799	0.40	56	217
6th Gear	341.15	23,619	5.42	3.00	17.71	0.05	28.92	1801	0.40	56	217
7th Gear	338.95	21,320	5.96	2.70	17.62	0.05	28.93	1801	0.40	57	218
8th Gear	340.90	19,480	6.56	2.40	17.72	0.05	28.93	1800	0.40	57	217
9th Gear	338.03	17,526	7.23	2.10	17.56	0.05	28.94	1800	0.40	62	216
10th Gear	339.81	15,999	7.97	1.90	17.72	0.05	28.94	1801	0.40	62	217

Category: IVN Quick Attach: yes

Lift Capacity

Max Force 21,903 lbs

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	FPT Industrial Diesel
Type	six cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	531 cu in (8704 ml)
Compression Ratio	15.9 to 1
Rated Engine Speed	2000 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) with a vertical muffler
Crankshaft	lengthwise

Chassis

Type	four wheel drive with duals
Steering	hydrostatic and articulated
Transmission	selective gear fixed ratio with full range operator controlled powershift
Speeds	16 forward (22.00 mph max)
Wheelbase	148.00 in (3759 mm)
Front Tread Width	60.0 (1524 mm) to 130.0 (3302 mm) in
Rear Tread Width	60.0 (1524 mm) to 130.0 (3302 mm) in
Brakes	wet disc hydraulically operated by foot pedal
Hydraulic Control	direct engine drive

Consumables

Fuel	No. 2 Diesel
DEF Fluid	N/A
Transmission	Akcela Hy-Tran Ultraction fluid

Tires & Tracks

Rear Tires	Four 480/95R50; ***; 9 (60)
Front Tires	Four 480/95R50; ***; 12 (85)
Height of Drawbar	20.5 in (520 mm)

Static Weight

Rear	17,280 lbs
Front	22,990 lbs
Total	40,270 lbs
