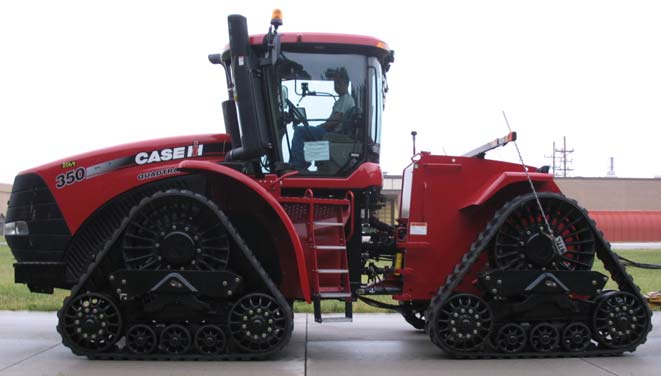

CaseIH Steiger 350 Rowtrac Specs

Name: CaseIH Steiger 350 Rowtrac
Brand: CaseIH

Overview

The CaseIH Steiger 350 Rowtrac is an articulated agricultural crawler tractor manufactured in Fargo, North Dakota, featuring an 8.7L 6-cylinder FPT diesel engine. It is equipped with a 16-speed full power shift transmission and a choice of 16, 18, or 24-inch track widths, with an original listing price of $344,973 in 2013.

Ideal Applications

Tested Engine and PTO Performance: According to Nebraska Tractor Test 2069, the engine reached a maximum of 346.42 hp at the PTO and demonstrated a fuel consumption rate of 18.0 gallons per hour during power tests.

Track and Weight Configuration: The unit operates with a 160-inch wheelbase and can be configured with tracks ranging from 16 to 24 inches, supporting a maximum operating weight of 56,850 lbs.

Hydraulic and Hitch Specifications: The tractor is equipped with a Category 4 swinging drawbar and a Pressure Flow Compensated hydraulic system providing a pump flow of 40 gpm and a rear lift capacity of 20,000 lbs.

Production

Description	Agricultural Crawler tractor / Built in Fargo, North Dakota, USA / Original price was $344,973 in 2013
Manufacturer	CaseIH

Engine

Engine type	FPT 8.7L 6-cyl diesel
Exhaust fluid (DEF)	46 gal (174.1 L)
Fuel tank	250 gal (946.2 L)
Bore/Stroke	4.61x5.31 inches (117 x 135 mm)
Cooling system	viscous fan
Description	FPT / turbocharged air-to-air aftercooled diesel / 6-cylinder 24-valve / liquid-cooled
Displacement	531 ci (8.7 L)
Emission control	selective catalytic reduction (SCR)
Emissions	Interim Tier 4
Fuel system	electronic high pressure common rail
Maximum Power	385 hp (287.1 kW)
Power	350 hp (261.0 kW)
Rated RPM	2000
Starter	electric
Starter volts	12
Drawbar (tested)	261.07 hp (194.7 kW)
PTO (claimed)	290 hp (216.3 kW)
PTO (tested)	346.42 hp (258.3 kW)

Transmission

Clutch	electro-hydraulic wet disc
Gears	16 forward and 2 reverse
Transmission type	16-speed full power shift
Type	full power shift

Mechanical

Cab	Surveyor Cab standard with air-conditioning.
Description	Wet disc brakes
Drive	articulated crawler
Final drives	inboard planetary

Hydraulics

Pump flow	40 gpm (151.4 lpm)
Rear valves	4 to 8
SCV flow	35 gpm (132.5 lpm)
Type	pressure flow compensated

Hitch

Control	lower link draft sensing
Drawbar	Category 4, Swinging
Rear Arms	fixed
Rear lift (at 24"/610mm)	20000 lbs (9072 kg)
Rear Type	IVN

PTO

Rear PTO	independent
Rear PTO Type	1000 (1.375)

Electrical

Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Flange rear axle	4.5 inch diameter (114 mm)
Front axle	Flange: 4.5 inch diameter (114 mm)
Height (cab)	151.3 inches (384 cm)
Length	315 inches (800 cm)
Max Width	144 inches (365 cm)
Min Width	96 inches (243 cm)
Wheelbase	160 inches (406 cm)

CaseIH Steiger 350 Rowtrac Tracks

Width	16 inches (40 cm) / 18 inches (45 cm) / 24 inches (60 cm)

CaseIH Steiger 350 Rowtrac Weight

Max capacity	56850 lbs (25787 kg)
Operating	51905 lbs (23544 kg)

Dimensions & Tracks

Description	16-inch tracks
Weight	50800 to 51905 pounds
Wheelbase	160 inches (406 cm)

OCED Tractor Test 2069

Description	Diesel 16-speed crawlerSeptember 16 - 24, 2013Link: OCED Tractor Test 2069 file / PTO performance / Drawbar performance / Gear 4 used for power test. / Gear 1 used for pull test.
Fuel use	18.0 gal/hour (68.1 l/hour) / 16.5 gal/hour (62.5 l/hour) / 16.5 gal/hour (62.5 l/hour) / 16.6 gal/hour (62.8 l/hour)
Max power	346.42 hp (258.3 kW) / 261.07 hp (194.7 kW)
Max pull	35234 lbs (15982 kg)
Power at rated engine speed	306.42 hp (228.5 kW)
Power at rated PTO speed	306.42 hp (228.5 kW)

References

Description	Steiger Rowtrac New 2013 Preview published in 2012, by CaseIH

Nebraska Tractor Test Results

Test #2069

Download PDF

Test Date: September 16 - 24, 2013

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

346.42 hp

@ 1800 rpm

Rated Engine Speed

306.42 hp

N/A lb/hp·hr

Standard PTO Speed

306.42 hp

@ 1001 rpm PTO

Torque Statistics

Maximum Torque	1,179 lb-ft (1,598 Nm)
Torque Rise	46.4%
At Engine RPM	1401 rpm
Torque Rise @ 1600 RPM	37%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM	Fuel gal/hr	DEF gal/hr
Rated Engine Speed	306.42	228.49	2000		16.48	1.34
Standard PTO Speed (1000 rpm)	306.42	228.49	2000	1001	16.48	1.34
Maximum Power (1 Hour)	346.42	258.32	1800		17.99	1.42

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
306.42	2000	16.48	0.38	18.60	1.34
272.69	2095	15.06	0.39	18.11	1.23
206.39	2112	12.11	0.41	17.05	0.99
138.60	2129	9.27	0.47	14.94	0.65
69.89	2145	6.60	0.66	10.60	0.45
1.50	2160	3.96	18.57	0.38	0.09

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	kW	Pull (lbs)	Pull (kN)	Speed	Slip	Air °F	Air °C
Maximum Power - 4th Gear	261.07	194.68	21,129	94	4.63	3.50	70	21
75% of Pull at Maximum Power - 4th Gear	207.30	154.58	15,802	70	4.92	2.00	76	25
50% of Pull at Maximum Power - 4th Gear	141.54	105.54	10,562	47	5.03	1.10	77	25
75% of Pull at Reduced Engine Speed - 8t...	207.92	155.04	15,829	70	4.93	2.10	76	25
50% of Pull at Reduced Engine Speed - 8t...	141.76	105.71	10,591	47	5.02	1.10	77	25

Drawbar Performance At 2000 Engine RPM

Click column headers to sort

Gear	Power	kW	Pull (lbs)	Pull (kN)	Speed	Slip	Barometer Inch Hg	Barometer Kpa	Engine Speed RPM	Fuel Consumption Hp Hr Gal	Fuel Consumption Kg Kw H	Fuel Consumption Kw H L	Fuel Consumption Lb Hp Hr	Speed Km H	Temp Air C	Temp Air F	Temp Coolant C	Temp Coolant F
1st Gear	234.55	174.90	35,234	156.73	2.50	9.20	28.55	96.68	2004	14.79	0.29	2.91	0.48	4.02	23	74	80	176
2nd Gear	255.66	190.65	31,109	138.38	3.08	6.70	28.55	96.68	2001	15.47	0.28	3.05	0.45	4.96	25	77	86	187
3rd Gear	259.54	193.54	25,599	113.87	3.81	4.60	28.55	96.68	2000	15.71	0.27	3.10	0.45	6.12	26	78	95	203
4th Gear	261.07	194.68	21,129	93.98	4.63	3.50	28.74	97.33	2000	15.75	0.27	3.10	0.45	7.45	21	70	91	195
5th Gear	260.34	194.14	18,199	80.95	5.37	2.70	28.77	97.43	2000	15.69	0.27	3.09	0.45	8.63	20	68	90	194
6th Gear	261.14	194.73	16,542	73.58	5.92	2.30	28.74	97.33	2000	15.78	0.27	3.11	0.45	9.53	21	70	90	194
7th Gear	255.63	190.62	14,702	65.40	6.52	1.80	28.71	97.22	1999	15.45	0.28	3.04	0.46	10.49	22	71	89	192
8th Gear	255.27	190.35	13,326	59.27	7.19	1.50	28.71	97.22	2000	15.43	0.28	3.04	0.46	11.56	22	72	91	196
9th Gear	249.26	185.87	11,812	52.54	7.92	1.30	28.70	97.19	1999	15.14	0.28	2.98	0.46	12.74	22	72	89	192
10th Gear	247.41	184.49	10,653	47.39	8.71	1.10	28.69	97.16	1999	15.05	0.28	2.97	0.47	14.02	24	74	91	196

Drawbar Performance At 1800 Engine RPM

Click column headers to sort

Gear	Power	kW	Pull (lbs)	Pull (kN)	Speed	Slip	Barometer Inch Hg	Barometer Kpa	Engine Speed RPM	Fuel Consumption Hp Hr Gal	Fuel Consumption Kg Kw H	Fuel Consumption Kw H L	Fuel Consumption Lb Hp Hr	Speed Km H	Temp Air C	Temp Air F	Temp Coolant C	Temp Coolant F
1st Gear	209.89	156.51	34,993	155.66	2.25	9.30	28.54	96.65	1805	15.07	0.28	2.97	0.47	3.62	23	73	79	175
2nd Gear	241.23	179.89	33,001	146.79	2.74	7.90	28.55	96.68	1800	15.53	0.28	3.06	0.45	4.41	24	75	81	178
3rd Gear	287.78	214.60	32,394	144.09	3.34	7.20	28.54	96.65	1800	15.97	0.27	3.15	0.44	5.37	26	79	96	205
4th Gear	292.76	218.31	26,888	119.60	4.08	5.60	28.74	97.33	1800	16.17	0.26	3.18	0.44	6.57	21	70	93	200
5th Gear	295.04	220.01	23,286	103.58	4.75	4.20	28.75	97.36	1799	16.29	0.26	3.21	0.43	7.64	20	68	93	200
6th Gear	297.44	221.80	21,198	94.29	5.26	3.50	28.73	97.29	1799	16.47	0.26	3.24	0.43	8.47	21	70	95	203
7th Gear	293.73	219.03	18,970	84.38	5.81	2.80	28.73	97.29	1799	16.31	0.26	3.21	0.43	9.35	21	70	94	202
8th Gear	295.47	220.33	17,274	76.84	6.42	2.30	28.71	97.22	1800	16.41	0.26	3.23	0.43	10.32	22	71	93	200
9th Gear	291.59	217.44	15,458	68.76	7.07	2.00	28.69	97.16	1799	16.27	0.26	3.21	0.43	11.38	23	73	91	196
10th Gear	291.59	217.44	14,025	62.39	7.80	1.70	28.69	97.16	1799	16.31	0.26	3.21	0.43	12.55	24	75	93	199
11th Gear	282.18	210.42	12,337	54.88	8.58	1.30	28.68	97.12	1800	15.72	0.27	3.10	0.45	13.81	24	76	94	202

Category: IVN Quick Attach: yes

Lift Capacity

Max Force 21,903 lbs

Three Outlet Sets Combined

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	N/A psi
Flow Rate (min press)	N/A gpm
Max Power	N/A hp

Engine

Make	F.P.T. Diesel
Type	six cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	531 cu in (8704 ml)
Compression Ratio	15.9 to 1
Rated Engine Speed	2000 rpm
Air Cleaner	two paper elements and aspirator
Crankshaft	lengthwise

Chassis

Type	Tracklayer - rubber tracked
Steering	hydrostatic and articulated
Transmission	selective gear fixed ratio with full range operator controlled powershift
Speeds	16 forward (21.16 mph max)
Brakes	wet disc hydraulically operated by foot pedal
Hydraulic Control	direct engine drive
Unladen Tractor Mass	51,905 lbs ( 23,544 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Transmission	Hytran Ultra Action fluid

Sound Levels

Bystander	87.50 dB(A)
At No Load In 4th Gear	74.70 dB(A)

Tires & Tracks

Rear Tracks	2 x 16.0 in (406 mm)
Height of Drawbar	21.00 in (535 mm)

Static Weight

Rear	23,925 lbs
Front	28,155 lbs
Total	52,080 lbs
