CaseIH Magnum 380 Specs ( 2014-2025 )

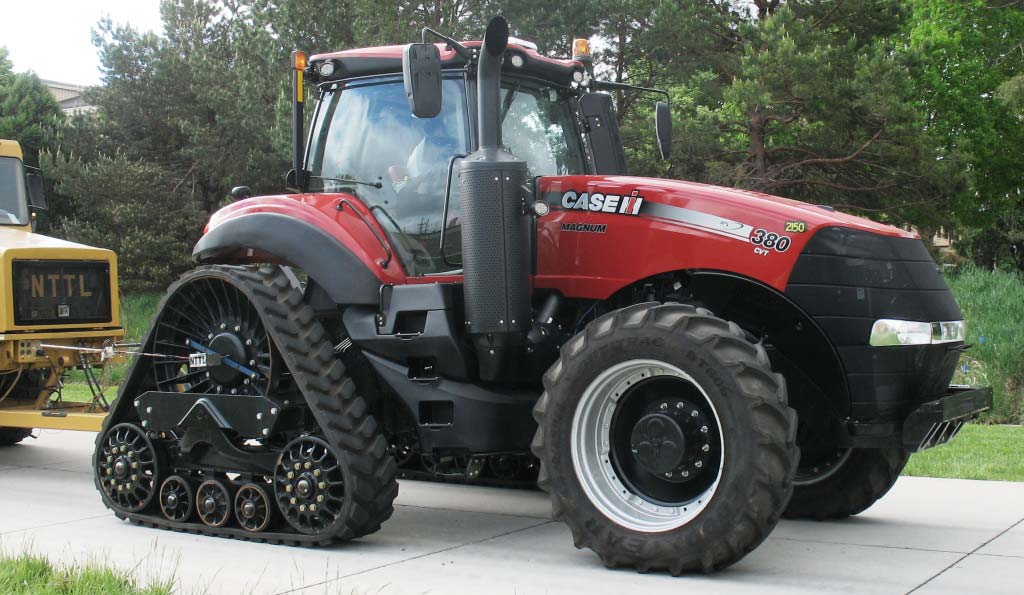

Name: CaseIH Magnum 380
Brand: CaseIH

Overview

The CaseIH Magnum 380 is a 4WD row-crop tractor produced in Racine, Wisconsin between 2014 and 2025 with an initial price of $345,180. It features an FPT 8.7L 6-cylinder diesel engine rated at 380 gross horsepower paired with a continuously variable transmission (CVT).

Ideal Applications

Tested Power and Efficiency: According to Nebraska Tractor Test data, the Magnum 380 achieved a maximum drawbar performance of 297.66 hp and recorded a maximum pull of 34,315 lbs.

Heavy-Duty Lift Capacity: The rear Type III/IVN hitch is equipped with electronic lower link draft sensing and provides a lift capacity of 19,900 lbs at 24 inches.

High-Flow Hydraulic System: This model utilizes a variable displacement pressure-flow compensating (PFC) hydraulic system with a pump flow of 44 gpm and supports 4 to 6 valves.

Production

Description	Row-Crop tractor / Built in Racine, Wisconsin, USA / Original price was $345,180 in 2014
Manufacturer	CaseIH (a part of CNH)

Engine

Engine type	FPT 8.7L 6-cyl diesel
Exhaust fluid (DEF)	26 gal (98.4 L)
Fuel tank	163 gal (617.0 L)
Bore/Stroke	4.606x5.315 inches (117 x 135 mm)
Cooling system	BorgWarner Visctronic fan
Description	FPT / wastegate turbocharger diesel / 6-cylinder 24-valve / liquid-cooled
Displacement	531 ci (8.7 L)
Emission control	selective catalytic reduction (SCR)
Emissions	Tier IV
Fuel system	electronic high pressure common rail direct injection
Maximum Power (gross)	415 hp (309.5 kW)
Rated Power (gross)	380 hp (283.4 kW)
Rated RPM	2000
Starter	electric
Starter volts	12
Drawbar (tested)	274.79 hp (204.9 kW)
Engine (gross)	380 hp (283.4 kW)
Engine (max)	415 hp (309.5 kW)
PTO (claimed)	315 hp (234.9 kW)
PTO (tested)	372.40 hp (277.7 kW)

Transmission

Description	continuously variable transmission (CVT)
Gears	infinite forward and reverse (2-range)
Type	continuously variable transmission (CVT)

Mechanical

Cab	Cab standard with air-conditioning. AFS ready
Description	Power steering / Wet disc brakes
Drive type	Four-wheel drive
Final drives	inboard planetary

Hydraulics

Pump flow	44 gpm (166.5 lpm)
Type	variable displacement pressure-flow compensating (PFC)
Valves	4 to 6

Hitch

Control	electronic lower link draft sensing
Drawbar	Cat. 4
Rear Arms	Adjustable quick coupler
Rear lift (at 24"/610mm)	19900 lbs (9026 kg)
Rear Type	III/IVN

PTO

Engine RPM	540@1800
Rear PTO	independent
Rear PTO Type	1000 (1.75)

Electrical

Batteries	2
Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Standard tires (ag)	Front: 420/8R34. Rear: 480/80R50 (duals )
Bar rear axle	4.5 by 120 inches (114 by 3048 mm)
Front axle	4WD / Suspended 4WD
Height (cab)	131.5 inches (334 cm)
Length	247 inches (627 cm)
Max weight	39200 lbs (17781 kg)
Weight	32200 lbs (14605 kg)
Wheelbase	124 inches (314 cm)
Width	120 inches (304 cm)
Front tire	420/8R34
Rear tire	480/80R50 (duals )
Weight	32200 lbs (14605 kg)
Wheelbase	124 inches (314 cm)

OCED Tractor Test 2126

Description	Diesel CVT 4WDMay 19 - June 12, 2015Link: OCED Tractor Test 2126 file / PTO performance / Drawbar performance / Pull at 9 KPH / Pull at 5.8 KPH
Fuel use	19.5 gal/hour (73.8 l/hour) / 17.1 gal/hour (64.7 l/hour) / 19.5 gal/hour (73.8 l/hour) / 17.2 gal/hour (65.1 l/hour)
Max power	372.40 hp (277.7 kW) / 274.79 hp (204.9 kW)
Max pull	29017 lbs (13162 kg)
Power at rated engine speed	320.21 hp (238.8 kW)
Power at rated PTO speed	371.45 hp (277.0 kW)

References

Description	Magnum 180-380 Tractors published in 2014, by CaseIH / Magnum 250-380 HP Tractors published in 2016, by CaseIH / Magnum Series Tractors published in 2019, by CaseIH

Variants

T8.435	similar New Holland model

Nebraska Tractor Test Results

Test #2150

Download PDF

Test Date: April 27 to May 3, 2016

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Rated Engine Speed

321.73 hp

0.37 lb/hp·hr

Standard PTO Speed

375.75 hp

@ 1000 rpm PTO

Torque Statistics

Maximum Torque	1,254 lb-ft (1,700 Nm)
Torque Rise	48.4%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM
Rated Engine Speed	321.73	239.91	2000	1124
Standard PTO Speed (1000 rpm)	375.75	280.19	1779	1000

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
321.73	2000	17.09	0.37	18.83	1.78
289.37	2116	15.98	0.39	18.11	1.45
220.07	2145	12.74	0.41	17.28	1.06
149.08	2181	9.62	0.45	15.50	0.70
75.10	2202	6.41	0.60	11.71	0.41
2.18	2218	3.45	11.09	0.63	0.18

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	Pull (lbs)	Speed	Slip	Air °F	Cool °F
Power at Rated Engine Speed—5.6 mph (9.0...	252.66	17,509	5.41	2.80	50	215
75% of Pull at Rated Engine Speed—5.6 mp...	190.67	13,056	5.48	1.70	53	196
50% of Pull at Rated Engine Speed—5.6 mp...	127.96	8,701	5.52	1.00	53	186
75% of Pull at Reduced Engine Speed—Auto...	190.53	13,059	5.47	1.70	53	193
50% of Pull at Reduced Engine Speed—Auto...	127.80	8,704	5.51	1.00	53	185

Manual Mode 2000 RPM (Unballasted)

Click column headers to sort

Setting	Power	Pull (lbs)	Speed	Slip	Barometer Inch Hg	Crank Shaft RPM	Def Consumption Lb Hp Hr	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air F	Temp Cooling F
2.40	186.96	34,131	2.06	12.60	28.80	1994	0.08	10.98	0.64	47	194
3.00	215.78	29,596	2.73	7.90	28.82	2000	0.07	12.63	0.56	48	190
3.60	233.16	25,871	3.38	5.90	28.84	2000	0.07	13.64	0.51	48	193
4.20	245.82	23,316	3.95	4.60	28.82	2000	0.07	14.43	0.49	48	201
4.70	246.60	20,719	4.46	3.70	28.67	2000	0.07	14.43	0.49	51	203
5.20	250.69	18,912	4.97	3.10	28.66	2000	0.07	14.70	0.48	50	211
5.60	252.66	17,509	5.41	2.80	28.65	2000	0.07	14.79	0.47	50	215
6.20	252.70	15,691	6.04	2.30	28.68	2000	0.07	14.81	0.47	52	215
6.80	251.42	14,130	6.67	1.90	28.72	2000	0.06	14.76	0.48	52	213
7.50	247.70	12,726	7.30	1.60	28.71	2000	0.07	14.52	0.48	53	211
8.10	242.50	11,468	7.93	1.30	28.71	2000	0.07	14.18	0.49	53	209
8.70	235.40	10,371	8.51	1.20	28.72	2000	0.07	13.83	0.51	53	205

Manual Mode 1800 RPM (Unballasted)

Click column headers to sort

Setting	Power	Pull (lbs)	Speed	Slip	Barometer Inch Hg	Crank Shaft RPM	Def Consumption Lb Hp Hr	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air F	Temp Cooling F
2.40	186.07	34,315	2.04	13.30	28.82	1989	0.09	10.81	0.65	47	190
3.00	222.27	32,418	2.58	10.70	28.84	1938	0.07	12.29	0.57	48	190
3.60	250.52	30,485	3.09	8.70	28.82	1881	0.06	13.42	0.52	48	194
4.20	271.54	28,764	3.54	7.50	28.82	1845	0.06	14.21	0.49	49	199
4.70	276.56	26,426	3.93	6.10	28.83	1802	0.06	14.13	0.50	49	203
5.20	286.02	24,468	4.39	5.10	28.66	1800	0.06	14.58	0.48	51	213
5.60	291.72	22,833	4.79	4.50	28.63	1800	0.06	14.87	0.47	50	217
6.20	295.43	20,659	5.36	3.60	28.71	1800	0.06	15.06	0.47	52	213
6.80	297.05	18,759	5.94	3.00	28.71	1800	0.05	15.17	0.46	52	214
7.50	296.31	17,075	6.51	2.60	28.73	1800	0.05	15.13	0.46	53	214
8.10	294.19	15,582	7.08	2.20	28.70	1800	0.05	15.05	0.47	53	214
8.70	289.96	14,294	7.61	1.90	28.71	1800	0.05	14.82	0.47	52	211
9.30	297.66	13,602	8.21	1.70	28.73	1800	0.05	15.22	0.46	52	219

Automatic Mode (Unballasted)

Click column headers to sort

Setting	Power	Pull (lbs)	Speed	Slip	Barometer Inch Hg	Crank Shaft RPM	Def Consumption Lb Hp Hr	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air F	Temp Cooling F
3.60	232.91	25,796	3.39	5.80	28.83	1629	0.06	14.92	0.47	48	189
4.20	246.00	23,309	3.96	4.50	28.85	1654	0.06	14.90	0.47	48	193
4.70	246.55	20,694	4.47	3.70	28.67	1637	0.06	15.27	0.46	52	197
5.20	250.64	18,913	4.97	3.20	28.66	1634	0.06	15.45	0.45	51	202
5.60	252.43	17,477	5.42	2.80	28.67	1645	0.06	15.44	0.45	50	208
6.20	252.19	15,641	6.05	2.20	28.70	1640	0.06	15.36	0.46	52	207
6.80	251.78	14,139	6.68	1.90	28.71	1659	0.06	15.19	0.46	52	206
7.50	248.20	12,738	7.31	1.60	28.72	1669	0.06	15.34	0.46	53	205
8.10	242.64	11,467	7.94	1.30	28.71	1676	0.06	15.37	0.46	53	206
8.70	235.10	10,294	8.57	1.20	28.71	1651	0.06	15.41	0.46	52	202

Engine

Make	F.P.T. Diesel
Type	six cylinder vertical with turbocharger, air to air intercooler and D.E.F. exhaust treatment
Displacement	531 cu in (8704 ml)
Compression Ratio	15.9 to 1
Rated Engine Speed	2000 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	Half track drive, front wheel assist with rear rubber tracks
Steering	hydrostatic
Transmission	Infinitely variable with four mechanical ranges and automatic shifting between ranges
Wheelbase	124.20 in (3155 mm)
Front Tread Width	68.0 (1725 mm) to 88.0 (2235 mm) in
Rear Tread Width	120.0 in
Brakes	wet disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	17,338 kg

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution

Sound Levels

Bystander	90.10 dB(A)

At No Load 4.6mph 1300rpm

At No Load 4.6mph 2210rpm

Tires & Tracks

Rear Tracks	2 x 18 in (455 mm)
Front Tires	***, 420/85R38
Height of Drawbar	21.50 in (545 mm)

Static Weight

Rear	26,750 lbs
Front	11,650 lbs
Total	38,400 lbs
