CaseIH Magnum 340 Specs ( 2011-2025 )

Name: CaseIH Magnum 340
Brand: CaseIH

Compare Tractor

Nebraska Test #2149A

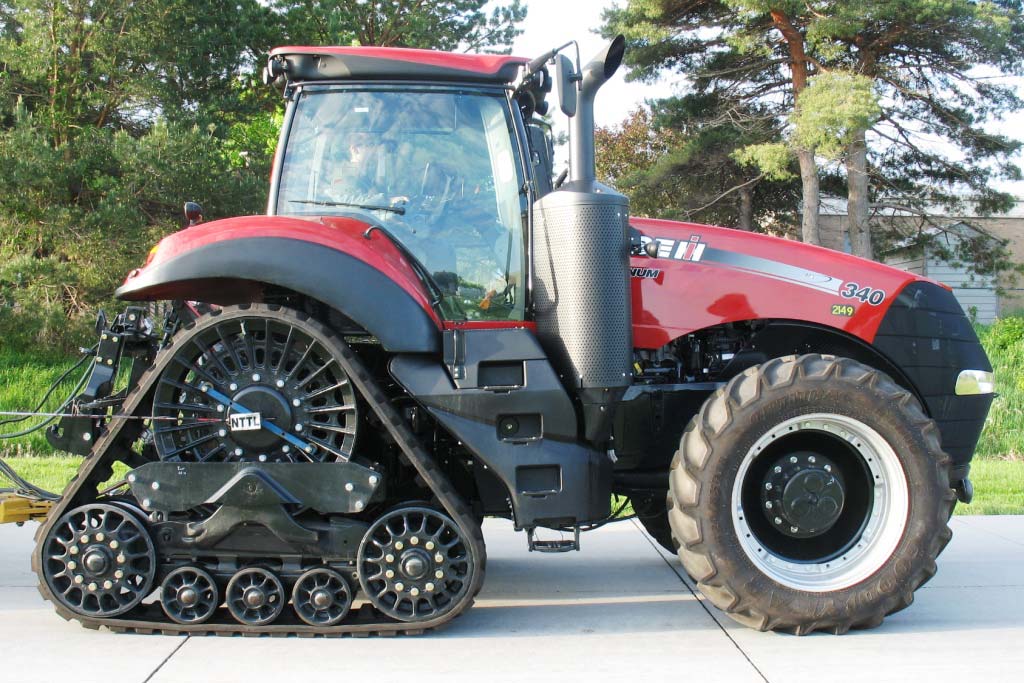

Case IH Magnum 340 RowTrac

Max PTO HP 340.2 hp

Max Drawbar HP 282.9 hp

Max Pull 33,792 lbs

View Full Test Data →

Overview

The CaseIH Magnum 340 is a row-crop tractor built in Racine, Wisconsin, between 2011 and 2025, powered by an 8.7L 6-cylinder FPT diesel engine. It features a Tier 4A emission control system using selective catalytic reduction and is equipped with a standard Magnum Surveyor cab and four-wheel drive.

Ideal Applications

Tested Power Output: Nebraska Tractor Test data recorded a maximum PTO performance of 340.17 hp and a maximum drawbar pull of 33,792 lbs.

Transmission and Hitch Configuration: This model is equipped with multiple transmission options including a 19-speed full power shift and a CVT, supported by a rear lift capacity of 17,400 lbs.

Mechanical and Hydraulic Specifications: The chassis features a 120-inch wheelbase and hydrostatic power steering, with a pressure-flow compensating hydraulic system providing a total flow of 44 gpm.

Production

Description	Row-Crop tractor / Built in Racine, Wisconsin, USA
Manufacturer	CaseIH (a part of CNH)

Engine

Engine type	FPT 8.7L 6-cyl diesel
Exhaust fluid (DEF)	23.6 gal (89.3 L)
Fuel tank	168 gal (635.9 L)
Air cleaner	dual paper elements with aspirator
Bore/Stroke	4.606x5.315 inches (117 x 135 mm)
Compression	15.9:1
Description	FPT / turbocharged diesel / 6-cylinder 24-valve / liquid-cooled
Displacement	531 ci (8.7 L)
Emission control	selective catalytic reduction (SCR)
Emissions	Tier 4A
Maximum Power (gross)	374 hp (278.9 kW)
Rated Power (gross)	340 hp (253.5 kW)
Rated RPM	2000
Starter type	electric
Drawbar (tested)	256.51 hp (191.3 kW)
Engine (gross)	340 hp (253.5 kW)
Engine (max)	374 hp (278.9 kW)
PTO (claimed)	290 hp (216.3 kW)
PTO (tested)	337.37 hp (251.6 kW)

Transmission

Clutch	electro-hydraulic wet disc
Description	The CVT transmission became available on the Magnum 340 for the 2012 model year.
Gears	19 forward and 4 reverse / 18 forward and 4 reverse / 23 forward and 4 reverse / infinite forward and reverse
Transmission	CVT
Type	full power shift / full power shift / creeper / continuously variable transmission
Description	continuously variable transmission
Transmission type	19-speed full power shift / 18-speed full power shift / 23-speed creeper
Description	continuously variable transmission
Transmission type	19-speed full power shift / 18-speed full power shift / 23-speed creeper

Mechanical

Description	Hydraulic wet disc brakes / Magnum Surveyor cab standard. Optional cab suspension.
Drive type	Four-wheel drive
Steering	hydrostatic power

Hydraulics

Rear valves	4 to 6
Total flow	44 gpm (166.5 lpm)
Type	pressure-flow compensating

Hitch

Front Hitch	optional
Front lift	9,426 lbs (4275 kg)
Rear lift	17,400 lbs (109cm links) (7892 kg)
Rear Type	4/3

PTO

Engine RPM	540@1804
Front PTO	independent OptOptional
Front PTO Type	1000 (1.375)
Rear PTO	independent
Rear PTO Type	1000 (1.75)

Electrical

Batteries	2
Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Front tread	60 to 88 inches (152 to 223 cm)
Height	133 inches (337 cm)
Length	253.1 inches (642 cm)
Min Width	100.4 inches (255 cm)
Rear axle	4.5 by 120 inches (114 by 3048 mm)
Rear tread	57.9 to 90.3 inches (147 to 229 cm)
Weight	28,230 lbs (12805 kg)
Wheelbase	120 inches (304 cm)
Weight	28,230 lbs (12805 kg)
Wheelbase	120 inches (304 cm)

Magnum 340 Serial Number Location

Description	Serial number plate on the right side of the tractor frame, above the front axle.

OCED Tractor Test 2006

Description	Diesel 18-speed 4WDOctober 20 - 27, 2011Link: OCED Tractor Test 2006 file / PTO performance / Drawbar performance / Gear 8 used for power test. / Gear 3 used for pull test.
Fuel use	16.8 gal/hour (63.6 l/hour) / 15.3 gal/hour (57.9 l/hour) / 17.2 gal/hour (65.1 l/hour) / 15.4 gal/hour (58.3 l/hour)
Max power	337.37 hp (251.6 kW) / 256.51 hp (191.3 kW)
Max pull	37,317 lbs (16926 kg)
Power at rated engine speed	295.02 hp (220.0 kW)
Power at rated PTO speed	331.45 hp (247.2 kW)

References

Description	Magnum Series Tractors published in 2011, by CaseIH / Magnum Series Tractors New 2011 Preview published in 2010, by CaseIH

Nebraska Tractor Test Results

Test #2149A

Download PDF

Test Date: April 19 to May 2, 2016

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

340.17 hp

@ 1800 rpm

Rated Engine Speed

302.71 hp

N/A lb/hp·hr

Standard PTO Speed

340.17 hp

@ 998 rpm PTO

Torque Statistics

Maximum Torque	1154 lb.-ft. (1565 Nm) at 1400 rpm
Torque Rise	45.2%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM	DEF gal/hr
Rated Engine Speed	302.71	225.73	2000	1109	1.90
Standard PTO Speed (1000 rpm)	340.17	253.66	1800	998	2.03
Maximum Power	340.17	253.66	1800		2.03

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
302.71	2000	15.60	0.36	19.41	1.90
271.97	2115	14.53	0.37	18.72	1.60
207.34	2148	11.72	0.40	17.70	1.07
140.18	2178	8.80	0.44	15.93	0.68
71.35	2213	5.91	0.58	12.07	0.41
0.86	2227	2.96	24.28	0.29	0.33

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	Pull (lbs)	Speed	Slip	inHg
Power at Rated Engine Speed - 7th Gear	251.58	18,957	4.98	3.50	28.63
75% of Pull at Rated Engine Speed - 7th ...	204.52	14,258	5.38	2.00	28.68
50% of Pull at Rated Engine Speed - 7th ...	140.34	9,513	5.53	1.10	28.69
75% of Pull at Reduced Engine Speed - 10...	204.18	14,310	5.35	2.00	28.68
50% of Pull at Reduced Engine Speed - 10...	140.37	9,477	5.55	1.10	28.69

Drawbar Performance At 1800 Engine RPM (Unballasted)

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	DEF lb/hp	inHg	Engine RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air Dry F	Temp Coolant F
3rd	229.15	33,792	2.55	13.60	0.07	28.85	2012	14.45	0.49	47	199
4th	243.89	32,017	2.86	11.90	0.07	28.89	1933	14.86	0.47	52	209
5th	259.83	30,056	3.25	10.10	0.07	28.90	1873	15.29	0.46	55	210
6th	269.40	27,652	3.65	8.10	0.07	28.92	1800	15.74	0.45	57	209
7th	281.20	24,041	4.39	5.40	0.06	28.63	1800	16.37	0.43	55	210
8th	282.85	20,790	5.10	4.10	0.06	28.63	1800	16.50	0.43	55	210
9th	282.45	17,804	5.95	2.90	0.06	28.64	1800	16.48	0.43	57	210
10th	280.96	15,333	6.87	2.30	0.06	28.64	1800	16.42	0.43	57	210
11th	277.95	13,156	7.92	1.70	0.06	28.66	1799	16.22	0.43	58	209
12th	273.34	11,235	9.12	1.40	0.06	28.66	1799	15.98	0.44	58	210

Maximum Power In Selected Gears (Unballasted)

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	DEF lb/hp	inHg	Engine RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air Dry F	Temp Coolant F
3rd	227.94	33,754	2.54	13.90	0.07	28.85	2010	14.41	0.49	47	202
4th	239.04	29,275	3.06	8.80	0.07	28.90	2000	15.22	0.46	51	208
5th	244.49	25,419	3.61	6.30	0.07	28.92	1999	15.59	0.45	54	206
6th	246.30	21,893	4.22	4.50	0.07	28.63	1999	15.73	0.45	55	209
7th	251.58	18,957	4.98	3.50	0.07	28.63	2000	16.11	0.44	55	209
8th	249.20	16,245	5.75	2.70	0.07	28.63	2000	15.88	0.44	55	209
9th	247.25	13,888	6.68	2.00	0.07	28.64	2000	15.82	0.44	57	209
10th	244.25	11,905	7.70	1.50	0.07	28.64	2000	15.58	0.45	57	209
11th	239.46	10,142	8.86	1.20	0.07	28.66	1999	15.25	0.46	58	210

Category: 4N Quick Attach: Yes

Lift Capacity

Max Force 20,012 lbs

Three Outlet Sets Combined

Sustained Pressure	2,814 psi
Delivery Pressure	2,608 psi
Flow Rate (min press)	44.20 gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	2,803 psi
Delivery Pressure	2,250 psi
Flow Rate (min press)	42.60 gpm
Max Power	N/A hp

Hitch Dimensions (No Load)

Dimension	Inches	mm
a	29.70	755
b	20.50	520
c	22.90	581
d	23.40	595
e	13.20	336
f	11.60	295
g	33.80	860
h	0.80	20
i	20.90	530
j	22.20	565
k	30.20	768
l	53.10	1350
m	27.20	691
n	38.20	970
o	10.40	265
p	49.80	1265
q	42.30	1075
r	40.70	1035

Engine

Make	F.P.T. Diesel
Type	six cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	531 cu in (8704 ml)
Compression Ratio	15.9 to 1
Rated Engine Speed	2000 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	Half track drive, front wheel assist with rear rubber tracks
Steering	hydrostatic
Transmission	selective gear fixed ratio with full range operator controlled powershift
Wheelbase	124.20 in (3155 mm)
Rear Tread Width	120.0 in
Brakes	wet disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	16,406 kg

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Engine Oil	SAE 10W40 API CJ-4

Sound Levels

Bystander	89.30 dB(A)

At No Load In 6th Gear

Tires & Tracks

Rear Tracks	2 x 18 in (455 mm)
Front Tires	Two 420/85R38; ***; 17 (115) psi (kPa)
Height of Drawbar	22.5 in (570 mm)
Ballast	Tested without ballast

Static Weight

Rear	26,685 lbs
Front	9,660 lbs
Total	36,345 lbs
