CaseIH Magnum 310 Specs ( 2014-2025 )

Name: CaseIH Magnum 310
Brand: CaseIH

Compare Tractor

Nebraska Test #2148

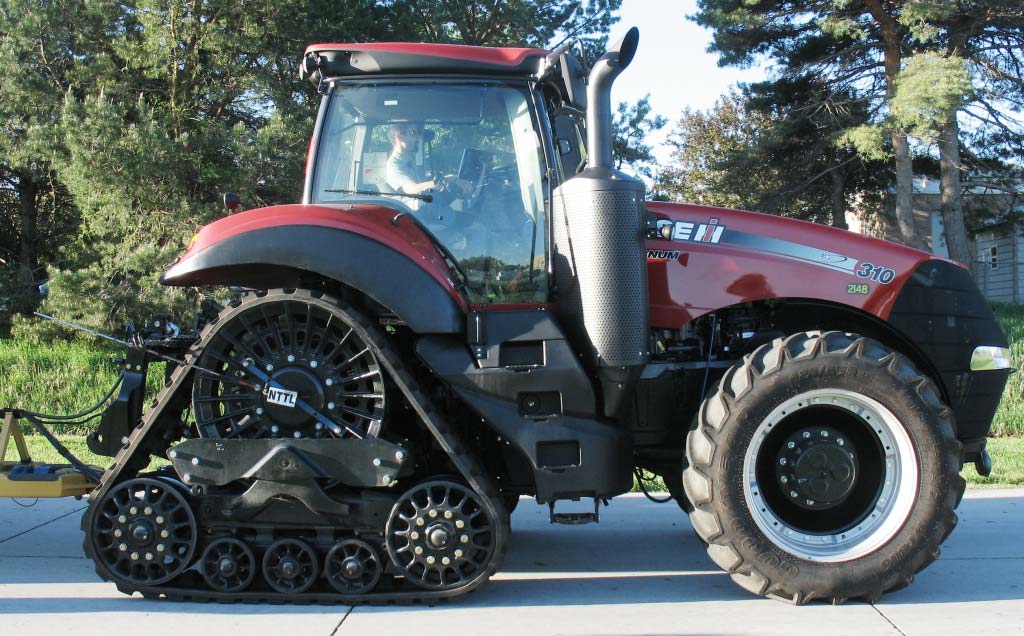

CASE IH MAGNUM 310 ROWTRAC

Max PTO HP 317.7 hp

Max Drawbar HP 262.5 hp

Max Pull 32,087 lbs

Max Torque 1077 lb-ft

View Full Test Data →

Overview

The CaseIH Magnum 310 is a row-crop tractor manufactured in Racine, Wisconsin, between 2014 and 2025. It is equipped with an FPT 8.7L 6-cylinder diesel engine rated at 310 hp and offers transmission configurations including full power shift and continuously variable transmission (CVT).

Ideal Applications

Tested Power and Pulling Capacity: In Nebraska Tractor Test data, the model achieved a maximum tested PTO output of 317.66 hp and a maximum drawbar pull of 32,087 lbs.

Engine and Emission Specifications: The Tier IV compliant FPT engine features selective catalytic reduction (SCR), a wastegate turbocharger, and a 179-gallon fuel tank for power shift models.

Hydraulic and Hitch Configuration: This tractor features a pressure-flow compensating (PFC) hydraulic system with 44 gpm pump flow and a Category III/IIIN rear hitch rated for 15,900 lbs of lift.

Production

Description	Row-Crop tractor / Built in Racine, Wisconsin, USA
Manufacturer	CaseIH (a part of CNH)
Original price	$275,312 (2014 Power Shift )

Engine

Engine type	FPT 8.7L 6-cyl diesel
Exhaust fluid (DEF)	26 gal (98.4 L)
Fuel tank	179 gal (power shift) (677.5 L)
Bore/Stroke	4.606x5.315 inches (117 x 135 mm)
Cooling system	BorgWarner Visctronic fan
Description	FPT / wastegate turbocharger diesel / 6-cylinder 24-valve / liquid-cooled
Displacement	531 ci (8.7 L)
Emission control	selective catalytic reduction (SCR)
Emissions	Tier IV
Fuel system	electronic high pressure common rail direct injection
Maximum Power	345 hp (257.3 kW)
Maximum Power (gross)	345 hp (257.3 kW)
Rated Power (gross)	310 hp (231.2 kW)
Rated RPM	2000
Starter	electric
Starter volts	12
Torque	1109 lb-ft (1503.8 Nm)
Torque RPM	1400
Drawbar (tested)	234.51 hp (174.9 kW)
Engine (gross)	310 hp (231.2 kW)
Engine (max)	345 hp (257.3 kW)
PTO (claimed)	265 hp (197.6 kW)
PTO (tested)	313.71 hp (233.9 kW)

Transmission

Clutch	electro-hydraulic wet disc / electro-hydraulic wet disc
Gears	19 forward and 4 reverse / 18 forward and 4 reverse / infinite forward and reverse (2-range)
Type	full power shift / full power shift / continuously variable transmission (CVT)
Description	continuously variable transmission (CVT)
Transmission type	19-speed full power shift / 18-speed full power shift
Description	continuously variable transmission (CVT)
Transmission type	19-speed full power shift / 18-speed full power shift

Mechanical

Cab	Cab standard with air-conditioning. AFS ready
Description	Power steering / Wet disc brakes
Drive type	Four-wheel drive
Final drives	inboard planetary
Steering	hydrostatic power

Hydraulics

Pump flow	44 gpm (166.5 lpm)
Type	variable displacement pressure-flow compensating (PFC)
Valves	4 to 6

Hitch

Control	electronic lower link draft sensing
Drawbar	Cat. 3
Rear Arms	Adjustable quick coupler
Rear lift (at 24"/610mm)	15900 lbs (7212 kg)
Rear Type	III/IIIN

PTO

Engine RPM	540@1800
Rear PTO	independent
Rear PTO Type	1000 (1.75)

Electrical

Batteries	2
Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Standard tires (ag)	Front: 420/8R34. Rear: 480/80R50 (duals )
Bar rear axle	4.5 by 120 inches (114 by 3048 mm)
Description	Bar rear axle
Front axle	4WD / Suspended 4WD
Height	128.5 inches (326 cm)
Height (cab)	131.5 inches (334 cm)
Length	247 inches (627 cm)
Max weight	34500 lbs (15649 kg)
Shipping weight	20670 lbs (9375 kg)
Weight	28800 lbs (13063 kg)
Wheelbase	120 inches (304 cm)
Width	120 inches (304 cm)
Front tire	420/8R34
Rear tire	480/80R50 (duals )
Weight	28800 lbs (13063 kg)
Wheelbase	120 inches (304 cm)

OCED Tractor Test 2124

Description	Diesel 19-speed 4WDSeptember 4 - 17, 2015Link: OCED Tractor Test 2124 file / PTO performance / Drawbar performance / Gear 7 used for power test. / Gear 5 used for pull test.
Fuel use	16.0 gal/hour (60.6 l/hour) / 14.5 gal/hour (54.9 l/hour) / 16.0 gal/hour (60.6 l/hour) / 14.5 gal/hour (54.9 l/hour)
Max power	313.71 hp (233.9 kW) / 234.51 hp (174.9 kW)
Max pull	24097 lbs (10930 kg)
Power at rated engine speed	274.72 hp (204.9 kW)
Power at rated PTO speed	313.71 hp (233.9 kW)

References

Description	Magnum 180-380 Tractors published in 2014, by CaseIH / Magnum 250-380 HP Tractors published in 2016, by CaseIH / Magnum Series Tractors published in 2019, by CaseIH

Variants

T8.380	similar New Holland model

Nebraska Tractor Test Results

Test #2148

Download PDF

Test Date: April 21 to May 3, 2016

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

317.66 hp

@ 1800 rpm

Rated Engine Speed

275.92 hp

N/A lb/hp·hr

Standard PTO Speed

317.66 hp

@ 998 rpm PTO

Torque Statistics

Maximum Torque	1077 lb-ft (1565 Nm) at 1399 rpm
Torque Rise	48.7%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM	Fuel gal/hr	Fuel L/hr	DEF gal/hr	DEF L/hr
Rated Engine Speed	275.92	205.75	2000	1109	14.40	54.52	1.52	5.74
Standard PTO Speed (1000 rpm)	317.66	236.88	1800	998	16.01	60.61	1.73	6.55
Maximum Power	317.66	236.88	1800		16.01	60.61	1.73	6.55

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
275.92	2000	14.40	0.37	19.16	1.52
246.84	2103	13.34	0.38	18.50	1.30
189.52	2153	10.86	0.40	17.45	0.88
127.26	2172	8.05	0.44	15.80	0.61
64.84	2210	5.43	0.59	11.93	0.36
1.51	2225	3.07	14.23	0.49	0.13

Drawbar Performance At 1800 Engine RPM (Unballasted) Front Drive Engaged Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	DEF lb/hp	Barometer Inch Hg	Crankshaft RPM	Fuel Lb Hp Hr	Temp Air F	Temp Cooling F
2nd Gear	192.77	32,066	2.26	14.50	13.91	0.07	28.89	2069	0.50	53	203
3rd Gear	208.74	31,386	2.50	14.10	14.20	0.07	28.45	1977	0.49	55	215
4th Gear	225.06	29,549	2.86	11.80	14.69	0.06	28.44	1921	0.48	56	215
5th Gear	240.61	27,449	3.29	9.30	15.24	0.06	28.44	1875	0.46	56	215
6th Gear	249.91	25,512	3.68	8.00	15.57	0.06	28.45	1800	0.45	63	213
7th Gear	260.34	22,174	4.40	5.40	16.21	0.06	28.44	1800	0.43	57	214
8th Gear	262.46	19,235	5.12	4.20	16.32	0.06	28.45	1800	0.43	59	213
9th Gear	261.69	16,464	5.96	3.10	16.27	0.06	28.45	1800	0.43	60	213
10th Gear	259.59	14,137	6.89	2.50	16.18	0.06	28.45	1800	0.43	60	214
11th Gear	256.90	12,133	7.94	1.90	16.03	0.06	28.47	1800	0.44	61	214
12th Gear	250.10	10,247	9.15	1.50	15.61	0.06	28.45	1801	0.45	62	213

Unballasted Front Drive Engaged Fuel Consumption Characteristics

Click column headers to sort

Power	Pull (lbs)	Speed	RPM	Slip	DEF lb/hp	Air °F	Cool °F	Barometer Inch Hg	Condition	Fuel Hp Hr Gal	Fuel Lb Hp Hr
227.28	17,057	5.00	2000	3.40	0.06	56	213	28.44	Power at Rated Engine Speed—7th Gear	15.77	0.44
183.07	12,796	5.37	2122	2.20	0.05	66	206	28.44	75% of Pull at Rated Engine Speed—7th Gear	14.67	0.48
125.58	8,527	5.52	2164	1.30	0.05	69	205	28.46	50% of Pull at Rated Engine Speed—7th Gear	12.85	0.55
183.01	12,772	5.37	1606	2.20	0.05	67	196	28.45	75% of Pull at Reduced Engine Speed—9th Gear	15.91	0.44
125.87	8,543	5.53	1636	1.30	0.05	70	208	28.43	50% of Pull at Reduced Engine Speed—9th Gear	14.40	0.49

Unballasted Front Drive Engaged Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	DEF lb/hp	Barometer Inch Hg	Crankshaft RPM	Fuel Hp Hr Gal	Fuel Lb Hp Hr	Temp Air F	Temp Cooling F
2nd Gear	192.33	32,087	2.25	14.80	0.07	28.88	2068	13.90	0.50	53	205
3rd Gear	208.17	30,316	2.58	12.30	0.06	28.41	1998	14.41	0.49	55	215
4th Gear	217.27	26,220	3.11	7.80	0.06	28.46	1999	15.05	0.47	56	214
5th Gear	217.98	22,431	3.65	5.70	0.06	28.46	2000	15.13	0.46	63	214
6th Gear	222.86	19,701	4.24	4.30	0.06	28.44	2000	15.47	0.45	57	214
7th Gear	227.28	17,057	5.00	3.40	0.06	28.44	2000	15.77	0.44	56	213
8th Gear	224.72	14,593	5.78	2.60	0.06	28.47	2000	15.63	0.45	58	213
9th Gear	220.40	12,339	6.70	2.00	0.06	28.47	1999	15.29	0.46	59	213
10th Gear	217.44	10,570	7.72	1.60	0.06	28.47	1999	15.02	0.47	60	213
11th Gear	213.17	9,001	8.88	1.30	0.06	28.47	2000	14.79	0.47	61	211

Engine

Make	F.P.T. Diesel
Type	six cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	531 cu in (8704 ml)
Compression Ratio	15.9 to 1
Rated Engine Speed	2000 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	Half track drive, front wheel assist with rear rubber tracks
Steering	hydrostatic
Transmission	selective gear fixed ratio with full range operator controlled powershift
Speeds	17 forward (19.01 mph max)
Wheelbase	124.20 in (3155 mm)
Rear Tread Width	87.0 in
Brakes	wet disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Engine Oil	SAE 10W40 API service classification CJ-4

Sound Levels

Bystander	87.80 dB(A)
Disengaged 6th Gear	67.20 dB(A)
Engaged 6th Gear	67.30 dB(A)

Tires & Tracks

Rear Tracks	2 x 18 in (455 mm)
Front Tires	Two 420/85R38; ***; 20 (140) psi(kPa)
Height of Drawbar	22.5 in (570 mm)

Static Weight

Rear	25,405 lbs
Front	10,630 lbs
Total	36,035 lbs
